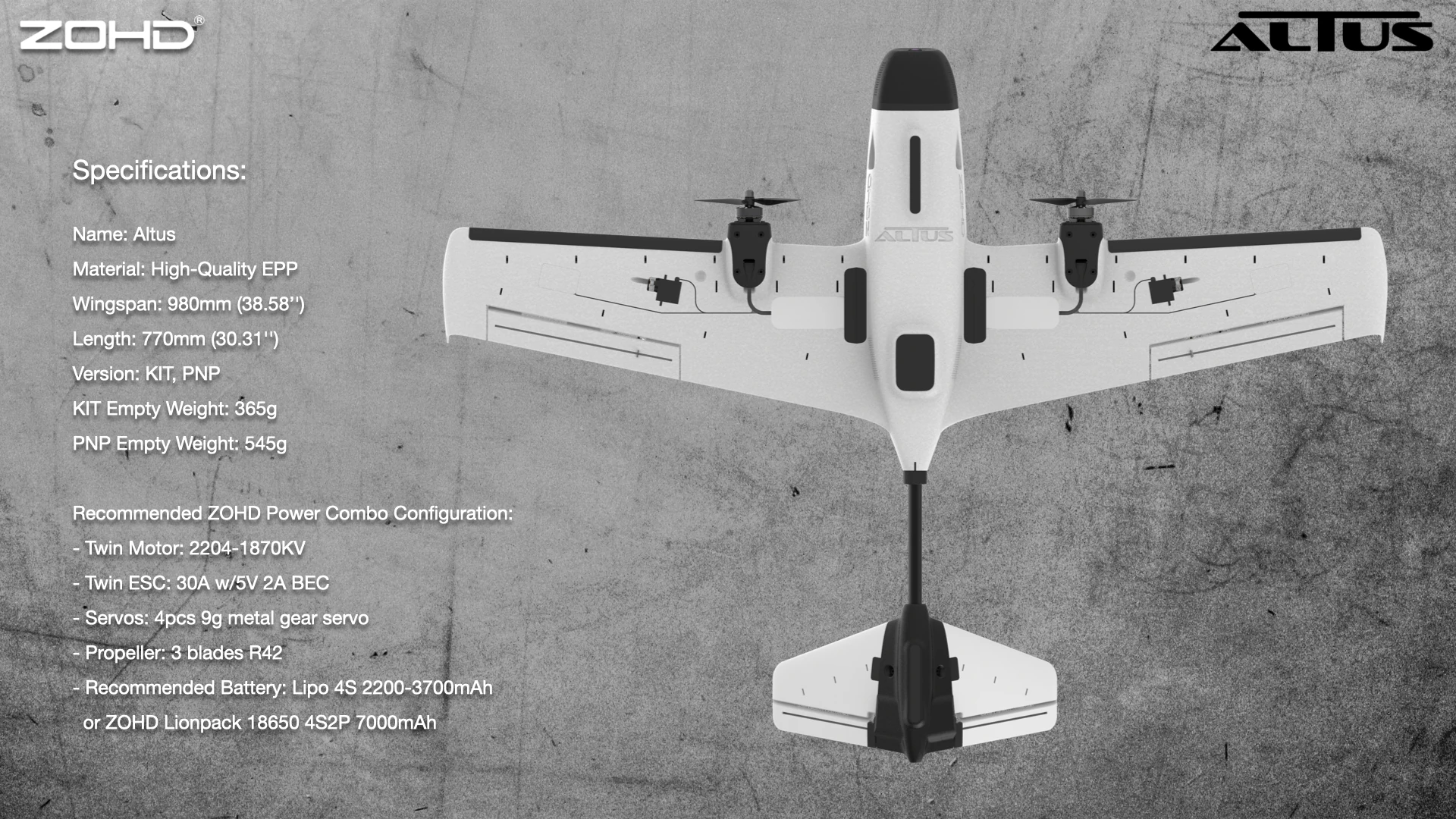

Specifications:

Brand Name: ZOHD

Item Name: Altus

Material: High-quality EPP

Wingspan: 980mm (38.58")

Length: 770mm (30.31")

Version: KIT, PNP (optional)

KIT Empty Weight: 365g

PNP Empty Weight: 545g

Recommended ZOHD Power Combo Configuration(Not Included):

- Twin Motor: 2204-1870KV

- Twin ESC: 30A w/5V 2A BEC

- Servos: 4pcs 9g metal gear servo

- Propeller: 3 blades R42

- Recommended Battery: Lipo 4S 2200-3700mAh or ZOHD Lionpack 18650 4S2P 7000mAh.

- Radio System: 2.4GHz 6CH

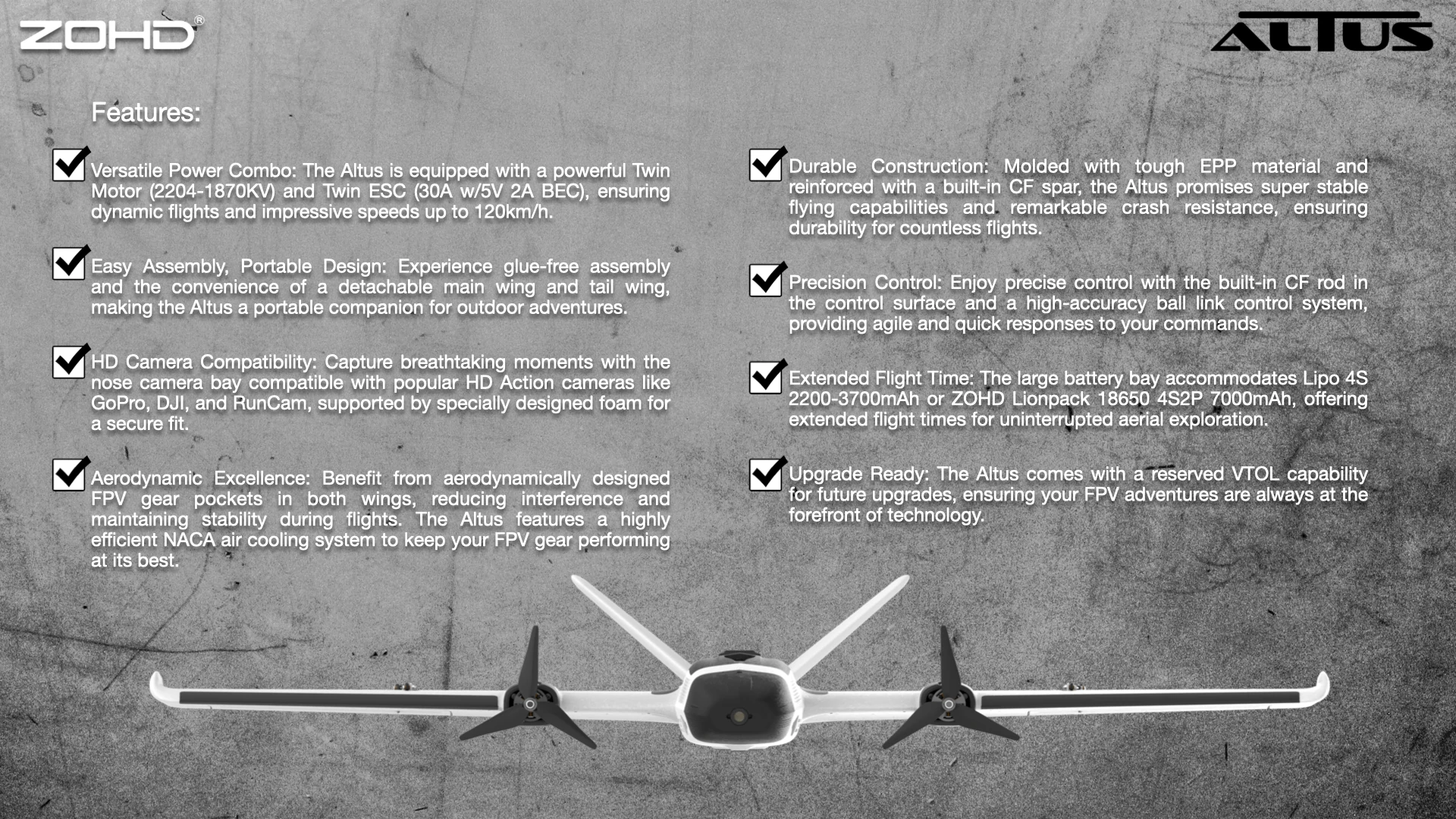

Features:

- Versatile Power Combo: The Altus is equipped with a powerful Twin Motor (2204-1870KV and Twin ESC (30A w/5V 2A BEC), ensuring dynamic flights and impressive speeds up to 120km/h.

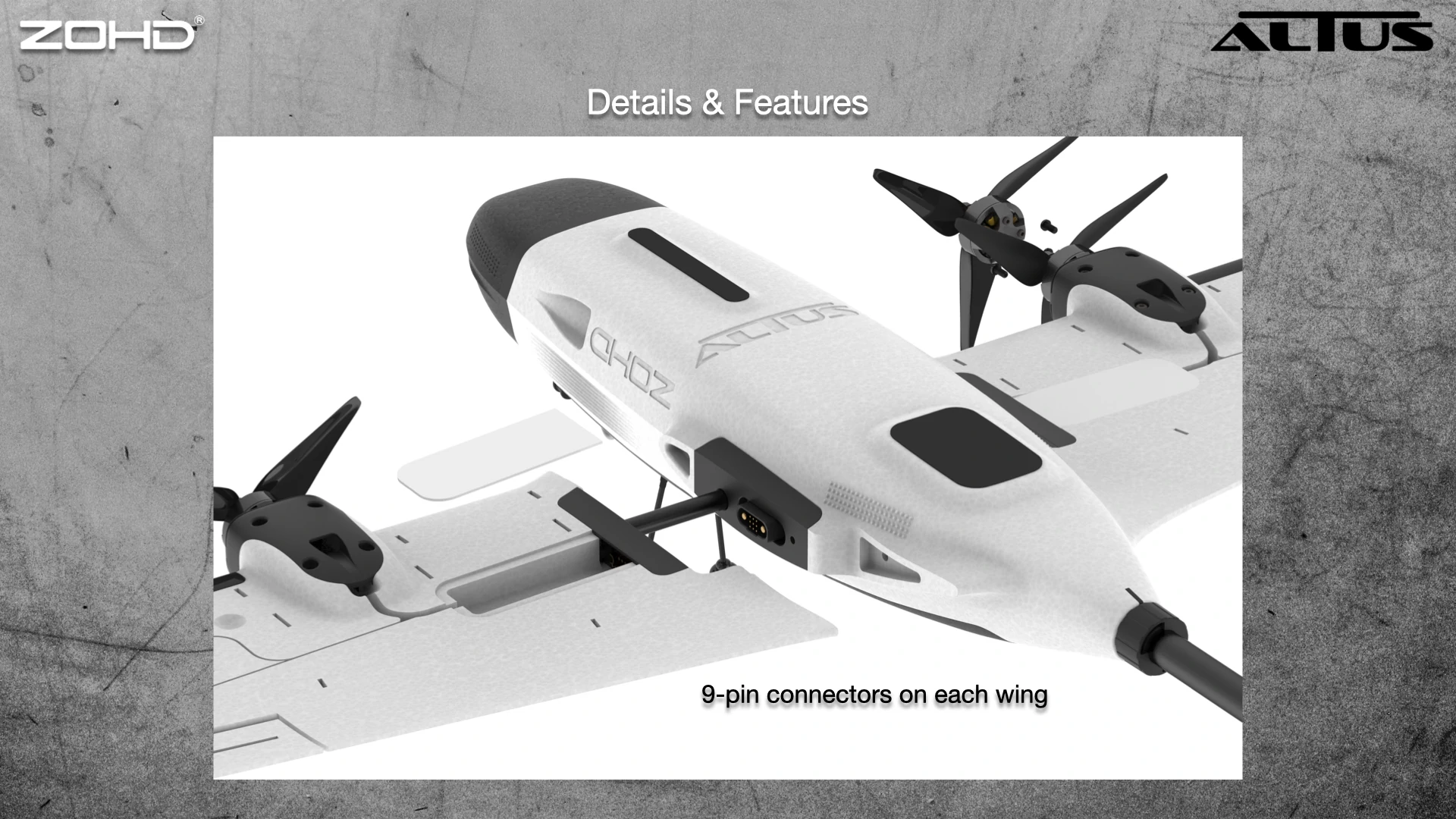

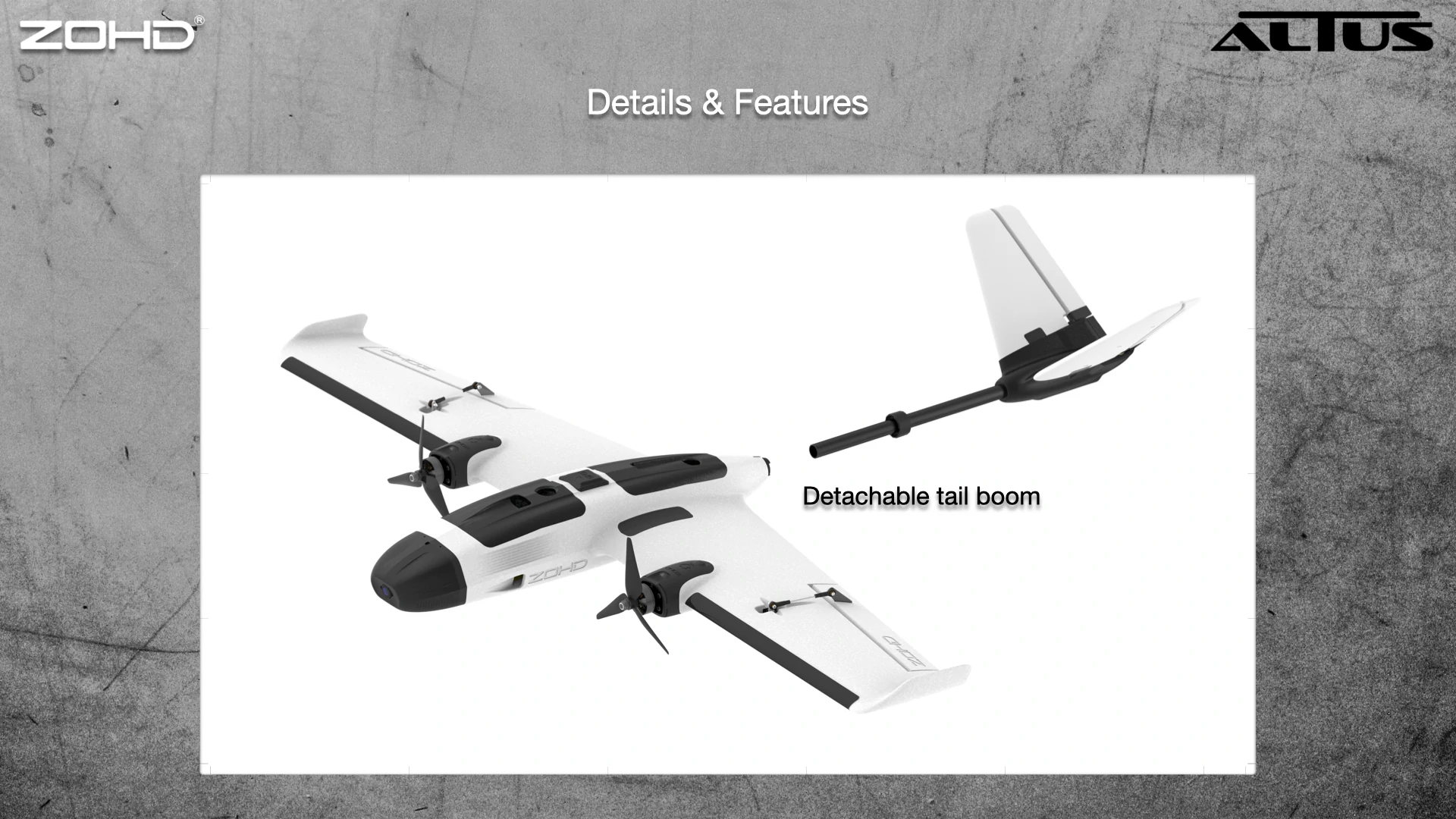

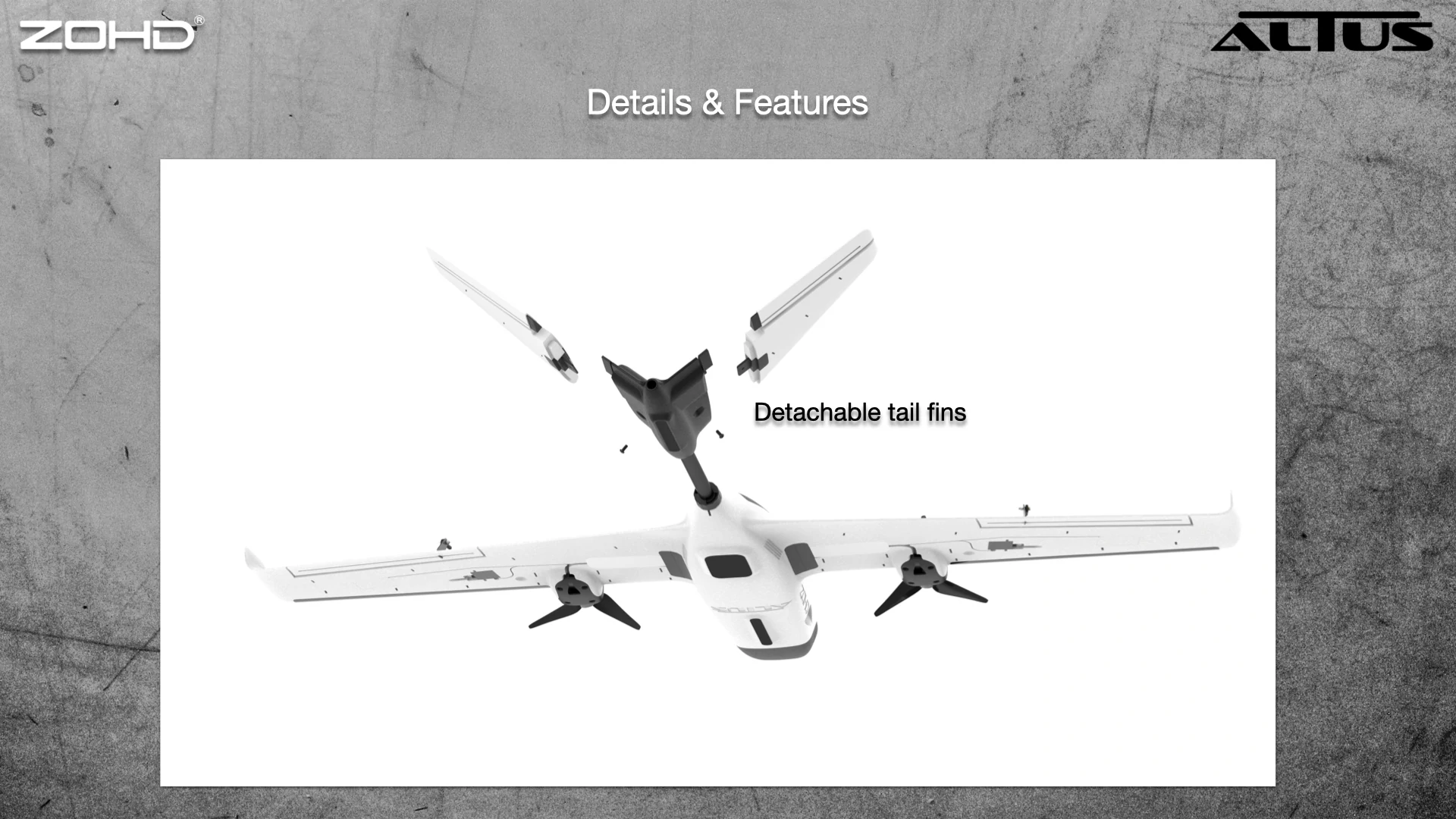

- Easy Assembly, Portable Design: Experience glue-free assembly and the convenience of a detachable main wing and tail wing, making the Altus a portable companion for outdoor adventures.

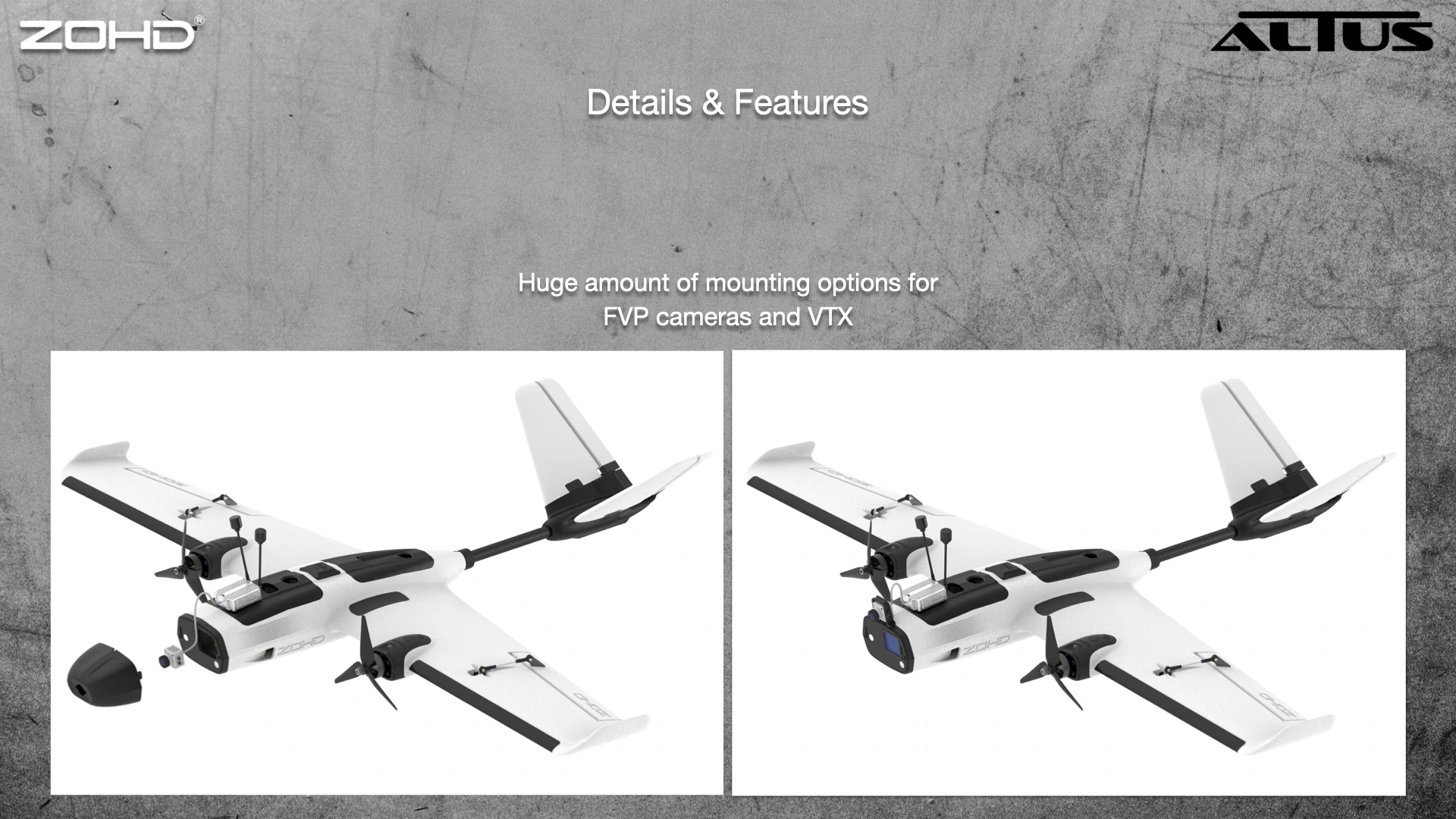

- HD Camera Compatibility: Capture breathtaking moments with the nose camera bay compatible with popular HD Action cameras, compatible with GoPro, DJI, and RunCam, supported by specially designed foam for a secure fit.

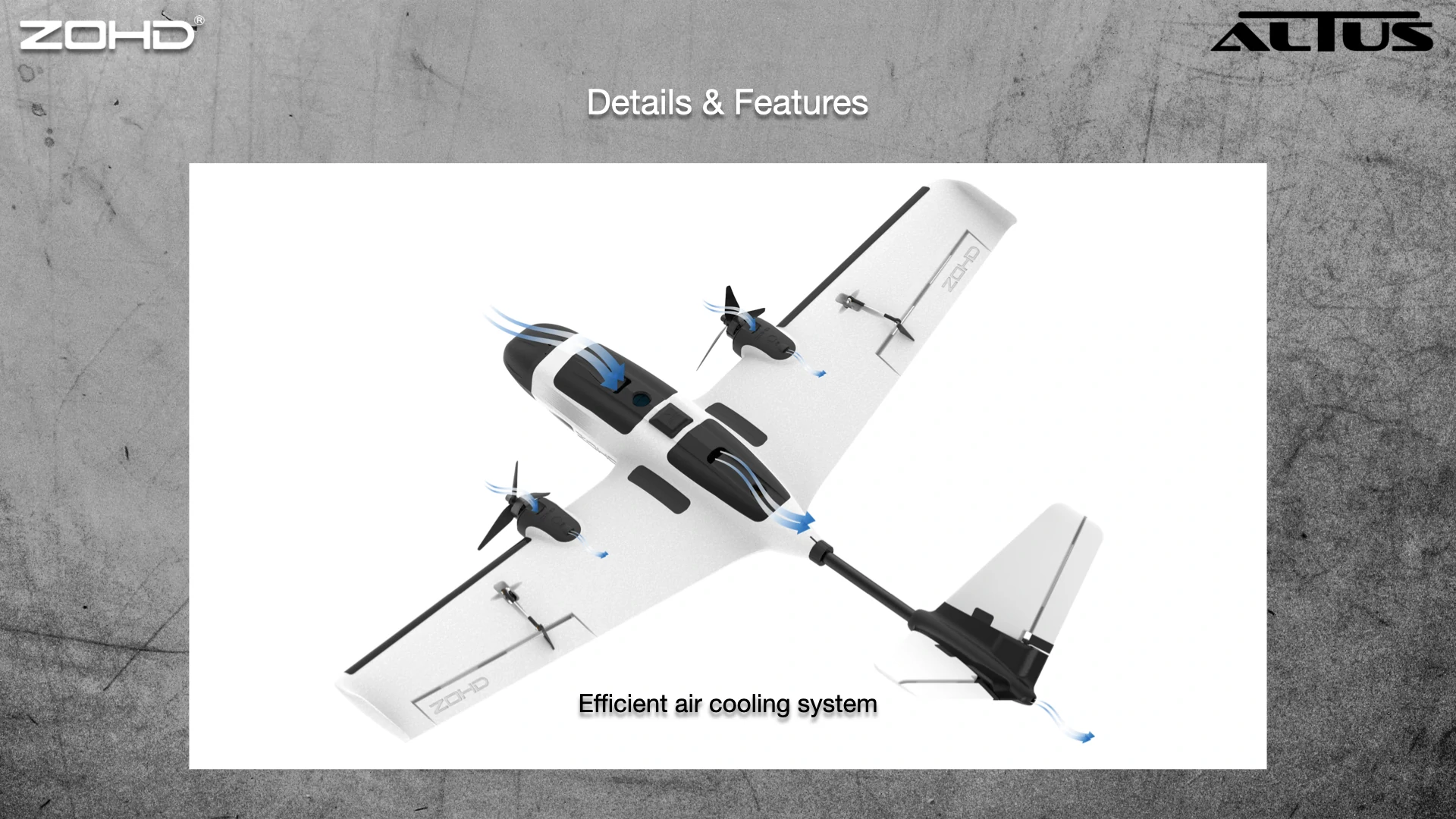

- Aerodynamic Excellence: Thanks to the aerodynamically designed FPV gear pockets in both wings, reducing, interference and maintaining stability during flights. The Altus features a highly efficient NACA air cooling system to keep your FPV gear performing at its best.

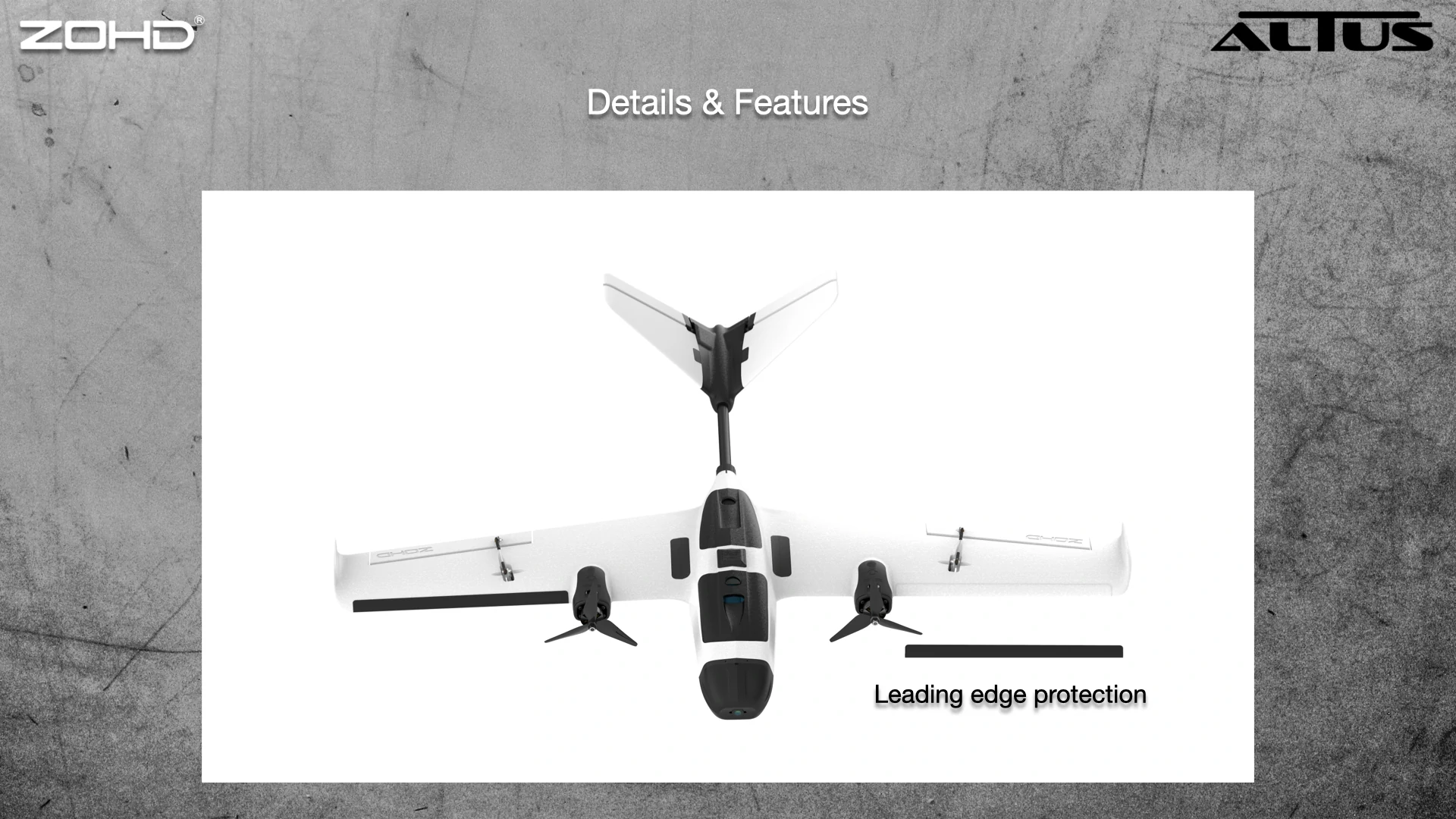

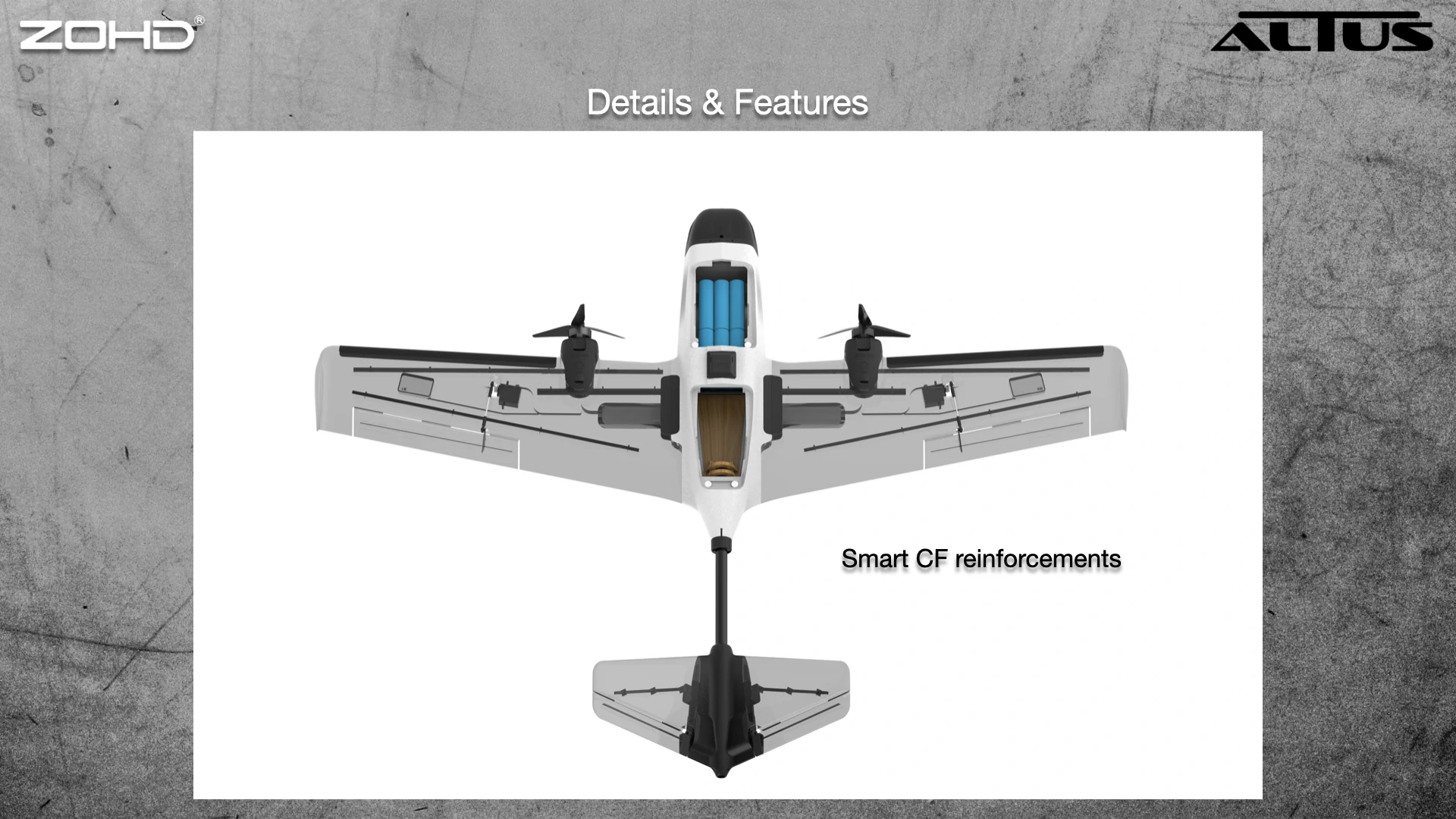

- Construction: Molded with tough EPP material and reinforced with a built-in CF spar, the Altus promises super stable flying capabilities and. remarkable crash resistance, ensuring durability for countless flights.

- Precision Control: Enjoy precise control with the built-in CF rod in the control surface and a high-accuracy ball link control system, providing agile and quick responses to your commands.

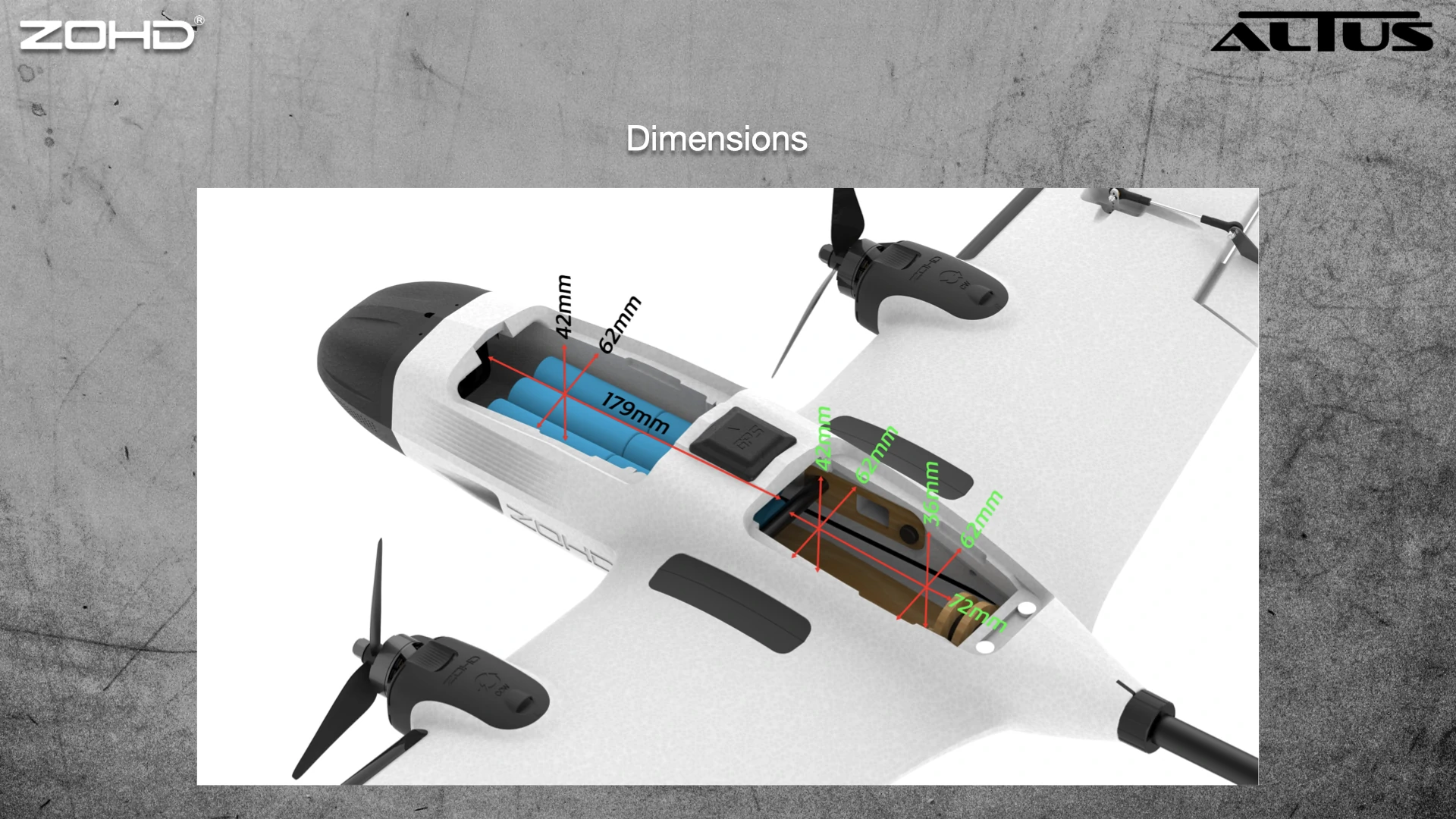

- Extended Flight Time: The large battery bay accommodates Lipo 4S 2200-3700mAh or ZOHD Lionpack 18650 4S2P 7000mAh，offering extended flight times for uninterrupted aerial exploration.

- Upgrade Ready: The Altus comes with a reserved VTOL capability for future upgrades, ensuring your FPV adventures are always at the forefront of technology.

English Manual, Click Here

KIT Version Included:

1x ZOHD Altus EPP RC Airplane KIT

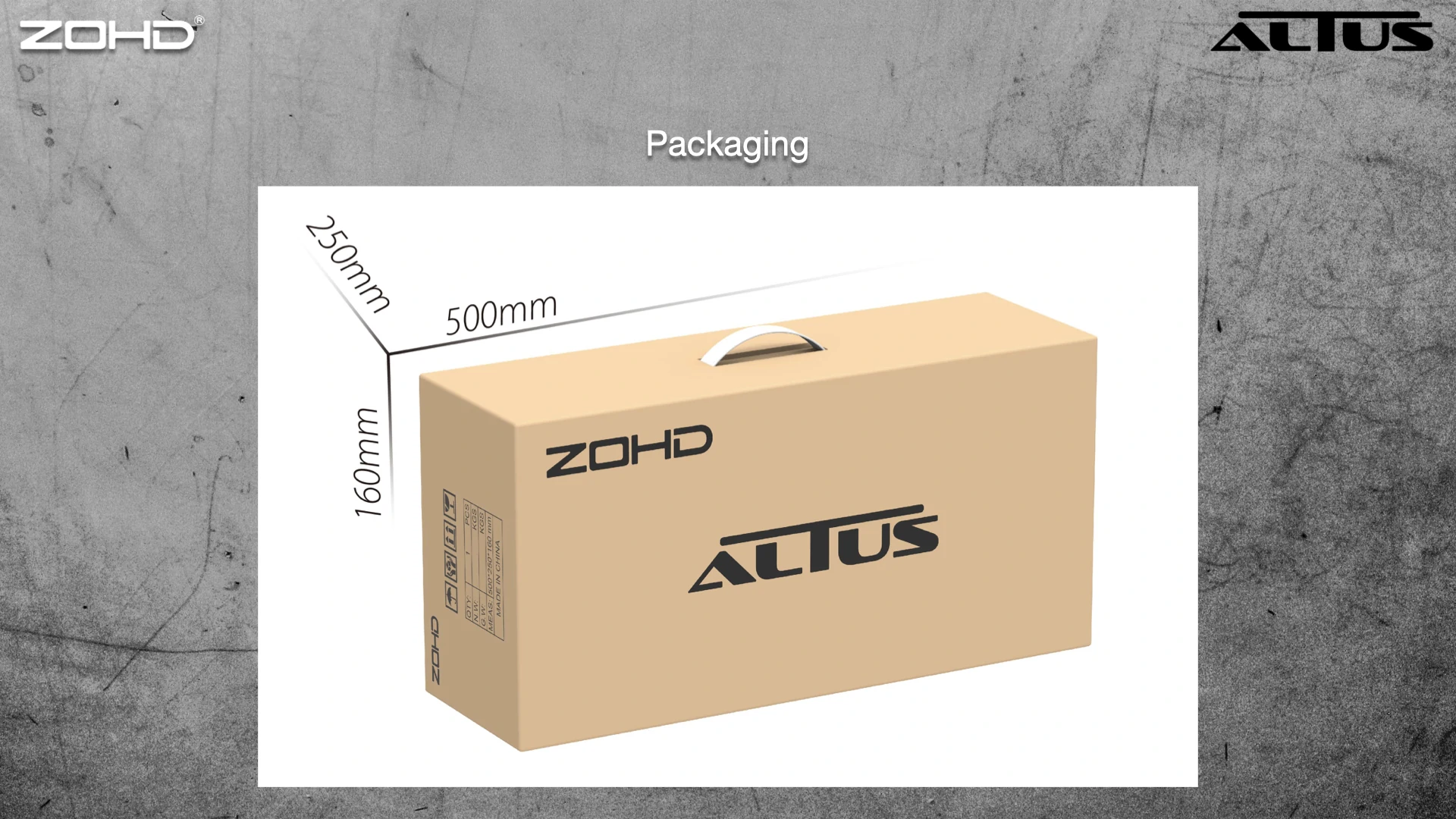

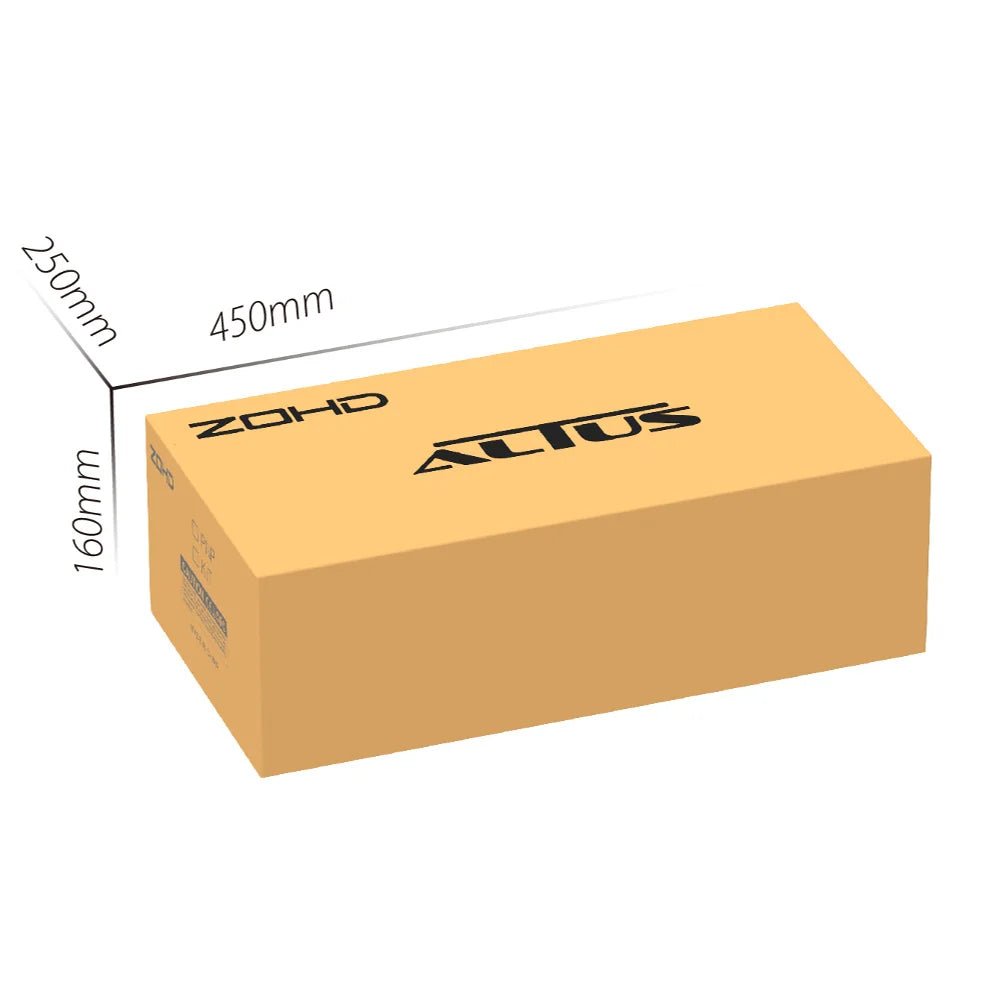

KIT package size: 450*250*160cm

KIT package weight: 710g

Note: Motor, ESC, Servo, Propeller, Transmitter, Receiver, Battery, Charger, FPV Equipments and Glue are not included.

PNP Version Included:

1x ZOHD Altus EPP RC Airplane KIT

2x 2204-1870KV Motor

2x 30A w/5V 2A BEC ESC

2x 3 Blades Propeller

PNP package size: 450*250*160cm

PNP package weight: 830g

Note: Transmitter, Receiver, Battery, Charger, FPV Equipments and Glue are not included.
