New Universal Turbocharger T3 .63 A/R Oil Cooled V Band for 4 6 Cylinder

Application

Compatible for 1.5L to 2.5L any 4/6 cylinder engine

Horse Power: Capable of Boosting Horse Power up to 420HP

Cooling Type: Oil Cooled

Type:Street type

Specification

Exhaust Inlet (Turbo Manifold) Flange: T3 4 bolt Flange Patterns
Exhaust Outlet (Downpipe) Flange: 2.5" V-Band Flange
Bearing: Journal Bearing
Cooling Type: Oil Cooled
Thrust Bearings: 270 Degrees

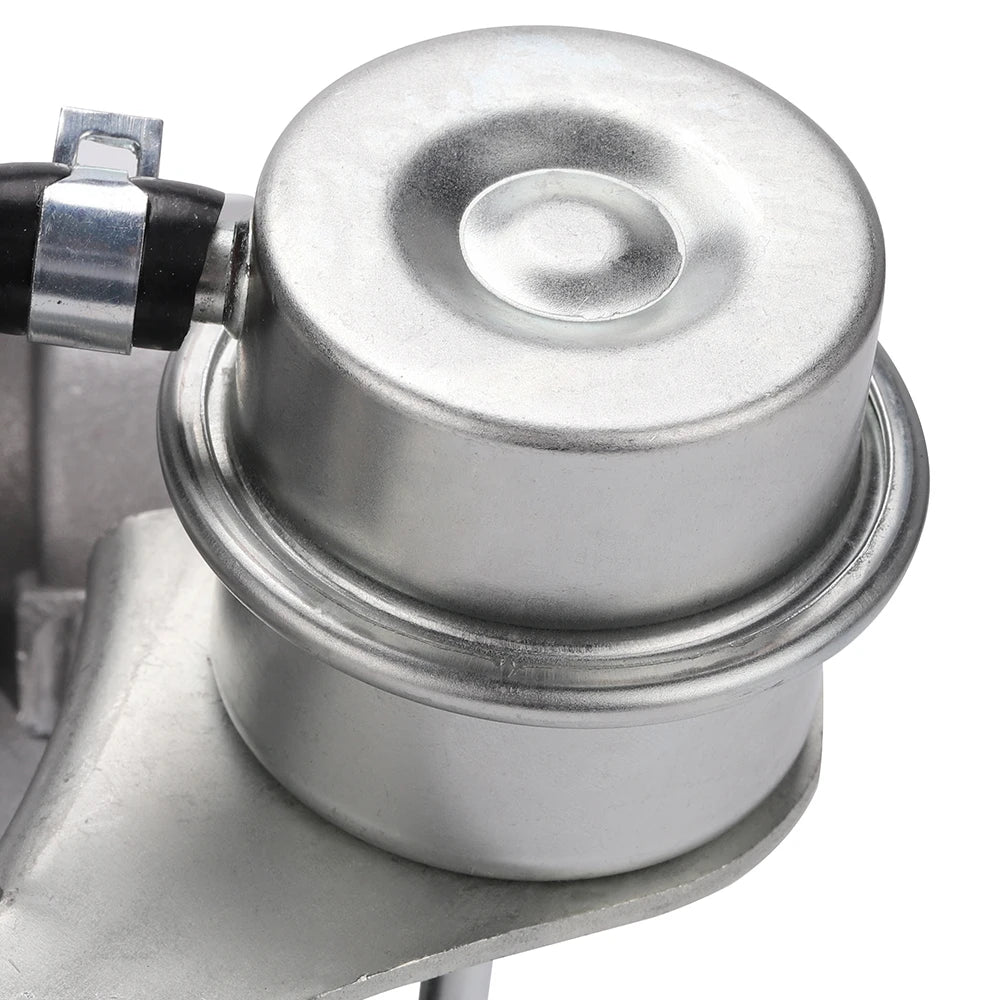

Wastegate：With Wastegate

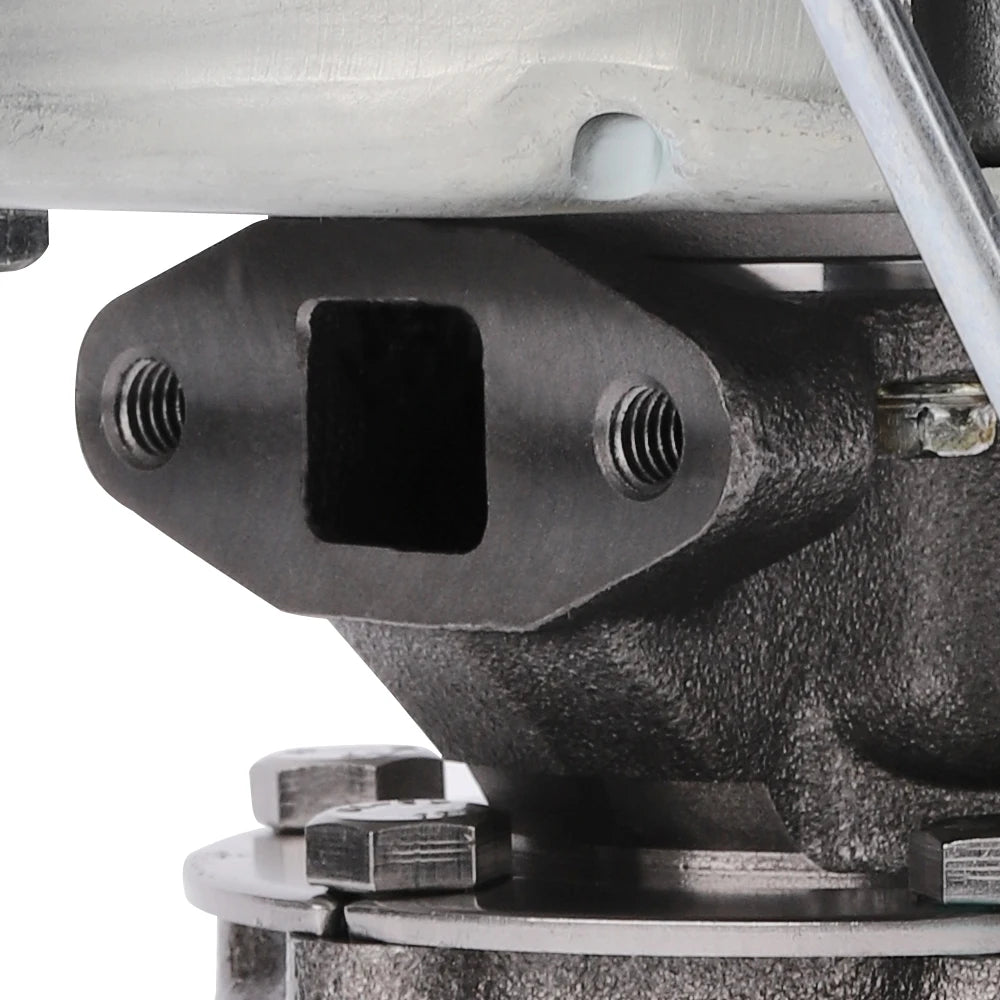

Oil Inlet: M12*1.25 & 2*M8*1.25

Oil Outlet: 2*M8*1.25

Compressor Trim: 48.1
Compressor A/R: 0.5
Compressor Inducer: 52.7mm
Compressor Exducer: 76mm

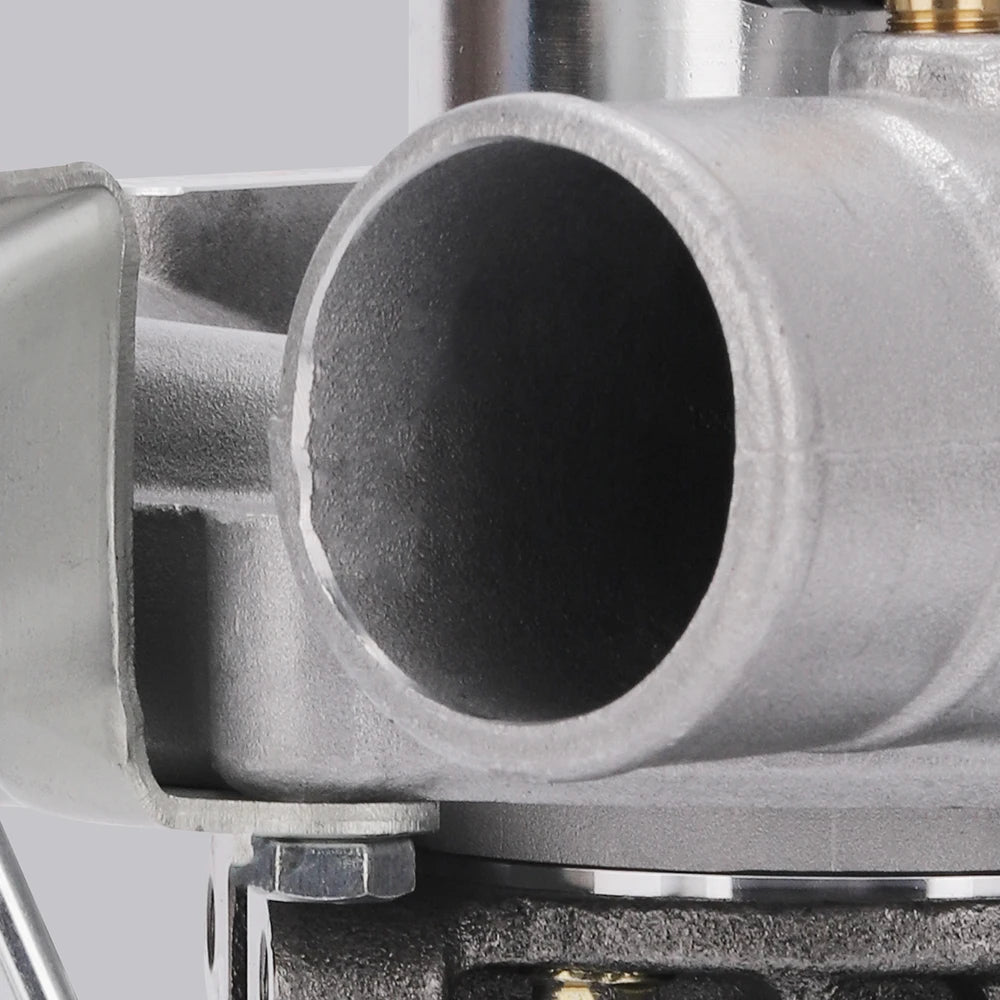

Compressor outlet：78 mm
Compressor inlet：51.5 mm

Turbine Trim: 74.2
Turbine A/R: 0.63
Turbine Inducer: 64.8mm
Turbine Exducer: 55.8mm
Turbine exhaust outlet : ID-63.2mm，OD-79.5mm
Turbine exhaust inlet：44.7mm（length）/85.8mm（width）
Hosepower:  400+ HP
Condition: Brand New

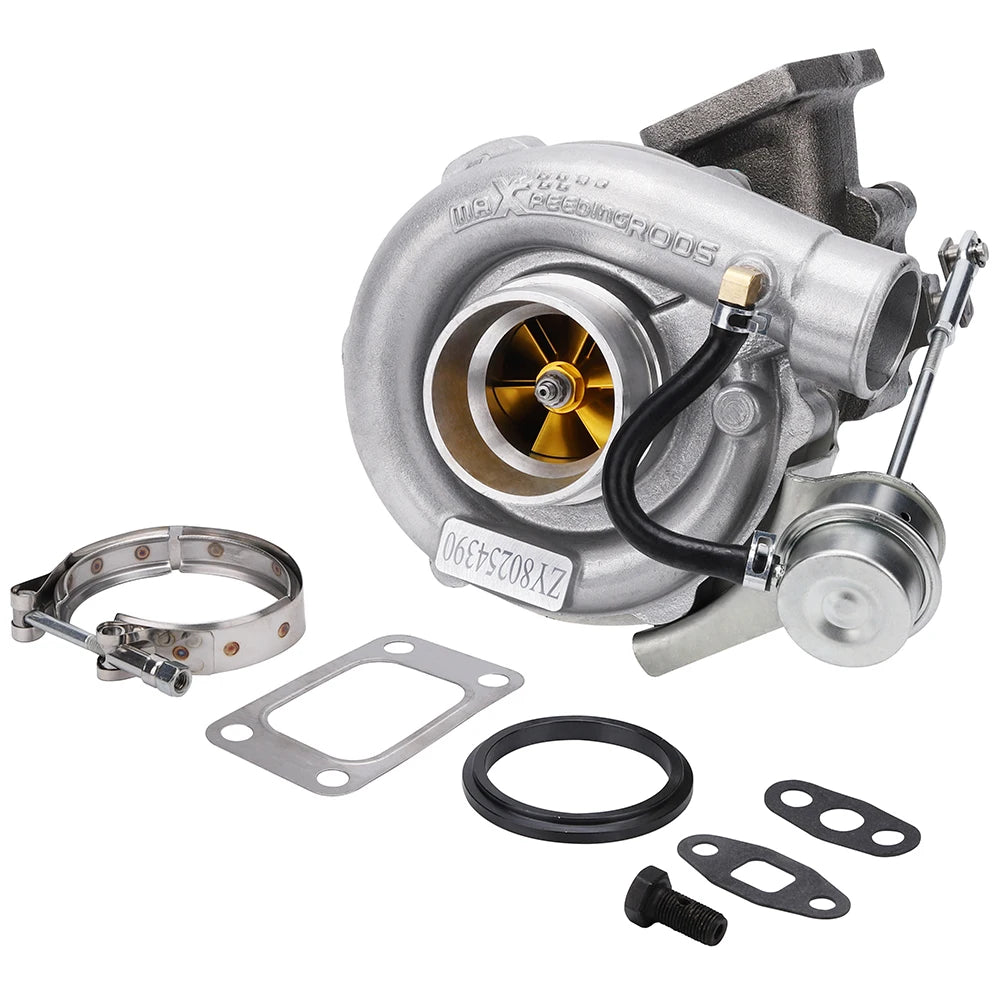

Accessories: You will get exactly as shown in the picture above

*Product Material

1. Turbine housing ：Silicon-Molybdenum - temperature resistant up to 850℃
2. Steel Turbine Wheel：K419 alloy - high oxidation stability and resistance  up  to 1000℃
3. Compressor housing：ZL104 aluminum with lightweight

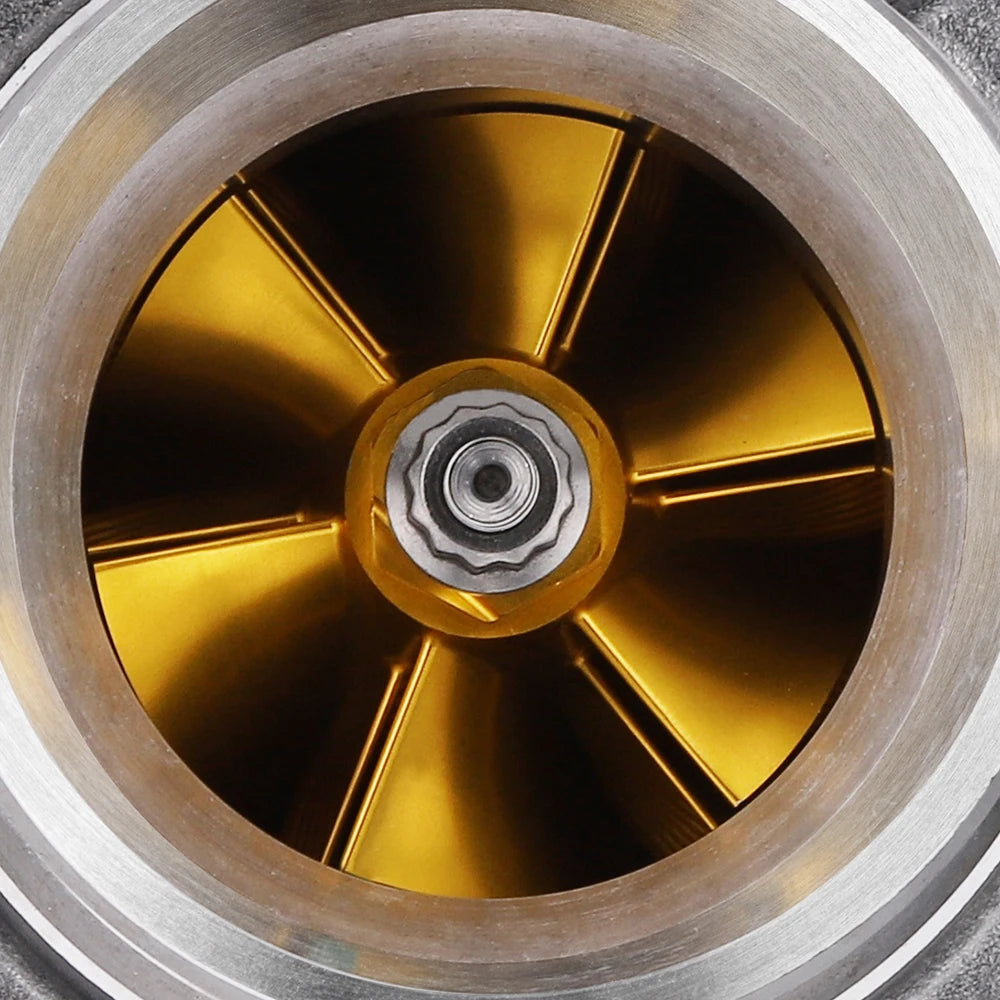

4. Compressor wheel/blades：Aluminum blades-precision machining forging and light weight design

*Product  Performance
1. Cost-effective turbo increase 20-40% power for your car
2. Excellent high temperature resistance，high efficiency and durability
3. Rich experience in turbo production and own factory
4. Quality assurance
5. High-speed oil seal ring
6. Strict quality inspection
7. Improve emissions & save oil

*All necessary gaskets included for ease of installation

Notice

* Professional installation is highly recommended (No Instruction Included).
* This Turbo is not vehicle specific. It is compatible with a wide range of applications. Therefore please check the specifications and verify compatibility prior to placing your order.
