Universal Oil Line Kit Turbo T04E .57 A/R oil Cold Turbocharger 1.5-2.5L engine
Universal Oil Line Kit Turbo T04E .57 A/R oil Cold Turbocharger 1.5-2.5L engine
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: MXR
Country/Region of Manufacture: china
Hign-concerned Chemical: None
Interchange Part Number: T04E,T3,T4
Item Height: 23inch
Item Length: 23inch
Item Weight: 8kg
Item Width: 15inch
Manufacturer Part Number: YCQTZ9
Material: High performance Aftermarket replacement
Origin: Mainland China
Other Part Number: T04E,T3,T4
Placement on Vehicle: Placement on Vehicle
Special Features: t3 t4 turbocharger

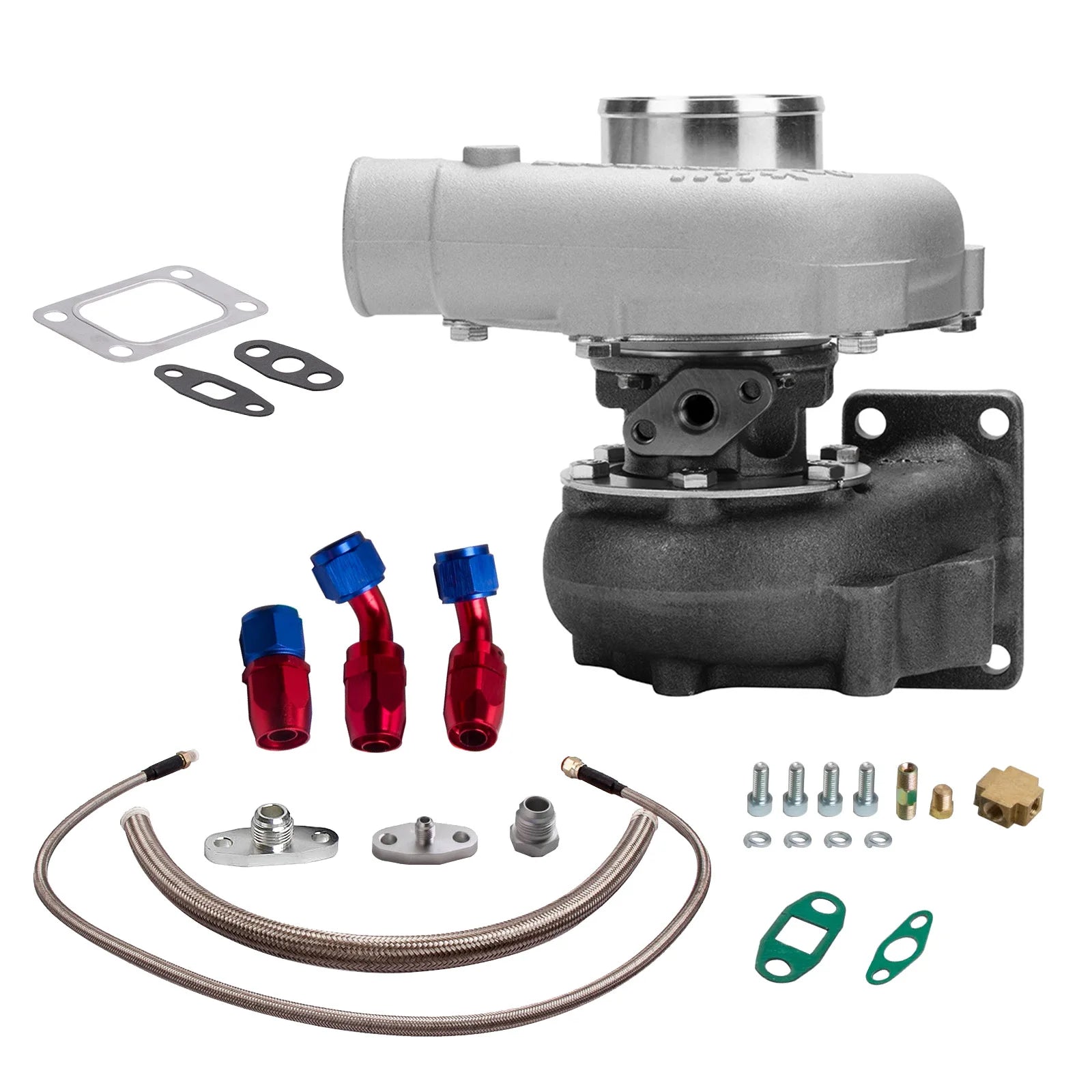

T3/T4 T04E .57 A/R Performance Turbocharger +Oil Feed & Return Line Kit 300+HP Oil Cooled Turbo for 1.6-2.5L Engine
Fit for:
Perfect for 1.5L-2.5L engines
Perfect for 3.2L-5.0L engines in twin turbo application, capable to 800HP
boost pressures are 7psi(.5 Bar) to 21psi(1.5 Bar)
Exhaust (Turbo Manifold) Flange T3 T4 4 bolt Flange Patterns
Exhaust (Downpipe) Flange S sstandard T3 5 bolt downpipe flange pattern
Cooling Type Oil Cooled
Wastegate Without Wastegate
Horse Power Boost Horse Power up to 300+HP

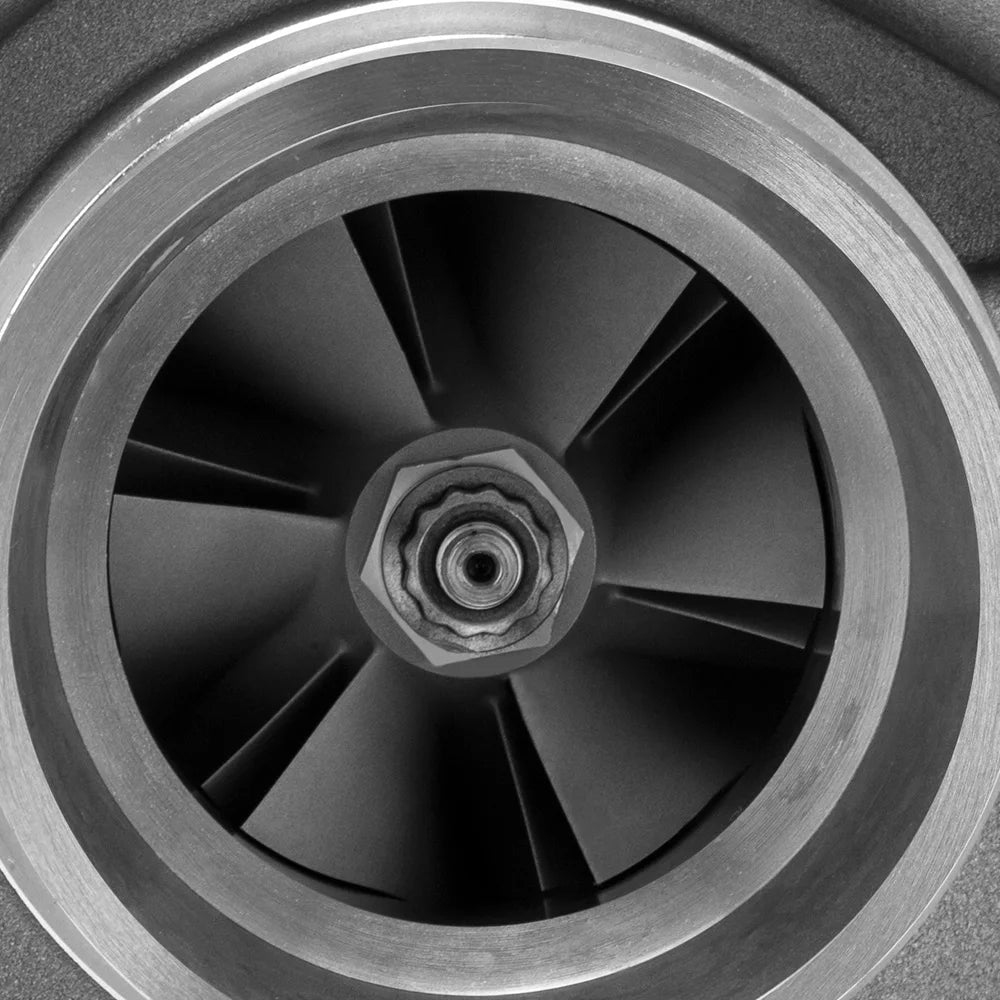

Compressor:
Trim: 44
A/R: .5
Inducer: 50.5
Exducer: 76
Turbine:
Trim: 73
A/R: .57
Inducer: 65.5
Exducer: 55.9

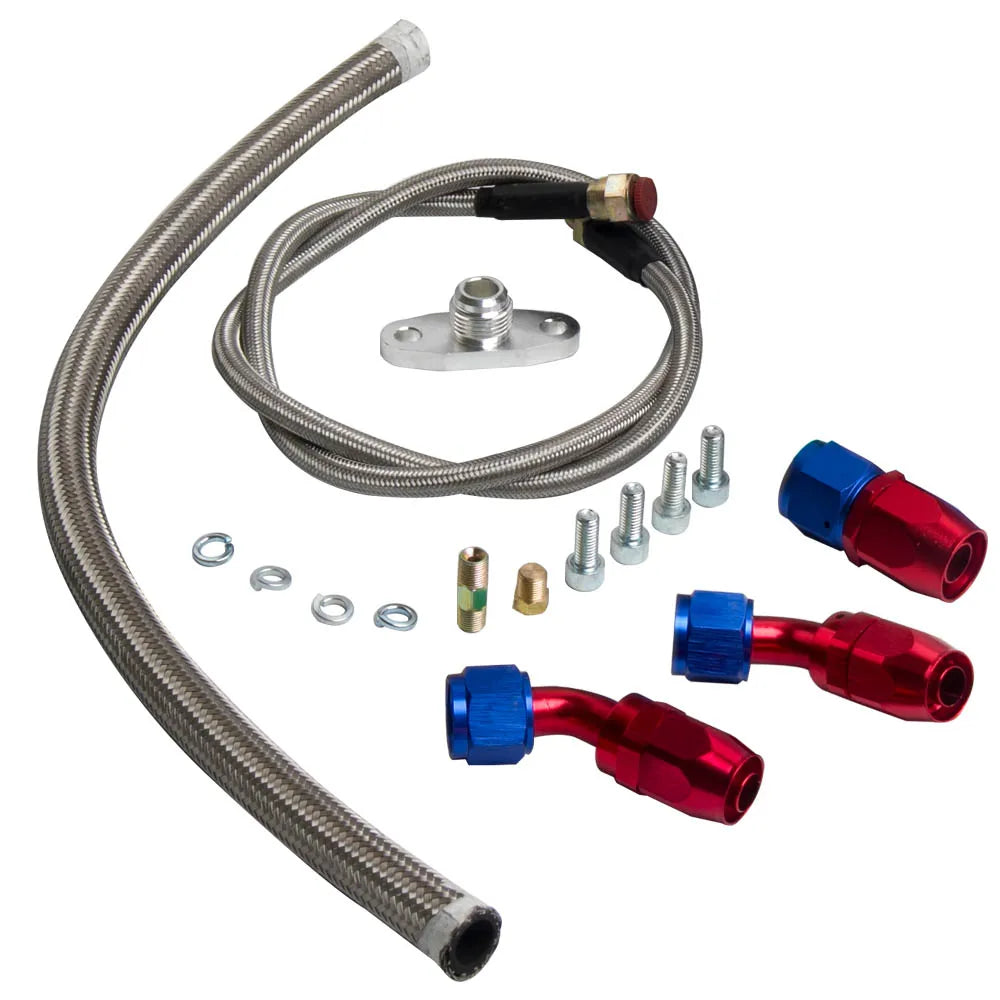

* OIL RETURN LINE: Length: 550mm || Inner Diameter: 21mm
* OIL FEED LINE: Length: 1000mm || Inner Diameter: 14mm
* Please check the specifications carefully before bidding. If you are not sure about these information, please feel free to contact us.
* This is universal application turbo, so modification might be required for some vehicles
* Professional installation is highly recommended (No Instruction Included)
T3/T4 T04E .57 A/R PERFORMANCE TURB0CHARGER TURBO +OIL FEED AND RETURN LINE KIT |
