Application

For Kubota Agricultural,Industrial 1.5L 1499CC 40HP D1105T V1505T Engine

OE/Part number

49173-03400, 1E038-17012, 1E03817012,

49173-03410, 1E038-17015, 1E03817015,

49173-03430, 1E038-17016, 1E03817016,

49173-03440, 1G643-17015, 1G64317015,

49173-03442, 1G730-17014,

1G643-17010, 1G643-17017,

Specification

Turbo Model: TD025,TD025M-05T

Engine: A31T, D1105T, V1505T, E3B

Cooling Type: Oil Cooling

Fuel Type: Diesel

Horse Power: 40HP

Displacement: 1.5L

Bearing Type:Floating Bearing

Universal Fitment: No

Finish: Matte

Turbo Type: Individual

Condition: 100% Brand New

Accessories: You will get what you can see in the pictures exactly

Package Size: 24*22*25.5CM

Package Weight:3560g

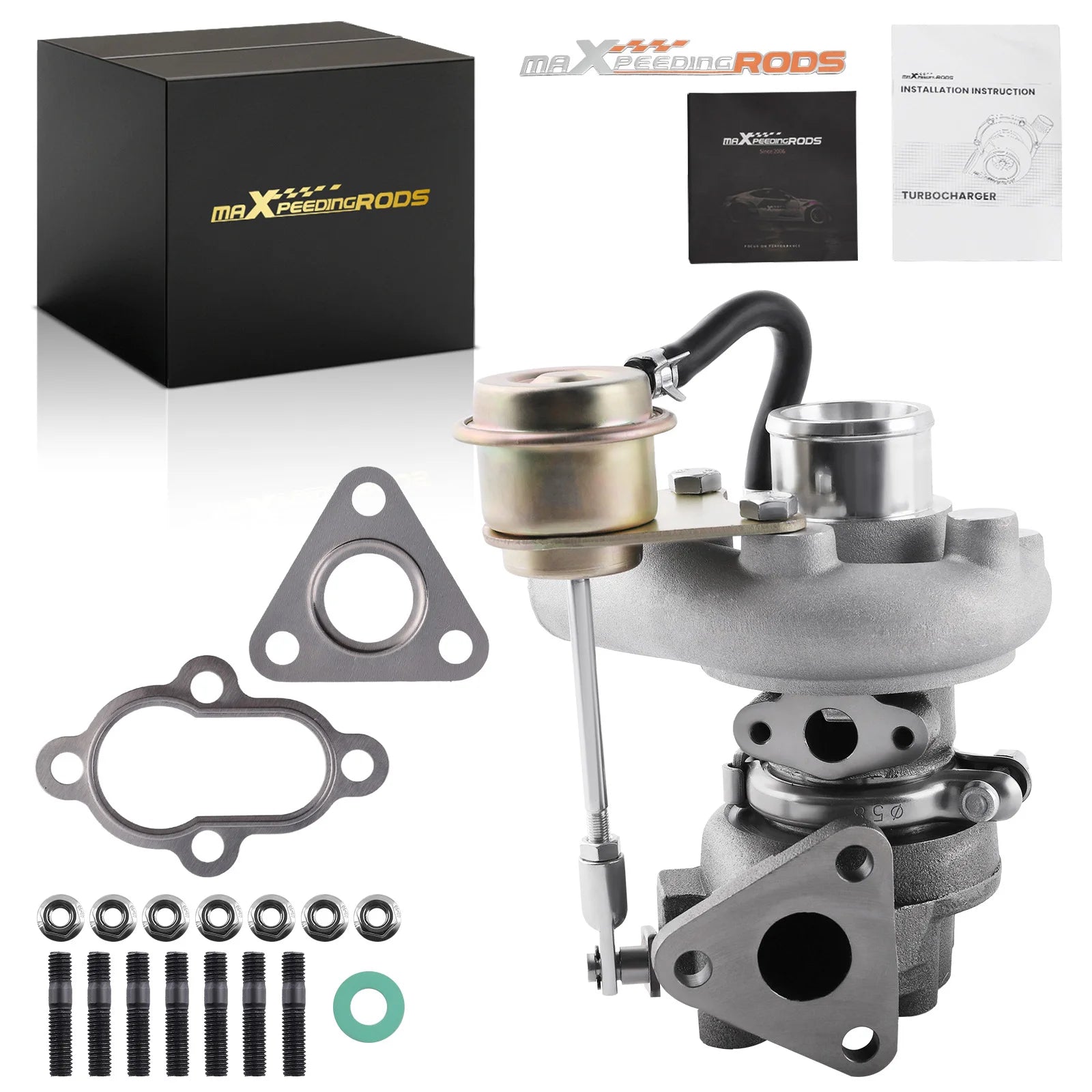

Package included

1x Turbocharger

2x Flange Gaskets

1x Oil Gasket

7x Stud Bolts& Nuts

1x Manual

1x Brochure

1x Sticker

Feature

* Product Material

1. Turbine housing ：Ductile iron QT450-10- temperature resistant up to 700℃

2. Steel turbine wheel：K418 alloy -  high  oxidation stability and resistance  up  to 900℃

3. Compressor housing：ZL104 aluminum with lightweight

4. Compressor wheel：Cast aluminium blades – superior air tightness & corrosion resistance

* Product

1. OEM-quality and size with little modification

2. Rich experience in turbo production and own factory

3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:

1. 100% balancing Test by TURBOTECHNICS  VSR3

2.  G3-min-Flow VNT Turbo testing

3.  Advanced Actuator Tester/Programmer

Note

* Please confirm your original turbo PART NUMBER before Purchasing

* Professional installation is highly recommended

* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
