TOPDON BT200 Portable Battery Tester Charging Cranking Test Tools for Car 12V Automotive Diagnostic Battery Monitor 100-2000CCA
TOPDON BT200 Portable Battery Tester Charging Cranking Test Tools for Car 12V Automotive Diagnostic Battery Monitor 100-2000CCA
Couldn't load pickup availability
SPECIFICATIONS
Battery test: 12V
Brand Name: TOPDON
Certification: CE
Charging test: 12V/24V
Compatibility: Flooded/AGM/Gel/EFB/VRLA
Cranking test: 12V/24V
High-concerned chemical: None
Item Name: Vehicle Car Battery Tester
Model Number: BT200P Battery Tester
Origin: Mainland China
Testing range(CCA): 100-2000CCA

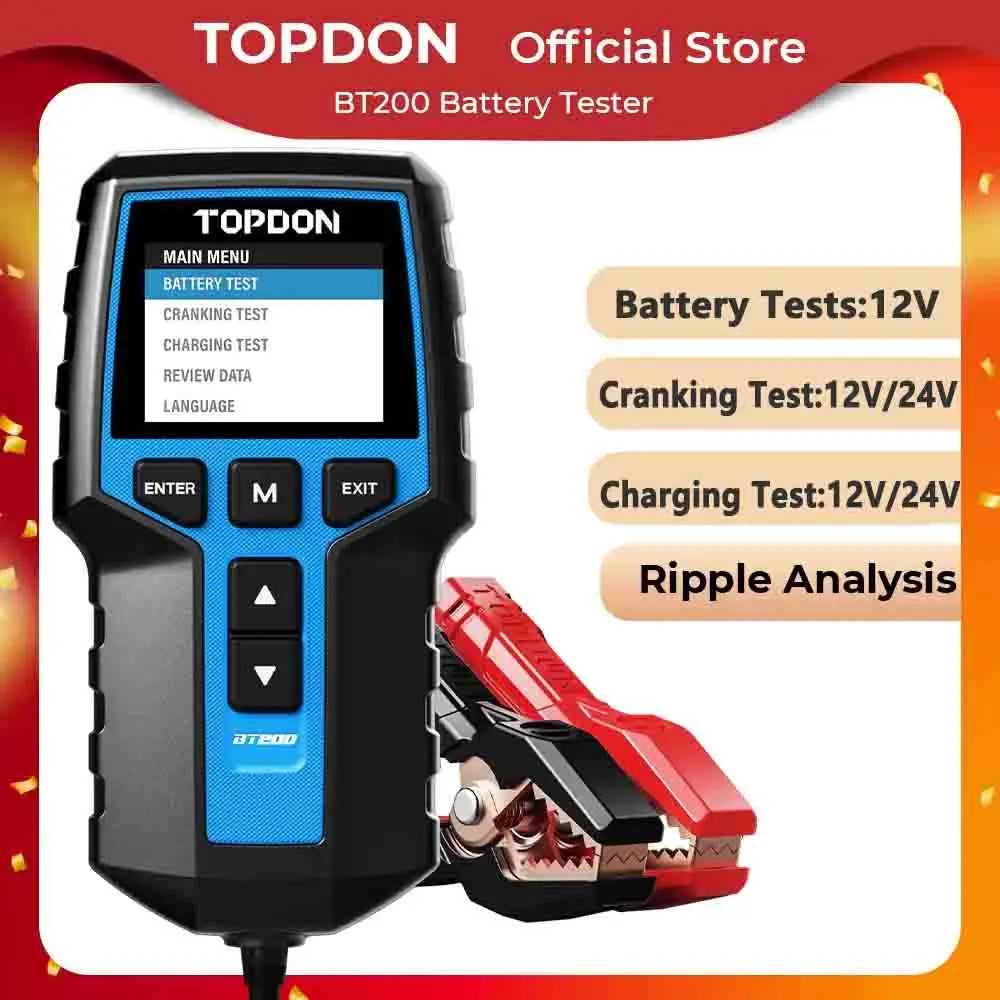

Topdon Car Battery Tester BT200
Applying the most advanced conductance testing technology, and the reverse polarity protection etc., TOPDON BT200 serves as a 12V~24V( Battery Test:12V ;Cranking Test:12V/24V;Charging test:12V/24V) Battery Tester to provide technicians with critical information about battery health status, to find battery and charging problems quickly, easily and accurately.
Specifications:
Display.24"LCD
Display Resolution:320-240Piels
Cable Reach:.920 mm(36.22inches)
Storage Temperature:-20*C~70*C(-4~158*F)
Working Temperature-20C~60'C(-4~140F)
Dimensions (L·wH):178-94.533 mm(7·3.72+1.3inches)
Weight:440g(097 Ib)
Compatibility:
Please be noted that battery type and CCA values(Cold Cranking Amp)marked on the battery labe. Please refer to it before using.
BT200 supports the fllowing types.
1.VRLA/GEL/AGM/EFB
2.Regular Flooded
the battery test for 12V batteries, cranking test and charging test for 12V&24V batteries 、

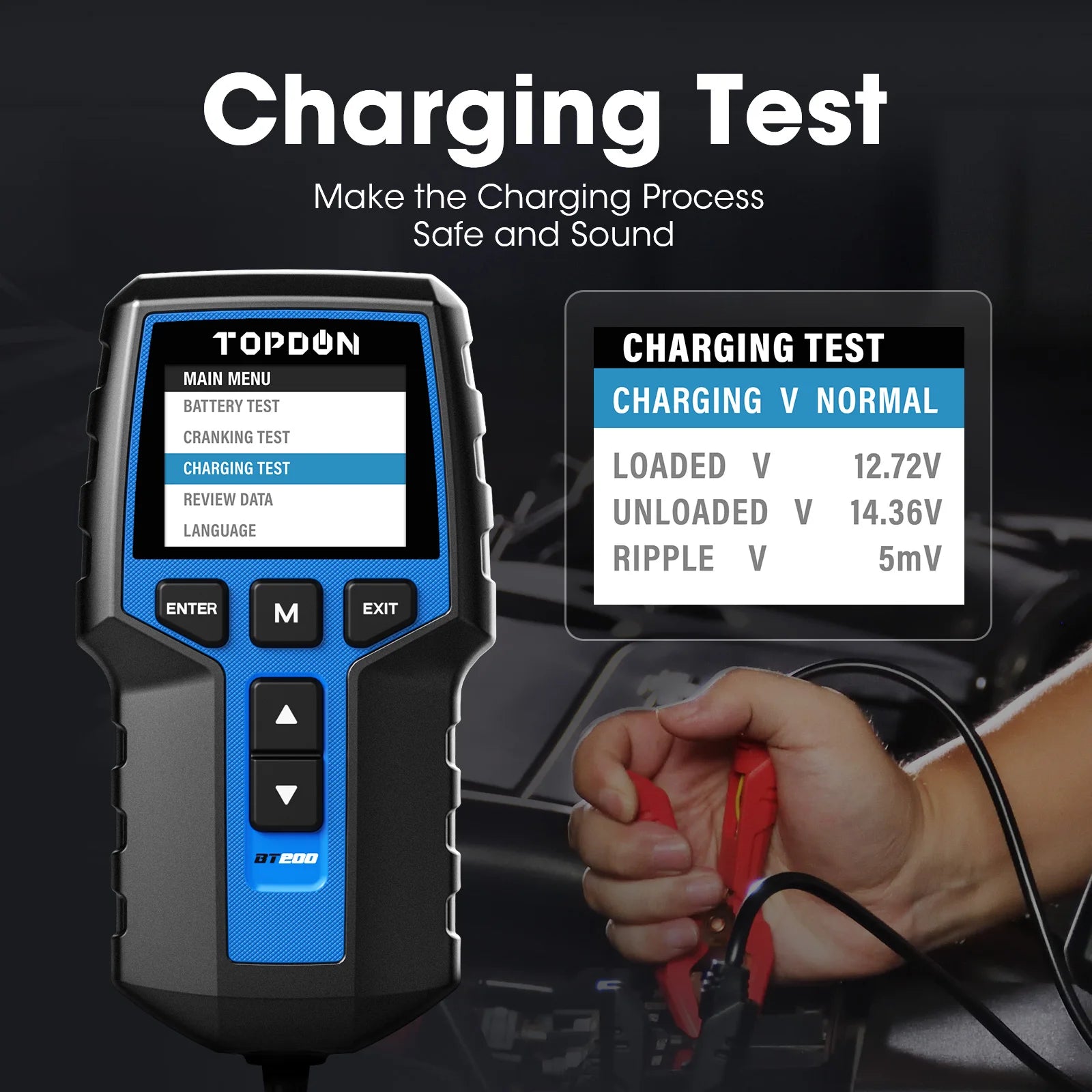

Charging Test
Before Test:
The engine must be ON during test in order to have results.Ensure all electrical accessories and devices remain in the OFF state.
*Turning ON/OFF any electrical accessories in the vehicle during the test willaffect the accuracy of the test result.

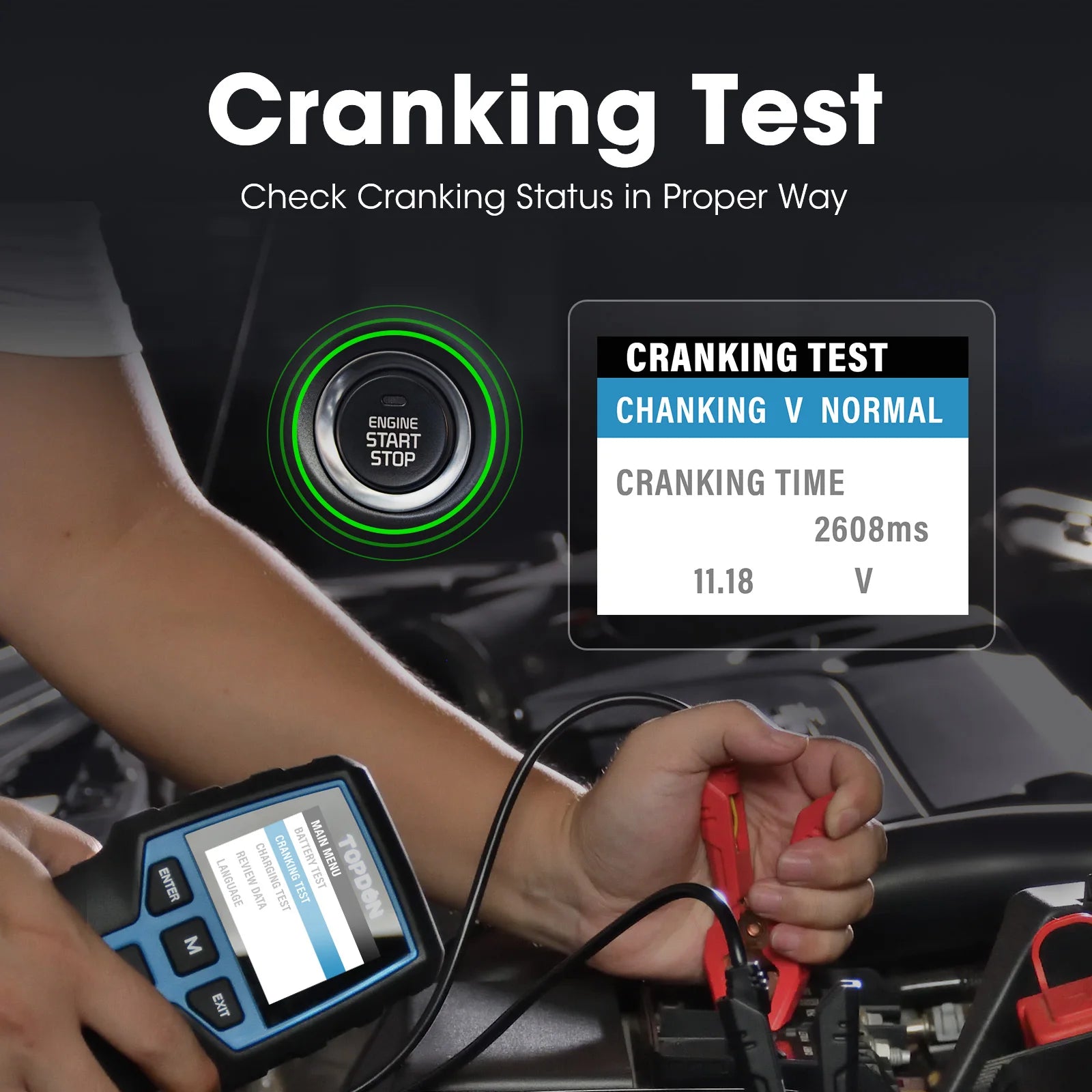

Cranking Test
Before Test:
The engine and allother accessory loads must be OF during test in order to have accurate results.

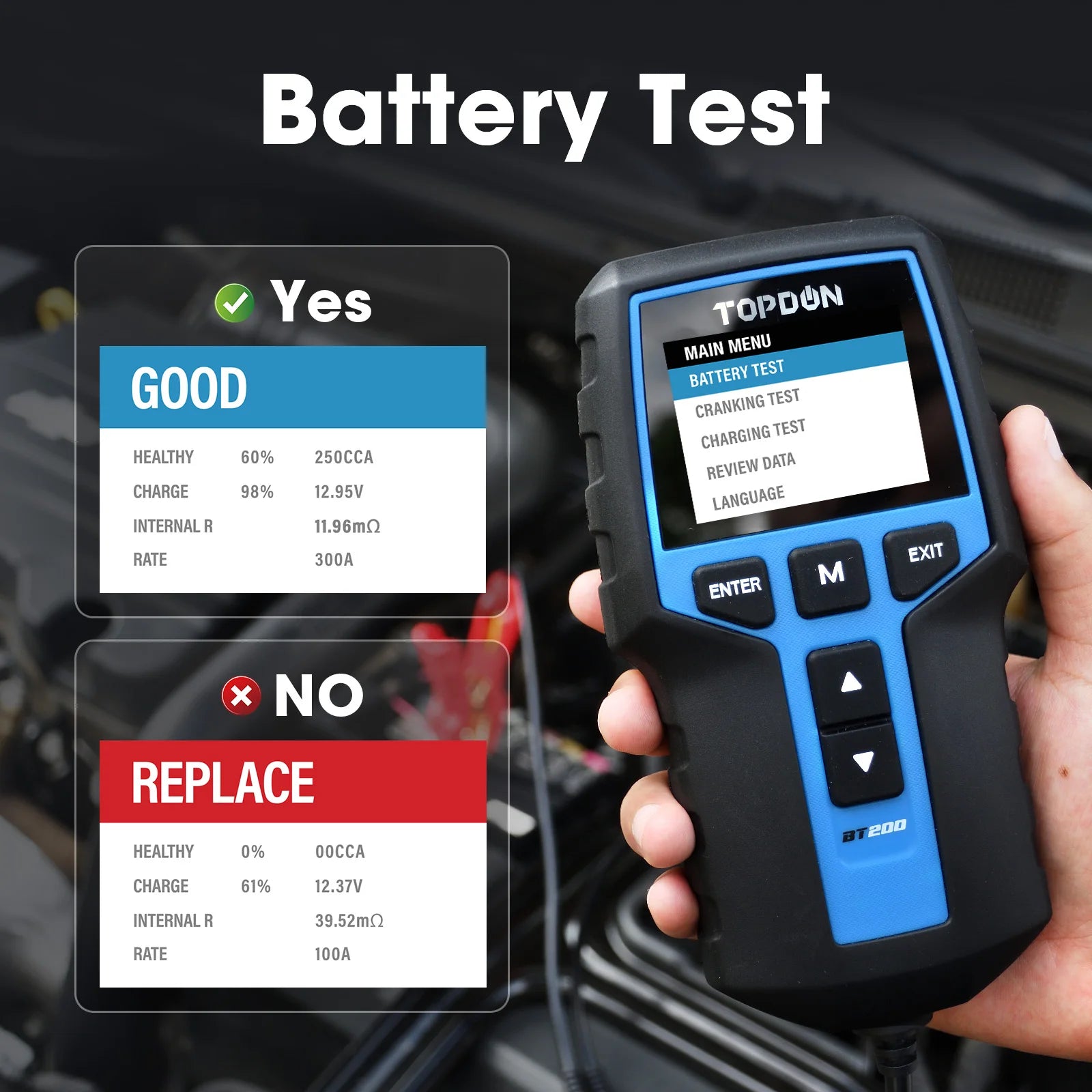

Battery Test：
TOPDON BT200 will test each battery according to the selected actual system standard and rating marked on the battery, to get the accurate results.
Before Test:
The engine and all other accessory loads must be OFF during test in order to have accurate results. Tun on the vehicle headlamps for 2~3 minutes until the battery voltage drops back to normal value if the battery is just fully charged.
Battery System Standard Description And Measuring Range
The battery tester analyzer wiltesteach battry according to the selected system and rating
The Battery Tester can perform test on batteies ratedwithin 100-2000CA/30Ah-220AH
