SPECIFICATIONS

Brand Name: NoEnName_Null

Hign-concerned Chemical: None

Model Number: TL-50C-NHF

Origin: Mainland China

TOOLIOM TL-50C/NHF

Features & Advantages

1. Non-touch pilot arc, torch head does not need to touch the metal plate, then it will start arc.

2. With post flow function, can be adjusted by yourself extend or shorten the cooling time of the torch head.

3. Up tp 50A output, can handle 1/2" Clean Cut at 220v.

4. Dual-Voltage, allows for connection to 110volt or 220volt.

5. The regulator is installed in front of the panel, can read the air pressure value easier.

Product Specifications:

• Input Voltage:110V/220V

• Input Current:33.3A(110V)/20.1A(220V)

• Rated Duty Cycle:60%(50A)

• Protection Class:IP21S

• Insulation Class:F

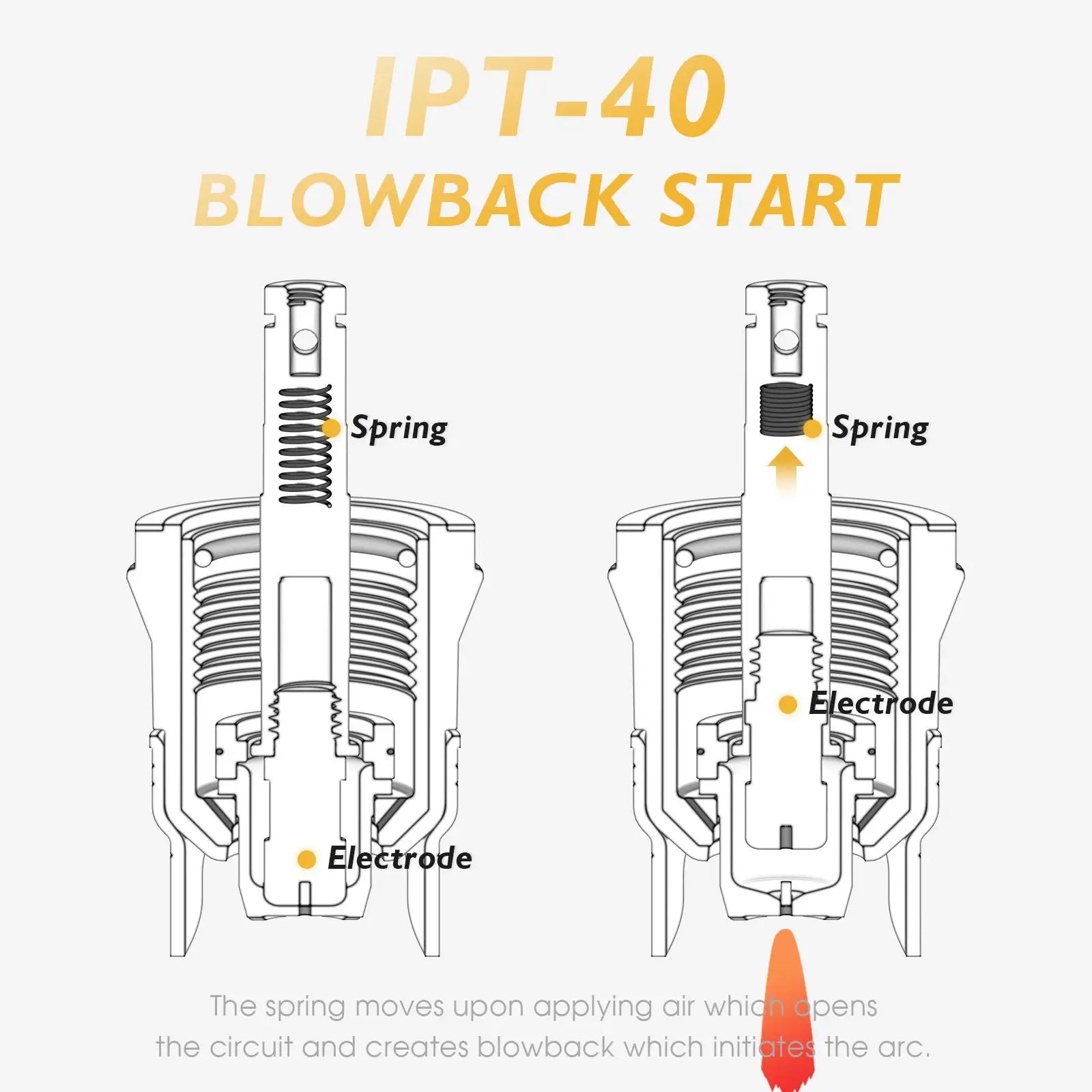

Non-touch Pilot ARC

• Incorporates non-touch pilot arc cutting processes, cutting effect is very ideal and can finish the work regardless if the material is very rough, rusty, greasy, dirty, spray painted, etc. Meanwhile longer consumable life.

Non-High Frequency

• Reliable plasma arc initiation without high frequency, greatly reduces the electromagnetic interference caused by high frequency and high voltage discharge.

Post Flow Function

• Built-in post flow function, the adjustment time range is 0-10 seconds. This can be adjusted by yourself extend or shorten the cooling time of the torch head, effectively provide cooling, and extend the working life of consumables.

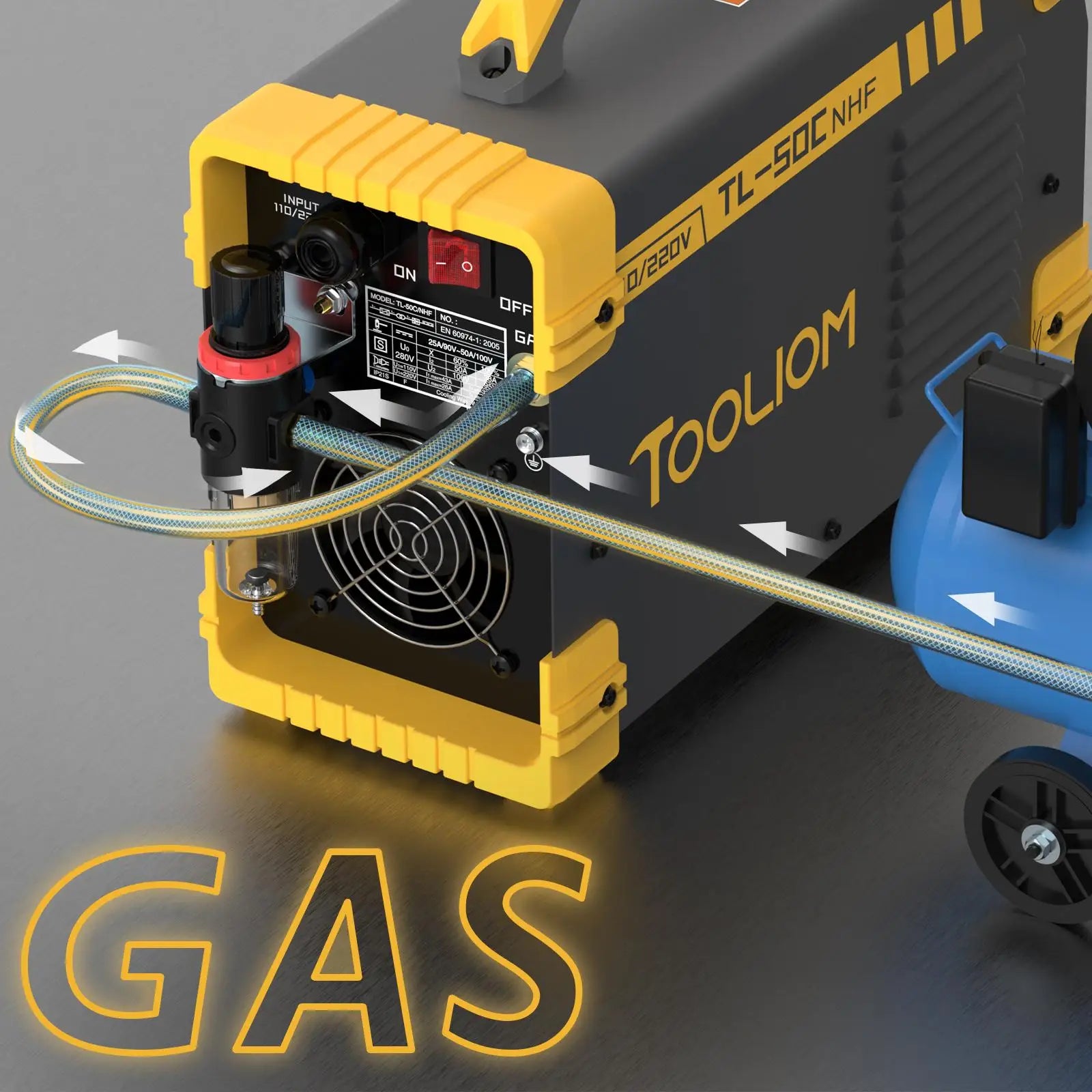

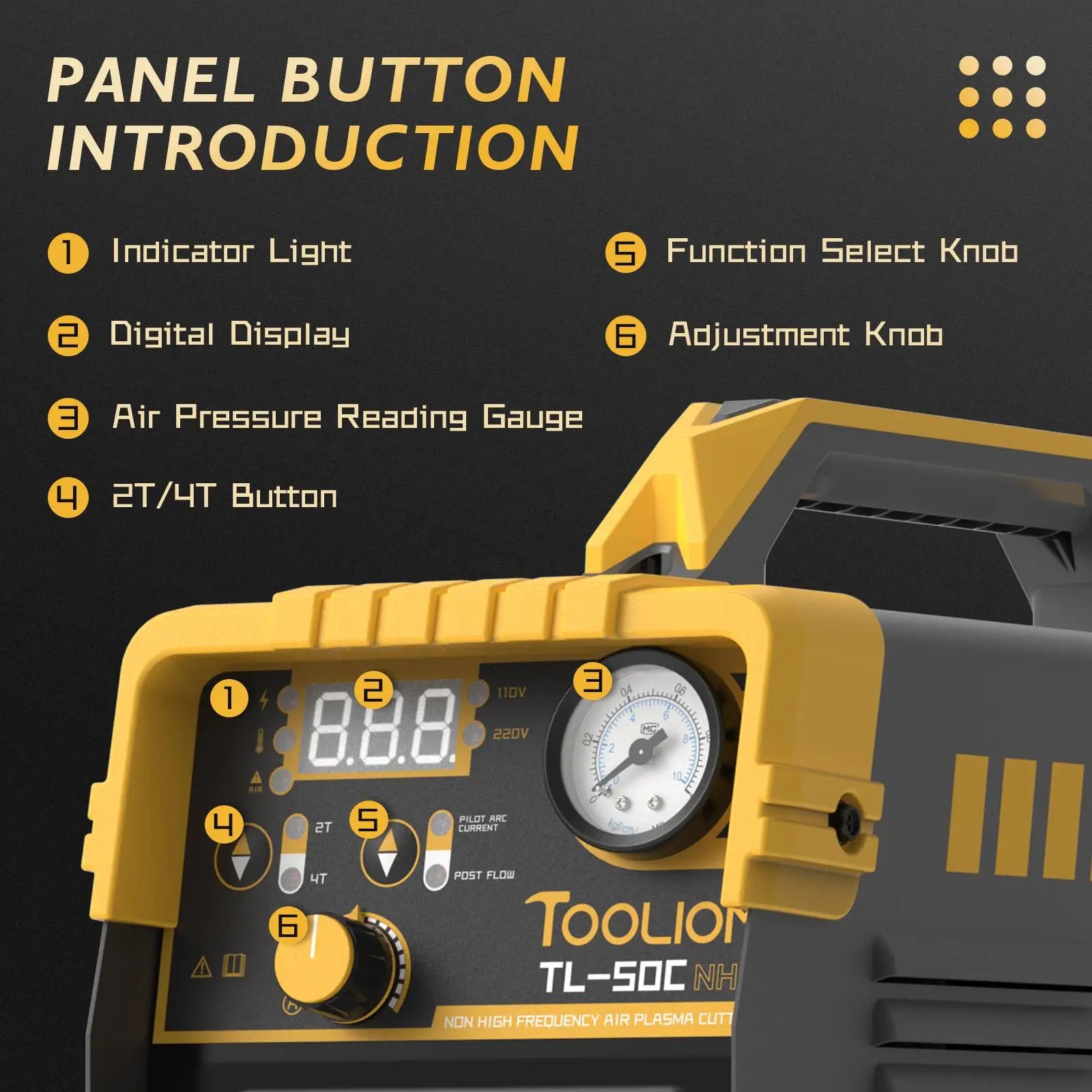

Front Air Pressure Regulator

• The regulator and digital display are installed in front of the panel, can read the air pressure value and current easy and convenient.

Wide Application

• Widely used for cutting stainless steel, mild steel, copper and other metal materials.

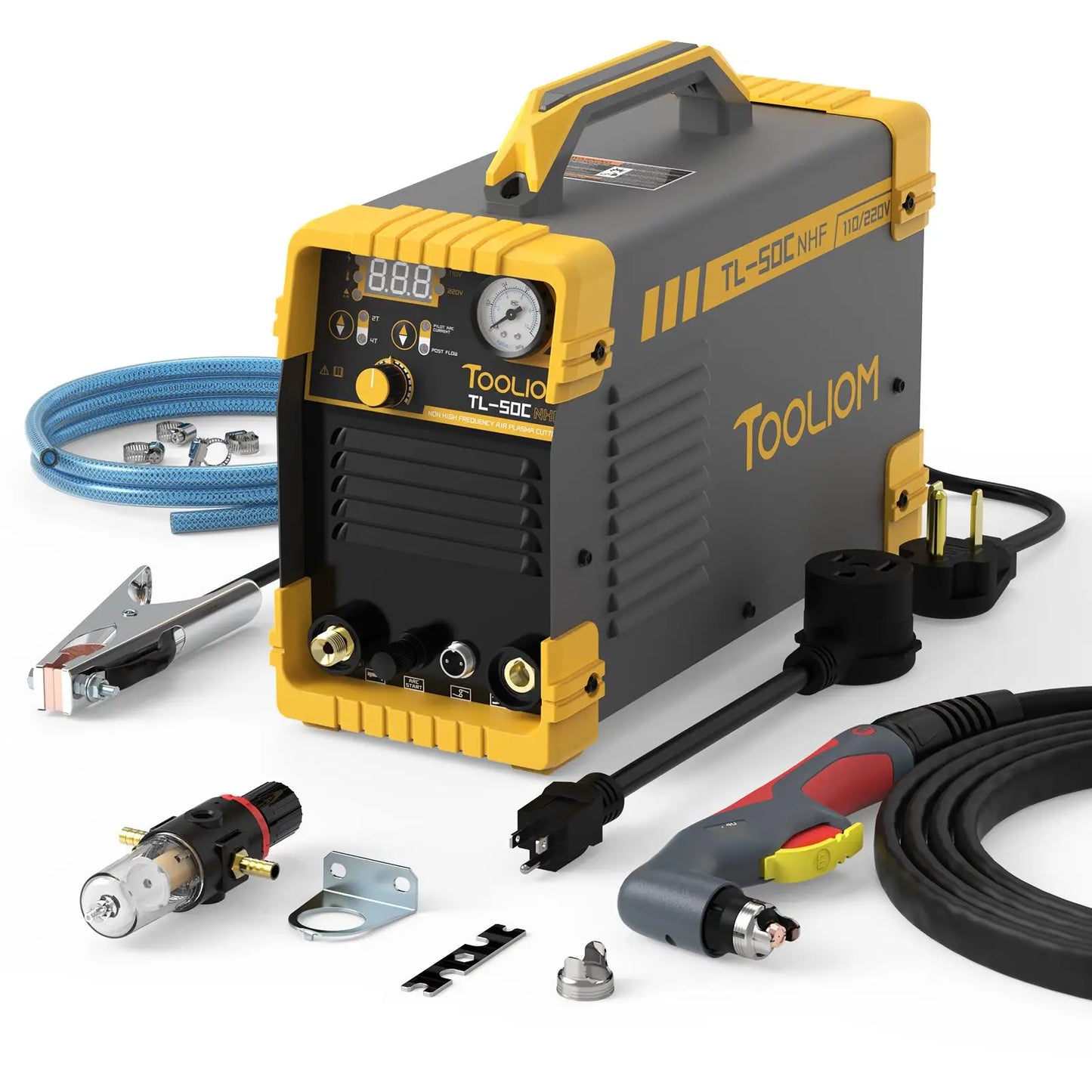

Package Included

• TL-50C/NHF Plasma Cutter

• IPT40 Plasma Torch

• 220 Volt to 110 Volt Power Cord Adapter

• 10' Work Clamp

• Gas Hose 8'

• Hose Clamp Hoop

• Instruction
