SPECIFICATIONS

Blade Clearance: 0.07 mm

Brand Name: succebuy

Certification: CE

High-concerned chemical: None

Item Model Number: 3-in-1/305

Lower Bending Die: V-shaped Die, Thickness

Max Bending Angle: 90°

Max Bending Length: 28 in / 710 mm

Max Bending Thickness: 20 GA / 1 mm

Max Bending Width: 12 in / 305 mm

Max Shearing Length: 12 in / 305 mm

Max Shearing Thickness: 20 GA / 1 mm

Max Sheet Rolling Width: 12 in / 305 mm

Min Sheet Rolling Diameter: 1.8 in / 45 mm

Net Weight: 90 pounds / 41 kg

Origin: Mainland China

Primary Materials: Q235, 45#, HT200

Product Dimensions: 20.9 x 14.8 x 15 in / 530 x 375 x 380 mm

Raw Material: Sheet / Plate Rolling

Roller Working Length: 12 in / 305 mm

Shearing Blade: Thickness

Shearing Tensile Strength: 235 MPa

Sheet Rolling Drum: Diameter

Sheet Rolling Thickness: 20 GA / 1 mm

Surface Treatment and Color: Painted

Upper Bending Tool: Straight Blade, Thickness

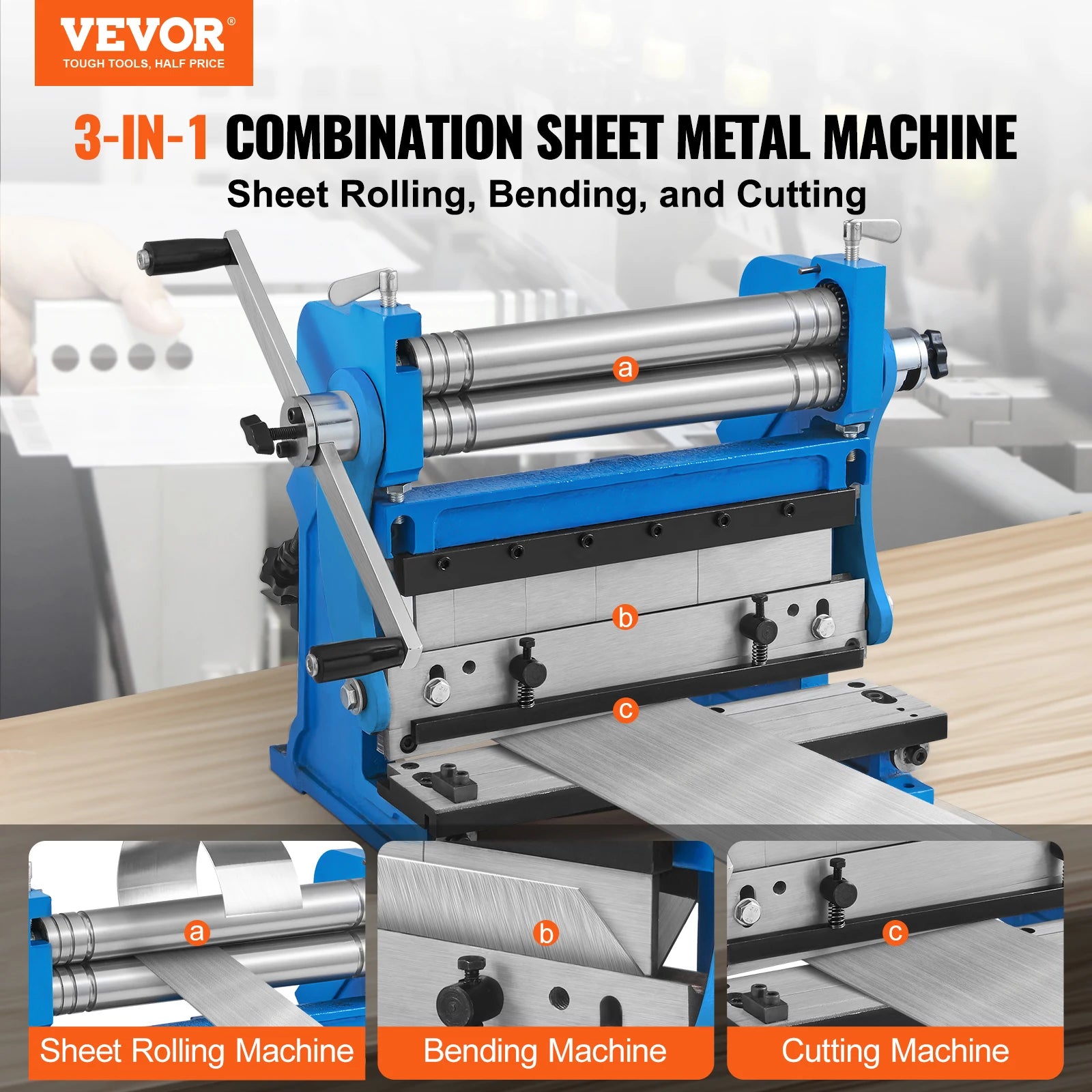

Combined 3-in-1 machine for sheet metal processing

This versatile sheet metal processing machine combines rolling, bending, and cutting functions in one convenient device. The roller position can be easily adjusted via a rotary knob, with an extension of up to 90 degrees for precise processing of various metal sheets.

• Versatile and practical solution for various applications Excellent versatility Durable construction Sectional bending High-quality workmanship for precise results

Key Features

•


• Versatile application: This 3-in-1 combination machine combines the functions of a press brake, a shearing machine, and a rolling machine in one unit. It saves you the need to purchase multiple separate machines and the time-consuming switching between them. A practical tool for workshops and production facilities that increases the efficiency of your workflows.


• Excellent versatility: This sheet metal bending machine is suitable for materials with a maximum width of 12 inches (305 mm) and a thickness of up to 20 GA (1 mm). It allows a bending angle of up to 90° and, with a blade pitch of less than 0.0027 inches (0.07 mm), offers flexible application options for various processing requirements.


• Durable construction: This press brake is made of high-quality HT200 cast material, ensuring a long service life. The shearing blade is made of T10 steel and enables precise cutting without burrs. Both the bending blade and the roller are made of robust 45# material, ensuring a It offers high resistance to deformation and reliable durability. It is ideal for processing materials such as low-carbon steel, aluminum, brass, copper, lead, plastic, and zinc sheet.


• Flexible bending segments: The central module of the sheet metal bender is equipped with five blades, ranging in size from 1 inch (2.54 cm), 2 x 2 inches (5.08 cm), 3 inches (7.62 cm), and 4 inches (10.16 cm). The blades can be combined as needed to tackle various complex sheet metal processing tasks, such as the production of exterior wall panels and door and window frame materials. This tool is widely used in homes, workshops, and small factories.

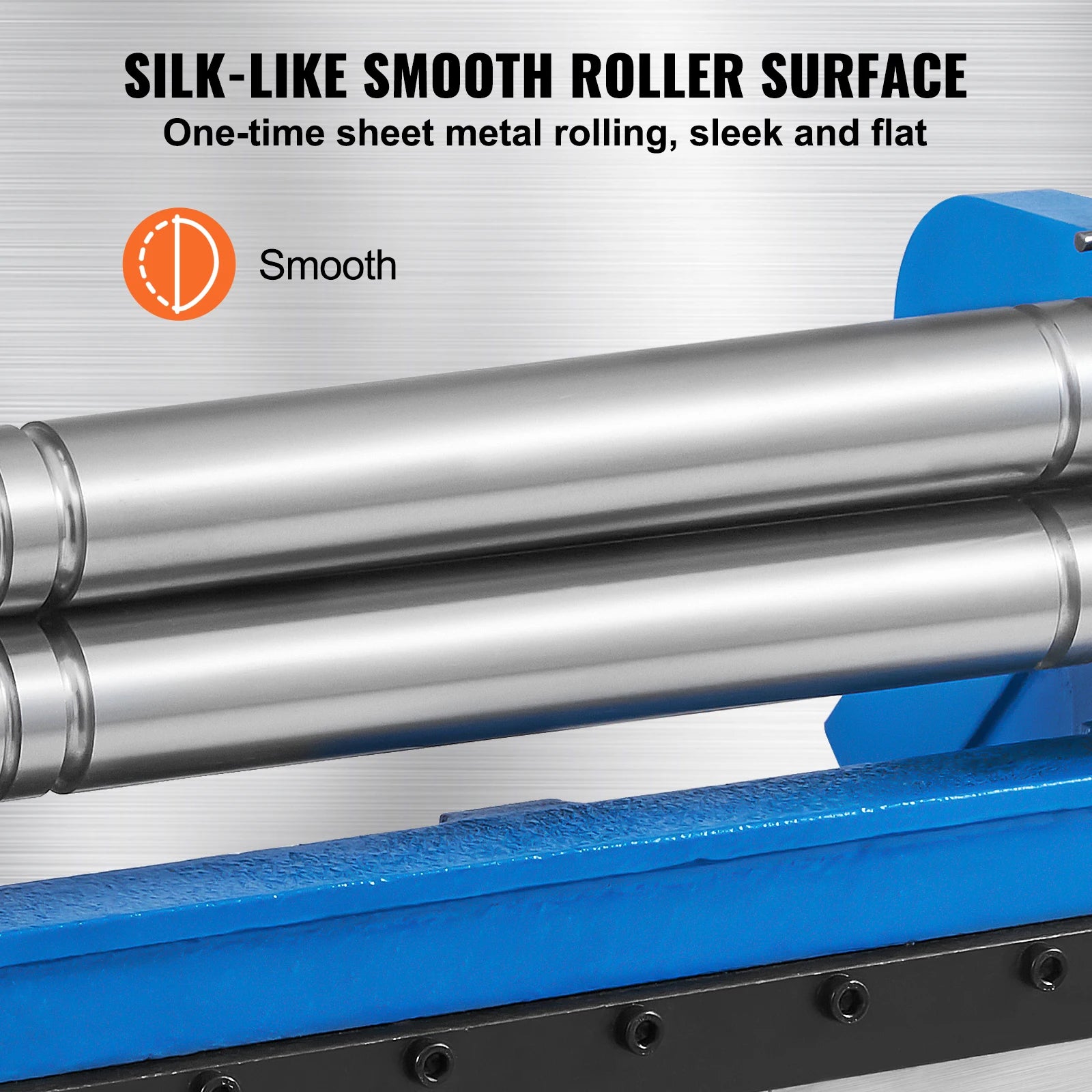

• High-quality workmanship: Advanced external cylindrical grinding technology reduces friction between metal sheets and rollers, increasing the stability of the machine during operation. At the same time, the risk of scratches caused by uneven roll surfaces is reduced, resulting in a smoother sheet surface.

3-in-1 sheet metal bending machine for versatile applications

This versatile sheet metal processing machine combines rolling, bending, and cutting functions in one convenient unit. The roller position can be easily adjusted via a rotary knob, with an extension movement of up to 90 degrees for precise processing of different metal sheets.

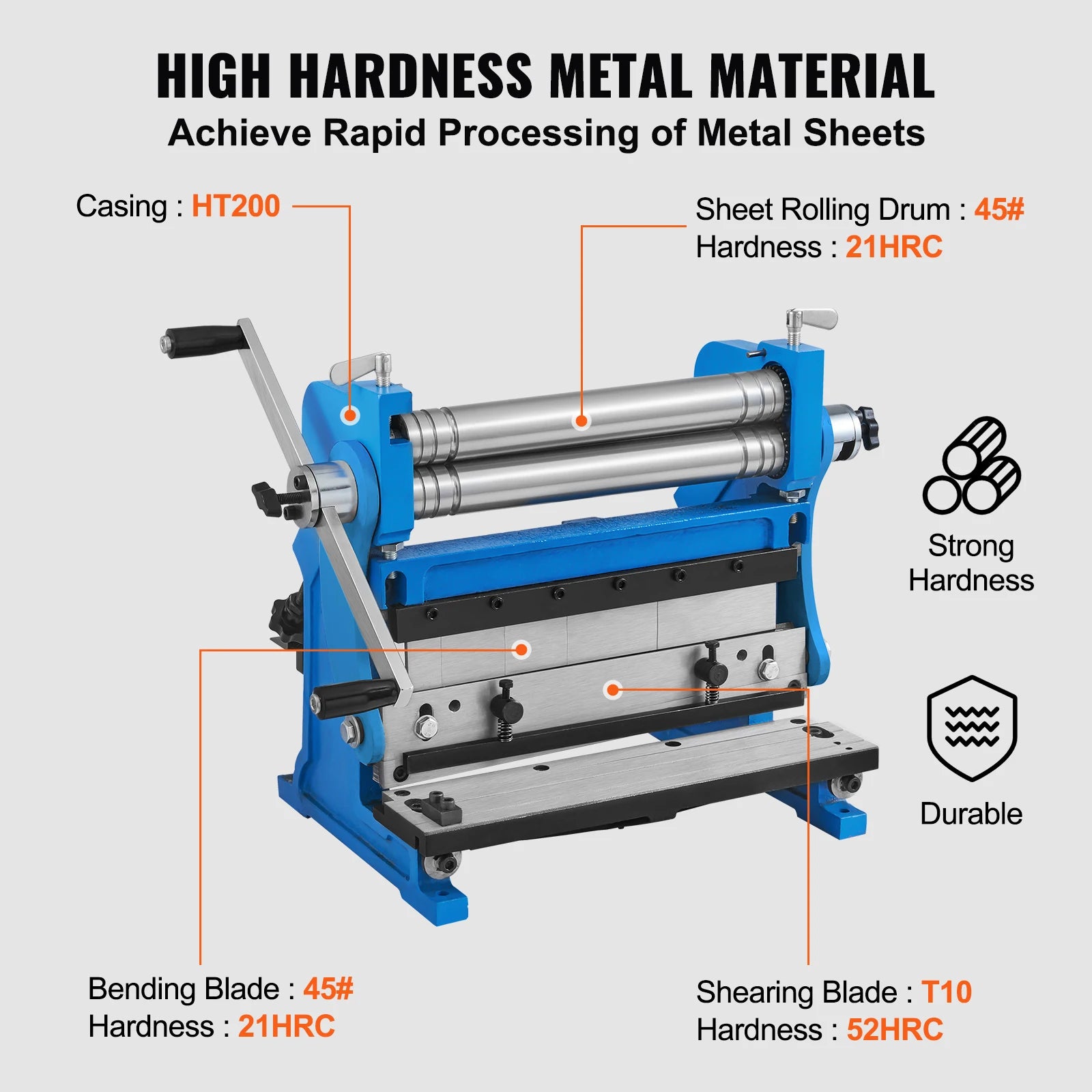

Made from durable and long-lasting materials

Carefully engineered to provide a reliable and durable tool, this scissor press brake is constructed from high-quality materials to ensure stable performance. The robust construction, featuring industrial-grade components, ensures durability and a long service life.

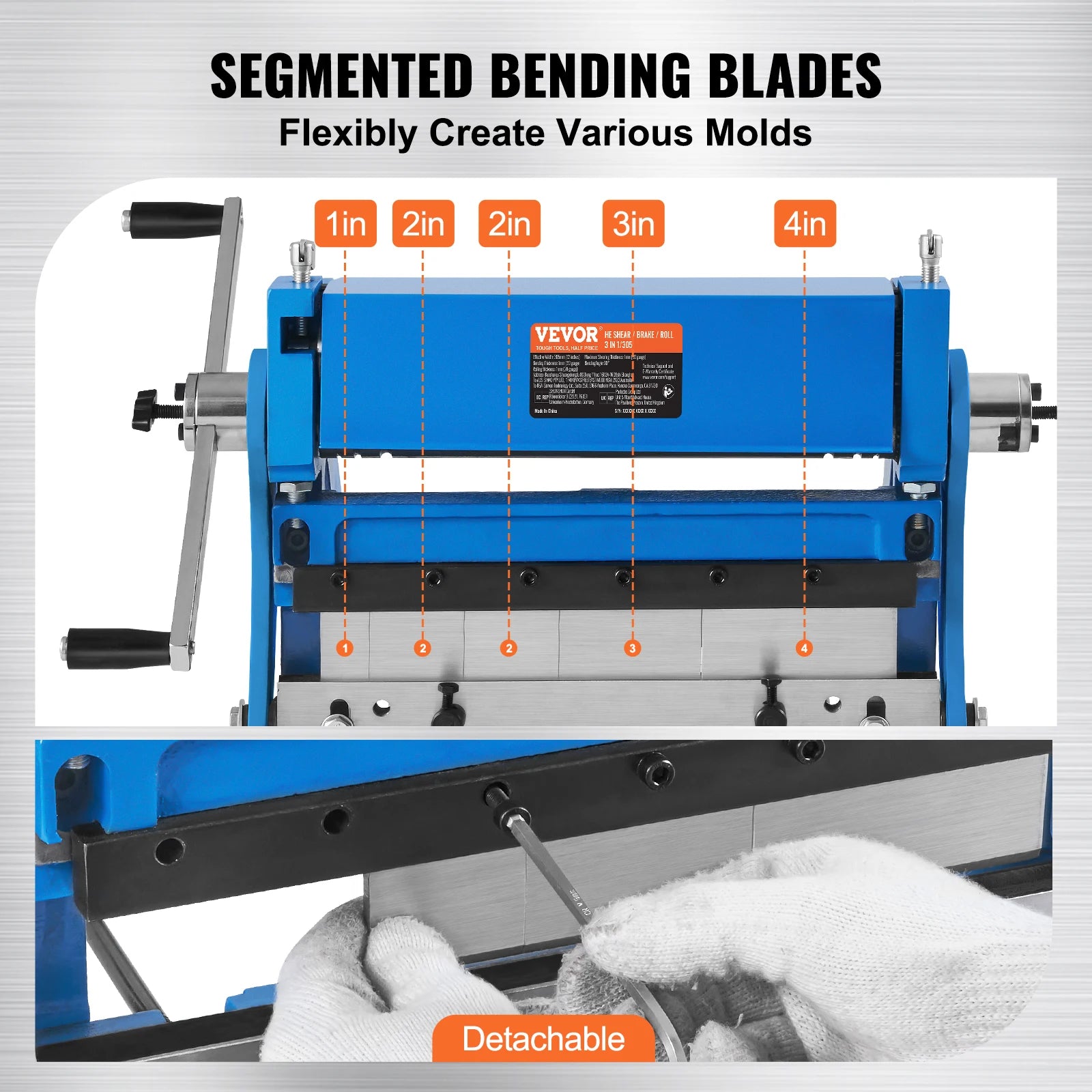

Modular design with removable components

The upper bending tool and lower die module are made of durable #45 material with a thickness of 0.2 in (5 mm). The set includes five blades in various sizes: 1 in (2.54 cm), 2 x 2 in (5.08 cm), 3 in (7.62 cm), and 4 in (10.16 cm), making bending low-carbon steel and aluminum easy and efficient..

Versatility for various craft applications

The roller of this sheet metal bending machine features precise adjustment technology, which allows it to easily form various cylindrical and conical workpieces while achieving a uniform surface of the sheet metal.

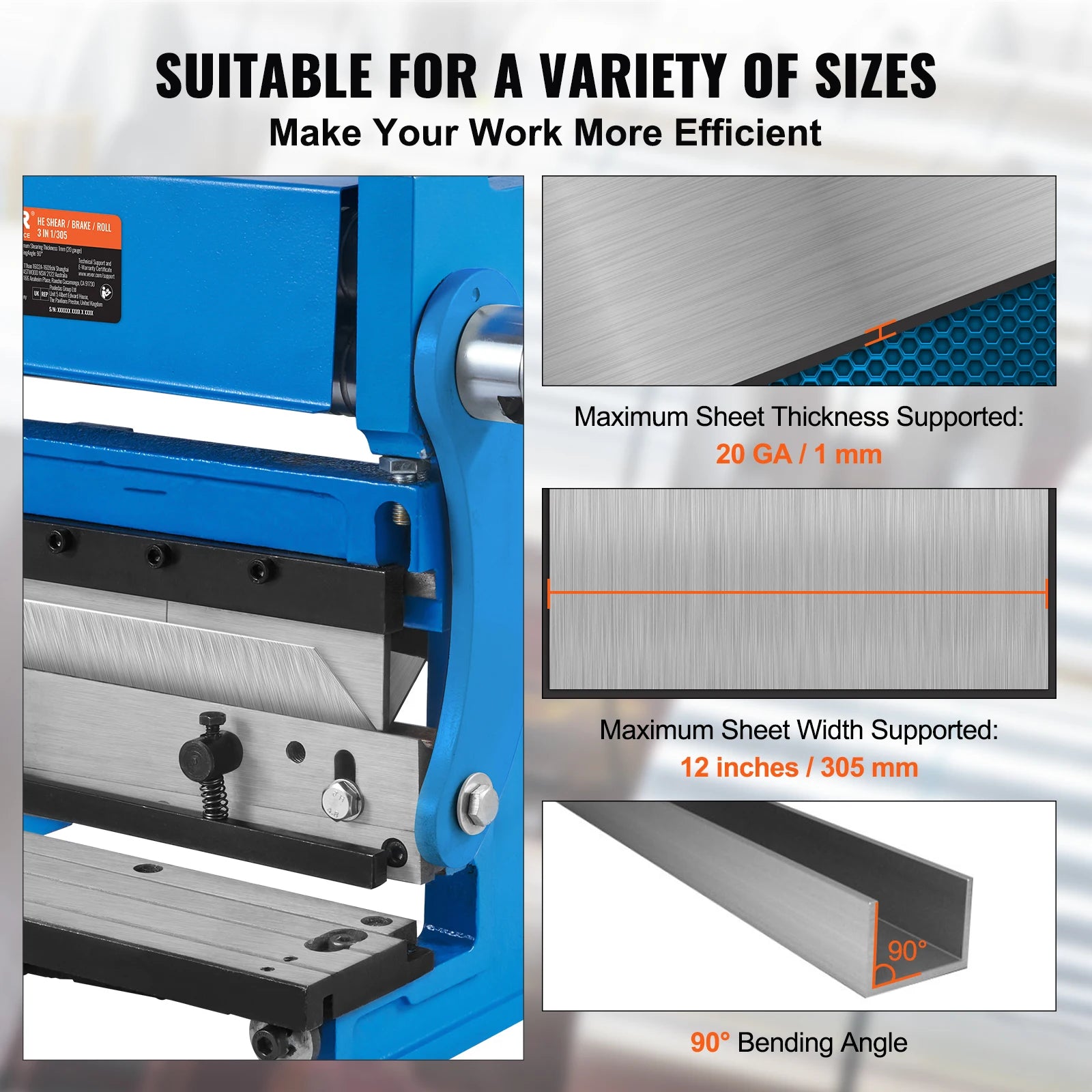

Meet your processing requirements

Our versatile 3-in-1 sheet metal processing machine is ideal for a variety of sheet metal processing needs. It is suitable for materials with a maximum thickness of 20 GA/1 mm, a maximum width of 12 inches/305 mm, and allows for bending angles of up to 90 degrees.

Easy to use

Our sheet metal bending press is characterized by its ease of use. It requires neither complicated training nor specialized expertise. No additional accessories or components are required. Users can quickly understand the operation, thereby increasing productivity.

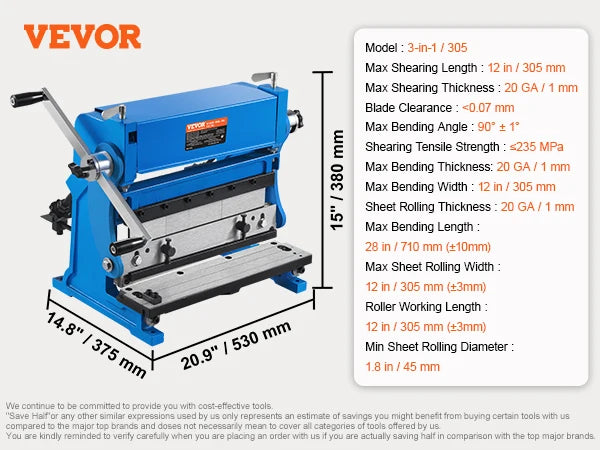

Specification

• Item model number: 3-in-1/305 Max. shear length: 12 in / 305 mm Maximum shear thickness: 20 GA / 1 mm Blade pitch: < 0.07 mm Shear tensile strength: ≤ 235 MPa Maximum bending thickness: 20 GA / 1 mm Maximum bending width: 12 in / 305 mm Max. bending length: 28 in / 710 mm (±10 mm) Maximum bending angle: 90° ± 1° Max. sheet rolling width: 12 in / 305 mm (±3 mm) Roll working length: 12 in / 305 mm (±3 mm) Sheet rolling thickness: 20 GA / 1 mm Min. sheet rolling diameter: 1.8 in / 45 mm Surface treatment and color: Painted Primary materials: Q235, 45#, HT200 Net weight: 90 lbs / 41 kg Product dimensions: 20.9 x 14.8 x 15 in / 530 x 375 x 380 mm Shear blade: Thickness: 0.4 in / 10 mm, Length: 14 in / 354 mm, Width: 0.8 in / 20 mm, Hardness: 52 HRC; Material: T10 Upper bending tool: Straight blade, Thickness: 0.2 in / 5 mm, Length: 12 in / 307 mm, Width: 2.3 in / 58 mm, Hardness: 21 HRC; Material: 45# Lower bending die: V-shaped die, thickness: 0.8 in / 20 mm, length: 13.8 in / 350 mm, width: 2.5 in / 63 mm, hardness: 21 HRC; material: 45# Sheet metal rolling drum: diameter: 1.5 in / 38 mm, length: 12 in / 305 mm, hardness: 21 HRC; material: 45#/li>

Package Content

• 1 x Sheet metal brake 1 x User manual
