SucceBuy Dividing Head

Unleashing Unrivaled Accuracy and Efficiency

This dividing head stands out with the CNC Rotational Axis 4th Axis, a 6:1 reduction ratio, and a Nema23 2-phase stepper motor. It provides unparalleled precision across a wide range of indexing angles. The K11-100MM 3-jaw chuck boosts efficiency, making complex projects effortless.

• CNC Axes Precision Stepper Motors, 3-Jaw Chuck Efficiency

Key Features

•

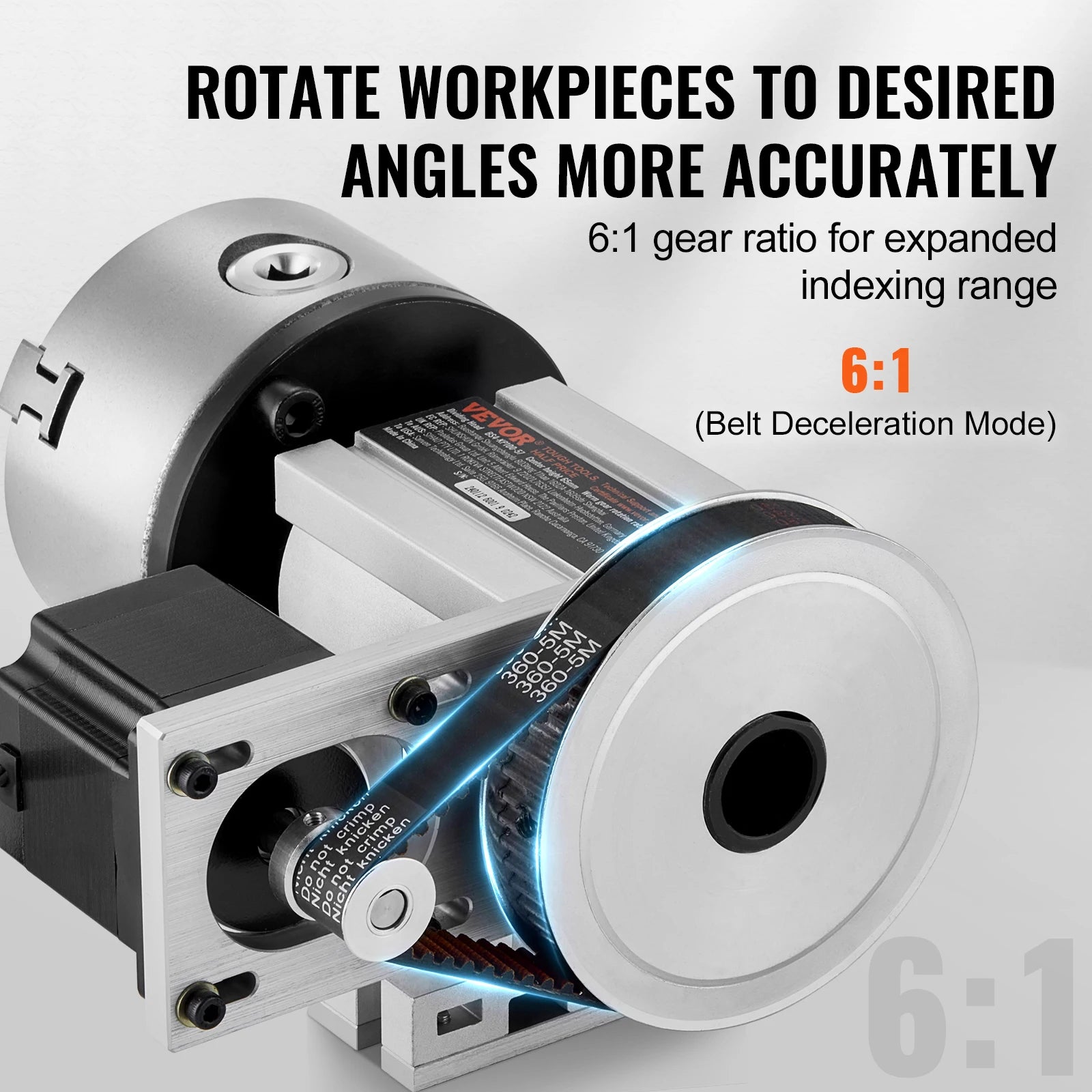

• Precision Machining with 6:1 Reduction Ratio: The dividing head has a 6:1 reduction ratio, allowing for precise positioning of workpieces and better machining accuracy. It also lowers the motor's rotation speed for smoother operation and less noise.

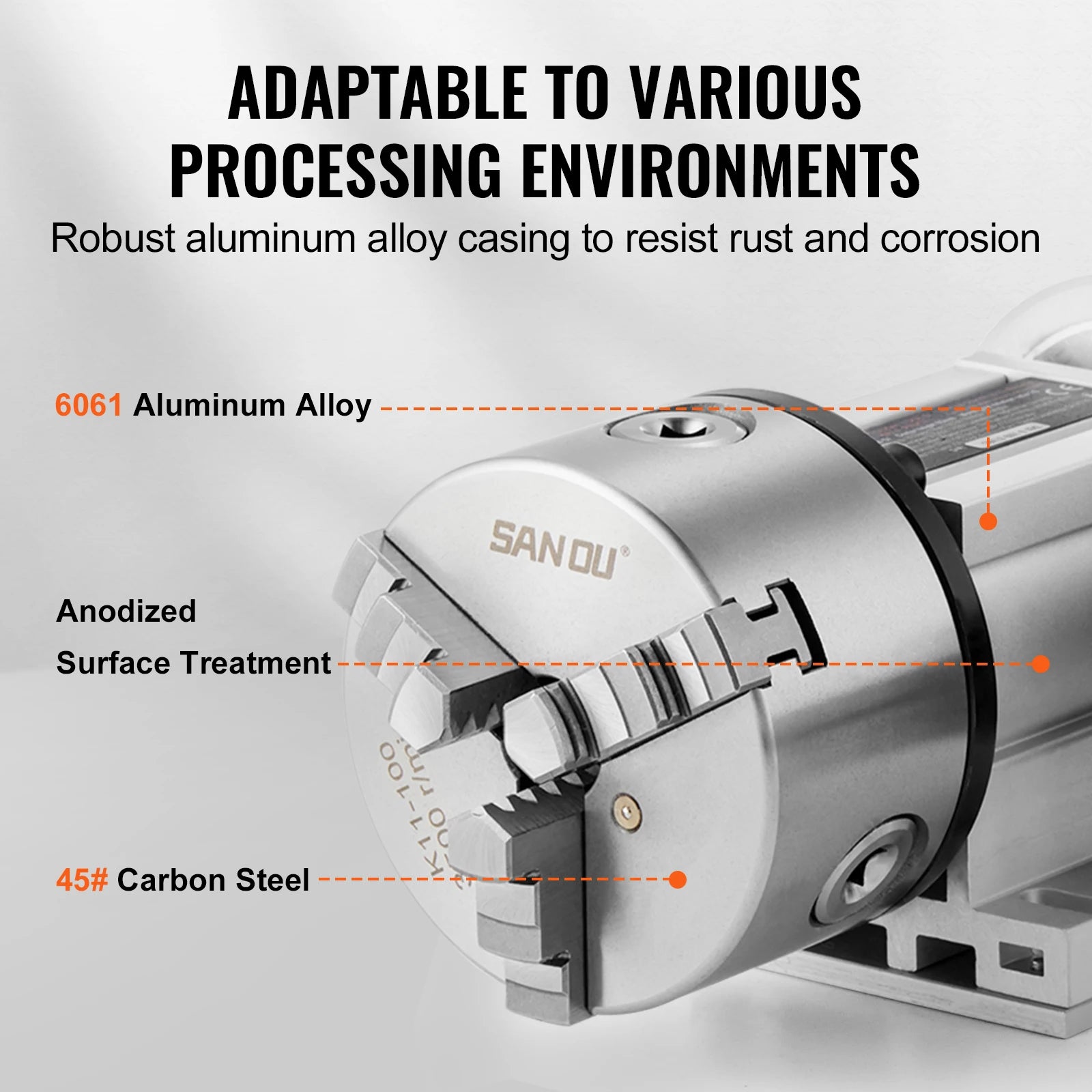

• Durable Construction for Longevity: The indexing head is made of 6061 aluminum alloy with an anodized surface, offering excellent wear and corrosion resistance to protect internal components.

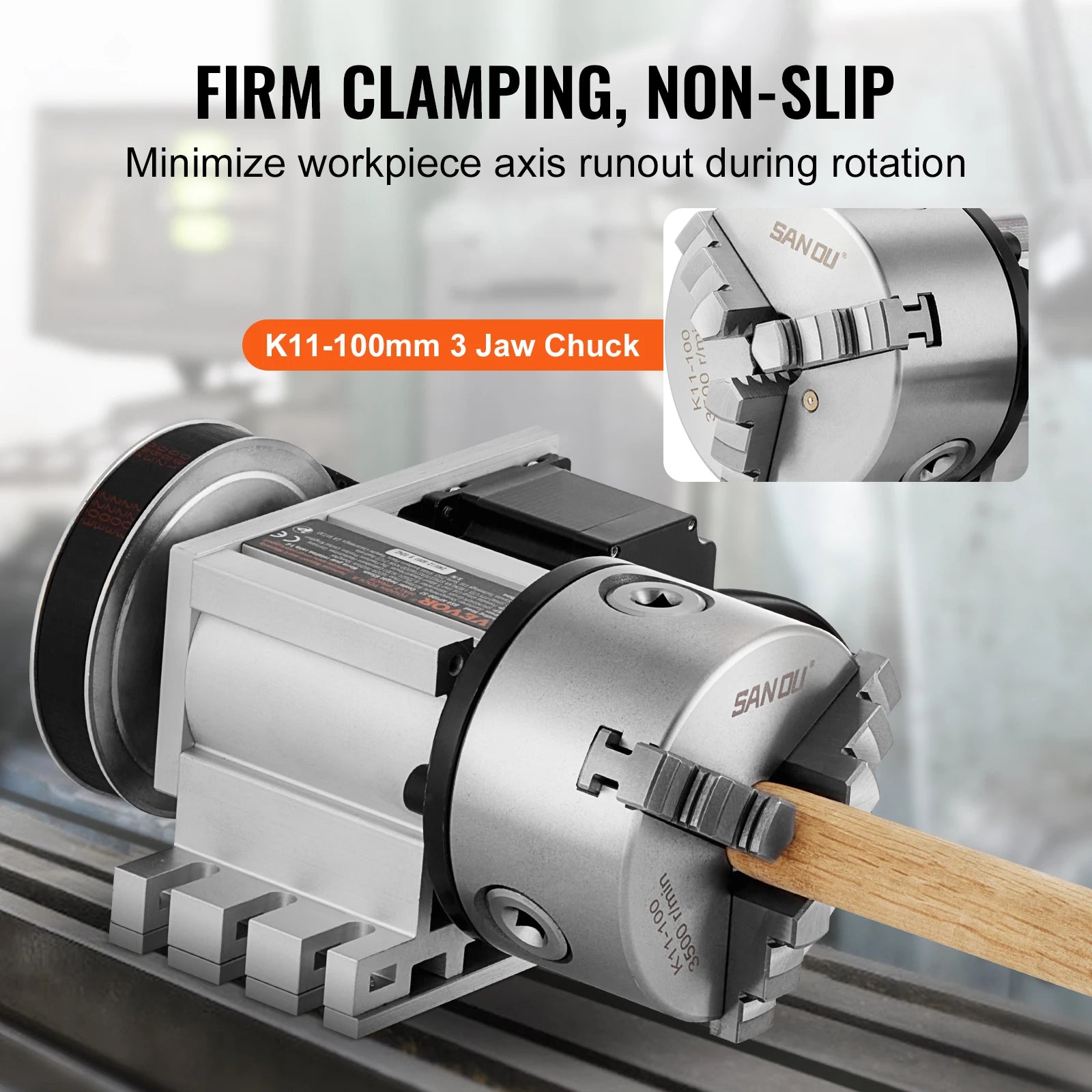

• Robust 3-Jaw Chuck for Secure Clamping: The K11-100MM 3-jaw chuck provides strong clamping force. It comes with internal and external jaws, accommodating a wide range of workpiece diameters and ensuring precise positioning during machining.

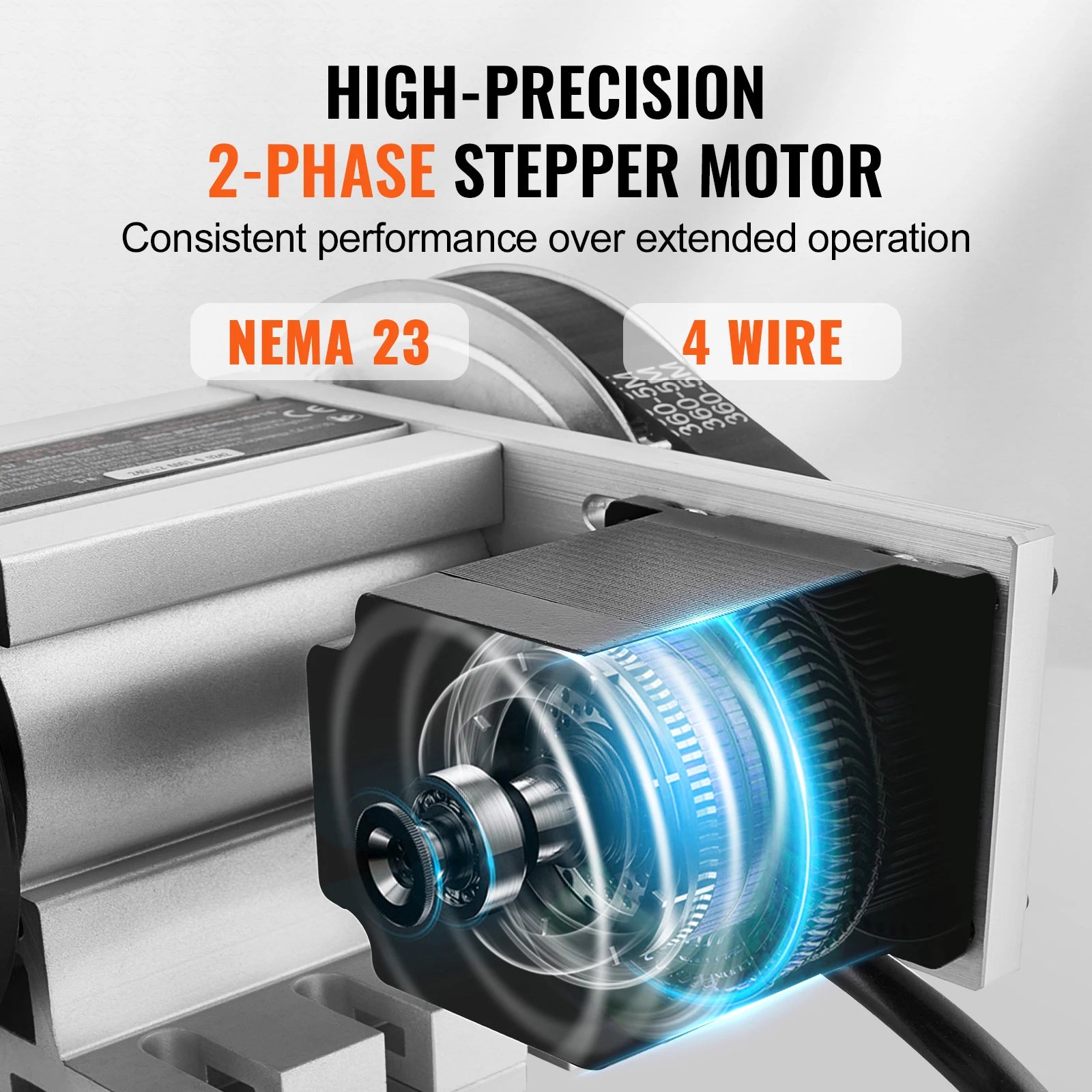

• High-Performance Stepper Motor: Equipped with a Nema23 2-phase stepper motor, it offers precise positional control and a durable internal structure for reliable long-term operation.

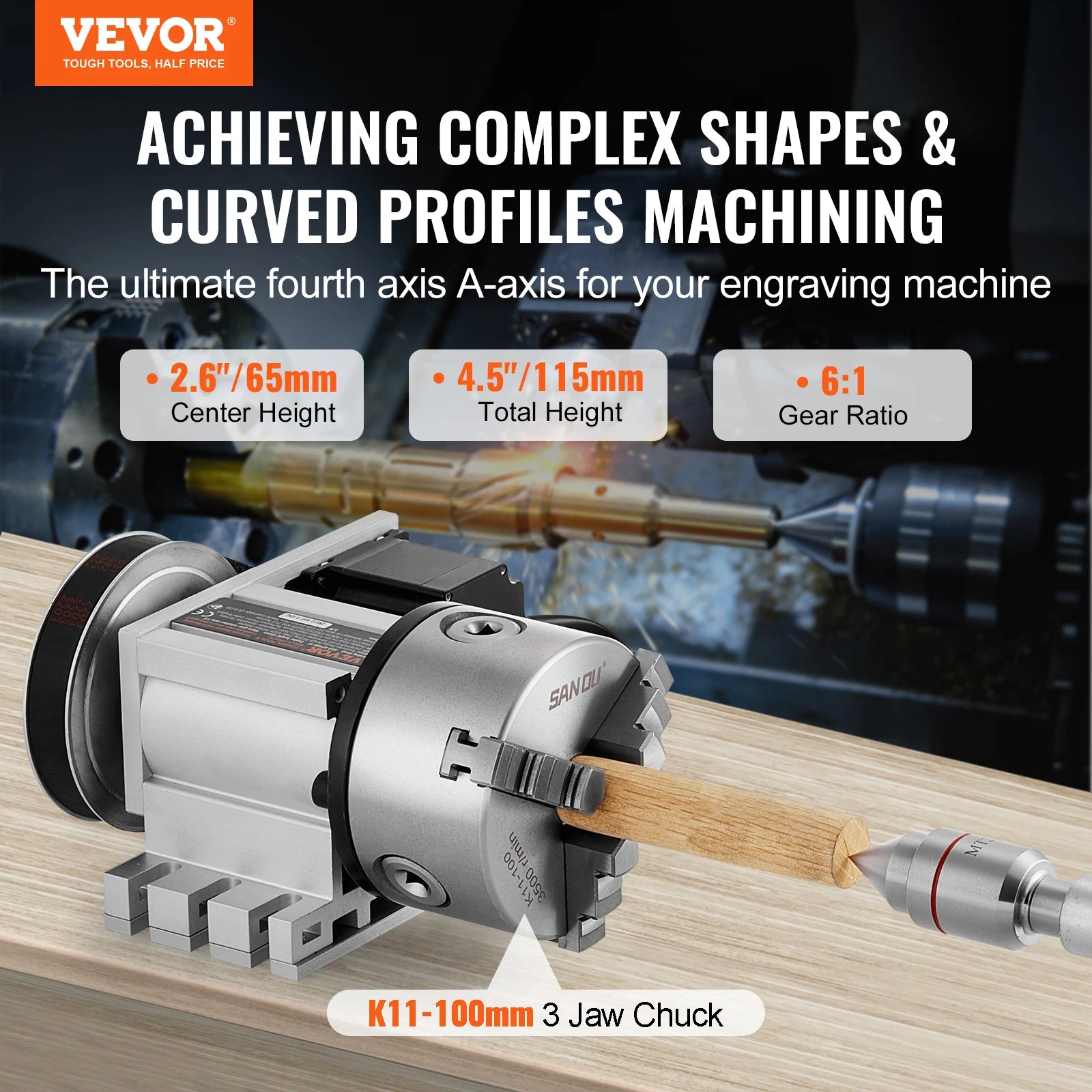

• Versatile 4th Axis for Complex Tasks: The CNC rotational axis enables multi-angle and position carving, handling complex parts with curves. It has a 100mm 3-jaw chuck and a 65mm center height for precise and easy processing.

Tailstock Precision

The tailstock with MT2 taper and 0 to 1.6""/40mm travel range ensures precise positioning for high-precision applications, boosting machining quality.

Accuracy Enhancement

Enhance your CNC machining with a Rotary 4th Axis indexing dividing head. It has a K11-100MM three-jaw chuck and a 20mm through-hole for improved efficiency.

Simple Jaw Switching

The dividing head has 3 internal and 3 external jaws. Changing jaws is simple with the included T-wrench for a firm grip and high-precision machining..

Machining Flexibility

The hollow shaft design provides an internal passage, making machining more flexible and precise for complex shapes.

Seamless Installation

We use industry-standard connections and a simple chuck attachment for a seamless setup. The robust flange design lasts long without modifying your machine.

Comprehensive Accessories

Along with accessories, an extra signal cable is provided. Connect it between the dividing head and control system for precise rotation control and higher accuracy.

Specification

• Gear ratio: 6:1 Voltage: DC 3.75V, 2.5A Item Model Number: BS4-KP100-57 Center height: 2.6""/65 mm Net Weight: 17.6 lbs /8 kg Chuck type: K11-100mm 3 jaw chuck Chuck Clamping Diameter: 0.08-1.18''/2-30 mm(Internal Jaw), 1.18-3.15''/30-80 mm(External Jaw)/li>

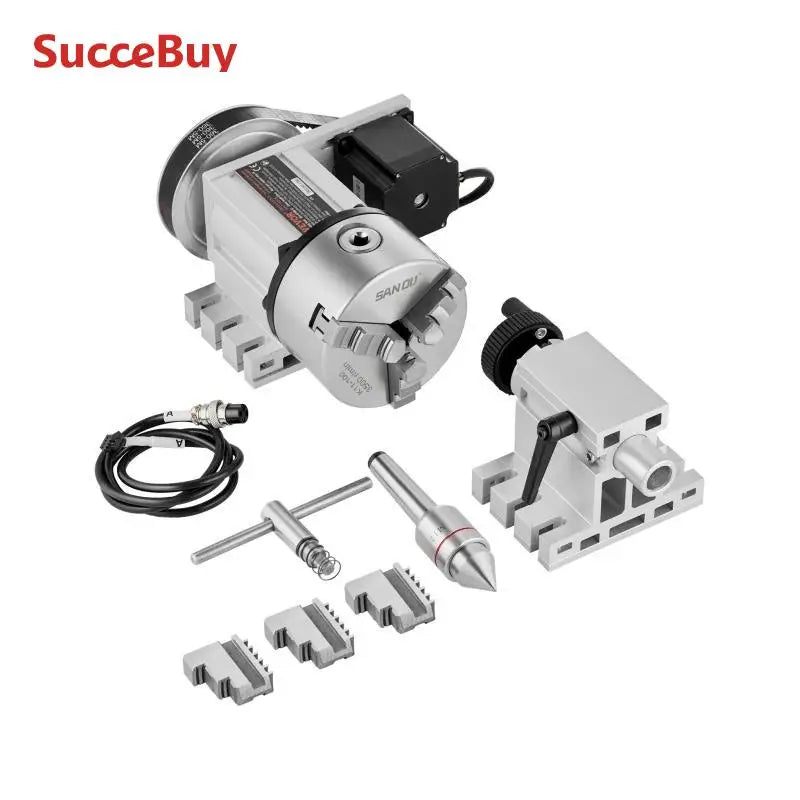

Package Content

• 3 x Card Plate Anti-Claw 1 x Dividing Head(With Chuck) 1 x Numerical Control Cable 1 x T-wrench 1 x Tailstock 1 x User Manual 1 x MT2 Rotate the Thimble
