SucceBuy Diesel Fuel Injector Nozzles Tester with Dual Scale Gauge 6000PSI Engine Fuel Tester Repair Tool for Car Tractor Truck

SucceBuy Diesel Fuel Injector Nozzles Tester with Dual Scale Gauge 6000PSI Engine Fuel Tester Repair Tool for Car Tractor Truck

$102.99 USD
$0.00 USD $102.99 USD
Sale Sold out
Shipping calculated at checkout.
Ships From

SPECIFICATIONS

Brand Name: SucceBuy

Certification: None

External Testing Certification: ce

Hign-concerned Chemical: None

Is Batteries Included: No

Origin: Mainland China

Product Description

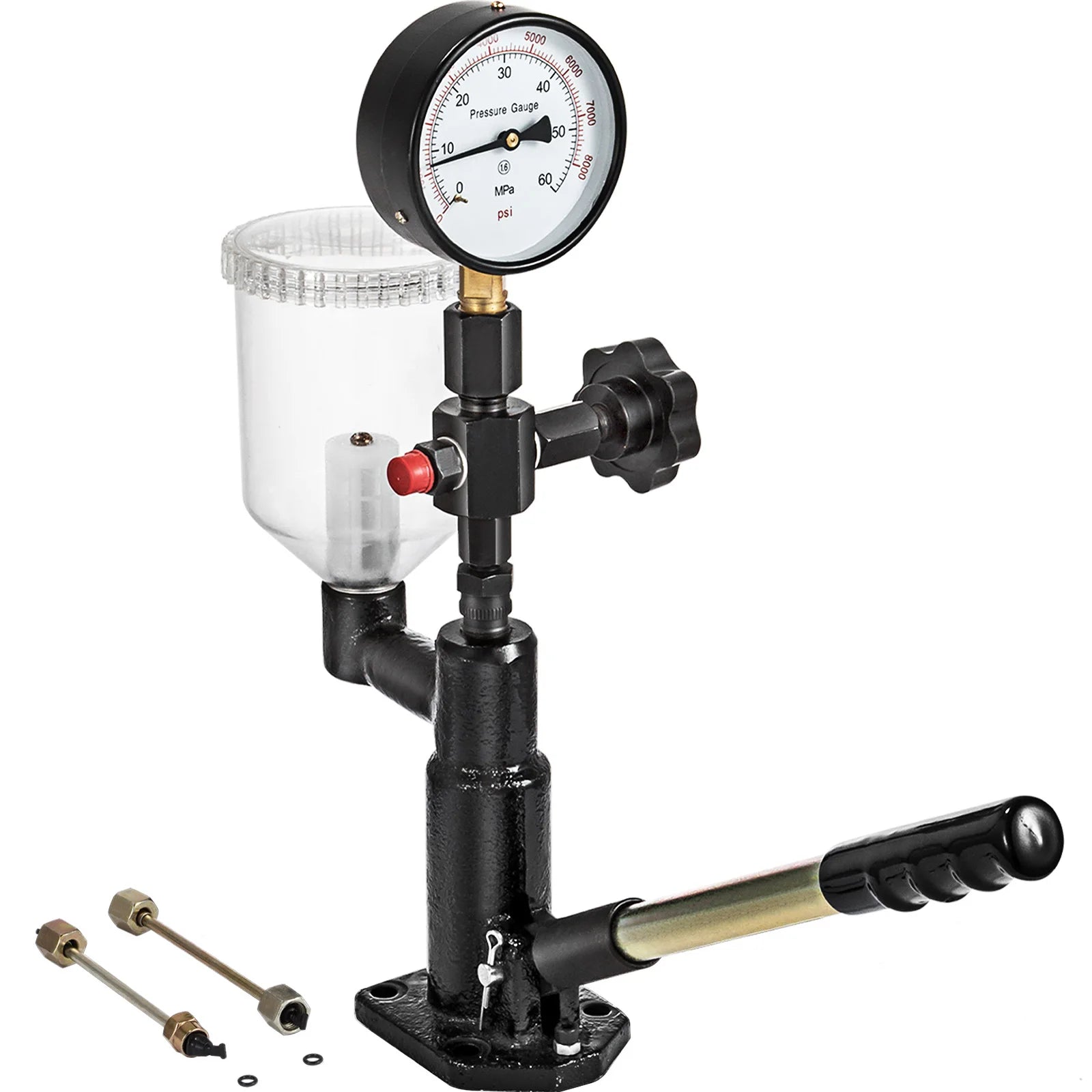

Diesel Fuel Injector Nozzles Tester 60MPa
This tester is used to adjust the injector opening pressure, a seat nozzle oppression, and performs leak tests, spraying atomization repetition modeling tests and characteristic testing of gossip. This diesel injector tester comes with a heavy 0 to 600 BAR / 0 to 8000 PSI dual scale gauge, which helps stabilize vibrations in the needle, providing more accuracy in results and increase the life of the gauge.

  • Premium Cast Iron

  • Large Measuring Range

  • Superior Tests Ability

  • Standard Accessories

Tough Equipment & Tools, Pay Less
SucceBuy is a leading brand that specializes in equipment and tools. Along with thousands of motivated
employees, SucceBuy is dedicated to providing our customers with tough equipment & tools at incredibly
low prices. Today, SucceBuy's products are sold in more than 200 countries and regions with 10 million
plus members worldwide.
Why Choose SucceBuy?

  • Premium Tough Quality

  • Incredibly Low Prices

  • Fast & Secure Delivery

  • 30-Day Free Returns

  • 24/7 Attentive Service

Key Features

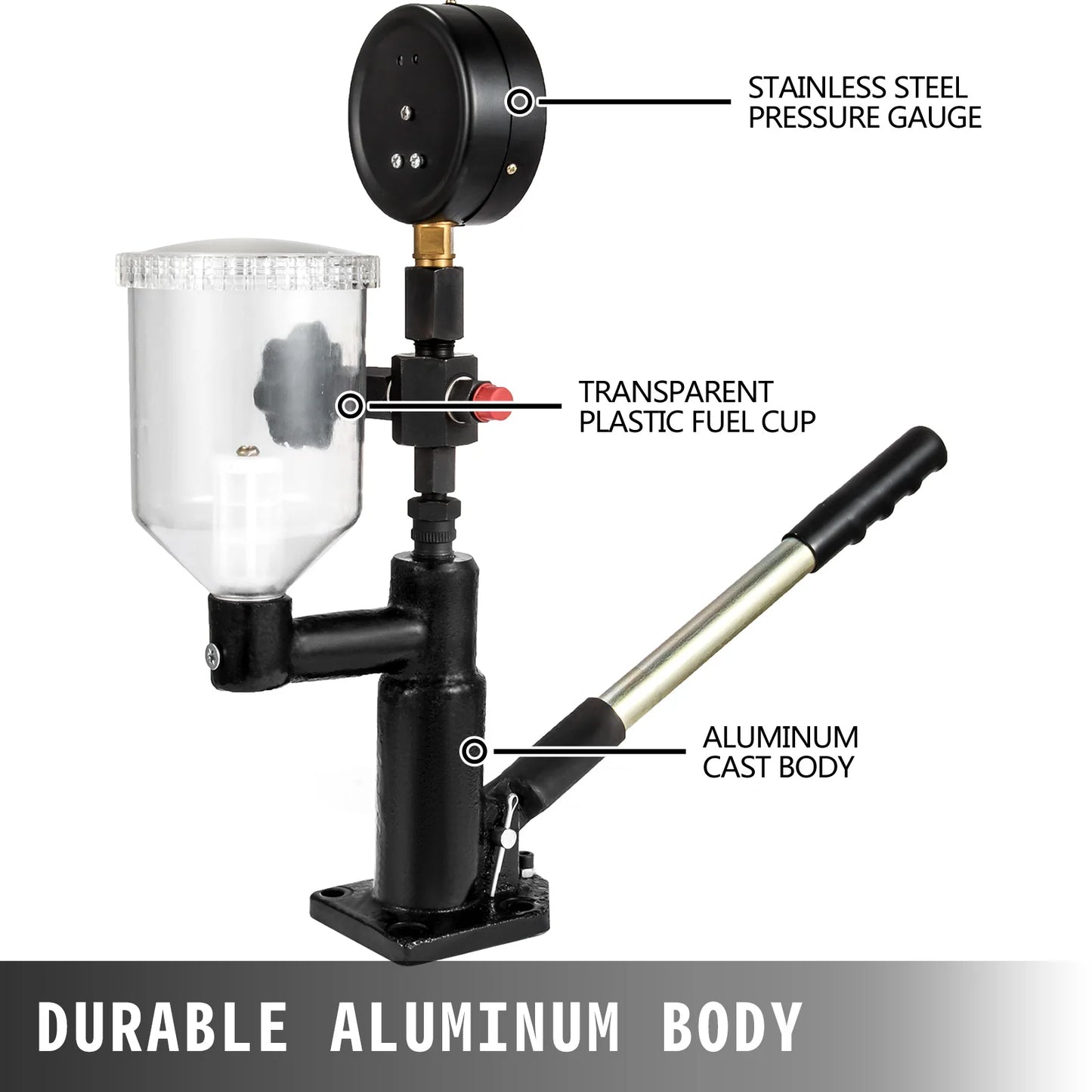

Durable Cast-iron Body
The fuel injection nozzle tester is made of selected high-quality materials to ensure a long-last use. It has a sturdy cast-iron body, stainless pressure gauge and a plastic transparent oil cup.

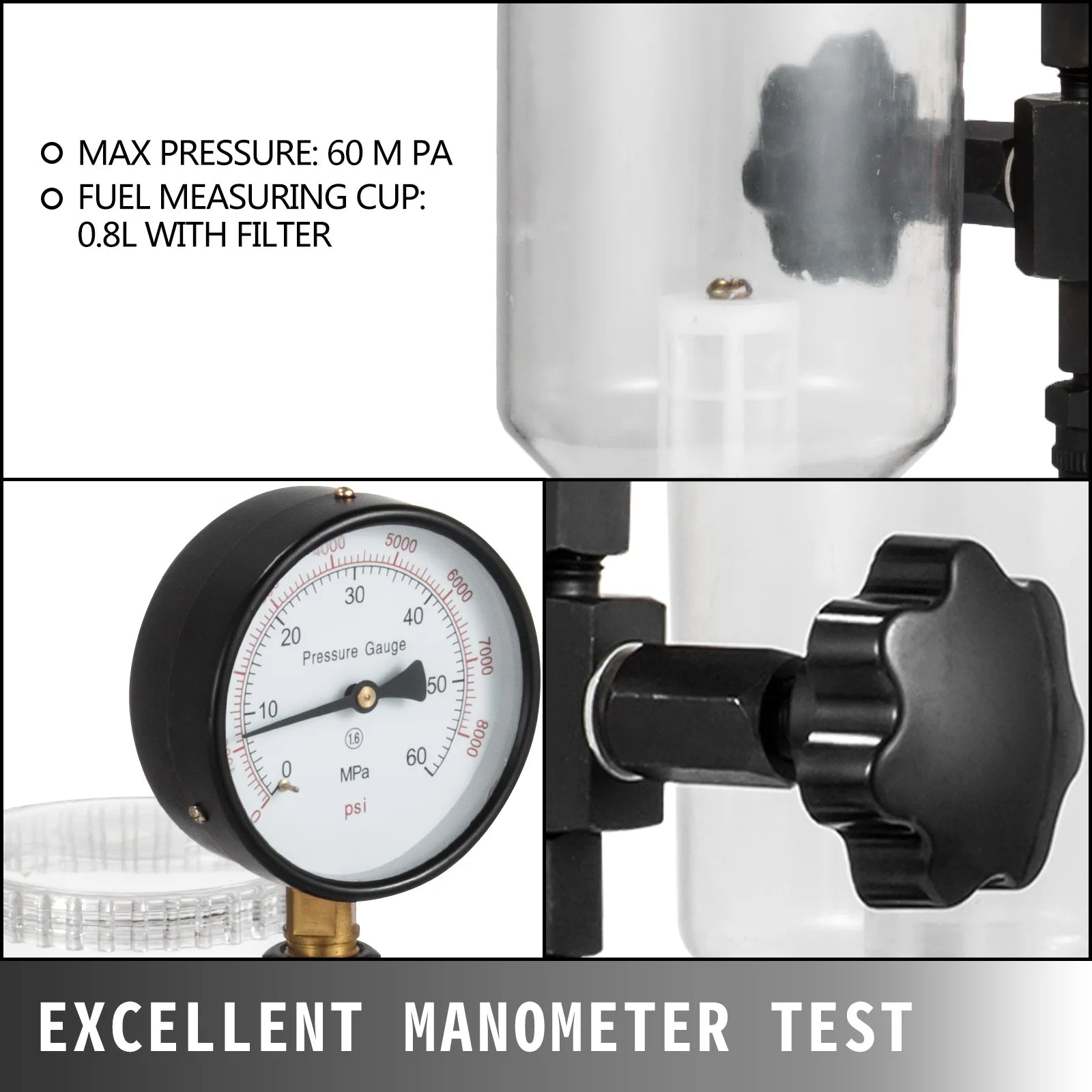

Excellent Manometer Test
In basic design with 0-60M Pa (0-600 bar/ 0-8000 psi) pressure gauge and 0.8L fuel measuring cup with a 5-micron original Bosch filter help to test the opening pressure of the injector and the valve accurately.

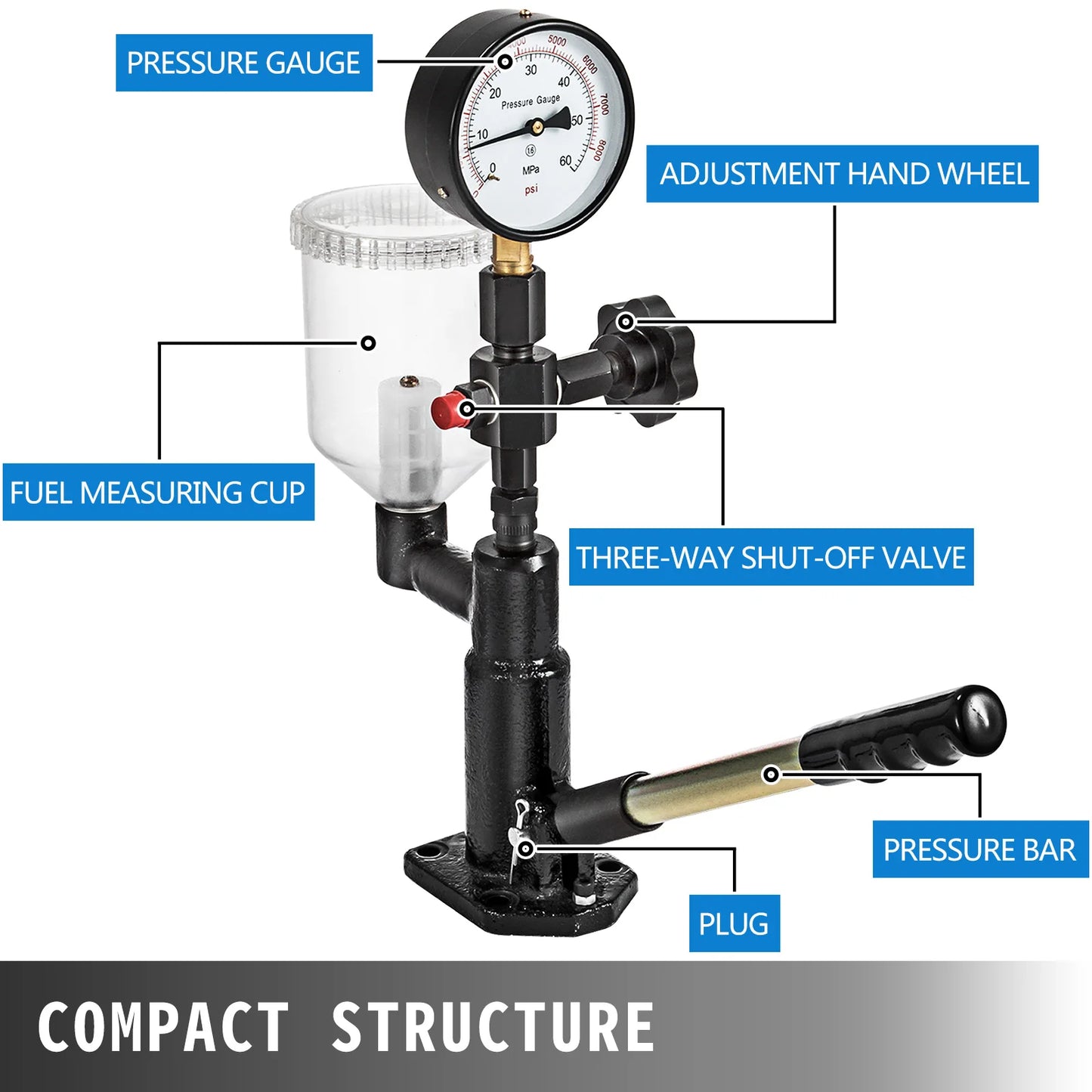

Compact Structure
The fuel pressure tester has a compact structure, a three-way stop valve guarded the safety, and convenient the connection, solid mounting base ensuring the balance, and 2/5" plunger hole providing the power.
Multifunctional Tests
This fuel injector tester is the special equipment for inspecting fuel injectors. It can verify various mechanical tests of fuel injectors, such as opening pressure test, leakage test, atomization, and chattering test. With diversity function, and simple operation.
High Configuration
The tool kit contains the main parts for fuel injector calibration and all accessories required during its installation process. For your first use, please flush the inside of the tester by operating lever and spraying it into the extraction unit without the nozzle.

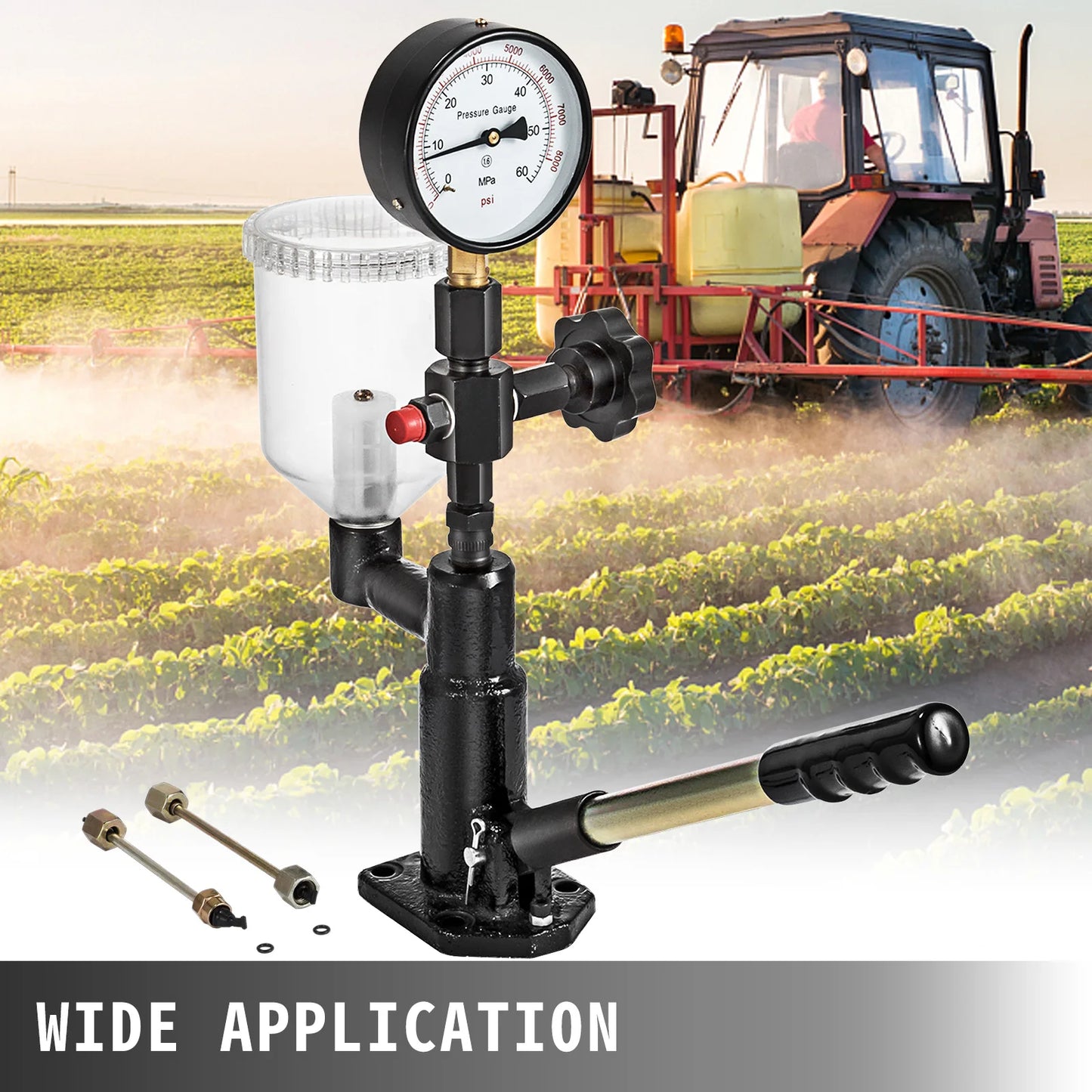

Wide Application
Widely used in the calibration of fuel injectors of diesel engines of automobiles and tractors. It is suitable for all types of diesel injectors except (CRDI) Common Rail Diesel Injectors.
Specifications

  • Color: Black

  • Measuring ranges: 0 to 0600 bar & 0 to 8000 PSI

  • Pressure range: 60Mpa (600 bar)

  • For 6190/6200/6170 Diesel

  • Can test pressure: ≥35.0MPa (350 bar)

  • Fuel tank capacity: 4000mL

  • Oil Cup：0.8L

  • Pressure: 0-60Mpa

  • Plunger Hole: 2/5''

  • Nozzle connector: M14X1.5-M14X1.5, M14X1.5-M12X1.25, M14X1.5-M12X1.5

  • Applicable models: Diesel Engine Vehicle

  • Product Size: 5x4.5x16.5 in / 12.7x11.4x41.9 cm

  • G.W.: 14lbs/6 kg

Package Content

  • 1 X Diesel Injector Nozzle Tester

  • 2 X Extra Oil Pipes

Features & Details

  • 【PREMIUM CAST IRON】- The diesel injector tester forged by high-quality cast iron, its durability and rigidity is dramatically increased. It also consists of a plastic fuel cup to contain the fuel, and with a stainless pressure gauge to detect air pressure precisely.

  • 【LARGE MEASURING RANGE】- With precision dual scale gauge, the measuring value range from 0-600 bar/ 0-8000 psi, Max test pressure up to 60M Pa. (100 mm Dial, 3/8" BSP thread.) The transparent fuel measuring cup can hold 0.8L oil, and with the filter to help conduct kinds of injector nozzles tests.

  • 【SUPERIOR TESTS ABILITY】- The tool set is capable of accomplishing proper injection nozzle opening pressure test, leakage test, chattering test, an inspection of spray pattern, and Atomization. With such a multifunctional test capability, the diesel injector tester is the ideal tool for the examination of auto diesel injectors.

  • 【STANDARD ACCESSORIES】- The injector pop tester kit is equipped with 60MPa pressure gauge, handle, high-pressure pipes, A and B type with m.m. size nuts (12 X 1.5) and (14 X 1.5) for connections, 0.8L fuel cup with a 5-micron original Bosch filter, piston/element, and delivery valve. Two extra oil pipes are included in the package for your testing use.

  • 【WIDE UTILITY】- Diesel fuel injector tester is widely used in the calibration of fuel injectors of diesel engines of automobiles and tractors. It is suitable for all types of diesel injectors except (CRDI) Common Rail Diesel Injectors.
