SucceBuy BS0 5" Dividing Head Indexing Head Semi Universal Indexing Plates, Tailstock & 125mm 3-Jaw Chuck for Drilling Milling

SucceBuy BS0 5" Dividing Head Indexing Head Semi Universal Indexing Plates, Tailstock & 125mm 3-Jaw Chuck for Drilling Milling

$322.99 USD
$0.00 USD $322.99 USD
Sale Sold out
Shipping calculated at checkout.
Ships From

SPECIFICATIONS

Application: For Drilling Milling

Brand Name: NoEnName_Null

Center Height: 3-15/16"

Certification: CE

Features 1: Rigid & Durable Body

Features 2: Adjustable Headstock

Features 3: Direct Indexing Plate

Features 4: Strong MT2 Tailstock

Headstock Taper: MT2

High-concerned chemical: None

Model: BS-0

Number of Jaws: 3

Origin: Mainland China

Power: Manual

Power Source: Manual

Product: Dividing Head

Swing: 6-1/2"


Product Description

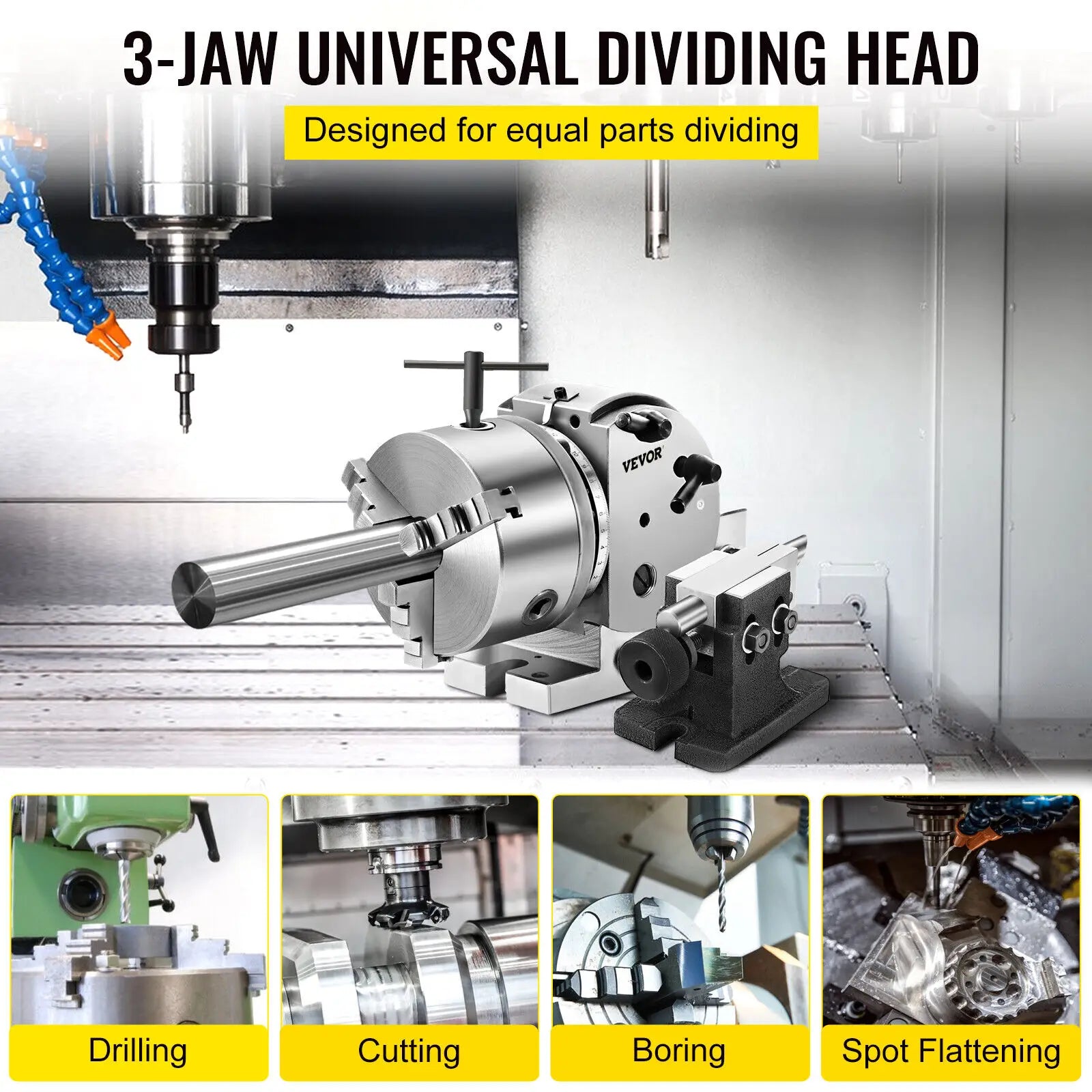

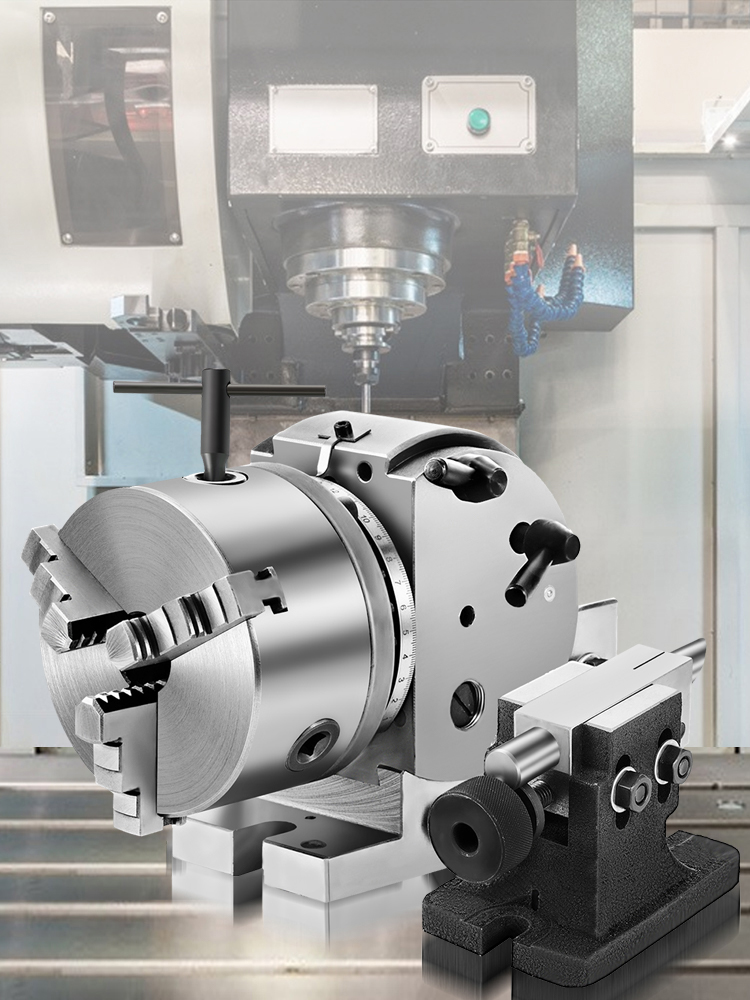

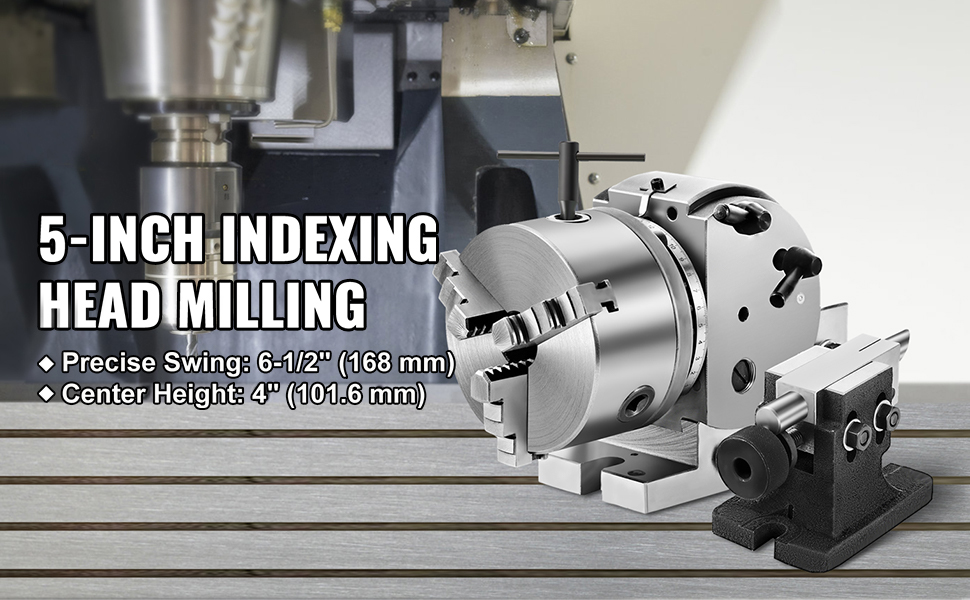

BS-0 Precision Dividing Head
MT2 Headstock Taper, Complete Set, & Easy Operation
Enhance your milling capabilities with the SucceBuy BS-0 Precision Dividing Head. This versatile tool not only looks impressive but also enables precise angle measurement and circle division into equal arcs. Equipped with 3 interchangeable indexing plates and a tailstock, it ensures accuracy and stability in your work. Perfect for machining flutes of milling cutters, cutting gear teeth, milling curved slots, or drilling bolthole circles.

  • Durable Cast Iron Construction

  • Adjustable Dividing Head

  • High-Precision Indexing Plates

  • Strong and Stable Workpiece Support


Key Features

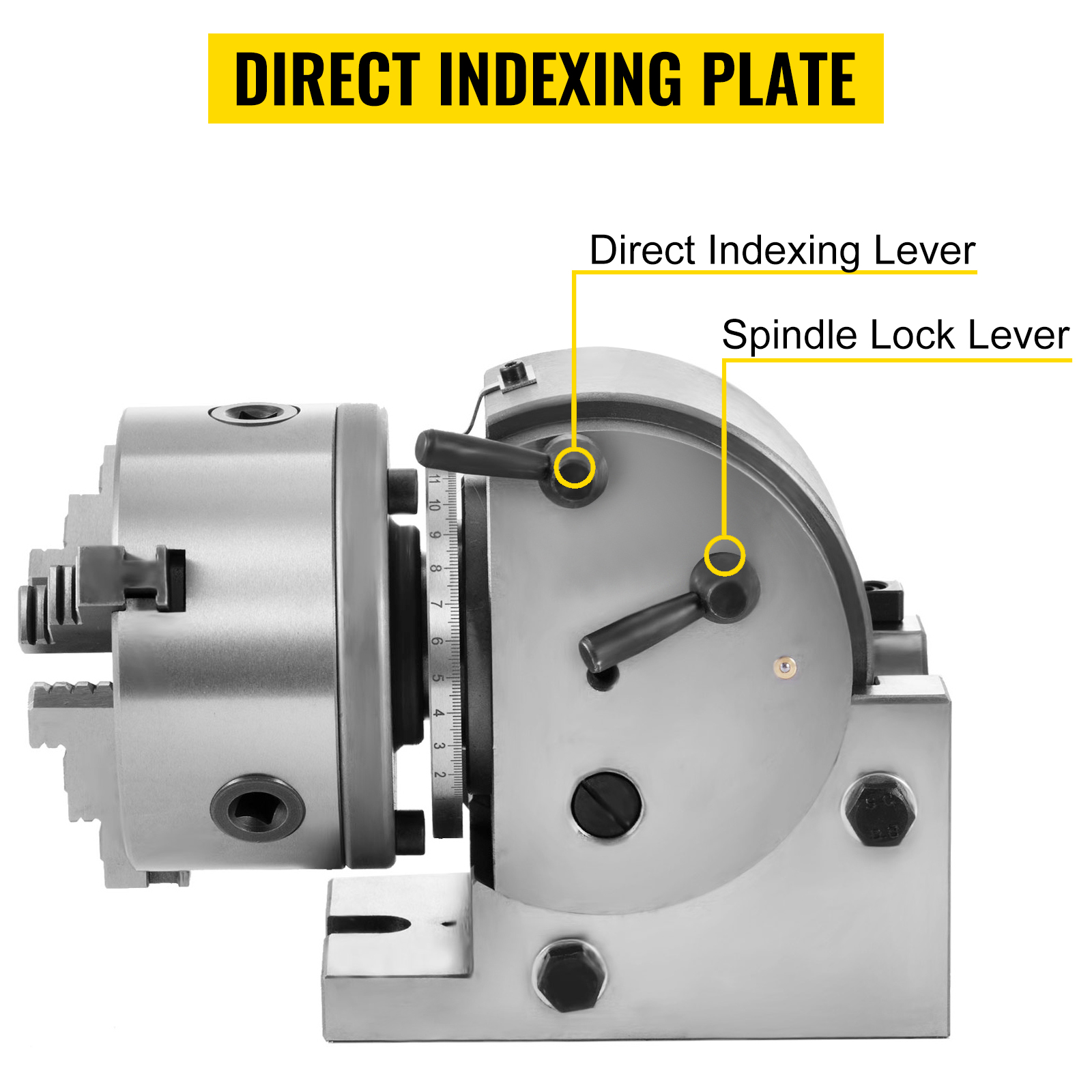

Efficient Direct Indexing Plate
The first-level adjustment engages the pin to segment the full circle into 2, 3, 4, 6, 8, 12, or 24 divisions. The second level ensures stability by minimizing spindle vibration during use.

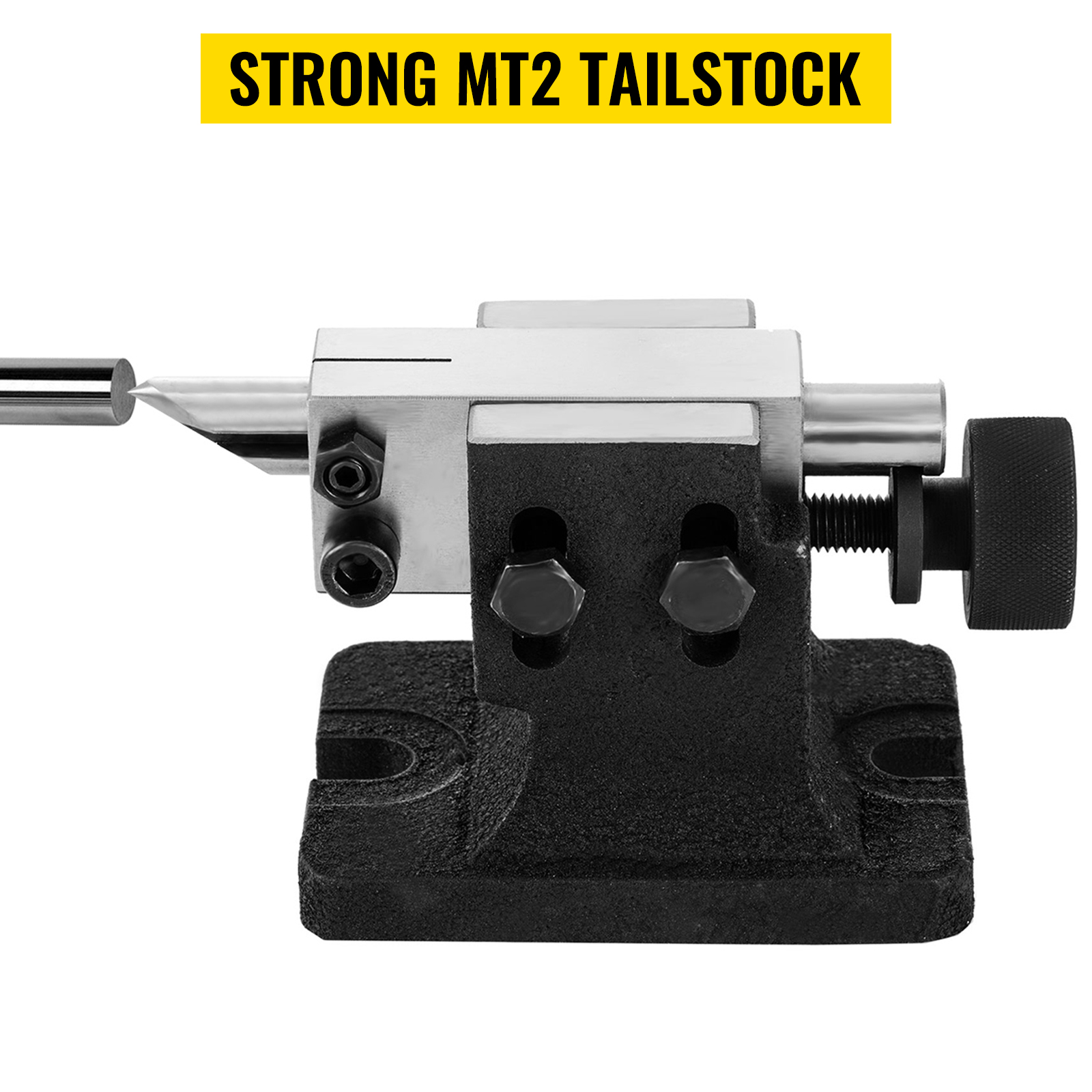

Robust MT2 Tailstock
The MT2 tailstock offers robust support for workpieces, especially those that are long and slender, ensuring stability during machining.

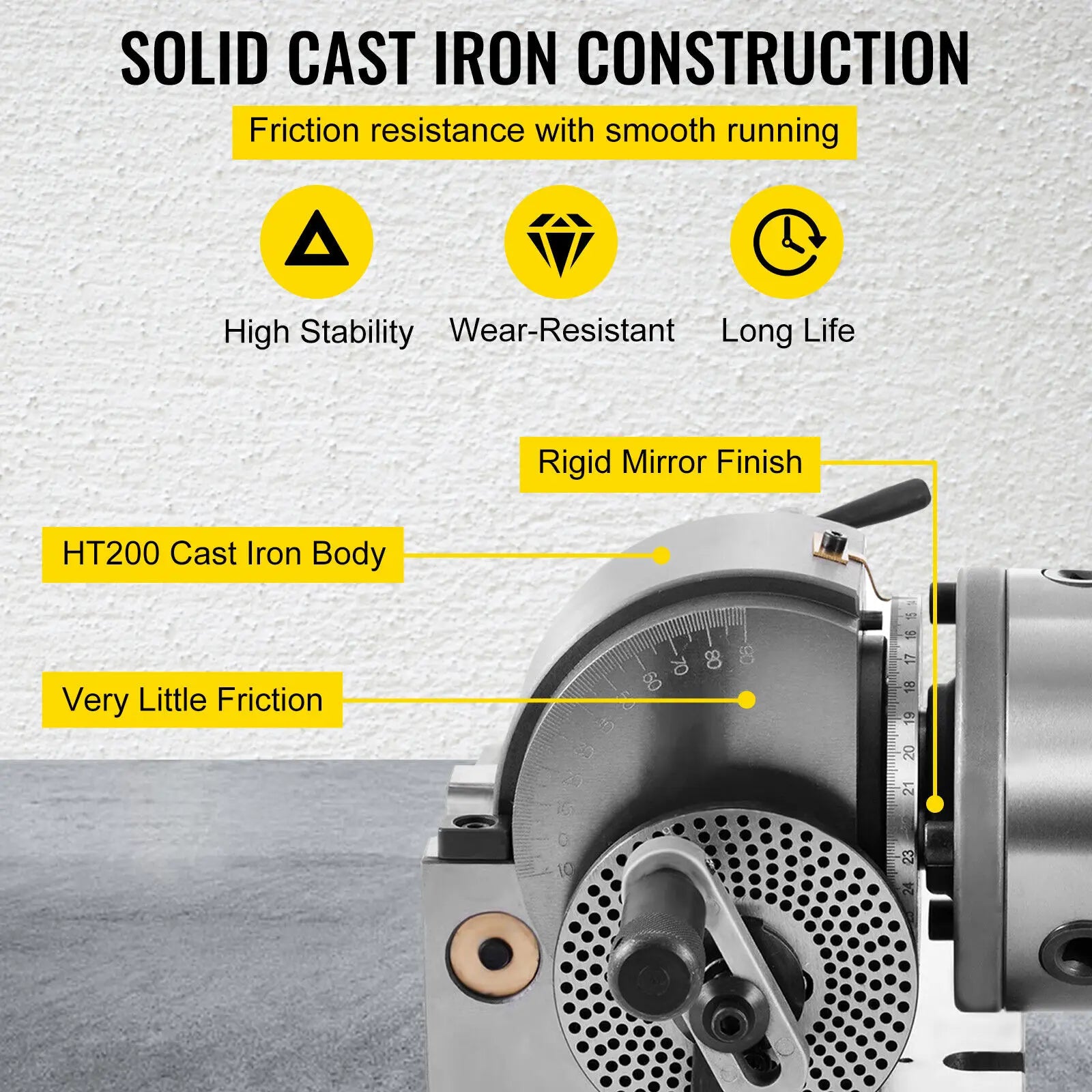

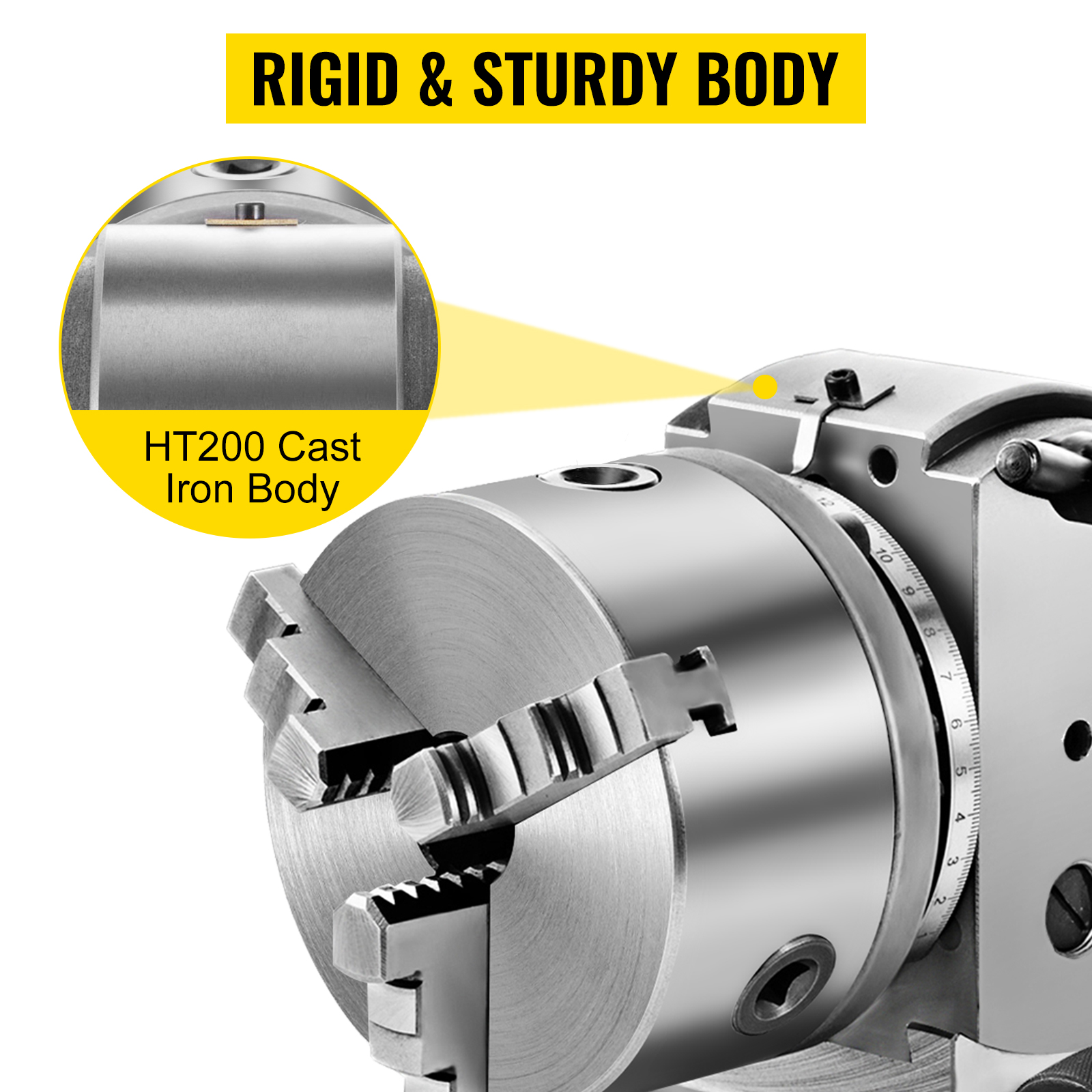

Sturdy & Long-Lasting Construction
Built with a durable indexing head, this tool is designed for extended use. Its mirror-finished surface offers resistance to wear and maintains a sleek, understated appearance.
Broad Usability
This rotary indexer is compatible with milling machines, drill presses, grinders, and boring machines, making it a versatile tool for various machining tasks.

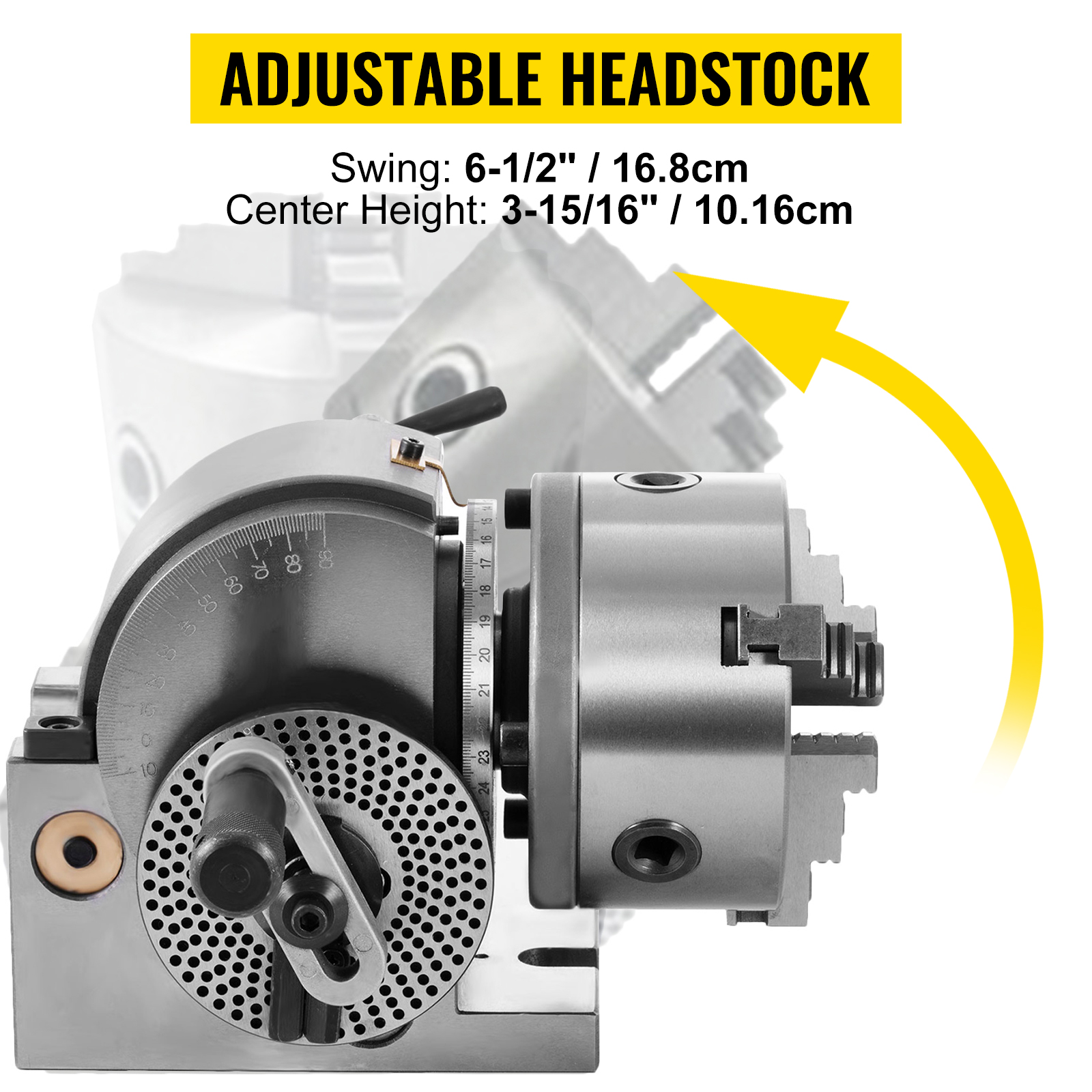

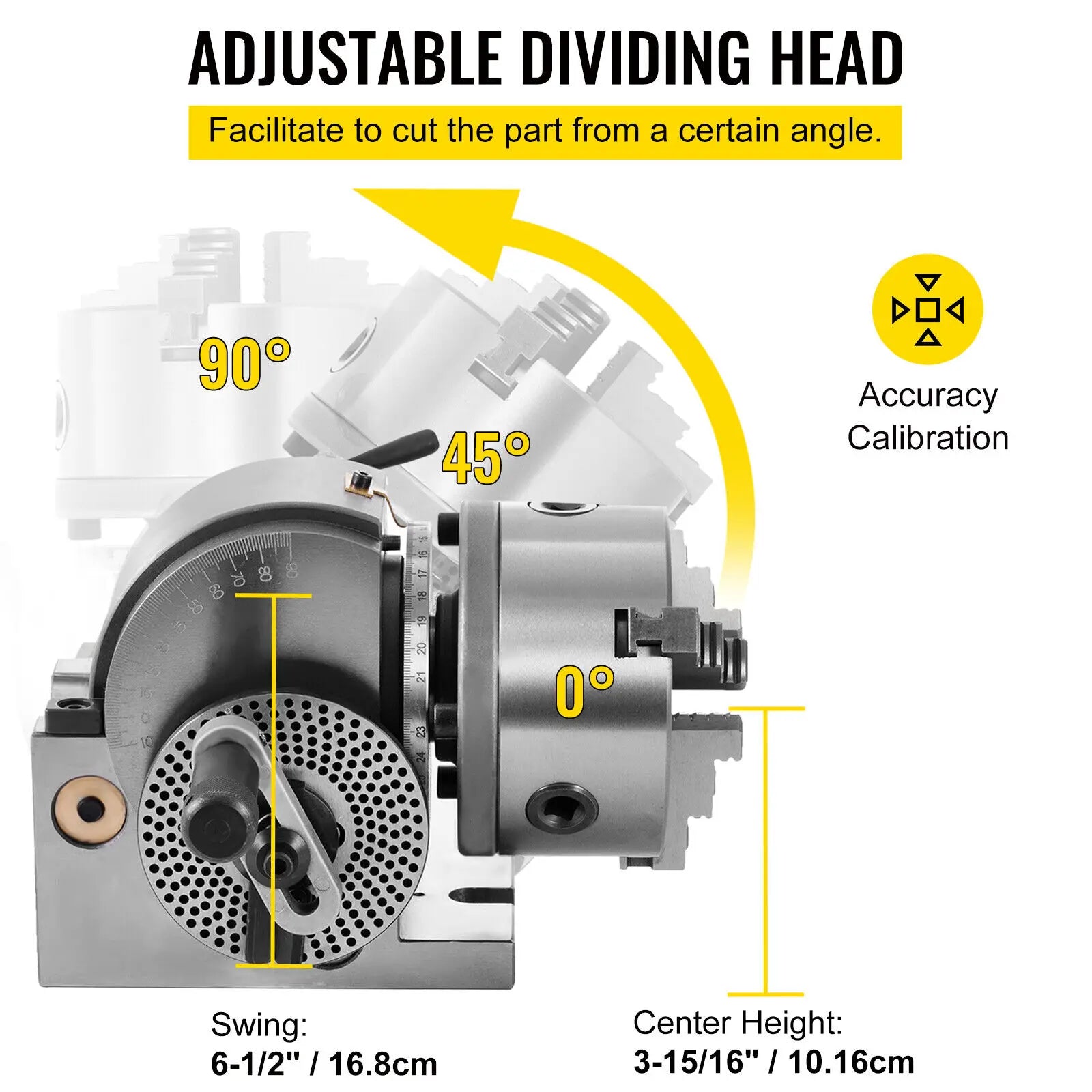

Versatile Headstock Adjustment
The dividing head can be adjusted from 10 degrees below horizontal to 90 degrees vertical, allowing for precise angle cuts and flexibility in machining.

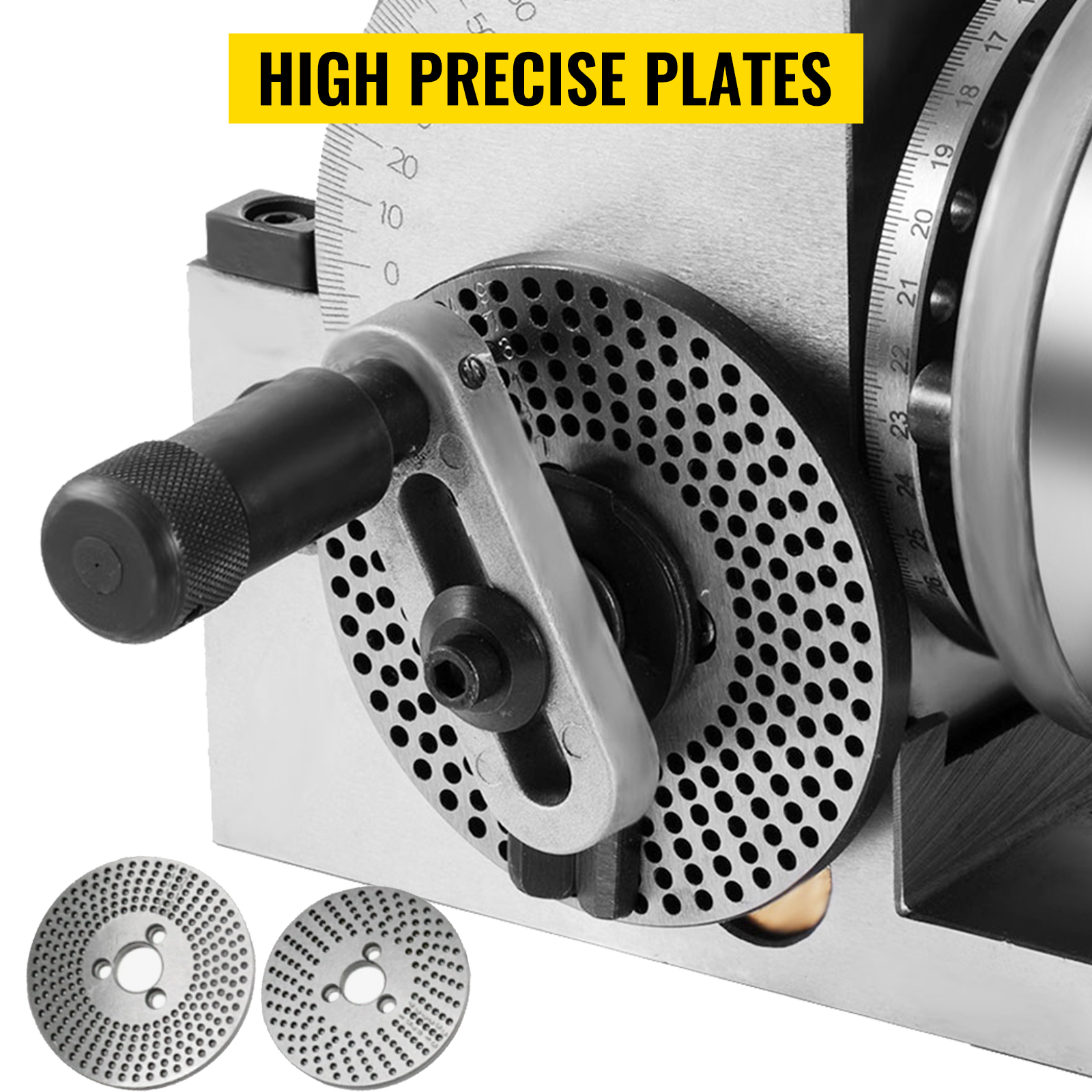

Enhanced Precision Plates
Featuring indirect indexing plates A, B, and C, this indexing head delivers high accuracy for divisions ranging from 2 to 50. For divisions between 51 and 380, please refer to the manual for setup guidance.

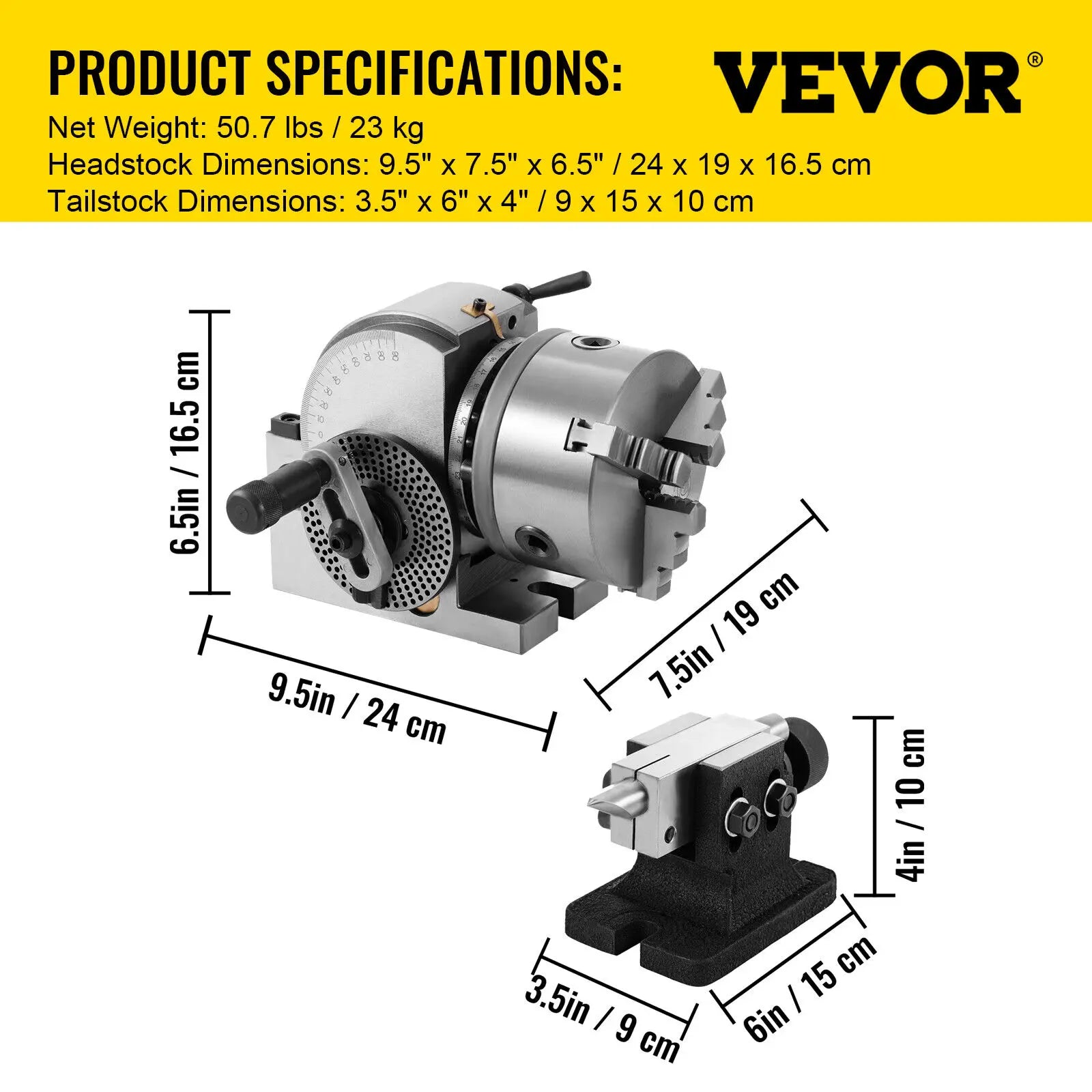

Specifications

  • Swing: 6-1/2" (16.5 cm)

  • Center Height: 3-15/16" (10 cm)

  • Headstock Taper: MT2

  • Net Weight: 50.7 lbs (23 kg)

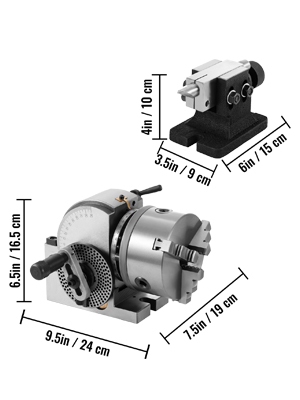

  • Headstock Dimensions: 9.5" x 7.5" x 6.5" ( 24 x 19 x 16.5 cm)

  • Tailstock Dimensions: 3.5" x 6" x 4" (9 x 15 x 10 cm)

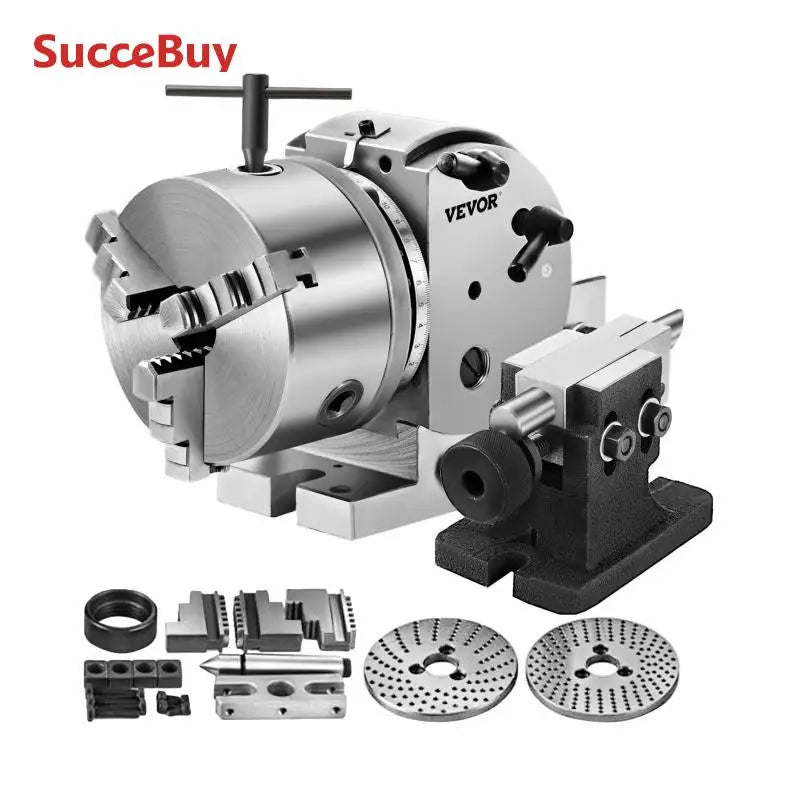

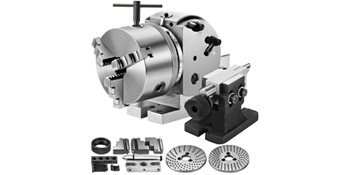

Package Content

  • 1 x Dividing Head

  • 3 x Dividing Plates

  • 1 x Tailstock

  • 1 x 125 mm 3-Jaw Chuck

Features & Details

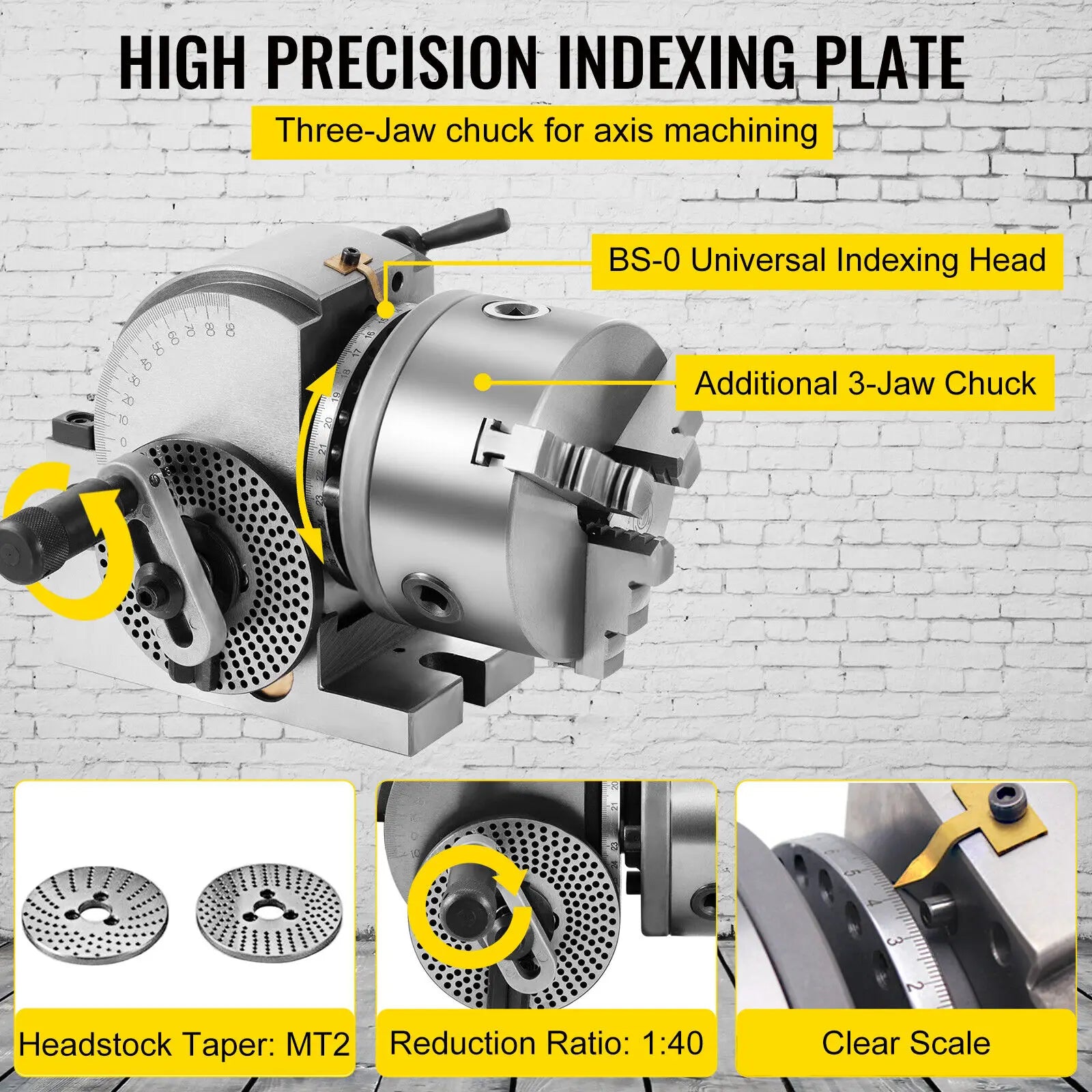

  • High Precision Indexing Plate: The universal dividing head features a precise indexing plate system, including a direct indexing plate, an interchangeable plate, and two additional interchangeable plates with varying hole counts. These components ensure accurate division and spacing for precise cutting operations.

  • Solid Cast Iron Construction: Constructed from durable cast iron, this dividing head boasts a wear-resistant mirror finish and robust build, making it ideal for long-term use. Its design allows for accurate mathematical division of materials, ensuring consistent and reliable performance.

  • Versatile Application: This rotary indexer is compatible with a range of machine tools, such as milling machines, drill presses, grinders, and boring machines. Its versatility makes it a valuable addition to any workshop, accommodating a variety of machining needs.

  • Easy Adjustment: The headstock can tilt from 10 degrees below horizontal up to 90 degrees vertical, allowing for versatile handling of materials of different sizes and angles. This flexibility enhances your ability to work with various projects efficiently.

  • Strong Workpiece Support: Included with the package is a sturdy tailstock that provides excellent support for longer metal workpieces. This addition ensures greater stability during machining, enhancing the overall accuracy and safety of your work.
