SucceBuy 12V/DC Hydraulic Pump Single Acting Solenoid Operation Supply Unit with Remote Controll 4L Hydraulic Power Unit for Car

SucceBuy 12V/DC Hydraulic Pump Single Acting Solenoid Operation Supply Unit with Remote Controll 4L Hydraulic Power Unit for Car

$210.99 USD
$0.00 USD $210.99 USD
Sale Sold out
Shipping calculated at checkout.
Size
Ships From

SPECIFICATIONS

Brand Name: succebuy

Certification: CE

Hign-concerned Chemical: None

Item Type: Car Jacks

Origin: Mainland China


Product Description

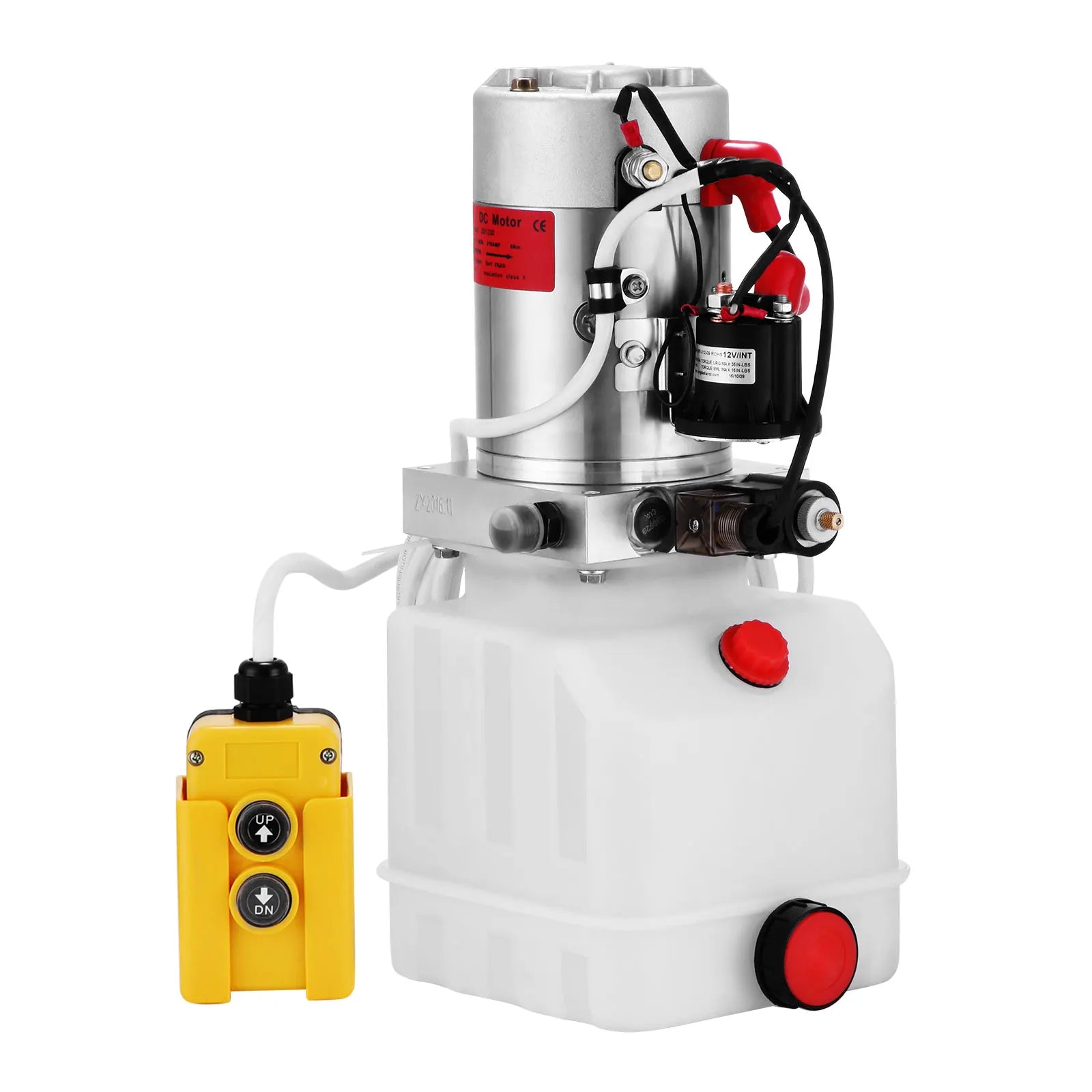

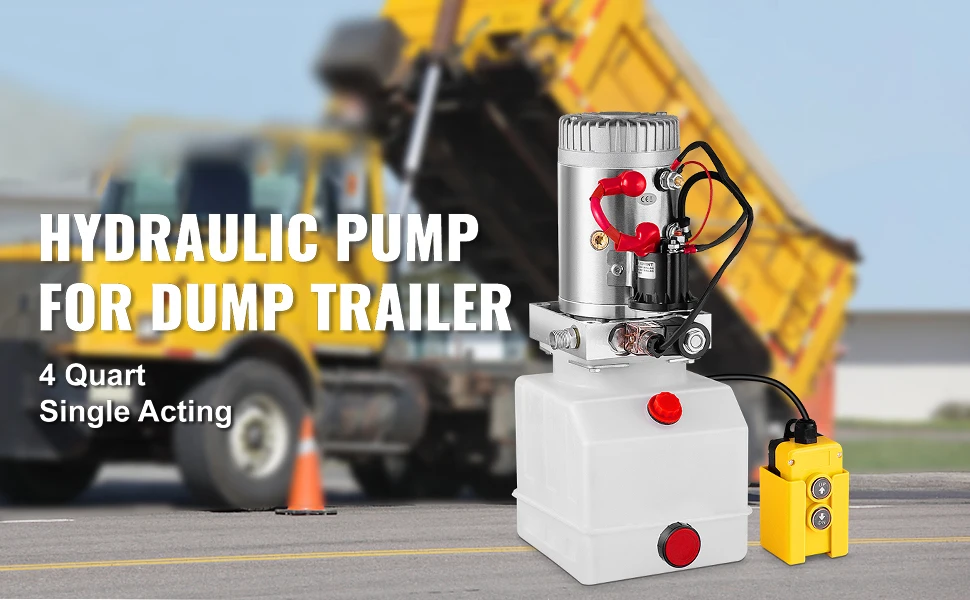

4 Quart Single Acting Hydraulic Pump
This hydraulic pump is a single-acting power unit for power up and gravity down. It has a 4-quart sturdy plastic reservoir and is designed with a 12V DC motor that can provide strong power for hydraulic systems like dump trailers, forklifts, lifting platforms, etc.

  • All of our hydraulic pumps come with an M18*1.5 connector and an additional SAE6 (9/16") connector, which can be replaced according to your actual needs.

  • Product Details

  • Easy to Use

  • Reliable Quality

  • Rapid Start

  • Wide Application

Tough Equipment & Tools, Pay Less
SucceBuy is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, SucceBuy is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, SucceBuy's products are sold in more than 200 countries and regions with 10 million plus members worldwide.
Why Choose SucceBuy?

  • Premium Tough Quality

  • Incredibly Low Prices

  • Fast & Secure Delivery

  • 30-Day Free Returns

  • 24/7 Attentive Service

Key Features
Single-Acting Power Unit

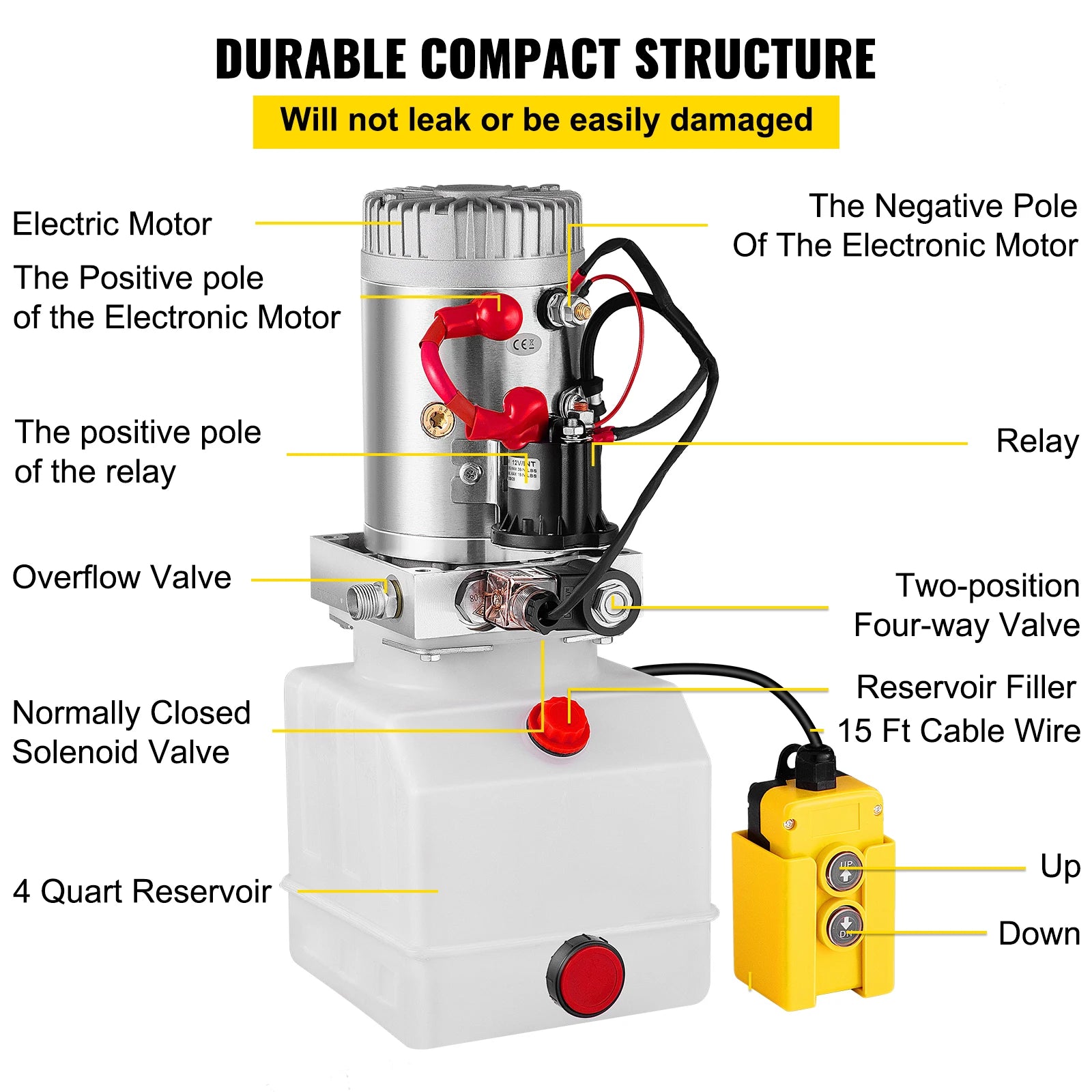

This single-acting hydraulic power unit has a 12V DC motor (Power:1.6-3.0kw) and a 4-quart plastic reservoir; it has SAE#6 ports with 3200 PSI max relief setting on A and 1500 PSI on B port. The flow rate is 2GPM. Rated speed: 2850 r/min.
Convenient Design

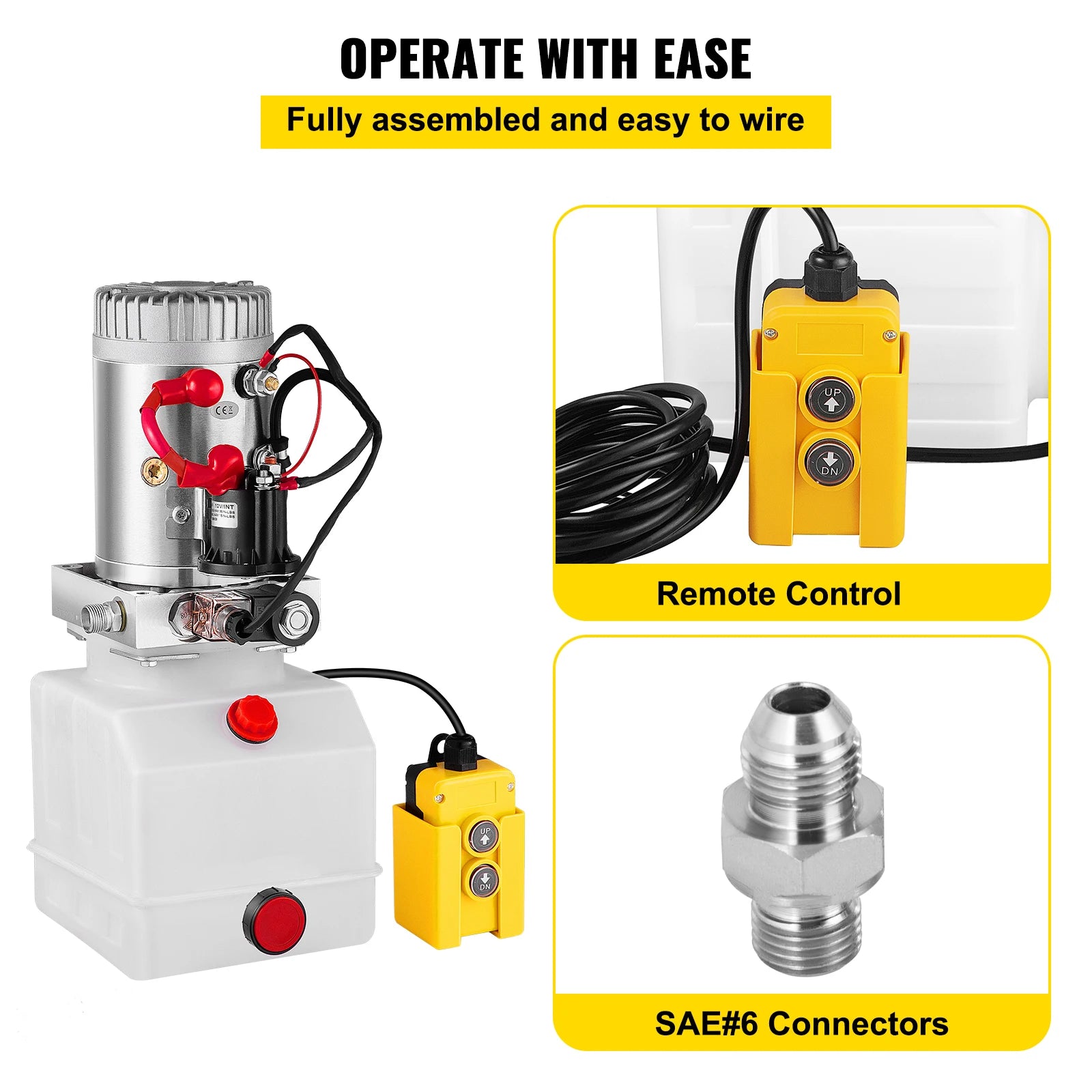

Our hydraulic electric pump has been fully assembled. It comes with a hand-held remote control and 1 additional SAE#6 connector for replacement. The whole power unit is easy to wire and easy to operate.
Quick Start＆Lifting

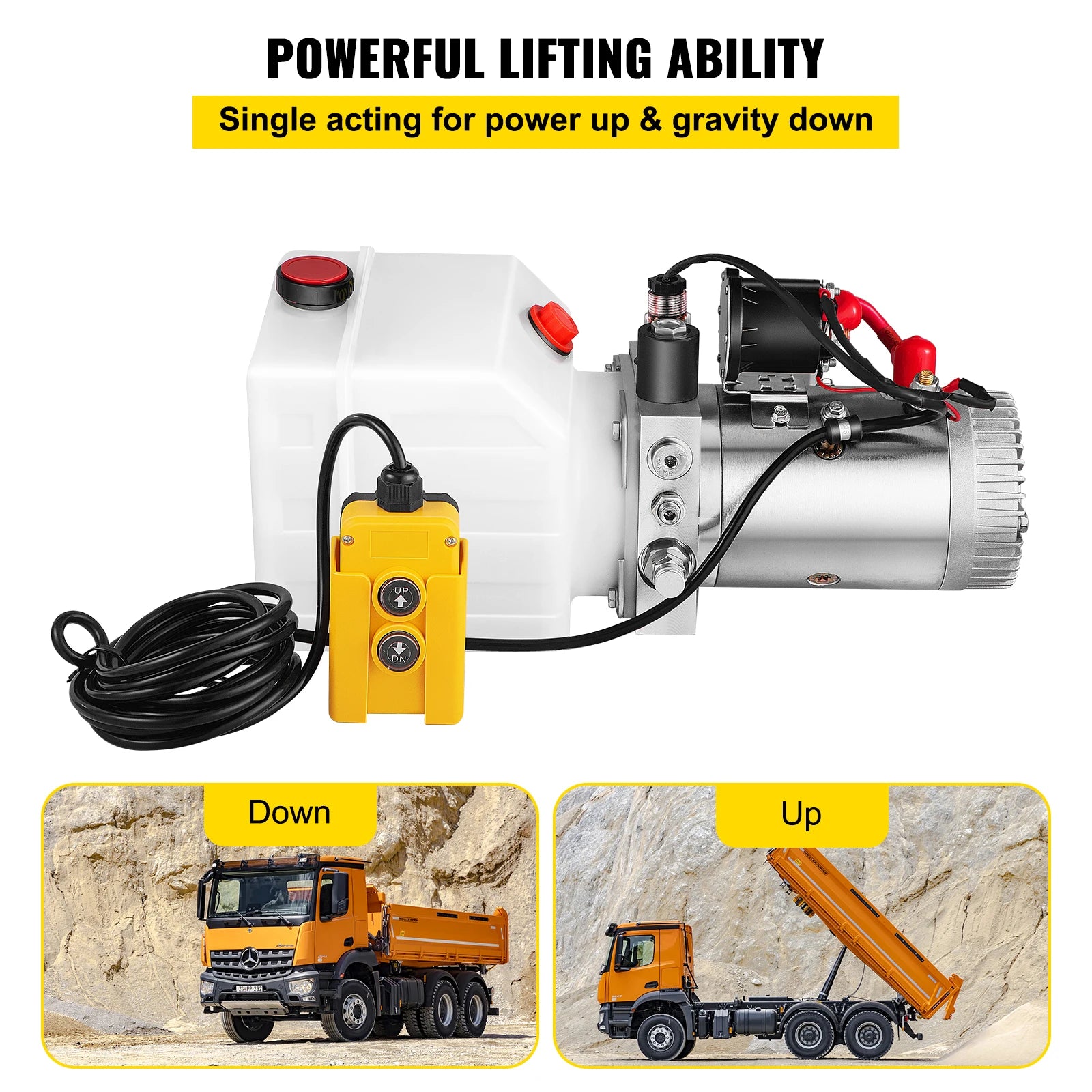

With the powerful 12V DC electric motor, our hydraulic pump for dump trailers can start rapidly and provide quick oil output. In addition, it can provide strong power that will lift heavy objects in a short period.
Long Lasting
You can rely on the quality of this electric hydraulic pump as it is made of special-treated sturdy plastic, and the whole structure has been reinforced. It is also equipped with a powerful electric motor that you can use as often as you like.
Simple Installation
All of our 12-volt hydraulic power units have been pre-assembled before delivery, and we provide instructions for operation so that you can install and use the hydraulic pump easily. Horizontal mount is recommended.
Wide Application

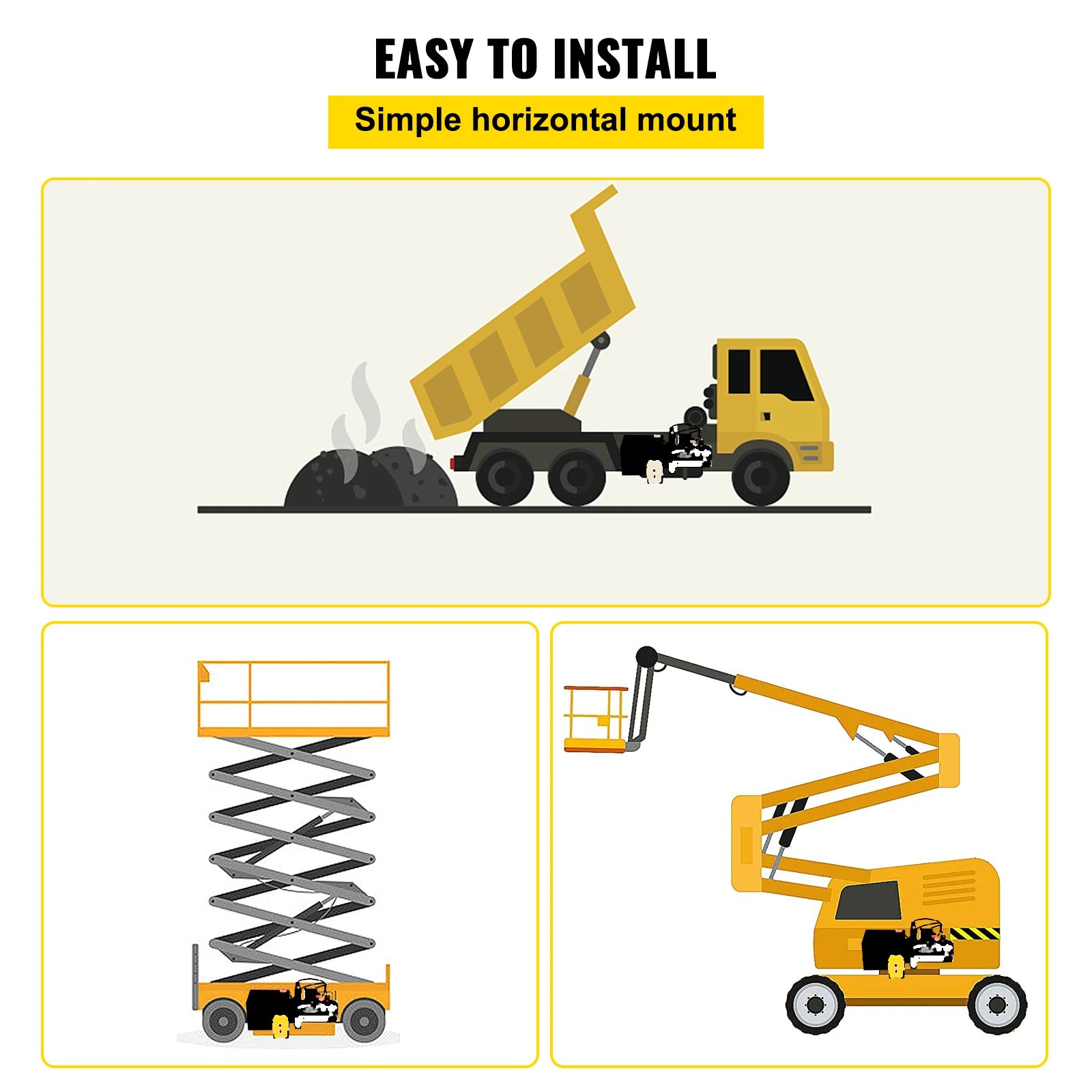

As a great power unit, this hydraulic pump can be used for many things, such as truck tailgate lift, RV leveling, scissor lift, dump trailers, lift truck, snowplow, aerial platform, road signs, material handling, wheelchair lifts, etc.
Specifications

  • Material of tank: Plastic

  • Displacement of hydraulic pump: 0.562-4.350GPM

  • Relief valve pressure: 22 MPA (3200 PSI Max. Relief Setting For Increased Lifting Power on A port)

  • Rated speed: 2850R/MIN

  • Motor power: 1.6-3KW

  • Motor voltage: DC12V

  • Fuel tank: 4L

  • Single acting Power-Up/Gravity Down

  • 1500 PS Max Relief Setting on B port

  • 4 Quart Translucent Reservoir

  • SAE # 6 Port, Horizontal mount

  • Hand held pendant with about 15 feet(177in / 4.5m)removal cord and start solenoid

Package Content

  • 1 × 4 Quart Single Acting Hydraulic Pump

  • 1 × English Manual

  • Several related accessories (including connectors)

Features & Details

  • Product Details: Our hydraulic pump is designed with a 12V DC motor (Power: 1.6-3.0kw) and a 4-quart reservoir. The max relief pressure on A port (SAE#6) is 3200 PSI, and on B port (SAE#6) is 1500 PSI; the flow rate is 2 GPM, and it is a single-acting pump for power up and gravity down.

  • Easy to Use: This 12V hydraulic power unit has been fully assembled. The wiring is simple and comes with operating instructions. We offer you one 15ft remote for long-distance control and one additional SAE#6 connector for replacement.

  • Reliable Quality: The dump trailer pump is made of sturdy plastic; thus, the oil tank is not easy to crack or be damaged. As a power unit, this is a perfect replacement pump for remote hydraulic systems. Equipped with a relief valve, it avoids overpressure, safer and reliable.

  • Rapid Start: With its powerful motor, this hydraulic electric pump is quick to start and quick to output oil; it can provide strong power for hydraulic systems like dump trailers, dump beds and is able to complete lifting in a short time.

  • Wide Application: This power unit is widely used in stackers, small, and medium-sized lifting platforms. It is compatible with many dump trailers and movers and is a direct replacement for 12V DC remotely controlled hydraulic systems.
