SucceBuy 10,000PSI Air Hydraulic Pump 0.18 Gal Reservoir Metal Shell Air Actuated Treadle Foot Pump for Precision Industrial Use

SucceBuy 10,000PSI Air Hydraulic Pump 0.18 Gal Reservoir Metal Shell Air Actuated Treadle Foot Pump for Precision Industrial Use

$159.99 USD
$0.00 USD $159.99 USD
Sale Sold out
Shipping calculated at checkout.
Color
Ships From

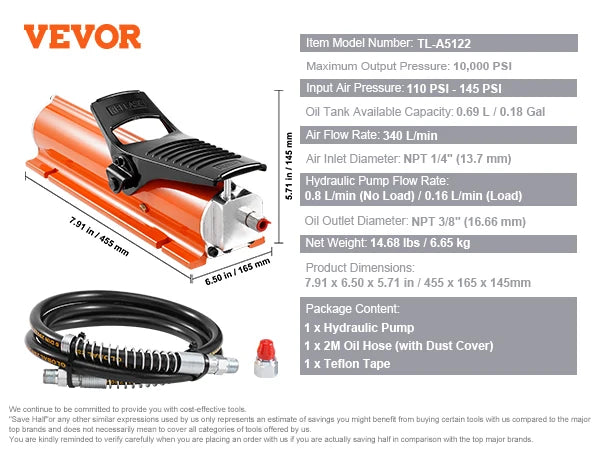

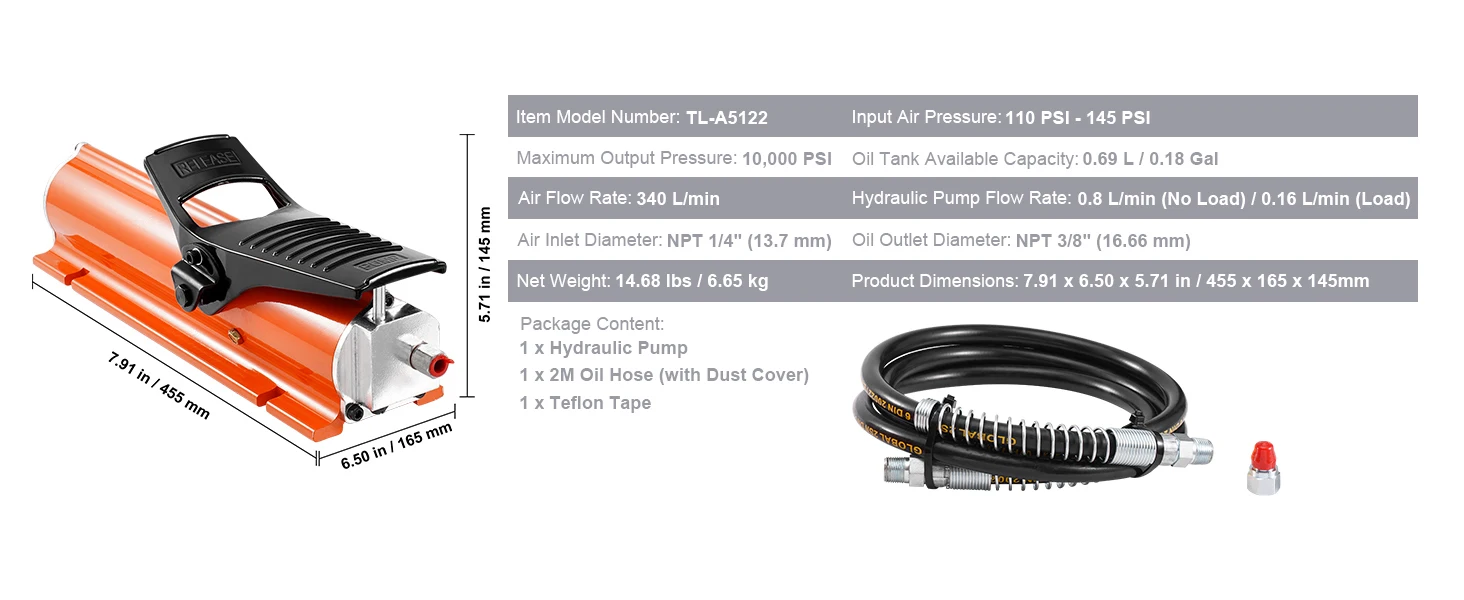

SPECIFICATIONS

Air Flow Rate: 340 L/min

Air Inlet Diameter: NPT 1/4" (13.7 mm)

Brand Name: succebuy

Certification: CE

Hign-concerned Chemical: None

Hydraulic Pump Flow Rate: 0.8 L/min (No Load) / 0.16 L/min (Load)

Input Air Pressure: 110 PSI - 145 PSI

Item Model Number: TL-A5122

Maximum Output Pressure: 10,000 PSI

Net Weight: 14.68 lbs / 6.65 kg

Oil Outlet Diameter: NPT 3/8" (16.66 mm)

Oil Tank Available Capacity: 0.69 L / 0.18 Gal

Origin: Mainland China

Product Dimensions: 7.91 x 6.50 x 5.71 in / 455 x 165 x 145mm

10,000 PSI Air Hydraulic Pump - Durable & Powerful
Get reliable power with our 10,000 PSI Air Hydraulic Pump. Built tough with a hard shell, long oil hose, and factory-filled with hydraulic oil (#13), it features easy controls, a shock-resistant base, and a quick setup. Ready for demanding jobs, it’s efficient and built to last.

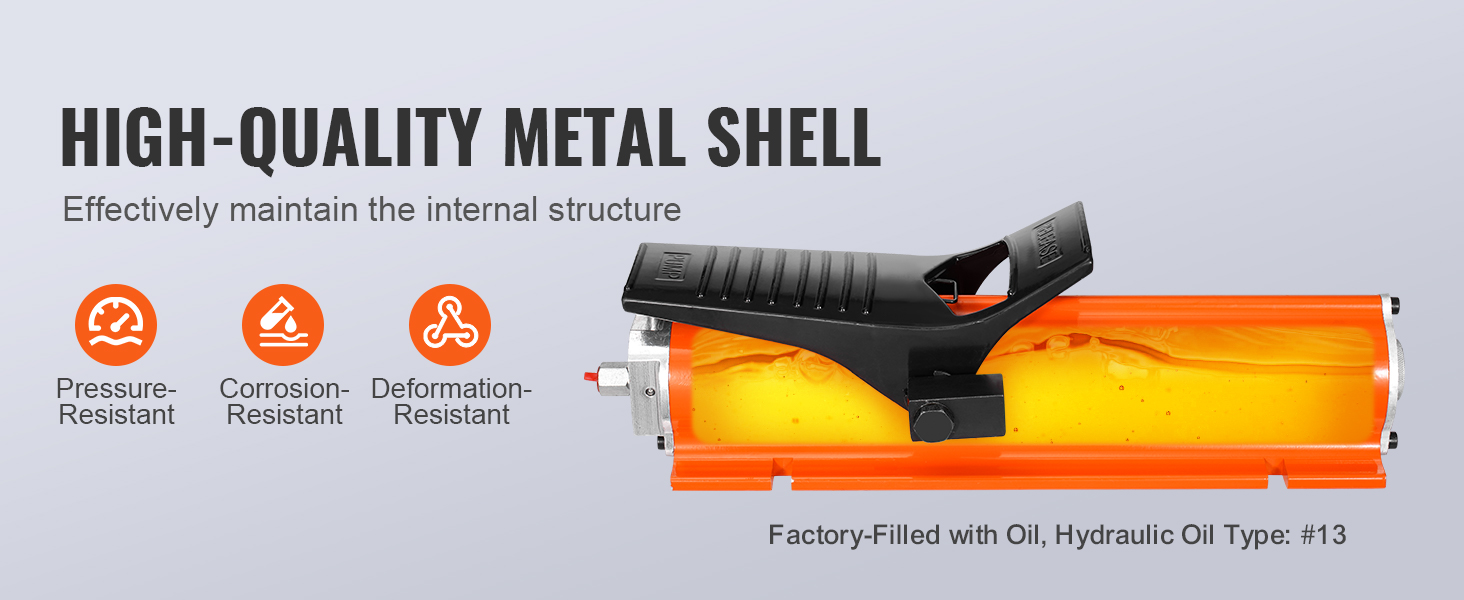

The hydraulic foot pump’s rugged outer shell protects the internal components like a champ. It’s pressure-resistant, corrosion-resistant and deformation-resistant in tough conditions. Factory-filled with hydraulic oil (#13), it ensures efficient, secure, and durable hydraulic operation.

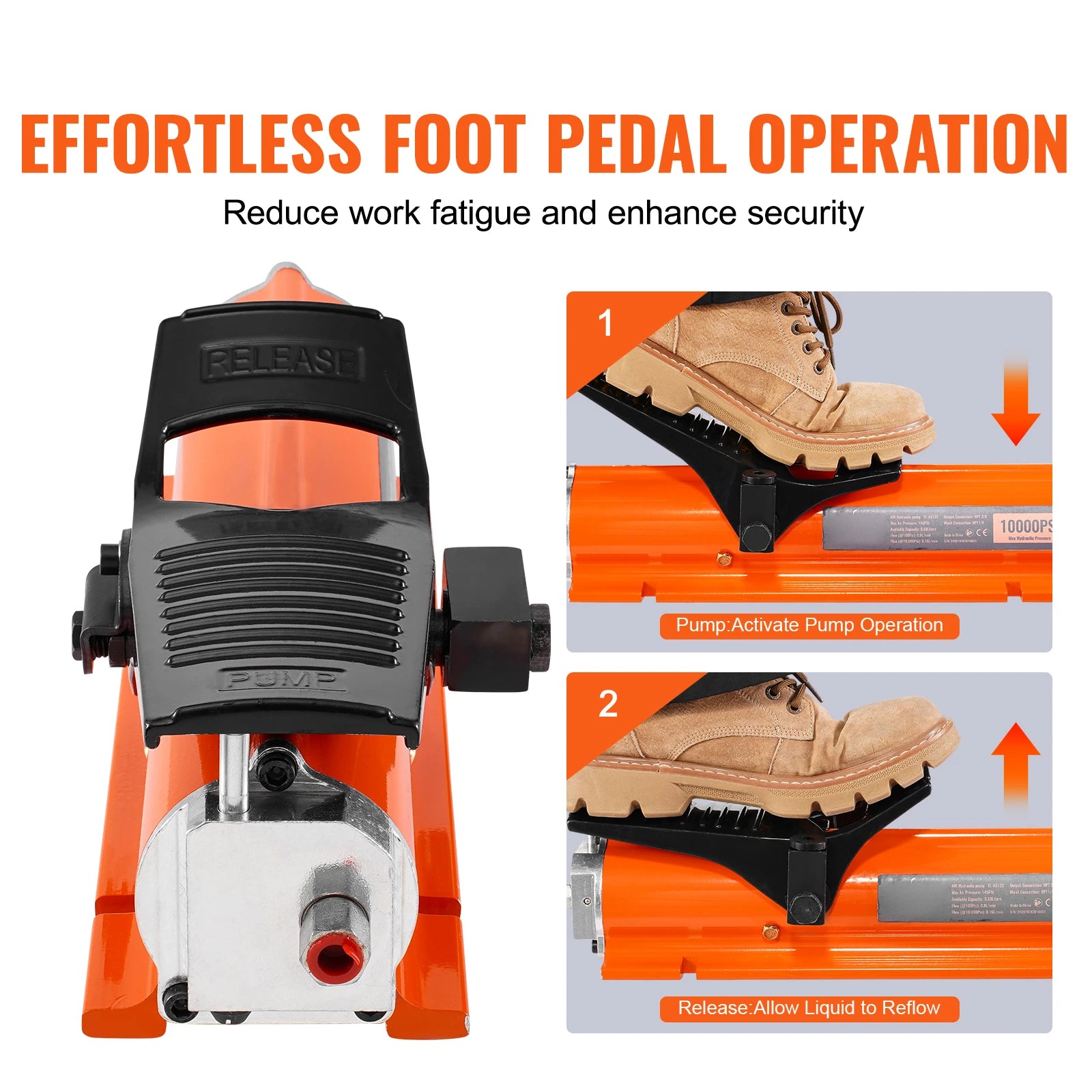

The operation of this air actuated treadle foot pump couldn’t be more straightforward. Two controls—“Pump” to start and “Release” to let the fluid flow back smoothly and precisely—will put you in complete control of your hydraulic system with minimal effort.
With two fixing screw holes at the bottom, you can secure this air hydraulic foot pump for steady, vibration-free use. It’s all about keeping your operations stable and efficient.

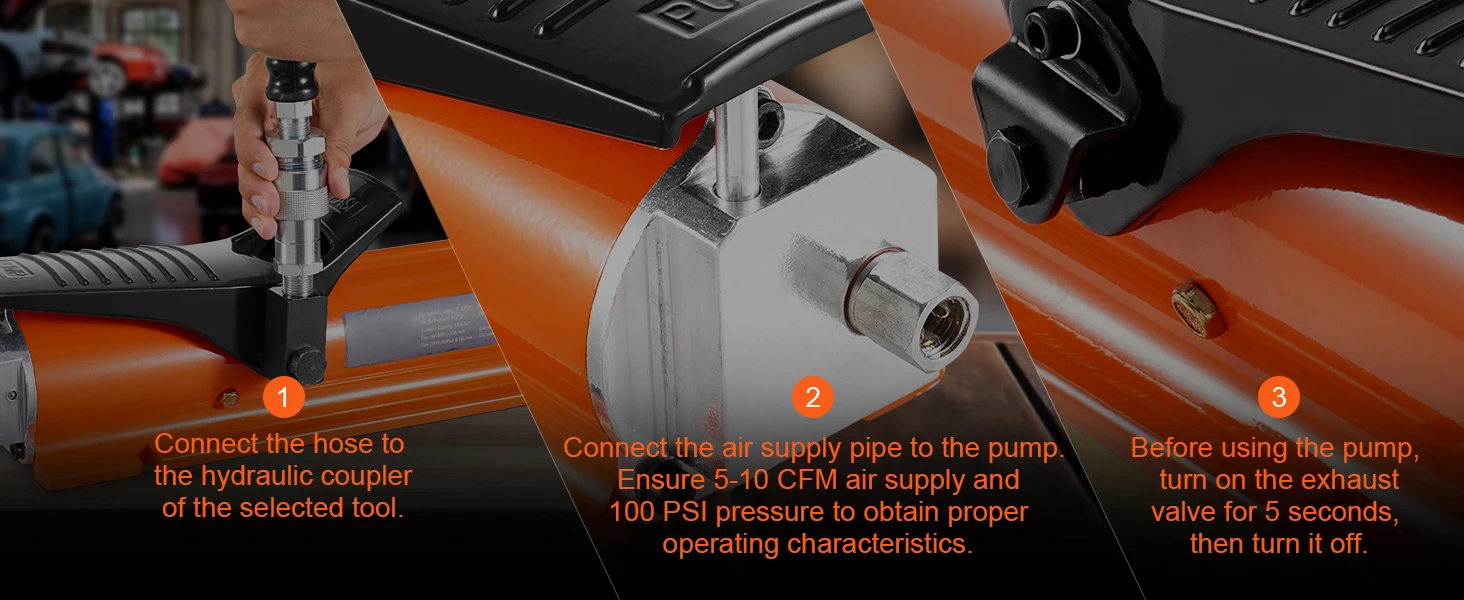

Just three simple steps and you’re all set! Remember, open the air vent for 5 minutes before getting started, then close it to keep things running smoothly.
Features & Details

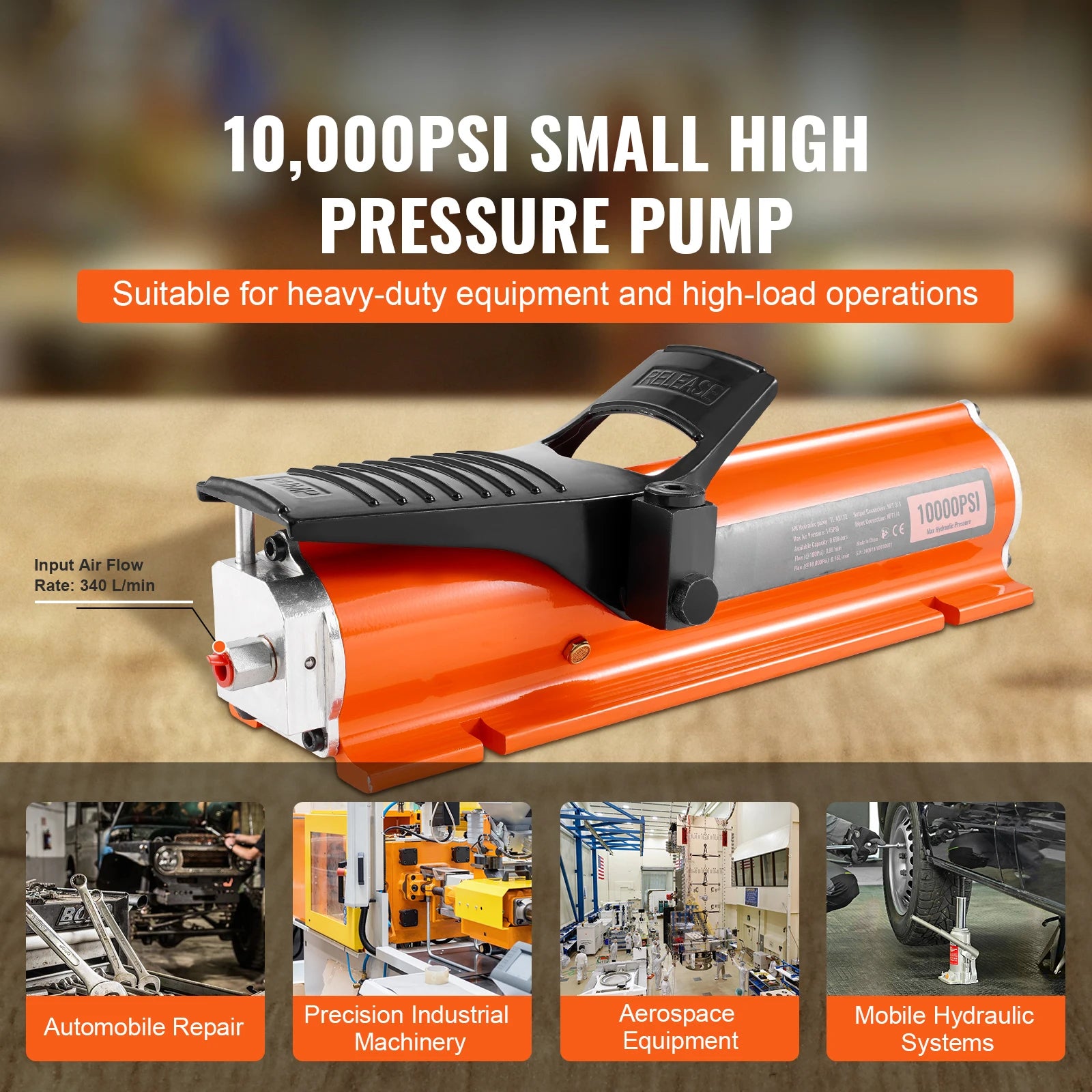

  • 【10,000 PSI High Power】: Achieve up to 10,000 PSI of hydraulic pressure with an airflow of 340 L/min. This hydraulic air pump offers 0.8 L/min (no load) and 0.16 L/min (load) flow rates, making it ideal for heavy-duty tasks like lifting, pressing, bending, straightening, cutting, assembling, and disassembling.

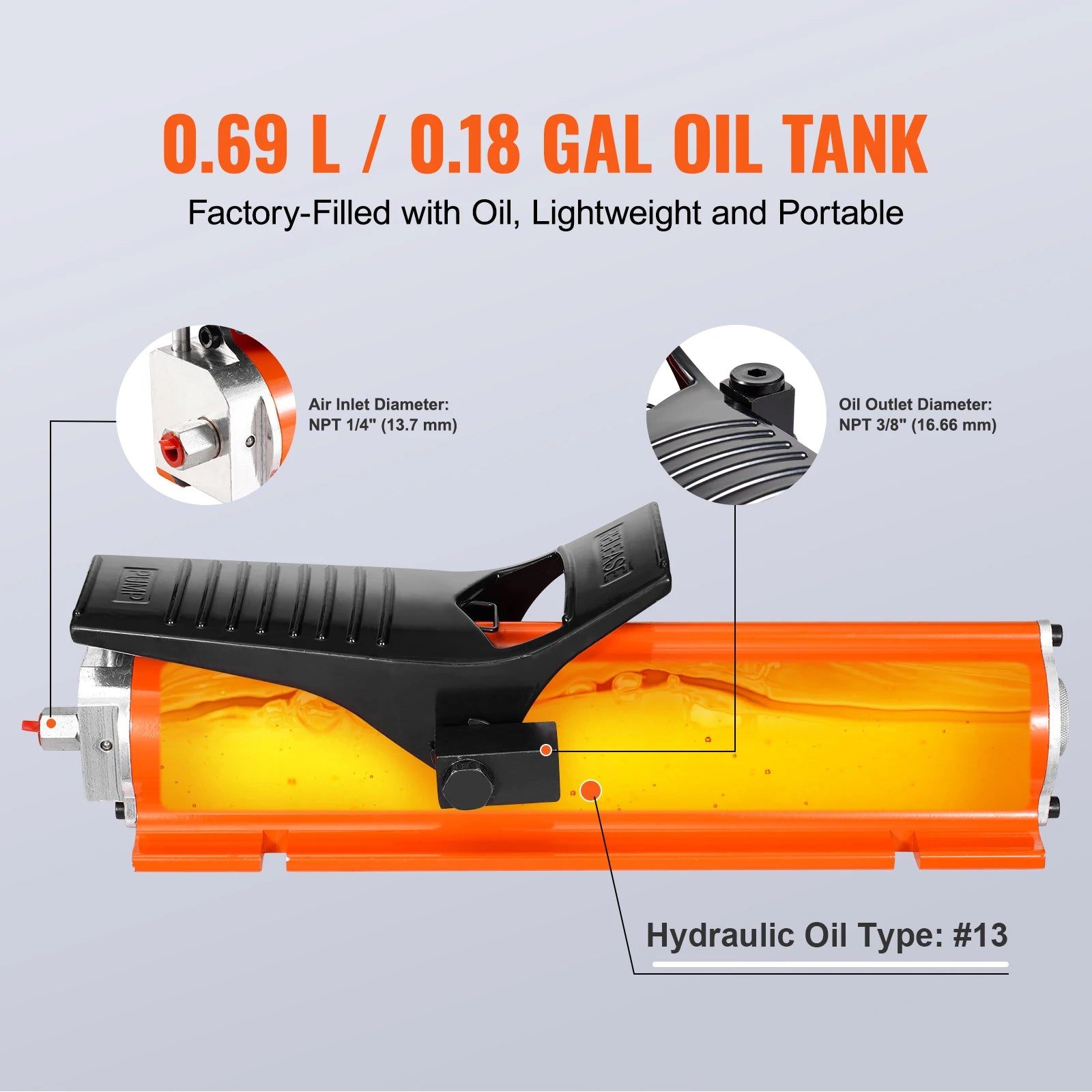

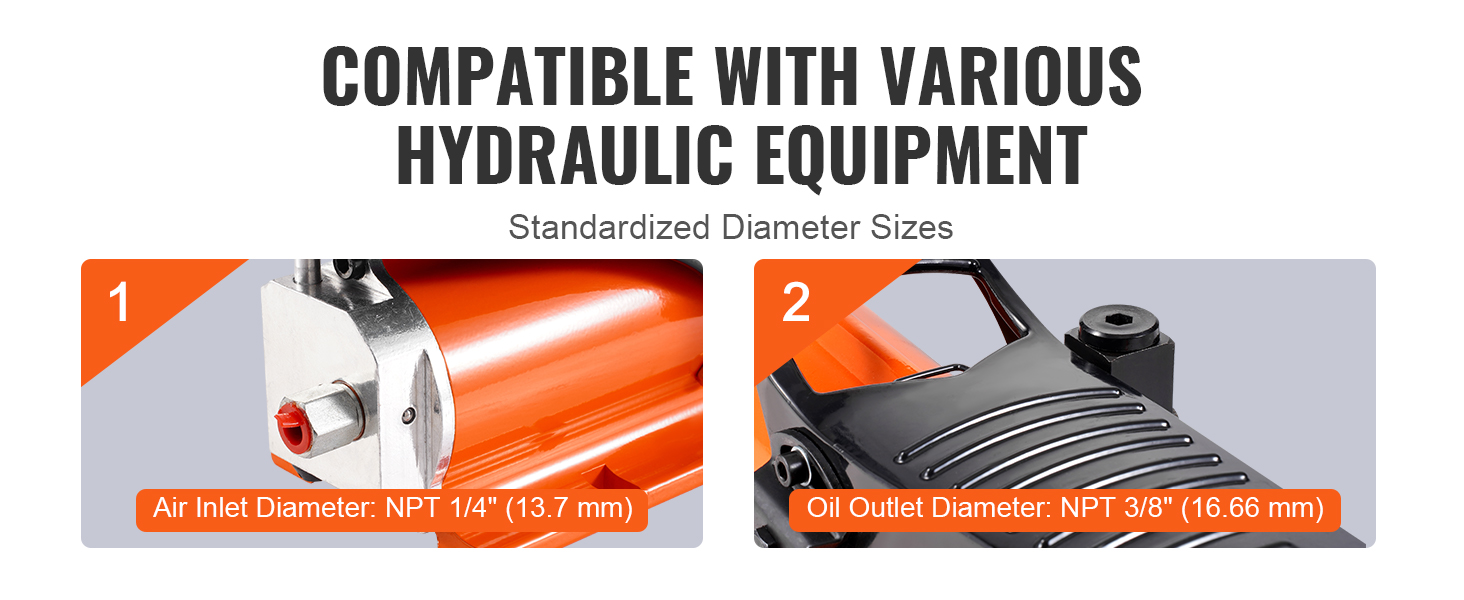

  • 【Factory-Filled with Oil】: This air hydraulic pump comes with a large 0.69 L / 0.18 gal tank factory-filled with hydraulic oil (#13) so you can start working immediately. This feature cuts down on setup time and effort. It includes an air inlet with NPT 1/4 in and a high-pressure output with NPT 3/8 in.

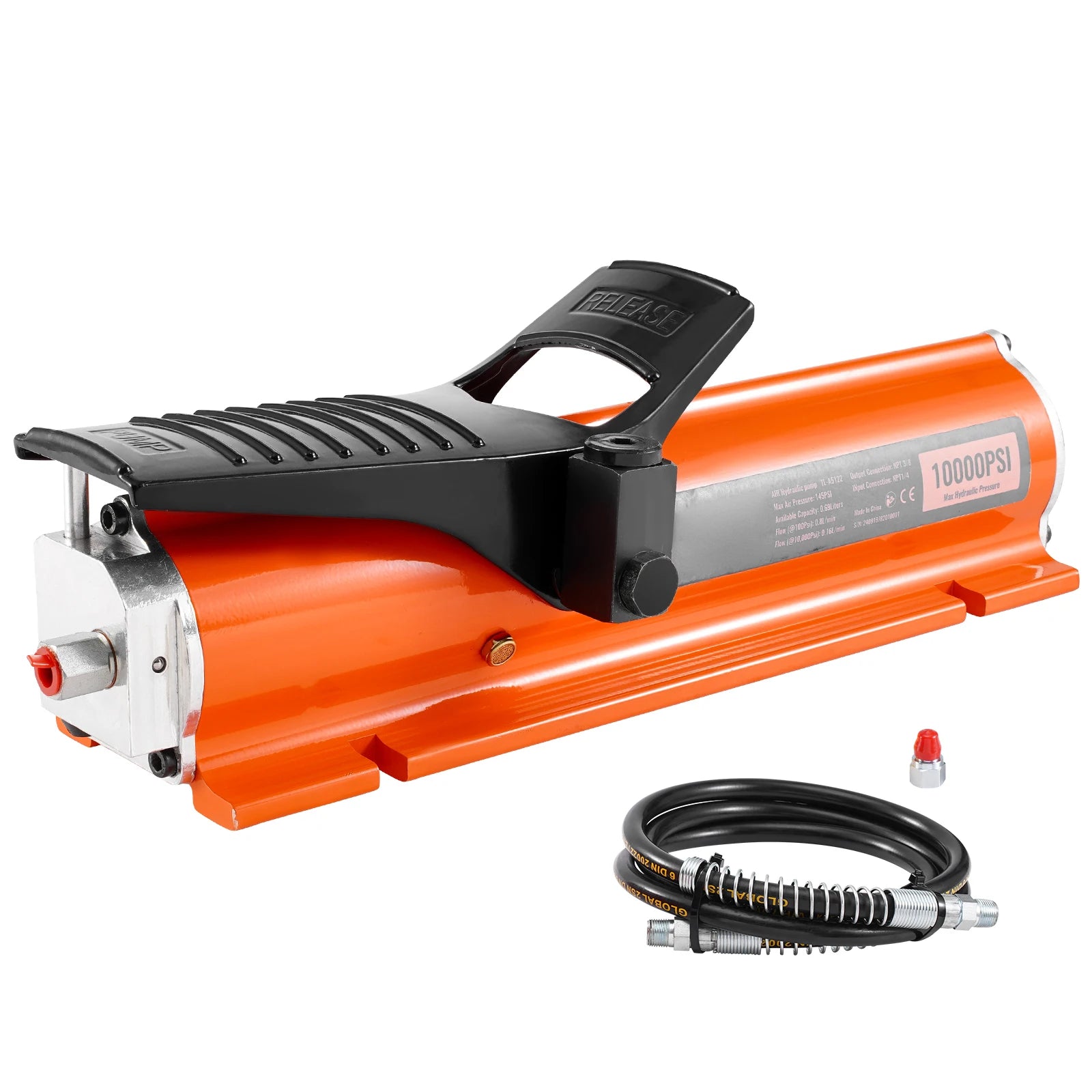

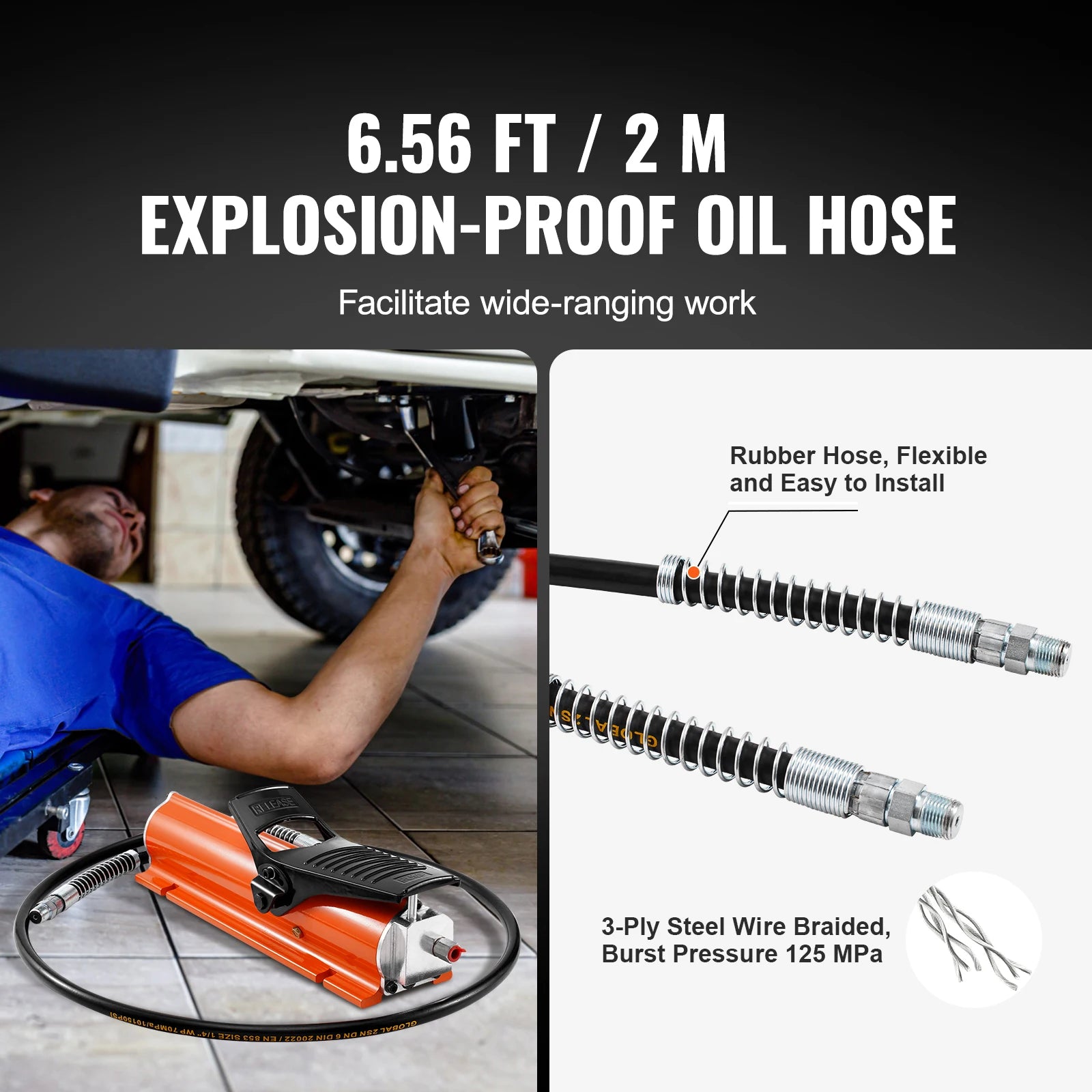

  • 【Long Oil Hose】: This air actuated treadle foot pump equipped with a 6.56 ft / 2 m rubber hose reinforced with three layers of steel wire, capable of handling pressures up to 125 MPa. This design prevents leaks and allows for flexible, long-distance operation.

  • 【Effortless Foot Operation】: The foot-operated air hydraulic pump includes hydraulic oil-no extra purchases are needed. Press down to build pressure and release quickly, making your job more straightforward and efficient.

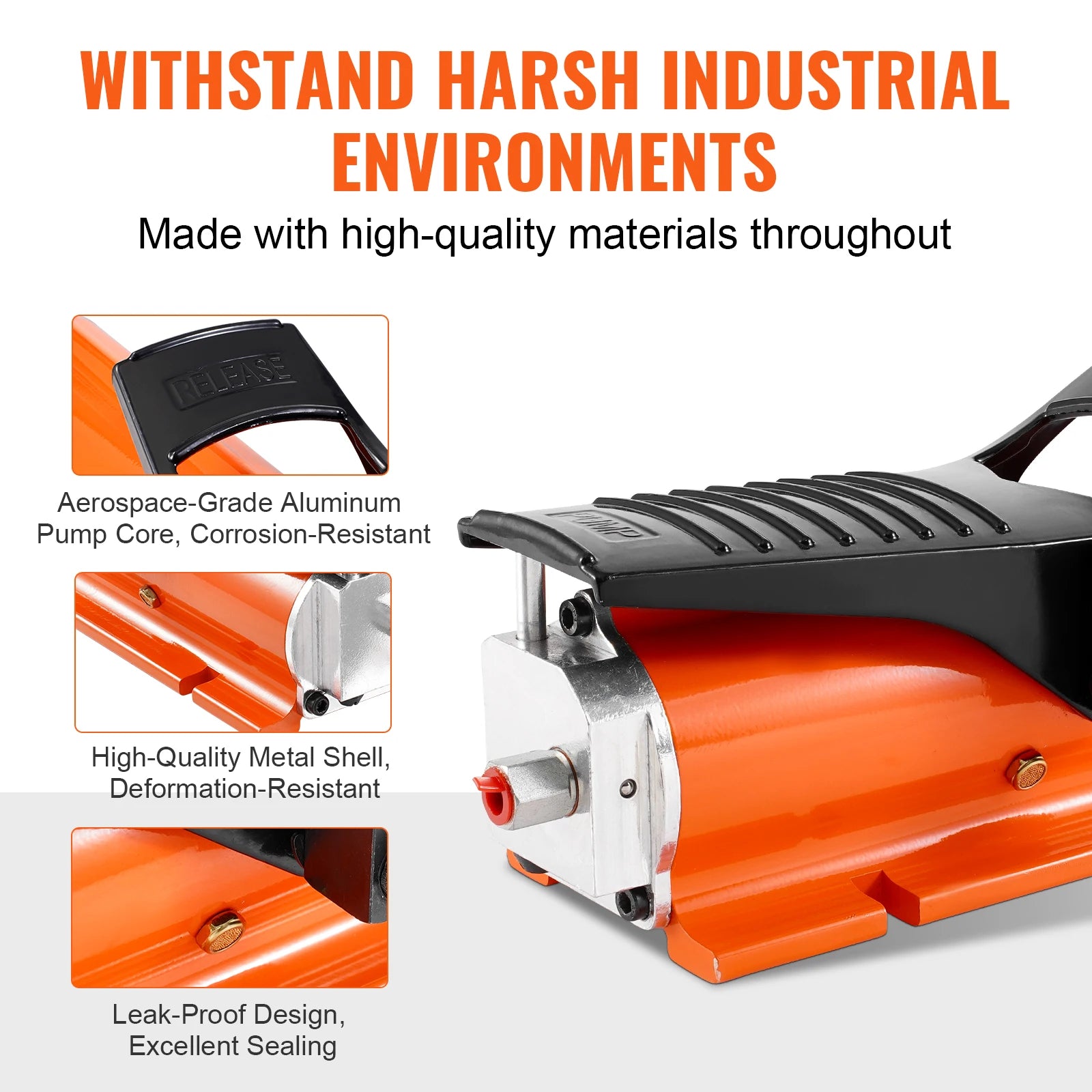

  • 【Durable and Tough】: Made with aerospace-grade aluminum and a high-quality casing, this air hydraulic pump is built to withstand harsh industrial environments. The internal relief valve ensures reliable protection for the hydraulic components under pressure.
