1. Professional 3 Stage Balanced Adjustment: More accurate adjustment and more comfortable operation.

2. 8 Channel Audio Input Interface: Multiple microphones are input separately, making adjustment easier and more effective.

3. Volume Adjustment More Accurate: Professional volume faders make your adjustment more convenient.

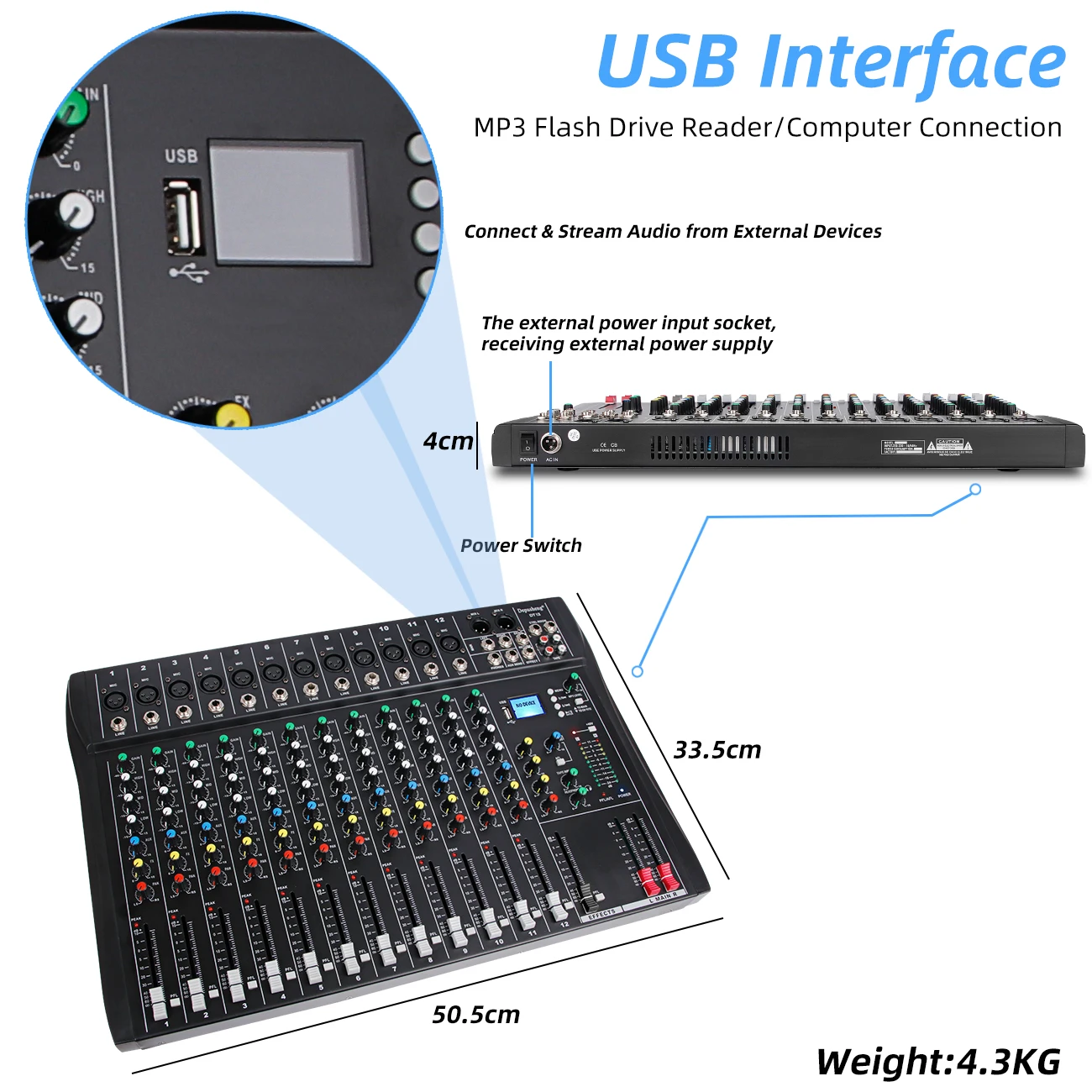

4. MP3 Playback Function: Supports a USB disk to play music, and has a selection function, which makes your use more convenient and adjustment more professional.

5. Wide Range of Functions: Built-in digital reverberation effect, MP3 liquid crystal display, USB playback support, 48V phantom power supply.

6. Specially Customized for Bar Performance: 8 channels of mono, 3 segments of balance, damping fader, making your adjustment more professional and sound quality more exquisite.

Product Feature：

1. 8 channels mono input, high-quality microphone loudspeaker

2. 3 frequency inputs

3. High-precision 2 channel level display

4. 60mm high analysis durable pusher

5. Built-in Digital Effect Processor

6. Microphone Output Monitoring

7. USB Input, Stereo Output

Technical Parameter：

▲ Output Level: 19dBm (1KHz, THD=0.5%)

▲ Residual Noise: -105dB

▲ SNR: ≤ 80dB

▲ Input EMF of Equivalent Noise Source: -115dBm

▲ Headset Output Power: 100mw (1KHz, THD=0.5%, 200Ω)

▲ Equilibrium: Low Frequency: 80Hz ±15dB

Intermediate Frequency: 2.5KHz±15dB

High Frequency: 12KHz ±15dB

▲ Gain Control: Mono -60dB~-40dB

▲ Frequency Response: 20Hz ~ 20kHz (3dB)

▲ Total Harmonic Distortion+Noise: ≤0.003% (1KHz, 0.775V)

Gross Weight (kg):4.95

Net Weight (kg):3.35

Package Size (mm):445×440×103

Package List：

Mixing Audio Console ×1
Power Adapter ×1
Audio Line×1
User Manual ×
