Professional 0-1" Digital Dial Gauge Magnetic Base 25.4mm Precision Machinist Measurement Tool
Professional 0-1" Digital Dial Gauge Magnetic Base 25.4mm Precision Machinist Measurement Tool
Regular price
$56.99 USD
Regular price
$0.00 USD
Sale price
$56.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
SPECIFICATIONS
Accuracy: 0.001mm
Brand Name: NoEnName_Null
Display Type: Digital
Hign-concerned Chemical: None
Model Number: NTK271
Origin: Mainland China
Type: Indicator
Overview:

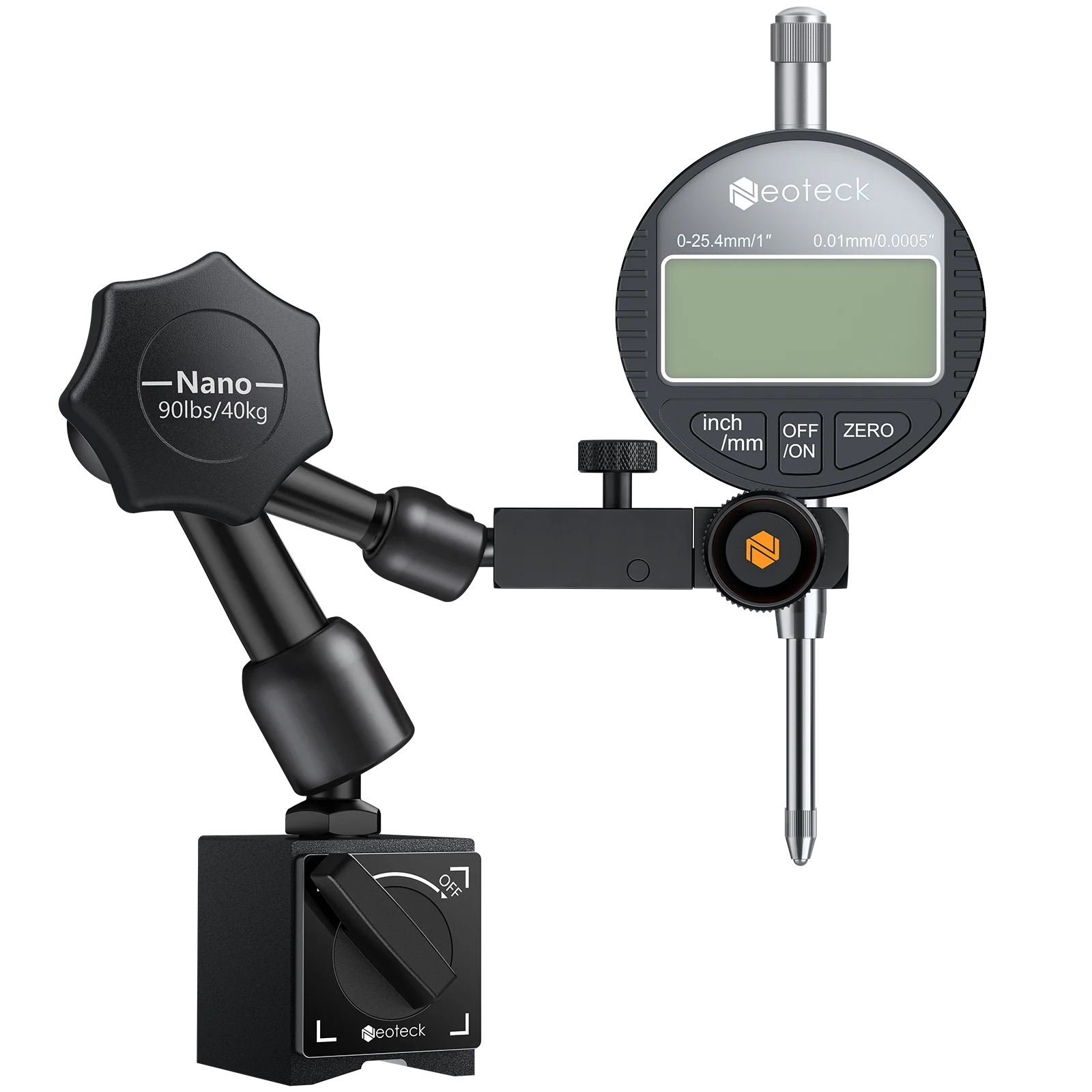

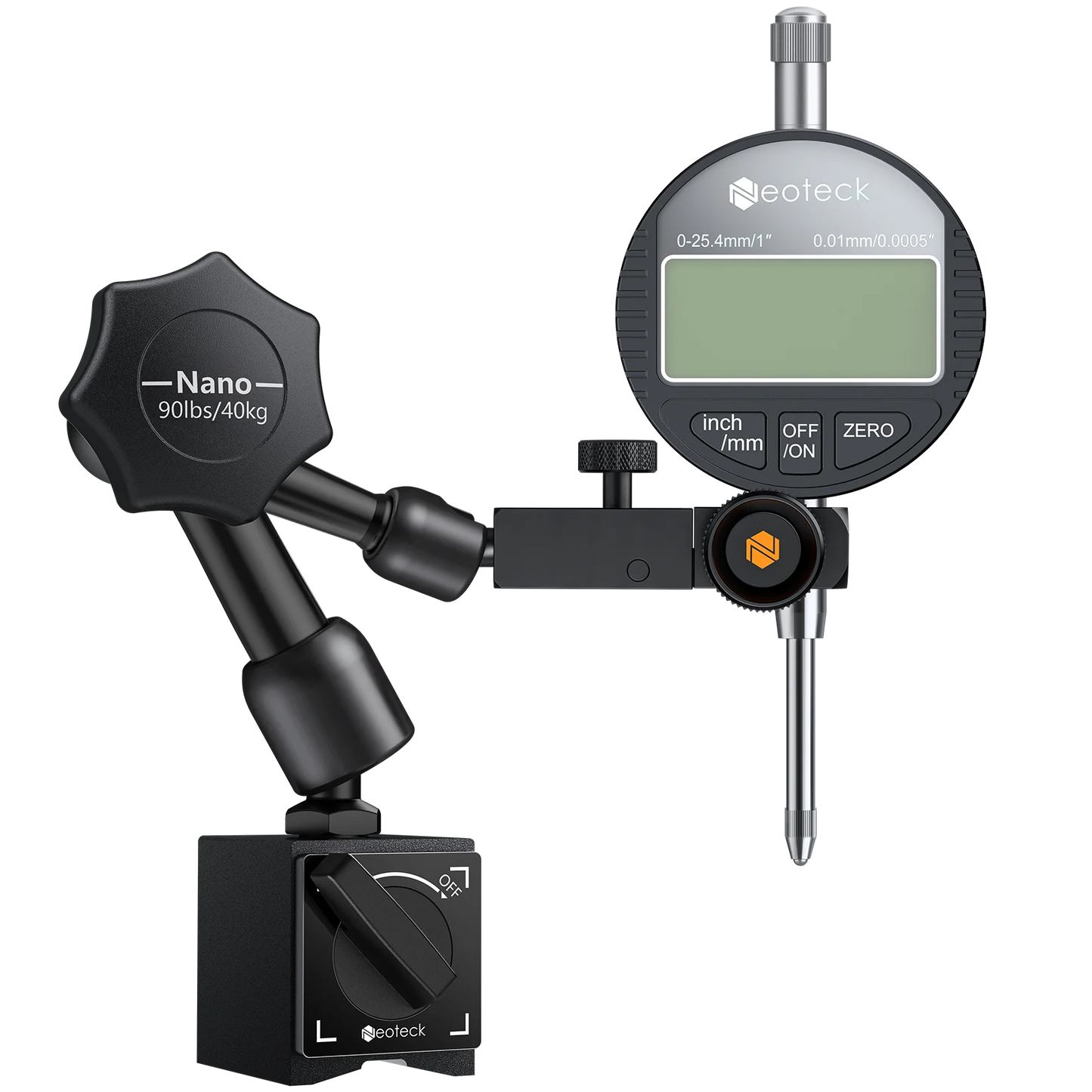

The set includes 0-25.4mm/1 inch digital dial indicator and 90lbs(40kg) magnetic base.
Features:

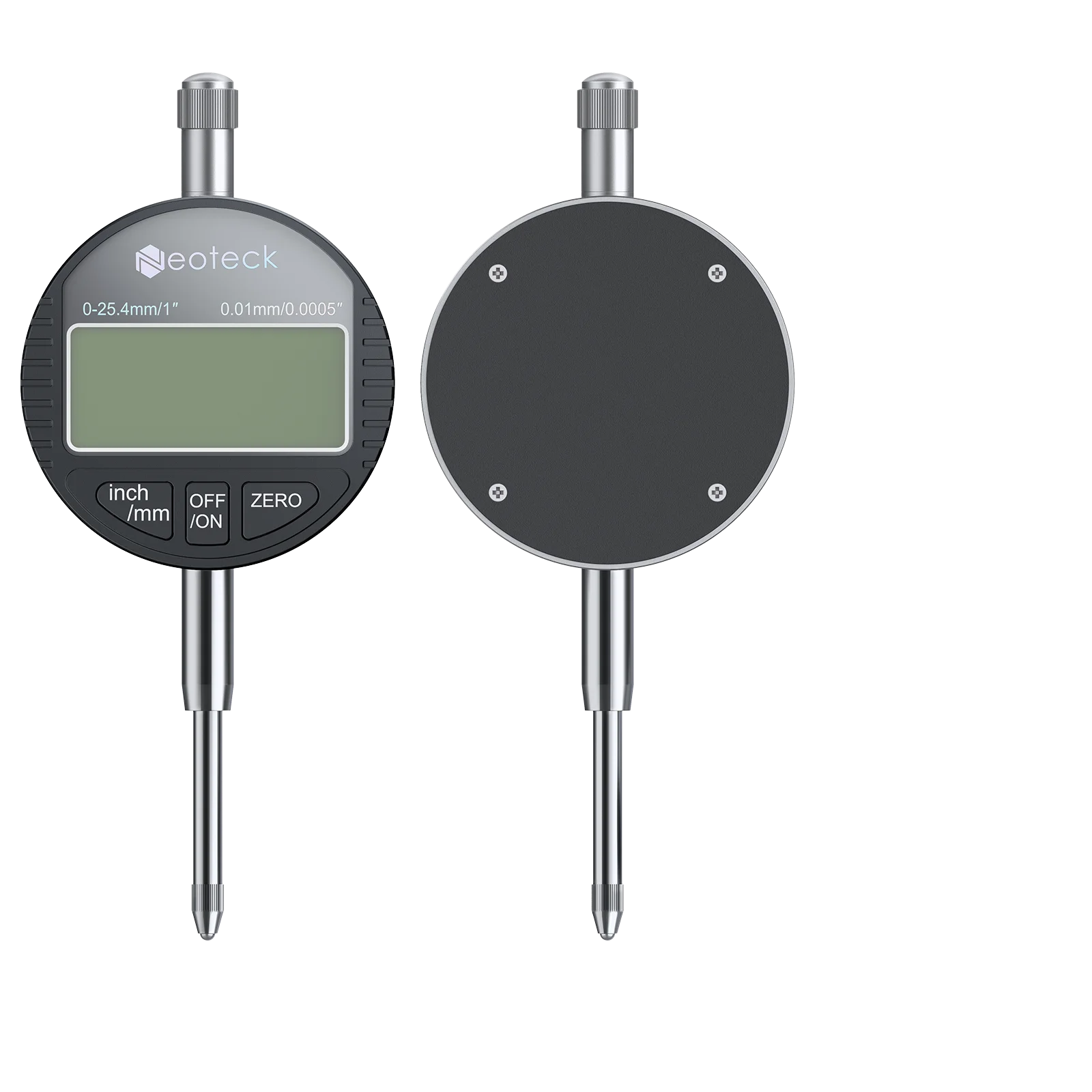

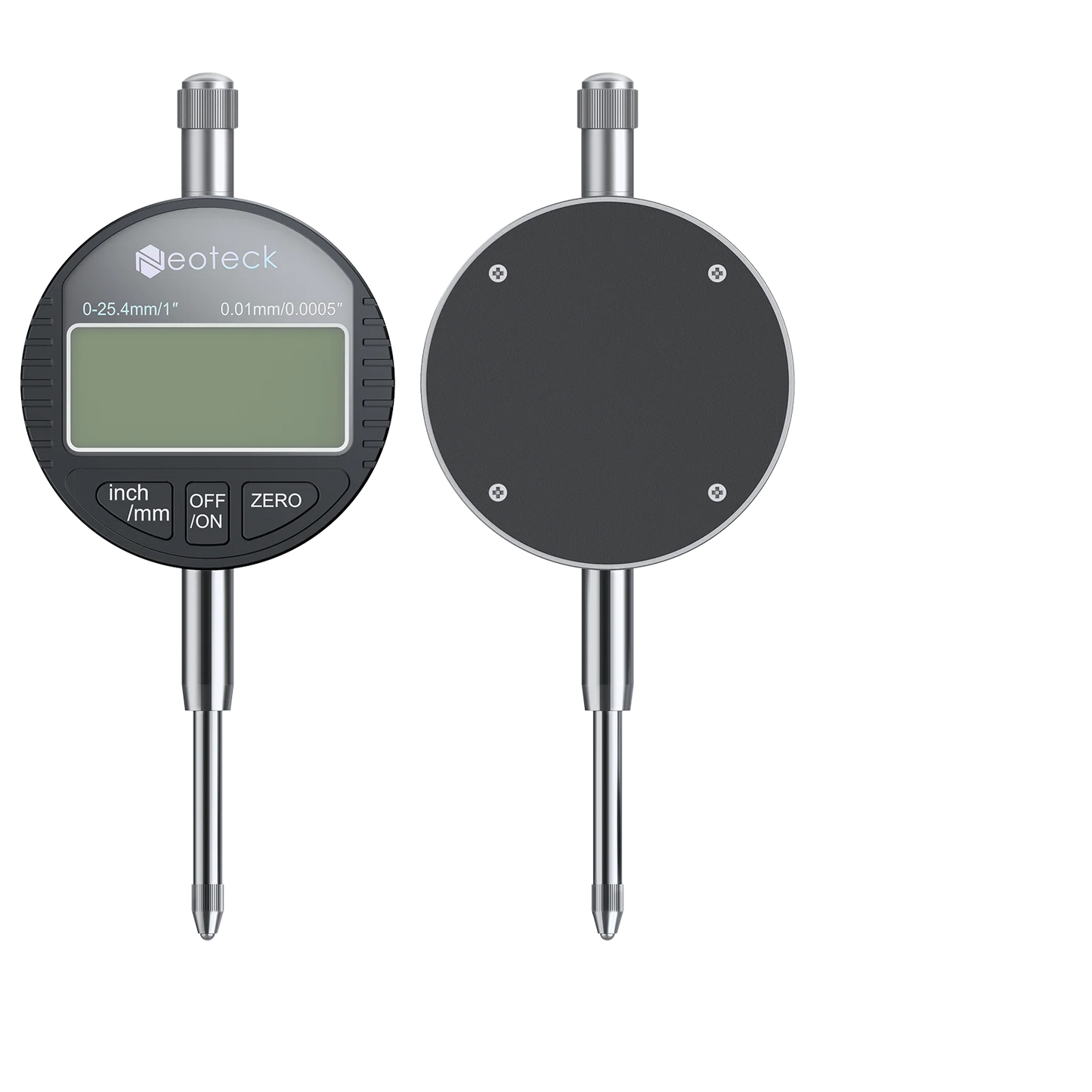

Digital Dial Indicator：
Large LCD Display with 3 Digits
Measuring Range from 0 ~ 25.4 mm (0 ~ 1 inch)
High Resolution up to 0.01 mm (0.0005")
Switchable between mm and inch
Zero Setting
Magnetic Base：
The set includes 0-25.4mm/1 inch digital dial indicator and 90lbs(40kg) magnetic base.
Features:
Digital Dial Indicator：
Large LCD Display with 3 Digits
Measuring Range from 0 ~ 25.4 mm (0 ~ 1 inch)
High Resolution up to 0.01 mm (0.0005")
Switchable between mm and inch
Zero Setting
Magnetic Base：

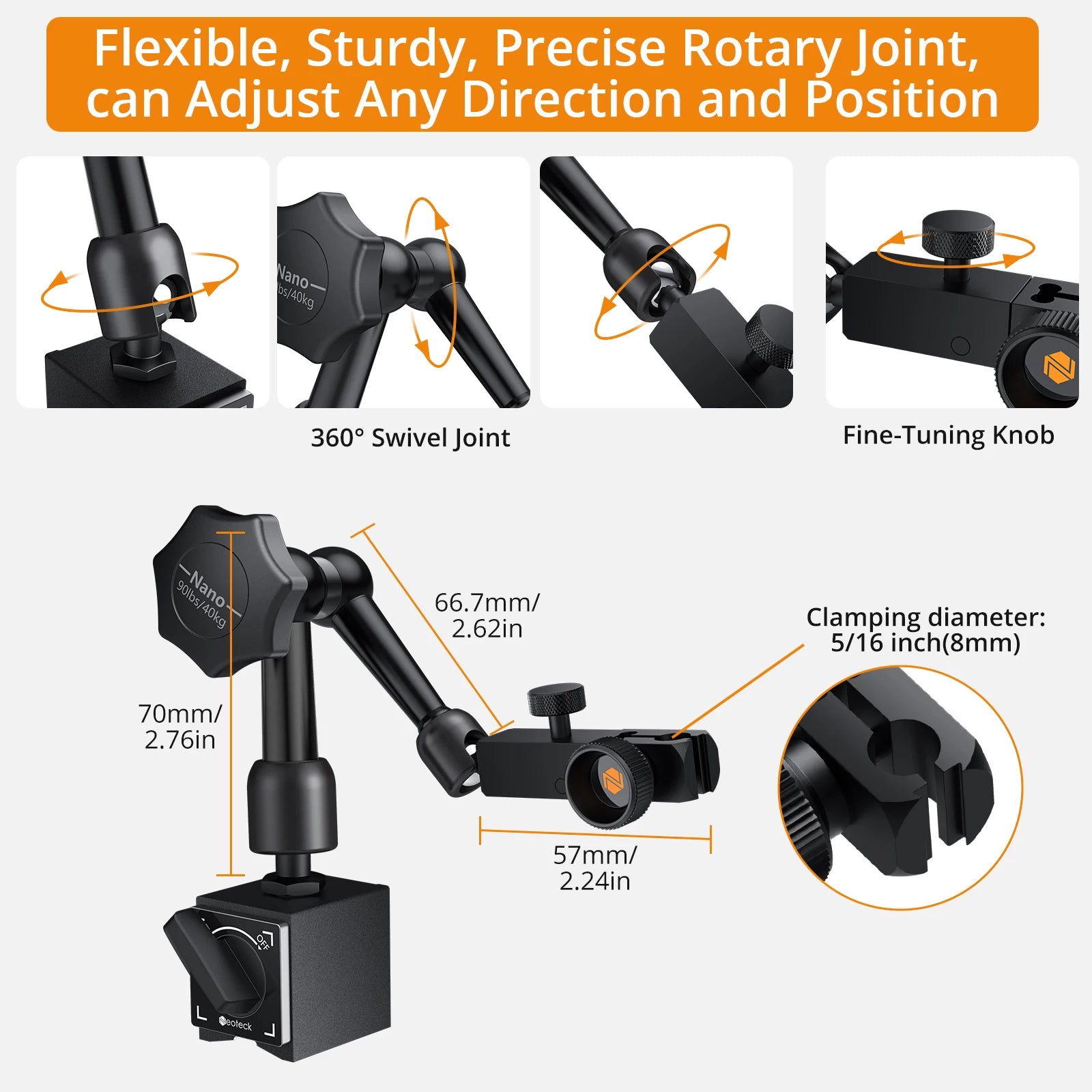

Dimensions of 2 arms: lower arm 2.75"(70mm); upper arm 2.62"(66.7mm); total height 8.6"(220mm)

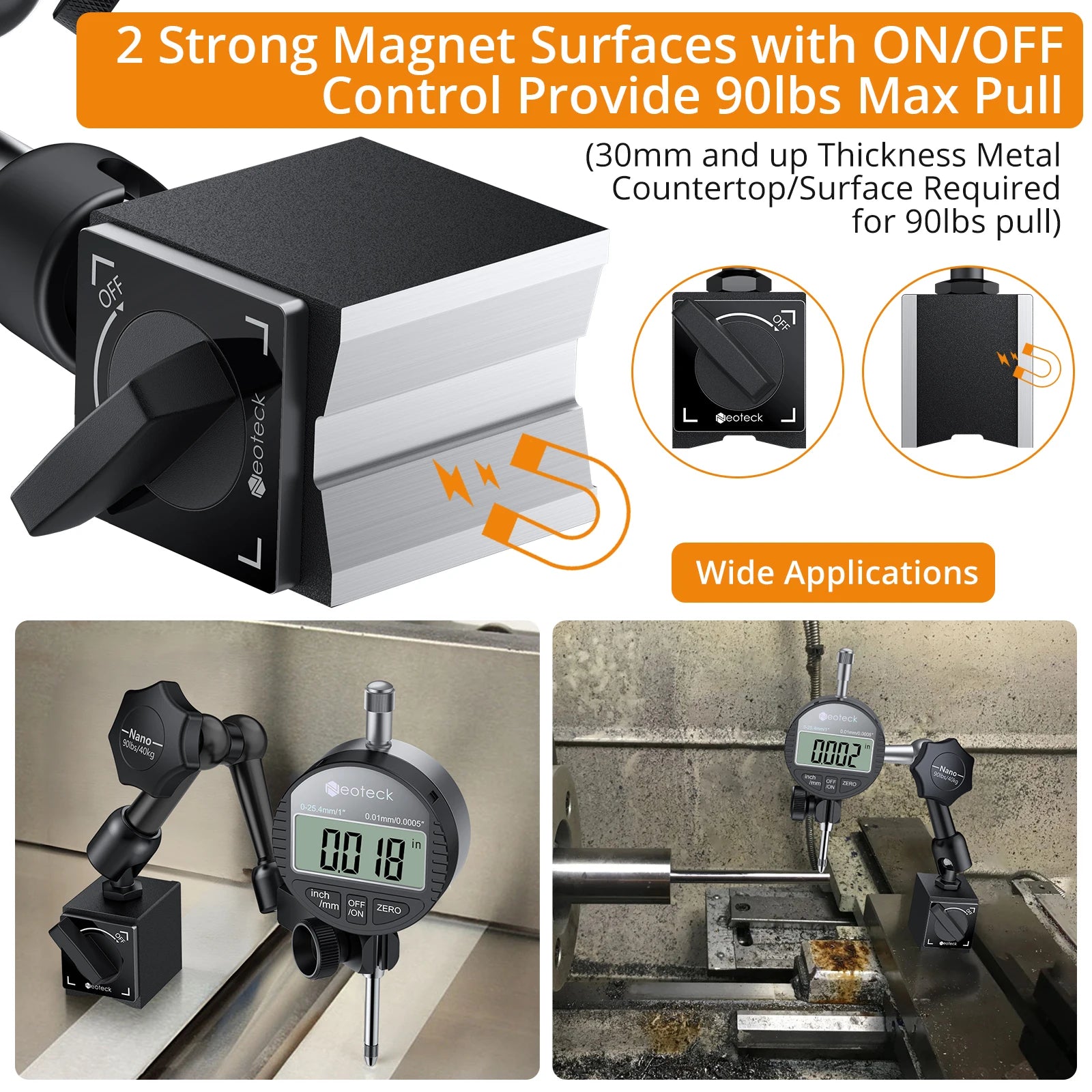

Two solid magnet surfaces with on/off control can provide a maximum tensile force of 90lbs(40kg) (90lbs tensile force requires a metal working surface/surface with a thickness of 30mm and above)
Clamping hole diameter 5/16 inch ( 8mm), used for conventional dial indicator or lever dial test indicator
Flexible, sturdy, precise rotary joint, can adjust any direction and position, high stability
Compatible with all most dial indicator or lever dial test indicator and other market indicators
Specifications:

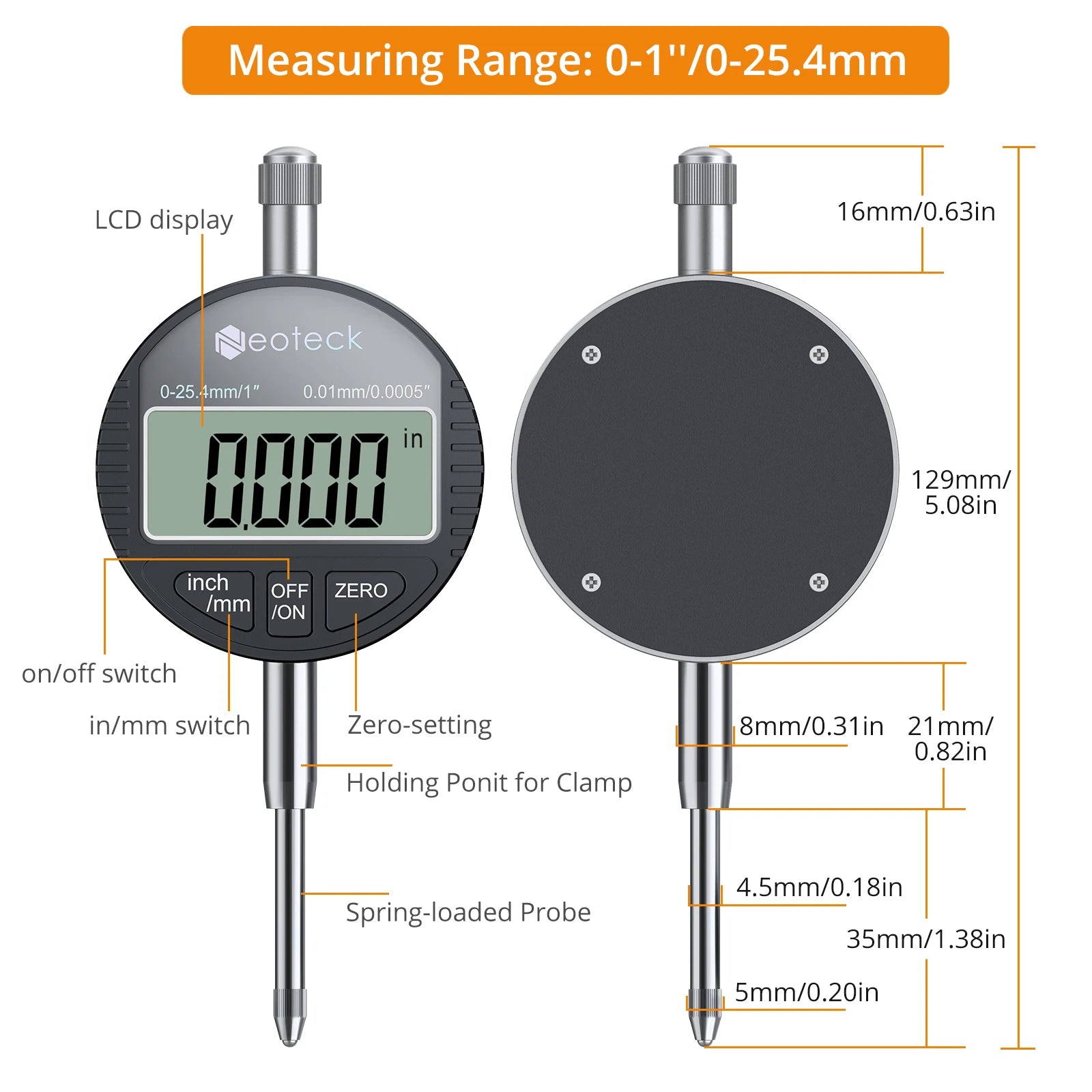

Digital Dial Indicator：
Measuring Range: 0 ~ 25.4 mm (0 ~ 1 inch)
Resolution: 0.01 mm (0.0005 inch)
Response Time: ≤ 0.5 m/s
Operating Temperature: 0 ~ 40 ℃ (32 ~ 104 ℉)
Storage Temperature: -20 ~ 70 ℃ (-4 ~ 158 ℉)
Relative Humidity: ≤ 80% R.H
Material: Aluminum Alloy
Power: 1 x 1.5 V LR44 Button Cell Battery (Included)
Item Size: approx. 122 (L) x 55 (W) x 26 (D) mm (4.80 x 2.17 x 1.02 inch)
Item Weight: approx. 129 g (4.55 oz) (battery included)
Magnetic Base：
Weight：398g
Rally: 90lbs(40kg)
Rally: 90lbs(40kg)
Length: About 8.6"(220mm)
Material：Steel
Arm Adjustment：3 joints adjustable
Arm Dimension：lower arm 2.75"(70mm); upper arm 2.62"(66.7mm)
Clamping diameter：5/16 inch ( 8mm)
Material：Steel
Arm Adjustment：3 joints adjustable
Arm Dimension：lower arm 2.75"(70mm); upper arm 2.62"(66.7mm)
Clamping diameter：5/16 inch ( 8mm)

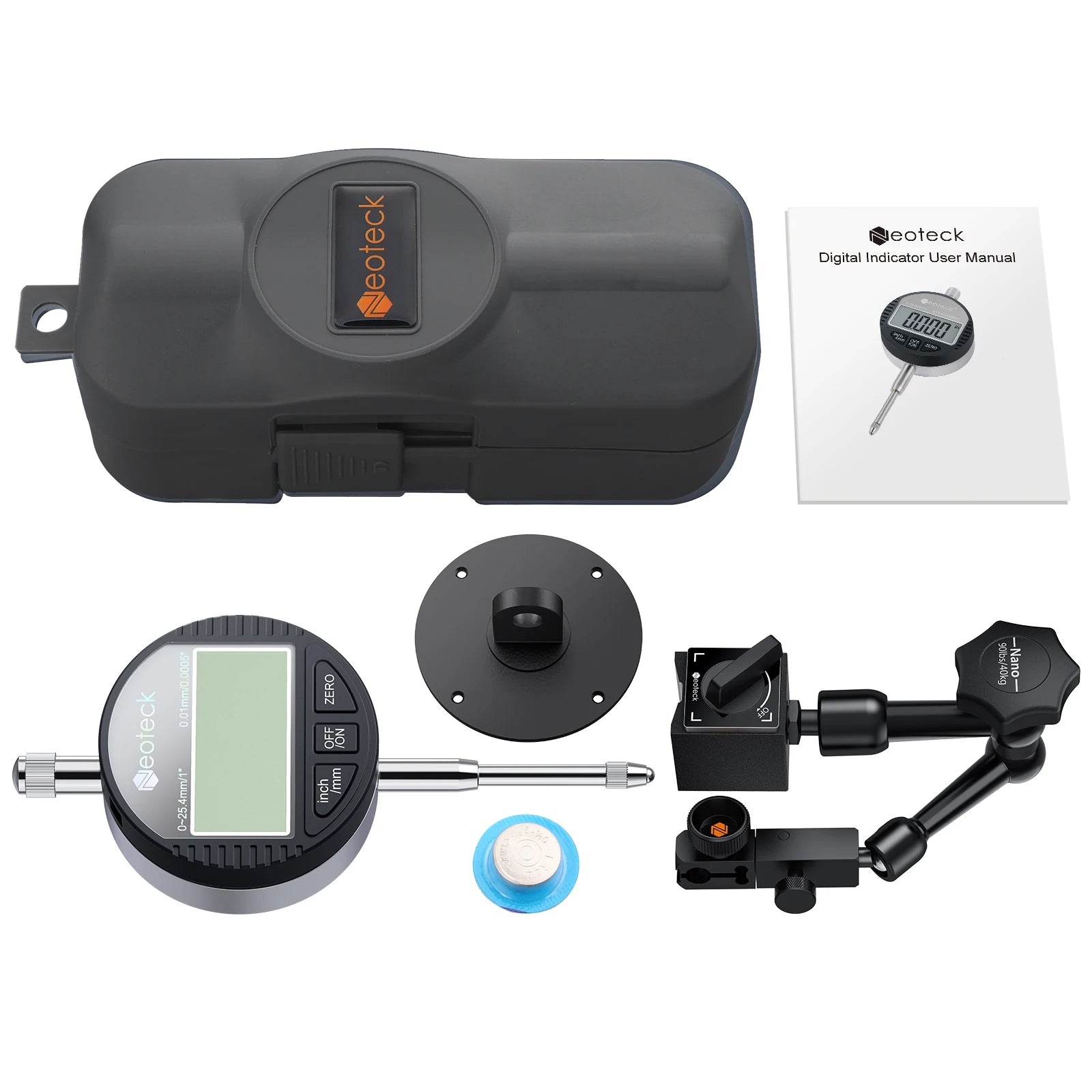

Package Include:
1 x Digital dial indicator
1 x 90lbs(40kg) Magnetic Base
1 x Rear Cover
1 x 1.5V Battery
1 x Instruction Manual
