Nobsound HiFi Stereo Line Level Pre-Amplifier Mini Audio Signal Booster 20dB High-gain Preamp Volume Control for Ipod MP3 Phone

$50.99 USD

~~$0.00 USD~~ $50.99 USD

Sale Sold out

Shipping calculated at checkout.

Ships From United States

Quantity

SPECIFICATIONS

Brand Name: Douk Audio

Certification: CE

Channels: 2 (2.0)

DOUK AUDIO Model: L1

Maximum Power Per Channel: NO POWER

Model Number: L1

Origin: Mainland China

Package: Yes

Introduction

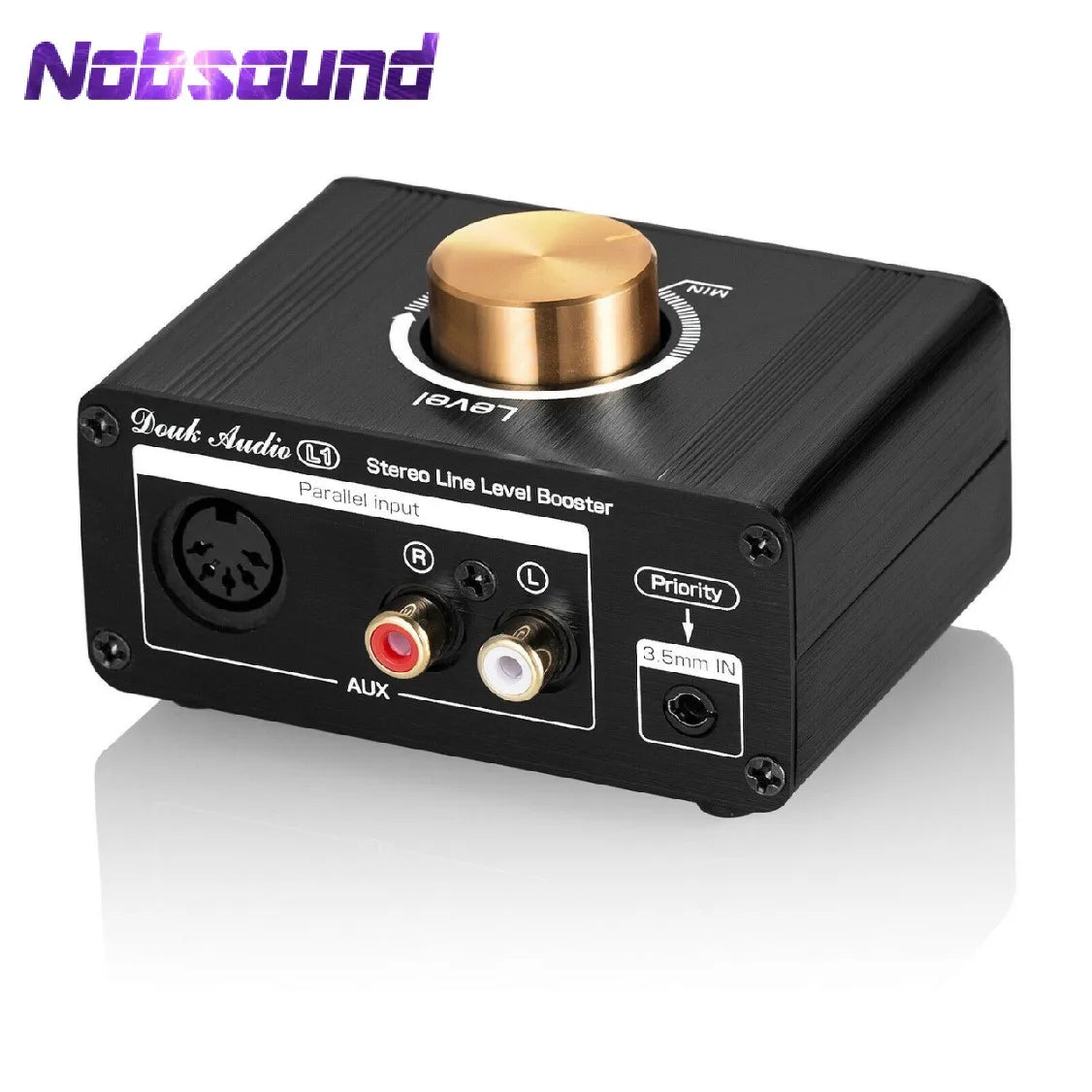

Douk Audio L1 is a stereo amplifier with built-in voltage boost and amplification circuits, designed to boost the output of virtually any line level audio source (such as TV, video games, MP3 players, ipod, phone, tablet etc.) to max 20dB. L1 features its wide gain range, wide frequency response, excellent S/R and HiFi sound, to bump the output level of the audio devices which are with an inherently low level output so as to match other sources, or to allow the use of a longer cable run than normal between components.

Features

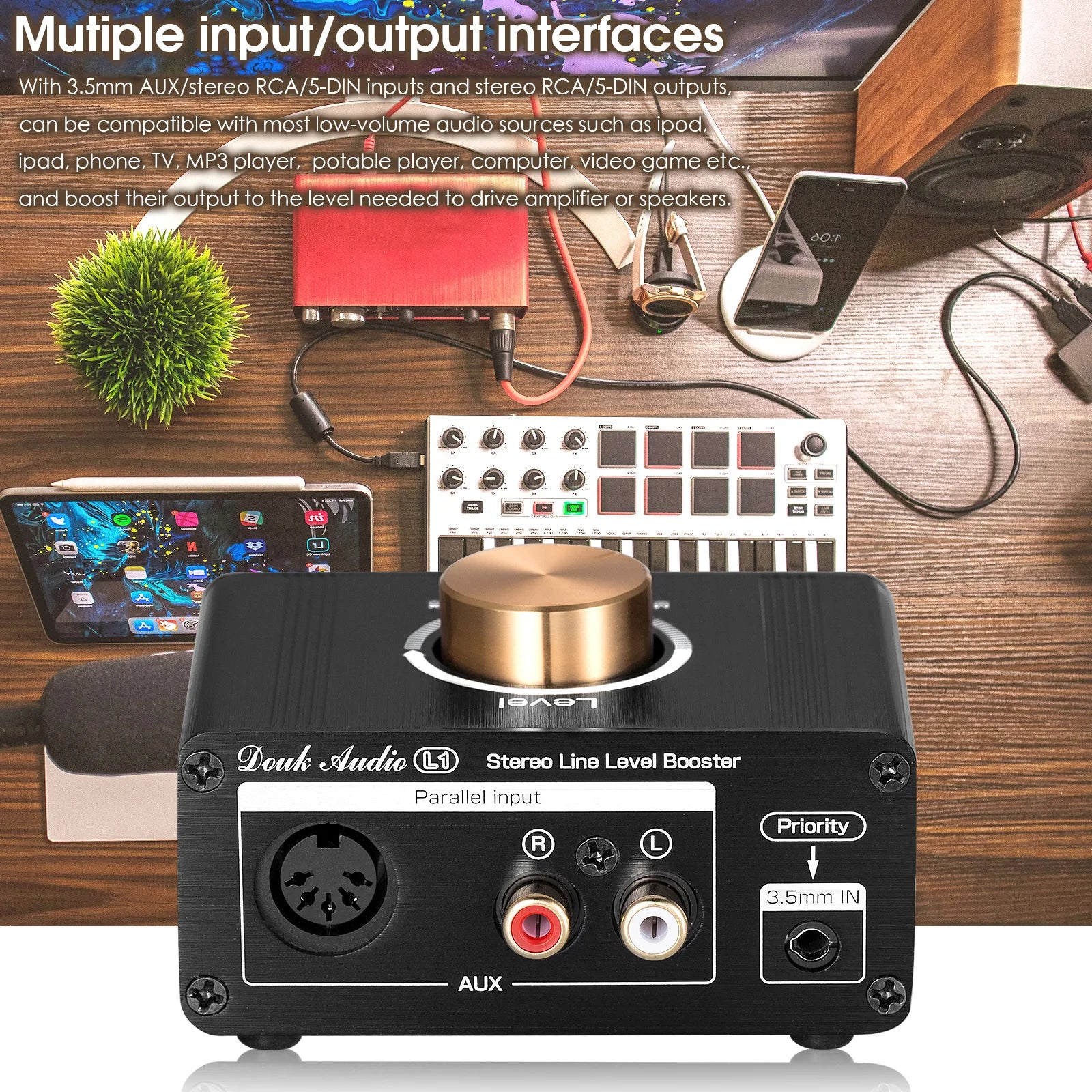

Mutiple input/output interfaces: with 3.5mm AUX/stereo RCA/5-DIN inputs and stereo RCA/5-DIN outputs, can be compatible with most low-volume audio sources such as ipod, ipad, phone, TV, MP3 player, potable CD player, computer, video game etc., and boost their output to the level needed to drive amplifier or speakers.

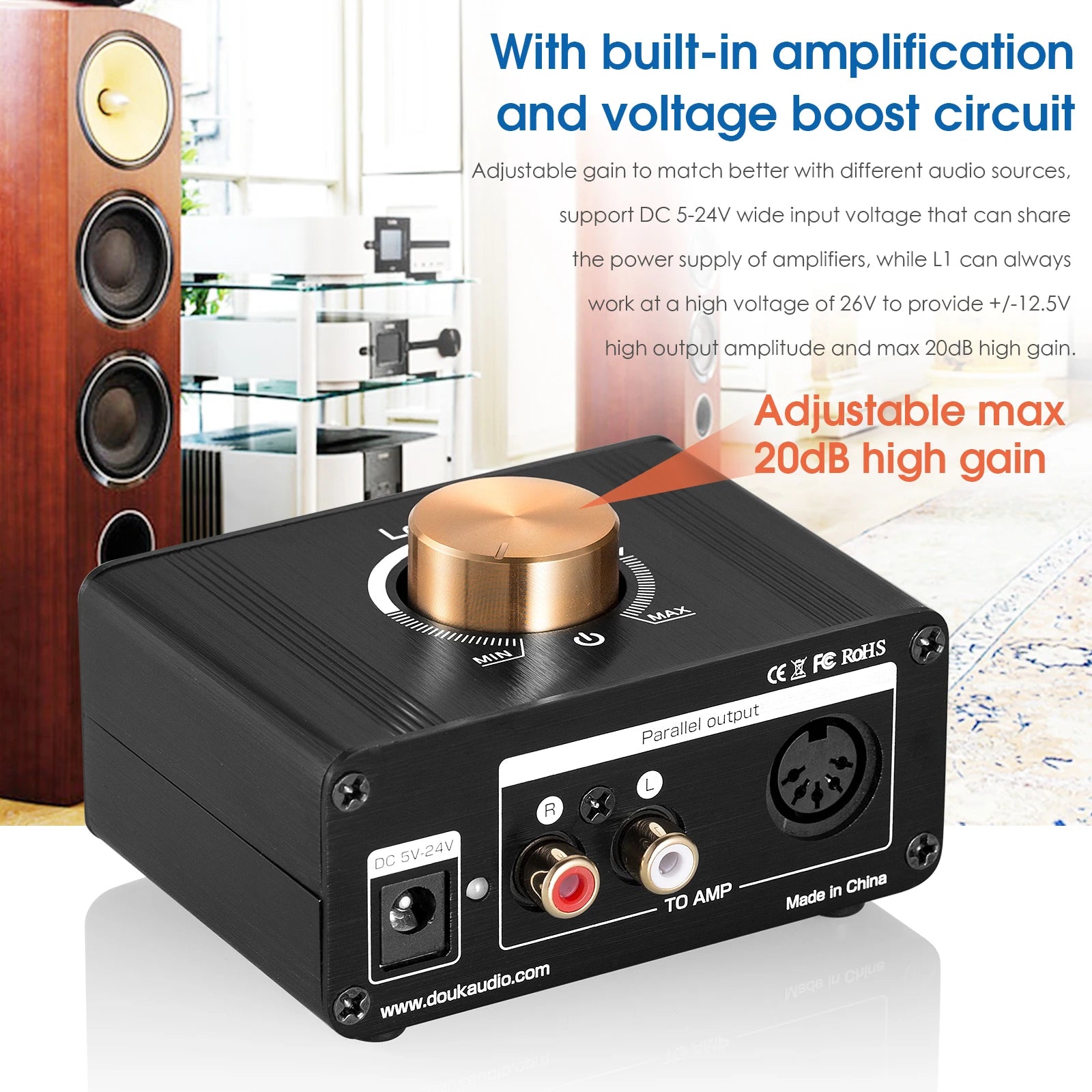

With built-in amplification and voltage boost circuit: adjustable gain to match better with different audio sources, support DC 5-24V wide input voltage that can share the power supply of amplifiers, while L1 can always work at a high voltage of 26V to provide ±12.5V high output amplitude and max 20dB high gain.
Unique design and HiFi clear sound: double-side PCB design, NE5532P op amp with pluggable socket design, convenient to change other op amps to enjoy different sound and bring much DIY fun for audiophiles. High-qaulity sealed potentiometer, with wide frequency bandwidth and excellent dynamic response, the sound is smooth and natural, warm and delicate with ultra-low distortion.
Mini size with exquisite appearance, compact and all-metal design for durability and shielding the electronics from electromagnetic interference with noise rejection. Perfect design in size and function, suitable for many scenarios to increase the output level, such as home stereo system, mixer or speaker setup, karaoke, audio recording, party, live stage event etc.

Warm tips:

1. 3.5mm AUX input with priority, please make sure AUX cable has been disconnected if you want 5-DIN or stereo RCA input.

2. 5-DIN and stereo RCA output can work at the same time.

3. Equipped with USB to DC cable,NOT include power adapter, can use phone charger/power bank/computer to power it.

Parameters

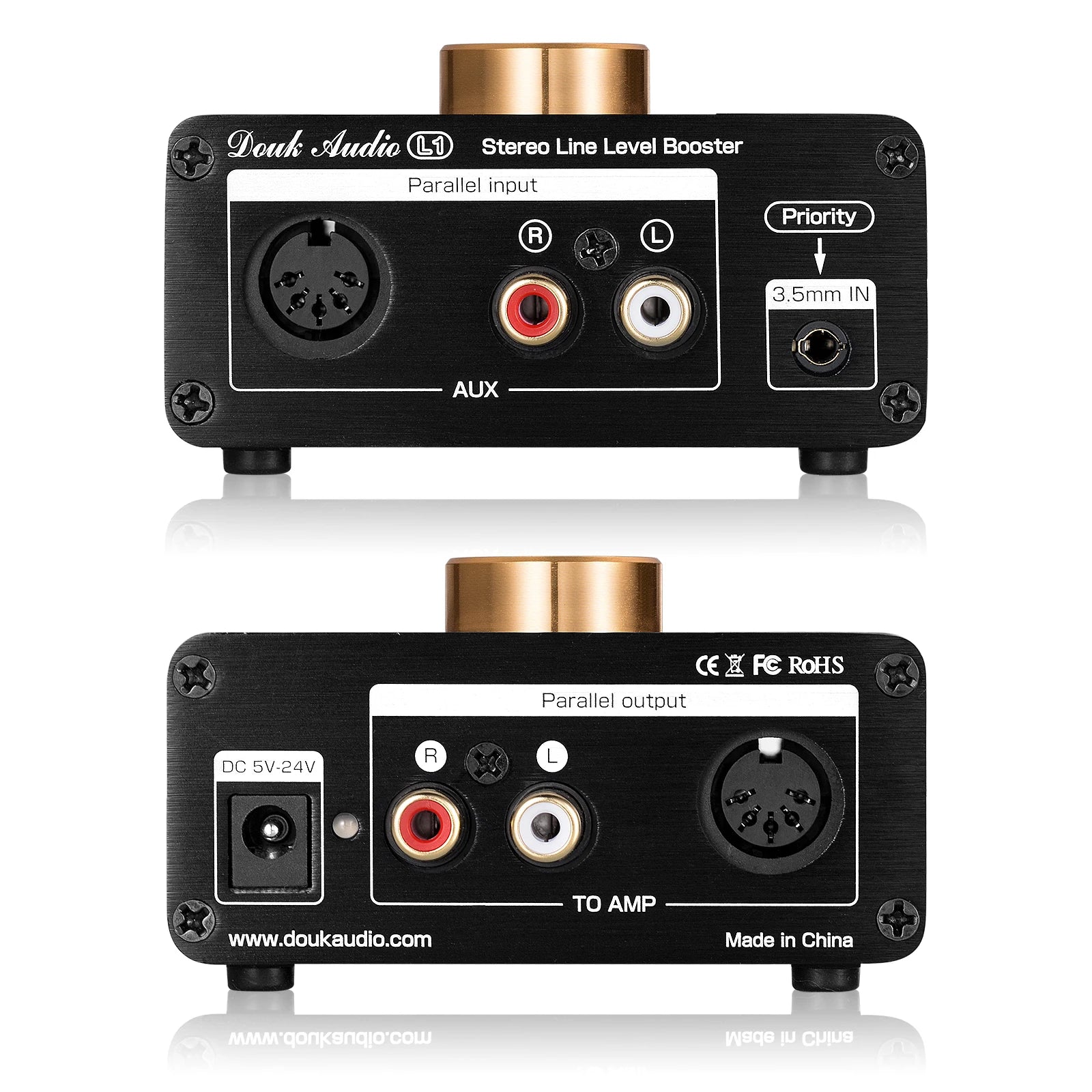

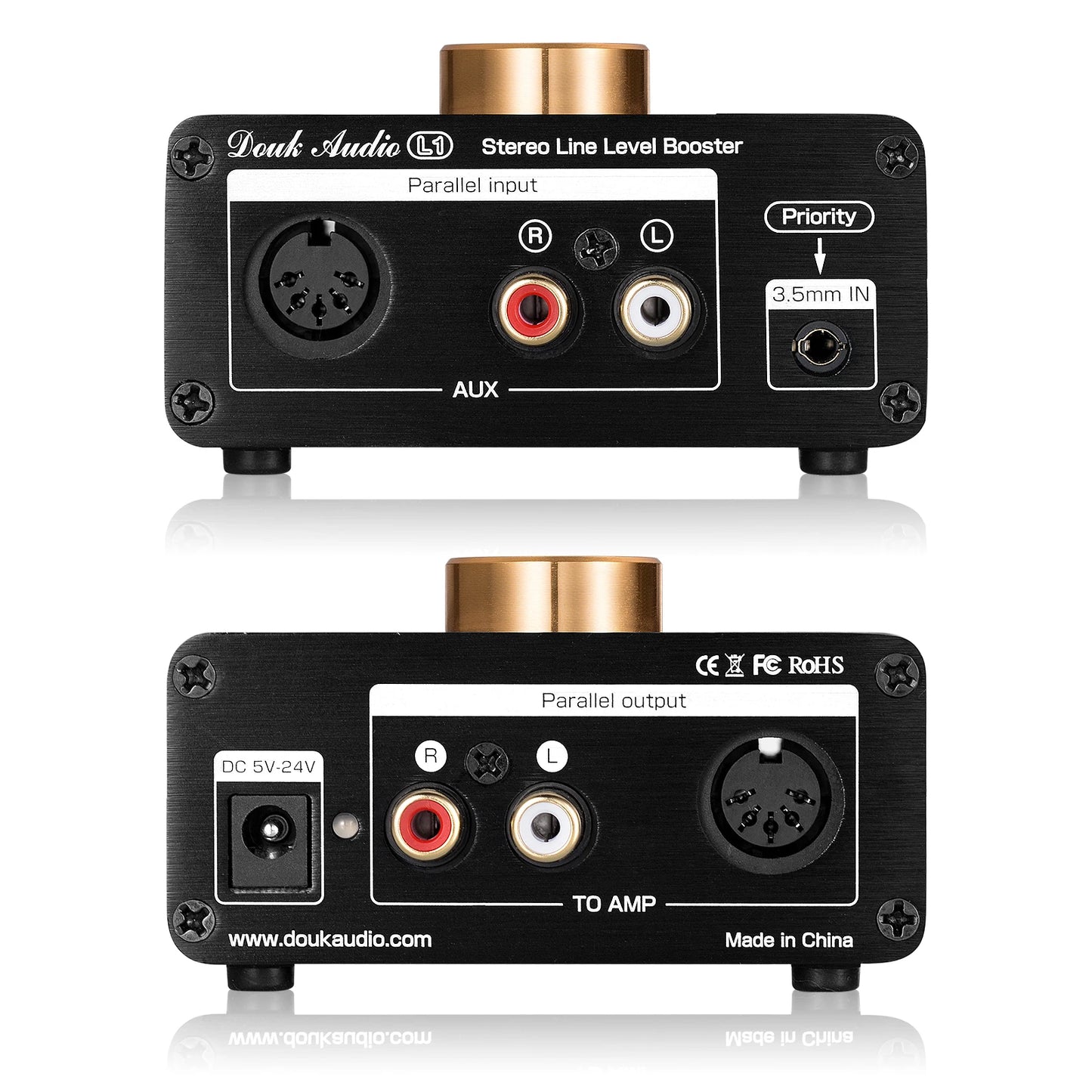

Audio input: 3.5mm AUX / Stereo RCA / 5-DIN
Audio output: Stereo RCA / 5-DIN
Gain: 20dB (Adjustable)
Frequency response: 20Hz-20KHz ( ± 0.5dB)
THD: 0.06% Max
S/N ratio: >80dB
Input sensitivity: 150mW/50KHz at 1KHz
Max output amplitude: ±12.5V
Input voltage: DC 5-24V
Working voltage of amplification part: DC 26V
Dimensions(W*D*H): 87*63*48mm / 3.43*2.48*1.89in
Package dimensions(W*D*H): 150*90*110mm / 5.91*3.54*4.33in
Net weight: 155g / 0.34lb
Package weight: 400g / 0.88lb

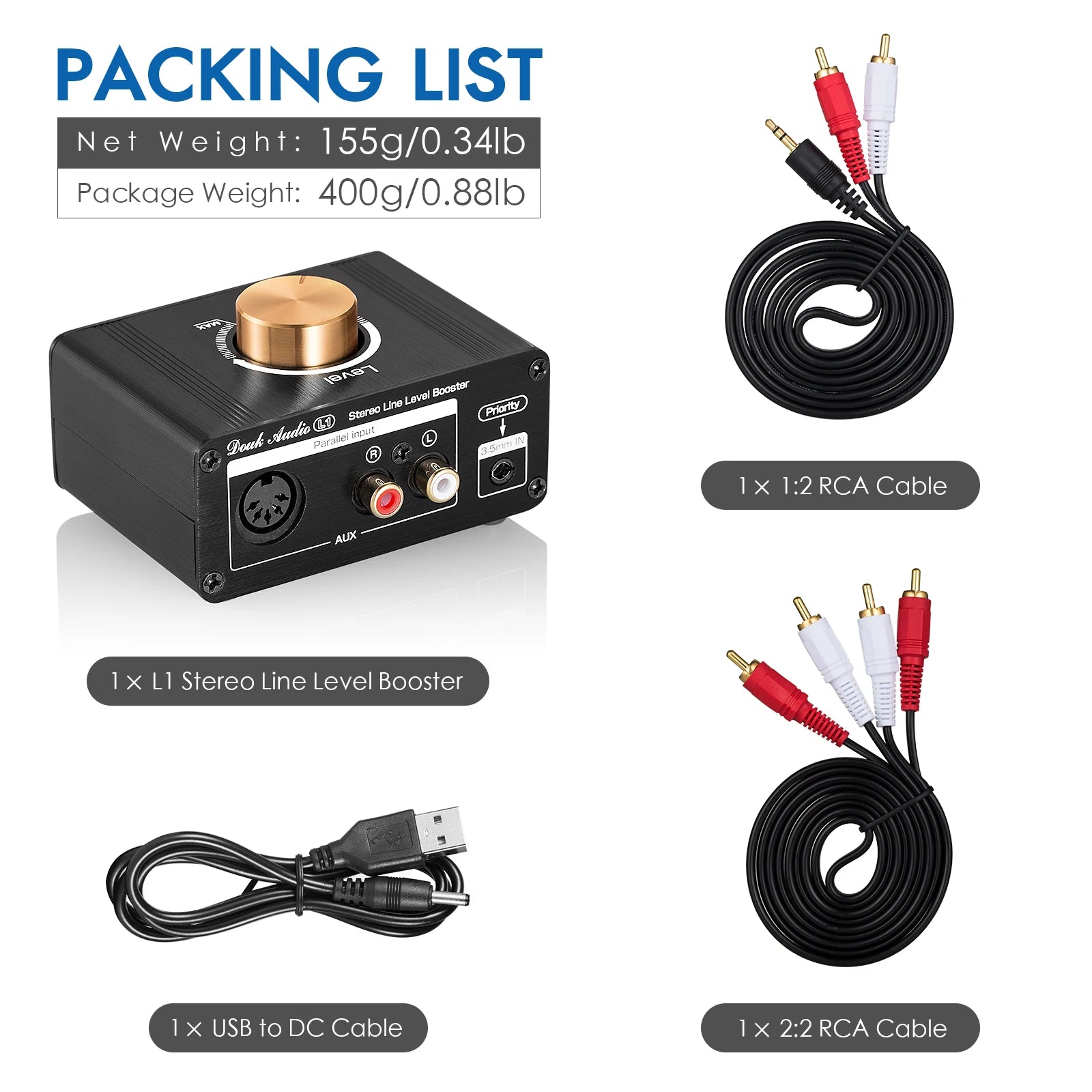

Packing List

1*L1 Stereo Line Level Booster
1*USB to DC Cable
1*3.5mm to RCA Cable
1*2:2 RCA Cable

Who Needs Douk Audio L1 Stereo Line Level Booster?

1. Want to correct the sonic mismatch issues that often cause the output volume of portable players/MP3/computer lower than other home audio devices, resulting in distorted sound performance.

2. Want to enhance the output level of karaoke players or CD/DVD player to transform your stereo music to thrilled sound for party or outdoor events, provide low-noise and high musical accuracy for listening and recording.

3. Want to provide an external way of volume control for any audio source device or stereo amplifier that has no output level or volume adjustment of its own.

...
