Neoteck Industrial 0-1" Dial Indicator Magnetic Base 0.0005" Accuracy Machinist Precision Testing Tools

Neoteck Industrial 0-1" Dial Indicator Magnetic Base 0.0005" Accuracy Machinist Precision Testing Tools

$52.99 USD
$0.00 USD $52.99 USD
Sale Sold out
Shipping calculated at checkout.
Default Title

SPECIFICATIONS

Brand Name: NoEnName_Null

DIY Supplies: Metalworking

Display Type: Digital

Hign-concerned Chemical: None

Model Number: NTK183

Origin: Mainland China

Type: Indicator

About this item:

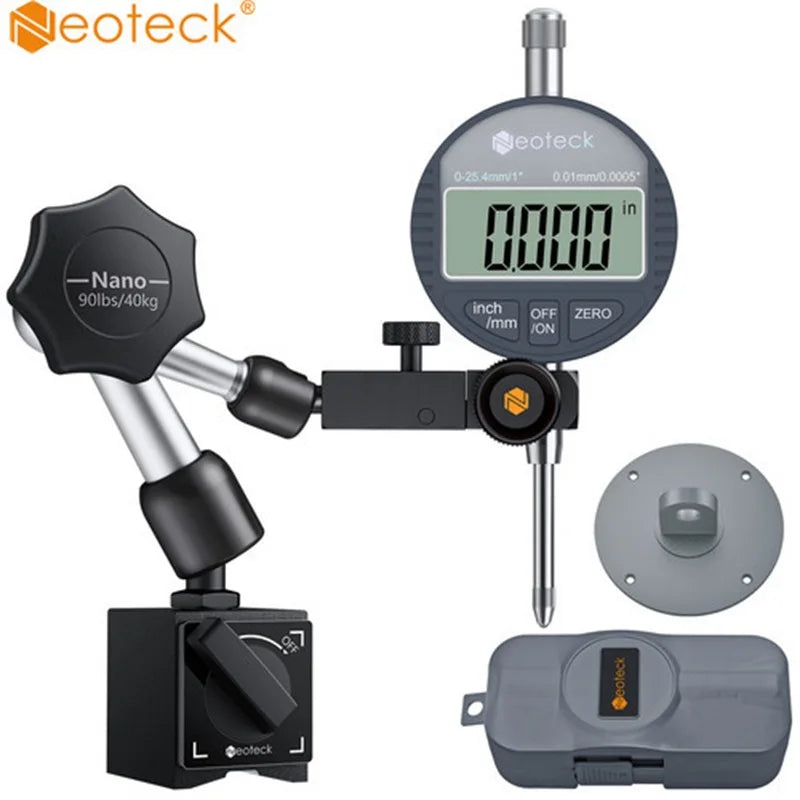

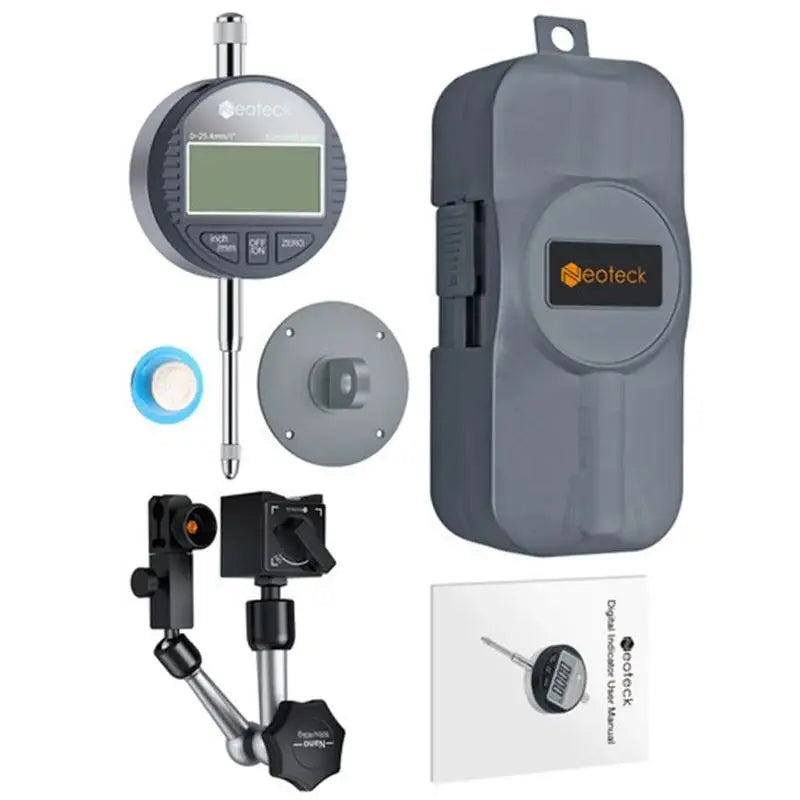

【0-1"/0.0005" Dial Indicator Set】Neoteck magnetic digital indicator holder set includes 1 x 0-1"Dial Indicator, 1 x90lbs(40kg) Magnetic Base, 1 x Rear Cover, 1 x 1.5V Battery, Great Dial Indicator with Magnetic Base and Point Precision Inspection Set for 3D Printer Lathe Workshop CNC Machine Table Saw
【Accurate Dial Indicator】Measuring range: 0 ~ 25.4 mm (0 ~ 1 inch), Accuracy: 0.01 mm (0.0005 inch). Rack and contact point made of hardened stainless steel. Manufactured according to ASME/ANSI standards, accurate and durable.

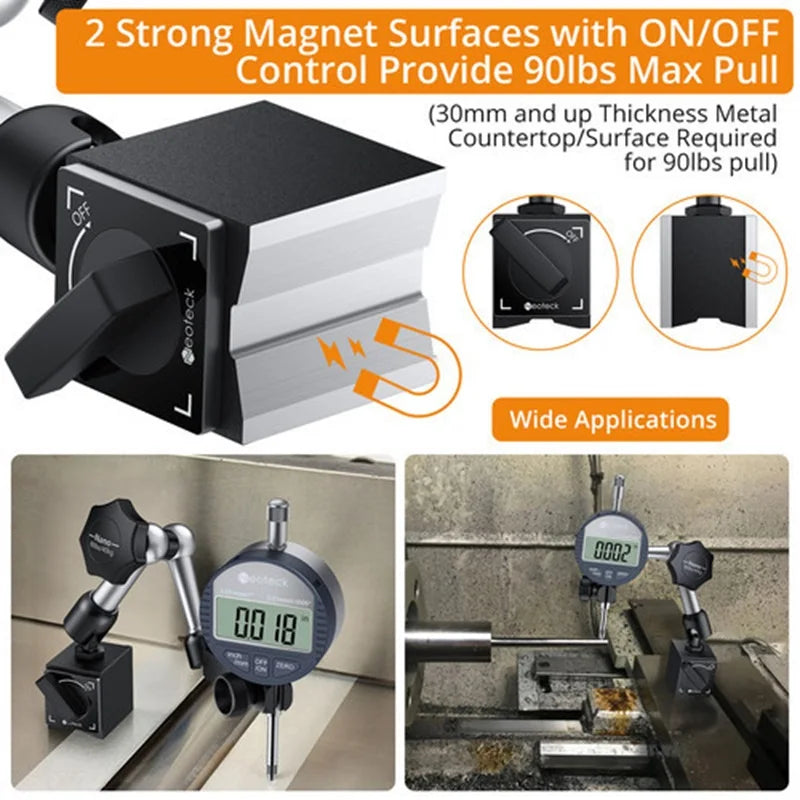

【Powerful Magnetic Base】These dial Indicator with magnetic base precision measuring Gauge Tools Kit, 2 strong magnet surfaces with ON/OFF control, For 90lbs(40kg) , it requires 30mm and up thickness metal countertop/surface.

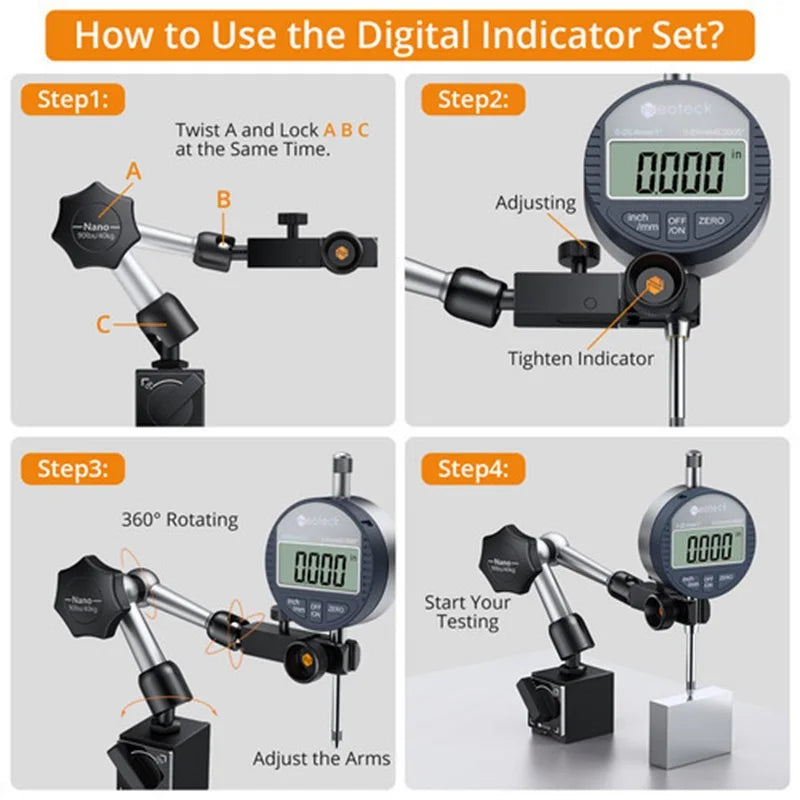

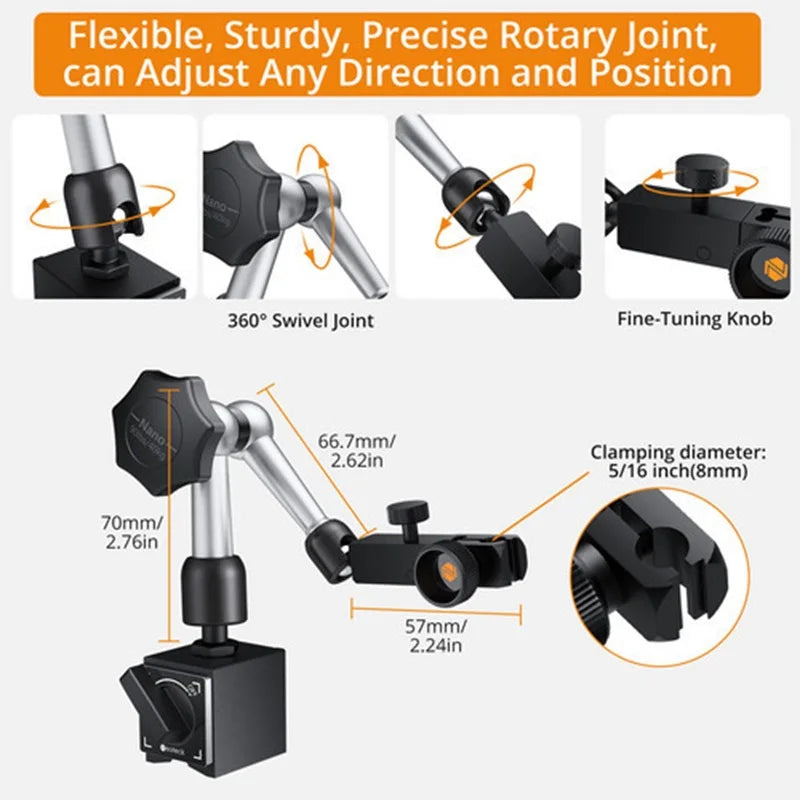

【Adjustable Holder Arm】Dimensions of 2 arms: lower arm 2.75"(70mm); upper arm 2.62"(66.7mm); total height 8.6"(220mm). Clamping hole diameter 5/16 inch ( 8mm), Flexible, sturdy, precise rotary joint, can adjust any direction and position, high stability, Compatible with all most dials/digital indicators and other market indicators. The fine adjustment arm is made of steel hardened, professional and durable. Universal rotating shaft with fine-tuning knob for more accurate measurement.
【Wide Applications】This dial indicator gauge and magnetic base set is perfect for 3D Printer, Lathe, Woodworking, Workshop, CNC Machine, Table Saw, etc. It can be used with machine tools, equipment to determine the errors in the geometrical form, to take accurate measurements of deformation, to take determine positional errors of surface, and to check the alignment of lathe centers.

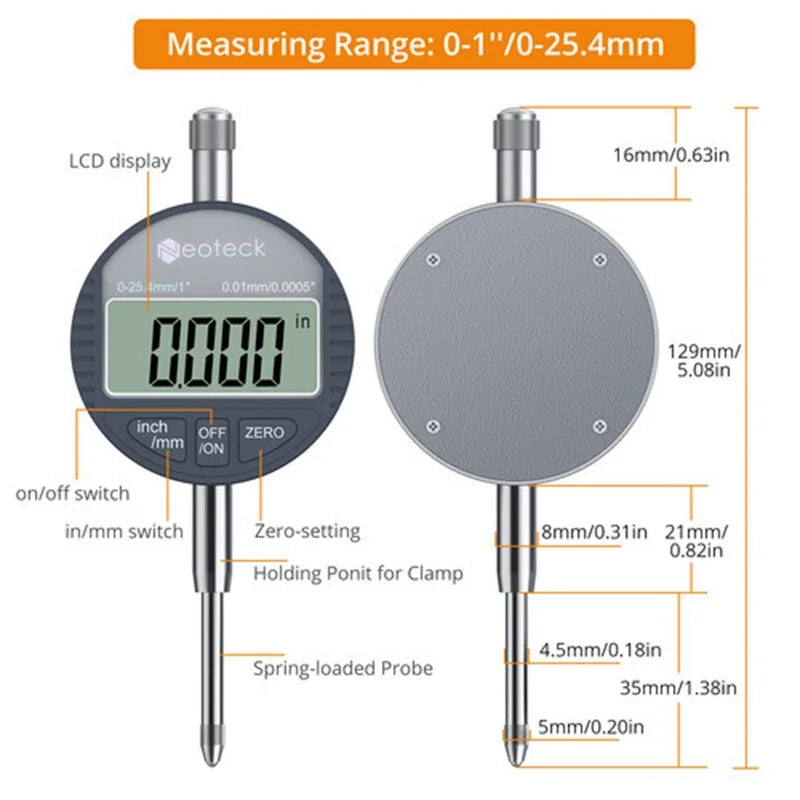

Specifications:

Digital Dial Indicator

Measuring Range:

0 ~ 25.4 mm (0 ~ 1 inch)

Resolution:

0.01 mm (0.0005 inch)

Response Time:

≤ 0.5 m/s

Operating Temperature:

0 ~ 40 ℃ (32 ~ 104 ℉)

Storage Temperature:

-20 ~ 70 ℃ (-4 ~ 158 ℉)

Relative Humidity:

≤ 80% R.H

Material:

Aluminum Alloy

Power:

1 x 1.5 V LR44 Button Cell Battery (Included)

Item Size:

approx. 122 (L) x 55 (W) x 26 (D) mm
(4.80 x 2.17 x 1.02 inch)

Item Weight:

approx. 129 g (4.55 oz) (battery included)

Magnetic Base
Weight:

398g

Rally:

90lbs(40kg)

Length:

About 8.6"(220mm)

Material:

Steel

Arm Adjustment:

3 joints adjustable

Arm Dimension:

lower arm 2.75"(70mm); upper arm 2.62"(66.7mm)

Clamping diameter:

5/16 inch ( 8mm)
