SPECIFICATIONS

Brand Name: NEJE

CNC or Not: Normal

Certification: CE

Condition: New

File Format Supports: .GC/SVG/DXF/JPG/JPEG/PNG/BMP/TIF/etc.

Frame Size : 970x582x60mm

High-concerned chemical: None

Is Smart Device: Yes

Limit Switch: Yes, both XYZ

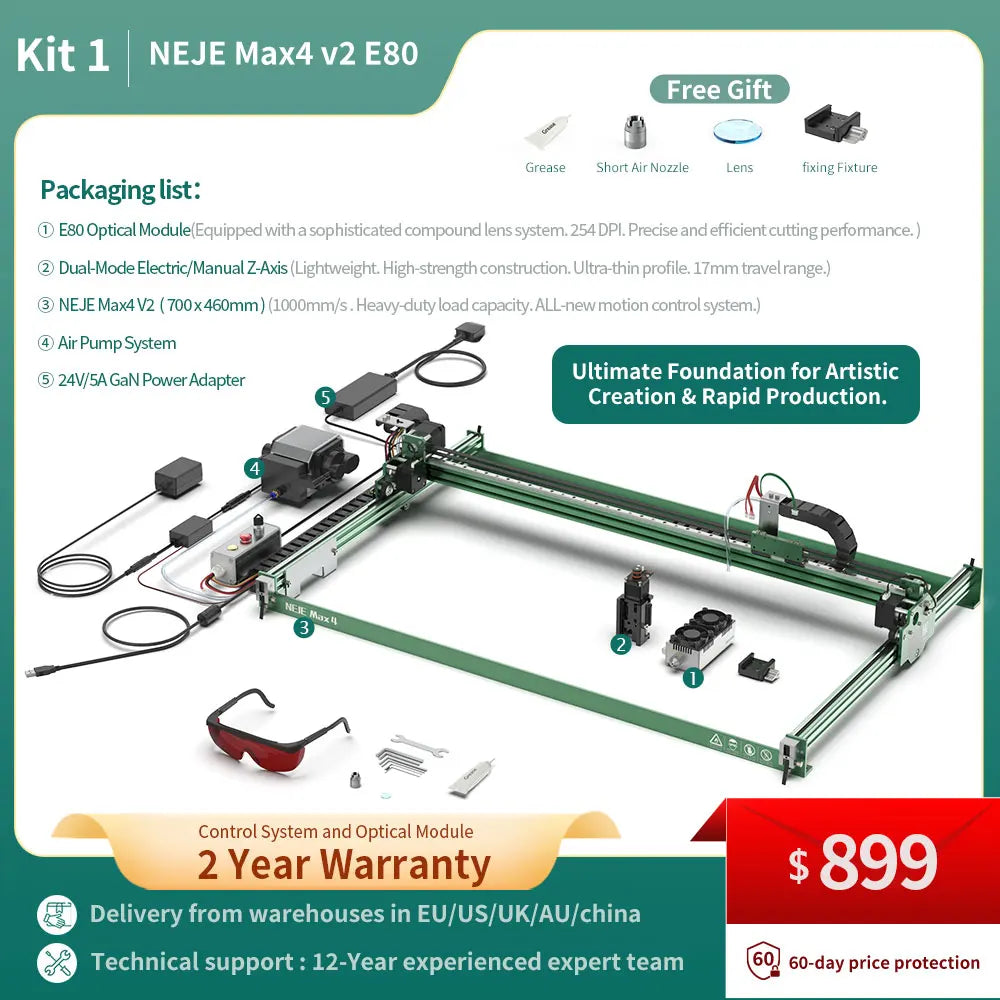

Model Number: NEJE Max 4 V2

Origin: Mainland China

Working Area: 750 x 460mm, Extends to 750x1030mm

Specification

Frame Size (L – W – H): 970x582x60mm
Working Area( X – Y): 750 x 460mm, Extends to 700x1030mm(about 29.5x40.5 inch)
X axis：Industrial straight track, bottom CNC straight line correction
Y axis：NEJE diamond CNC linear track, smooth and durable
Z axis：Industrial linear track
A axis：Rotary axis expansion
Y axis Extension: Yes, NEJE will provide linear extension track, and the Y axis can be extended to 1030mm.
Controller: The latest 32-bit high-performance control chip.
Silent driver chip: yes
Limit Switch: Build in X Y Z
Homing Repeat Position Accuracy: 0.01mm
Repeat Position Accuracy: X Y: 0.01mm; Z: 0.01mm
Recommended acceleration and top speed: 1000mm/s
Vertical Carving: Yes(90°)
Motion Accuracy: 0.01mm. Max 2032 dpi
Input Voltage: 24V, Match according to module voltage
Interface: 5.5*2.1, Max 6A
Compatible: 24V NEJE modules
M7,M8,Door Extension： Yes
Lightburn Offline Control： Yes
Lasergrbl Offline Control:Yes
BLE Bluetooth Function:Support Bluetooth 4,Windows 10, iOS 8 and Android 4.2 and above.
App control： Yes
MEMS protection： Yes
NEJE Software OTA Upgrade: Yes
Software: NEJE Win Soft, NEJE APP, Lightburn, LaserGRBL
Firmware: build in NEJE fireware and GRBL 1.1f(optimized)
Systems Support: Win 7/Win 8/Win 10, Android, iOS, ipadOS, macOS
File Format Supports: SVG/DXF/JPG/JPEG/PNG/BMP/TIF/etc.

LONG LIFESPAN, HIGH PERFORMANCE, SAFER INDUSTRIAL MODULE

The design difference between NEJE 80 industrial modules and other high-power modules is that power is not the only criterion for a module’s performance.

NEJE E80 takes the pursuit of high life and absolute performance as the design concept, and chooses the most difficult manufacturing scheme. We believe that the life and performance of the module is the real value of the user to buy the E80 module, which makes the E80 have no advantage in power. The reason for stronger performance than other 6xLD and 8xLD; we did not choose 8xLD or 6xLD to release new products relatively quickly for marketing gimmicks. Destroying the original LD structure and reflective structure scheme can quickly manufacture new products, which may quickly win users. But this is against the values of the NEJE team.

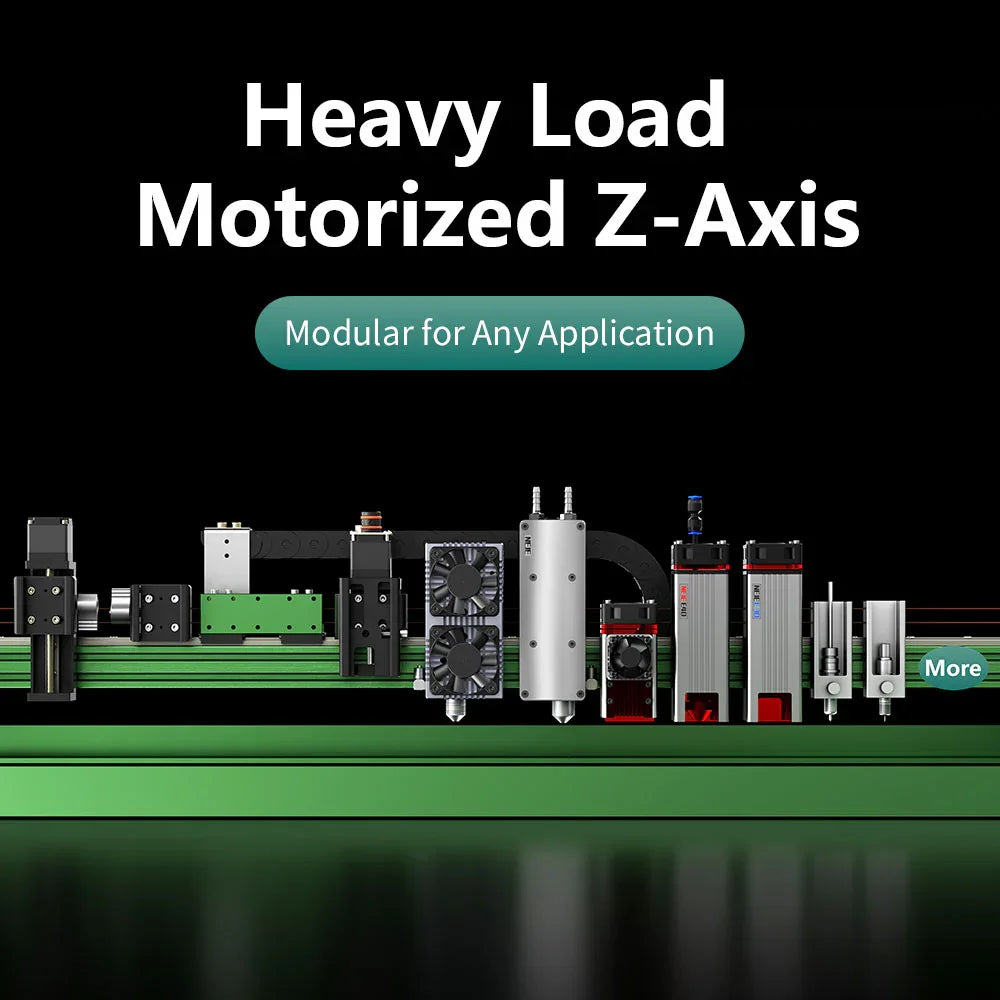

The safety consideration of the high-power model is also a special emphasis of the NEJE team. The high-power model is particularly easy to burn during operation. It eliminates the need to optimize the focus and angle during the design process. NEJE Max 4 electric Z-axis control can be better. Safe control of high-power modules.

High-quality accessories designed to be compatible with various types of air sources and materials of varying thicknesses. These accessories boast a spare lens with 99.99% transmittance and exceptional resistance to temperatures up to 1000 ℃. The replaceable lens design enhances the durability of the module.
