Selling Point:

1. Power supply: DC 12V 2A

2. 4 Channel mixing console

3. Bluetooth function

4. 99 DSP Effects

5. USB Play and Record

6. Computer play and record

7. Individual +48V phantom power

8. Mini, portable

Power supply:

DC 12V 2A, EU plug

4 Channels

1). CH1/2 are Mono channels, CH3/4 is stereo channel

2). For signal from CH1/2, L/R of main out will output same signal

3). For signal from CH3, L of main out will output the signal, R will not output signal

4). For signal from CH4, R of main out will output the signal. L will not output signal

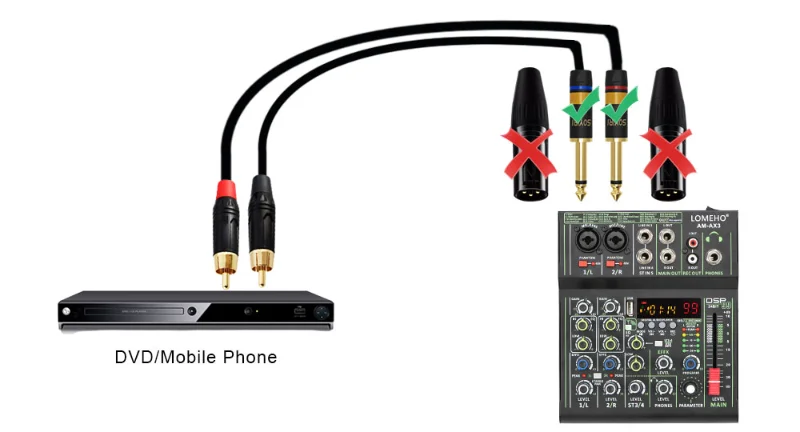

Common unconnectable input devices:

For these device, mixer can not supply working power, device can not work normal though you use plug adapters

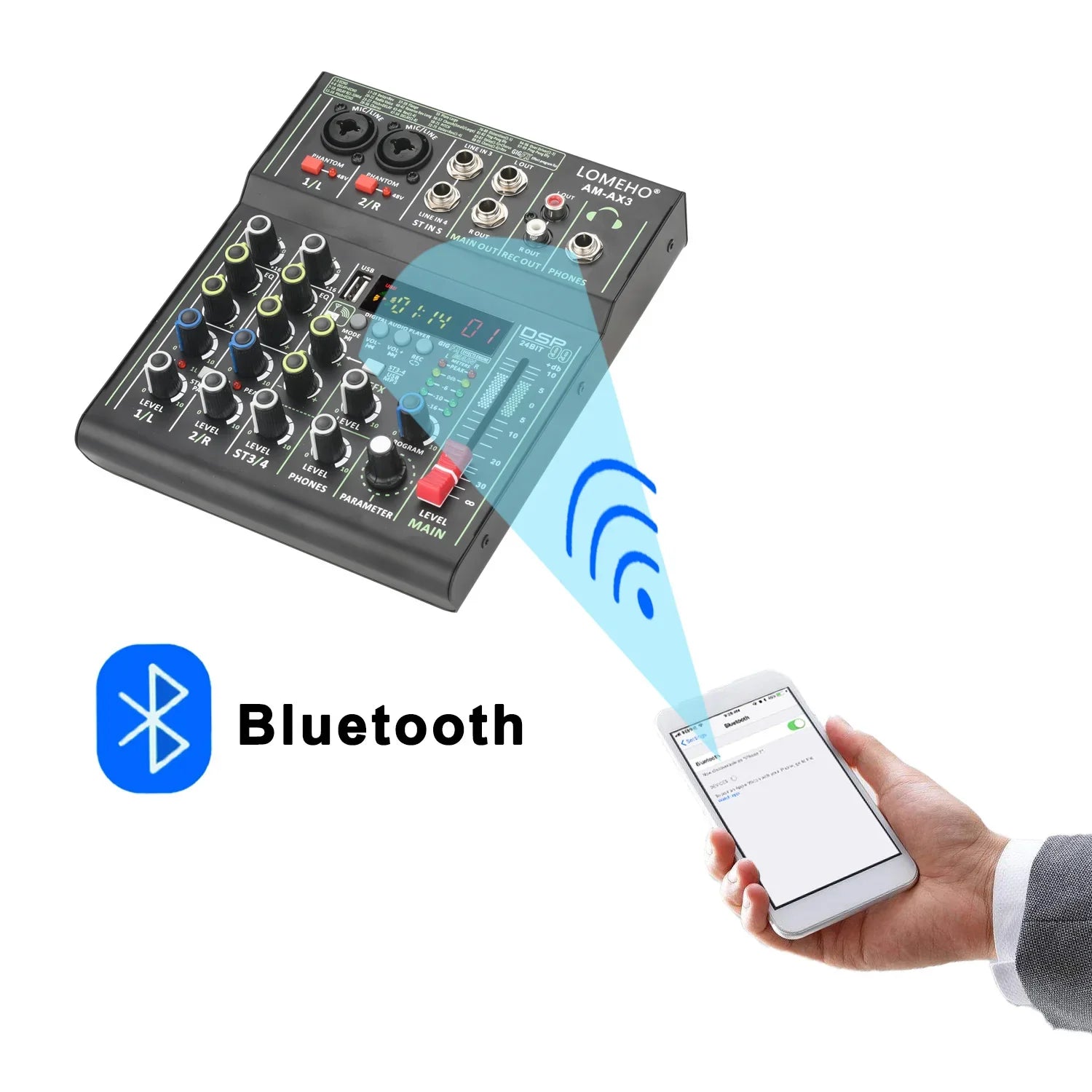

Bluetooth function:

1.Mixer only can accept bluetooth signal, it can not send out bluetooth signal

2. After pairing, please press down "ST3-4/USB MP3" button, then you can adjust the signal from CH3/4 to main output

99 DSP effects:

1. Parameter: Choose effect

2. Program: Adjust parameter

3. Level: Adjust the output level

Connection with U-Disk

(U-Disk is not included,buyer need buy it by himself)

1. U-Disk format: FAT32 ( Do not support NTFS)

2. Play format: MP3, WMA,WAV,FLAC

3. Record format: MP3

(Before recording, please copy a song in the U disk, otherwise, the disk may not be possible to record)

4. Sampling frequency: 16 Bit 48KHz

5. Please press down "ST3-4/USB MP3" button, then you can adjust the signal from CH3/4 to main output

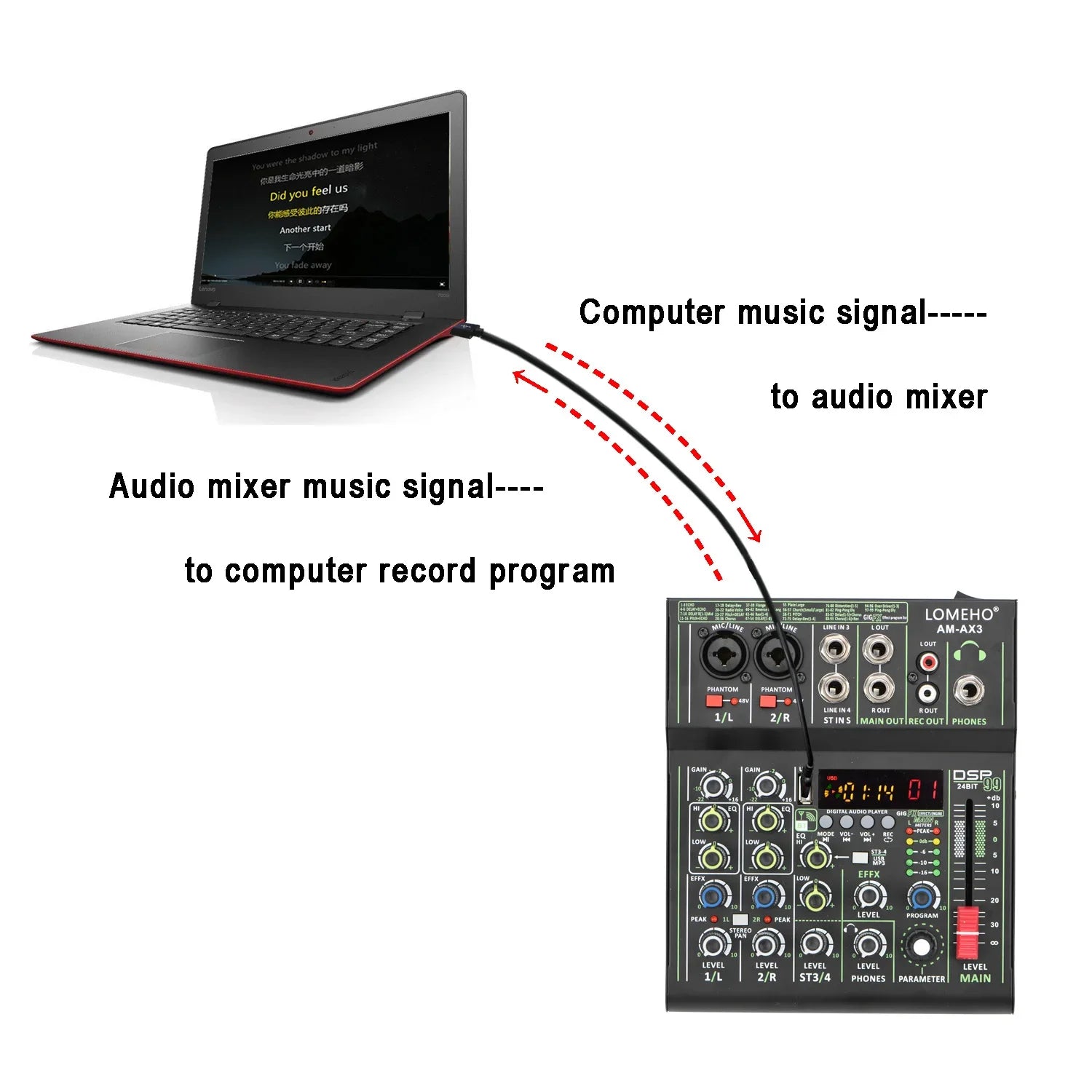

Connection with PC

(USB cable is not included, buyer need buy it by himself)

1. Computer play

Buyer downloads music play software, and choose mixer as speaker. Then computer music signal will come into mixer

Please press down "ST3-4/USB MP3" button, then you can adjust the signal from CH3/4 to main output.

2. Computer record

Buyer downloads music record software, choose mixer as microphone. Then mixer signal will come into computer

3. Please note, you only can record MONO music

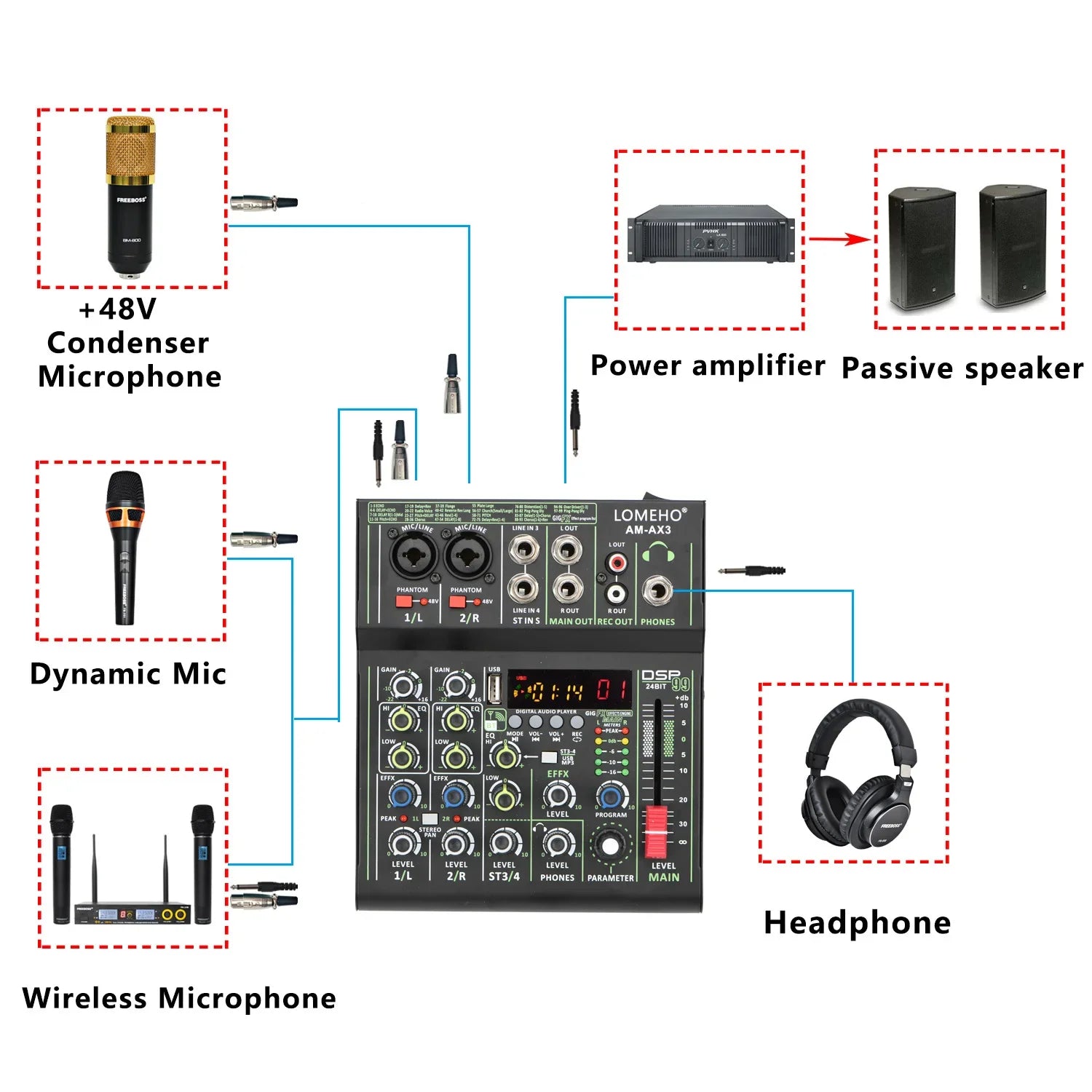

Individual +48V phantom power:

1. Phantom power is only for XLR socket

2. You can use +48V condenser microphone and dynamic microphone through XLR socket at same time

3. Connection with dynamic microphone

1) We recommend using XLR cable to connect mic to mixer. If you use 6.3 plug,the volume will be small

2) Please do not power on +48V phantom power, otherwise the power maybe burn the dynamic microphone

4. Connection with +48V condenser microphone

1) If your condenser microphone supports +48V, please power on +48V phantom power

2) If your condenser microphone does not supports +48V, you can not use the microphone

Gain knob:

When signal increase, the noise will also increase.

And please note: When peak light is on, signal is distortion.

Stereo Pan:

1. Button is bounced up: [MONO]

Sound input to channels 1/L or 2/R can be heard from both the right and left speakers. If you use the 1/L or 2/R individually, set the switch to this setting
