SPECIFICATIONS

Application: Engraving & Cutting

Brand Name: Laser Tree

CNC or Not: CNC

Condition: New

Engraving Area: 400*400mm

Engraving Speed: 20000mm/min

Focus Length: 45mm

Hign-concerned Chemical: None

Input: DC24V 5A

Laser Module: LT-K30/LT-K40

Laser Optical Power: 30W/40W

Machine Module: LT-K1-PRO

Model Number: LT-K1-PRO-30W/40W

Origin: Mainland China

Support Software: LightBurn & LaserGRBL

Wavelength: 450nm

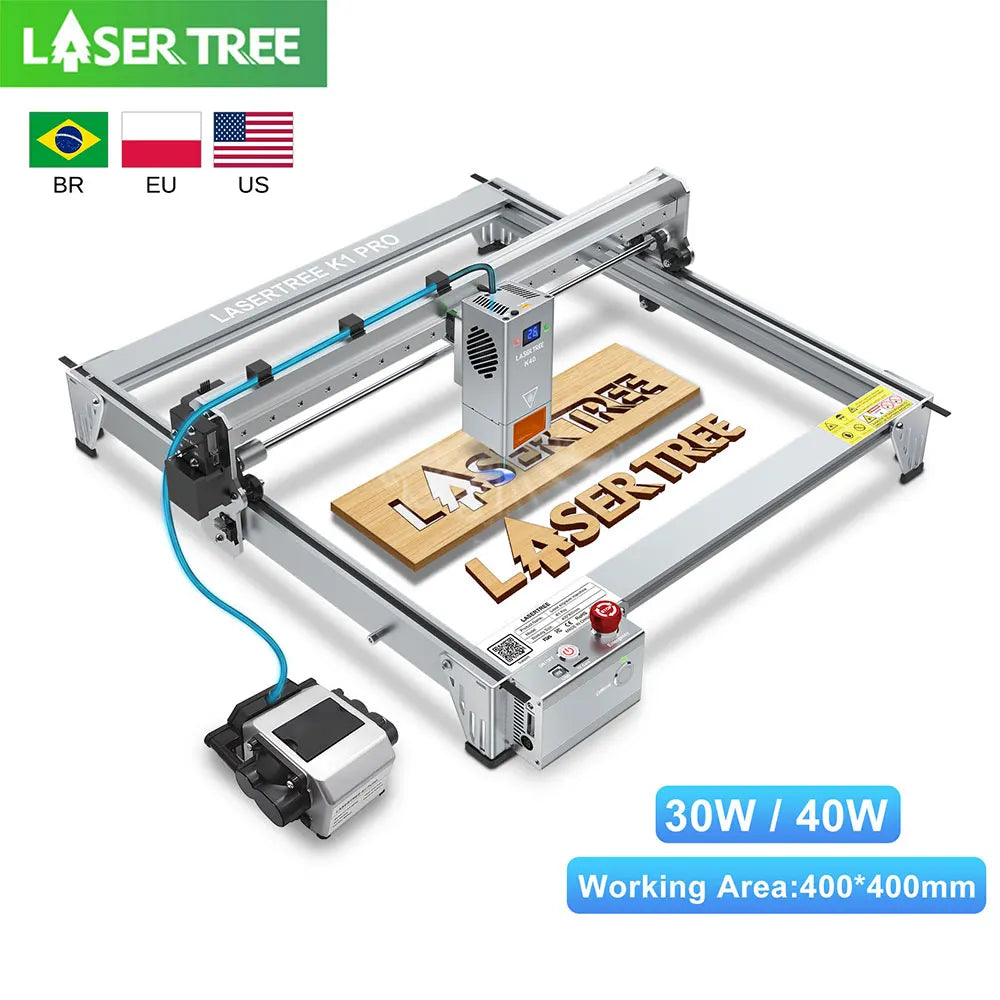

LASER TREE LT-K1 PRO Laser Engraving Machine Engraving Area 400*400mm with 30W 40W Laser Head Woodworking Laser Engrave Cut ToolsLT-K1-PRO-30W/40W Features:

♦ Excellent Engraving Performance: LT-K1-PRO 30W laser is suitable for frequent cutting, Built-in 6pcs 5.5W laser diodes,It can cut 20mm pine wood,12mm plywood and 20mm black acrylic at one time. And making it reach industrial-grade engraving accuracy with extremely solid and high-precision linear slide rail X-axis, no wavy pattern in carving small items. 400*400mm large-area engraving range can meet your various engraving needs.

♦ Upgraded Automatic Air Assist System: The K1 PRO series is equipped with an air assist 32-bit motherboard and a control-type air pump, which can intelligently control the air-assist switch during engraving through the LightBurn software , this makes the engraving and cutting very clean, and is very suitable for the manufacture of exquisite gifts.

♦ Laser View Window:Anti-blue light view window with opticalglass material, protective your eye fromblue light, no fear of flames.

♦ Replaceable protective lens: Adopts innovative replaceable lens, greatly improves the service life of the laser, which is more than 10 times longer than other general lasers. When the lens is damaged or after long-term use, the lens can be replaced to restore the cutting power. A free lens is included with the purchase.

♦ With Wire Harness Storage Clip:It is convenient for organising and storing machine cables, etc., and makes for a tidier tabletop when carving.

♦ Solid and Easy Installation Structure Design: The all-aluminum alloy anodized structure design makes the machine more durable, and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 20-30 minutes.

♦ Strong Compatibility: The machine can be compatible with various mature engraving software, such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support MAC system (LightBurn).

Features:

①With 30W+/40W+ Optical Power Laser Module

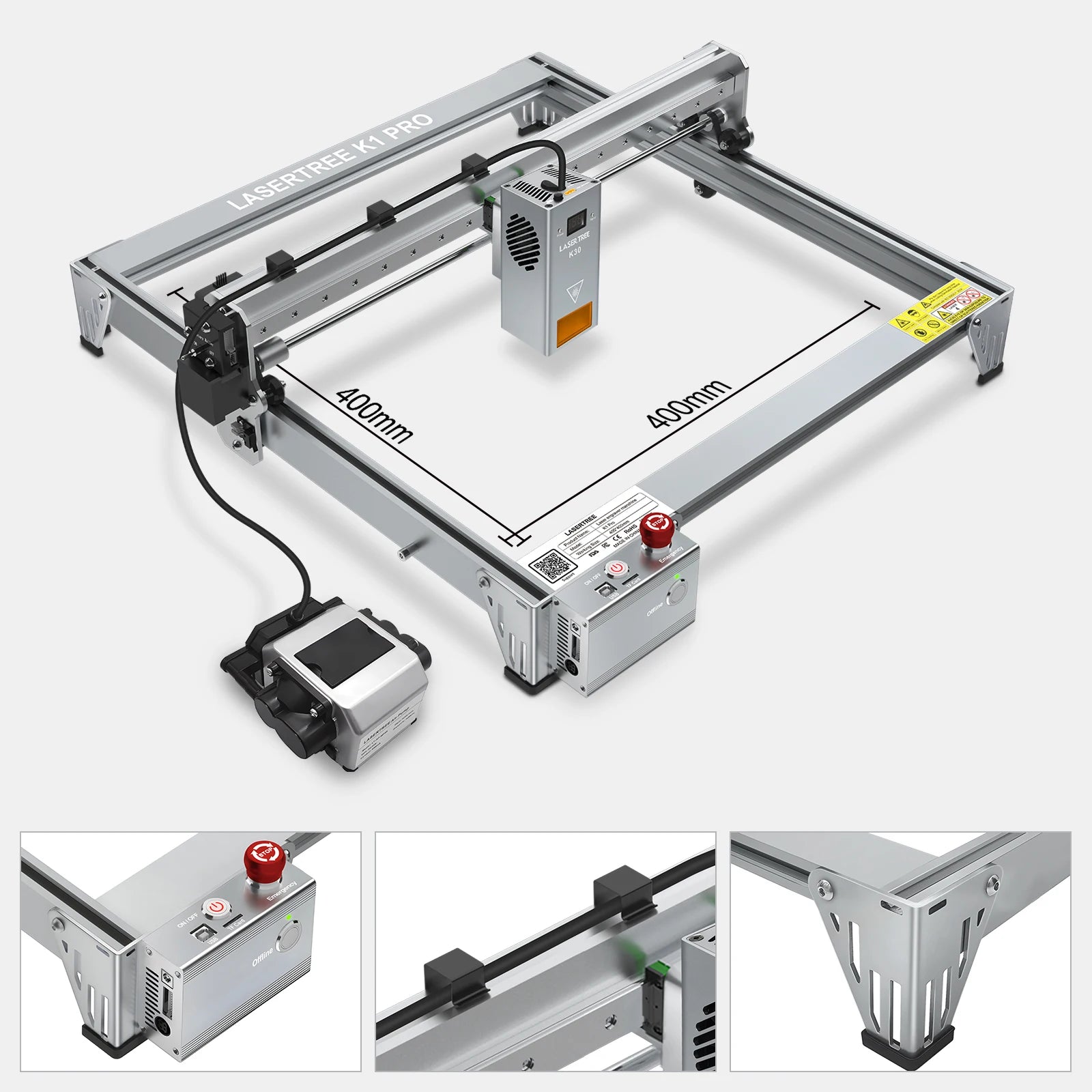

②Working Area : 400*400mm

③X-axis Linear Slide Design

④TF Card Ofline Engraving

⑤Engraving Precision:0.01mm

⑥Ultimate Speed：20000mm/min

⑦With Wire Harness Storage Clip

⑧Automatic Air Assist

⑨Temperature Display & Alarm Function

Linear Bearings

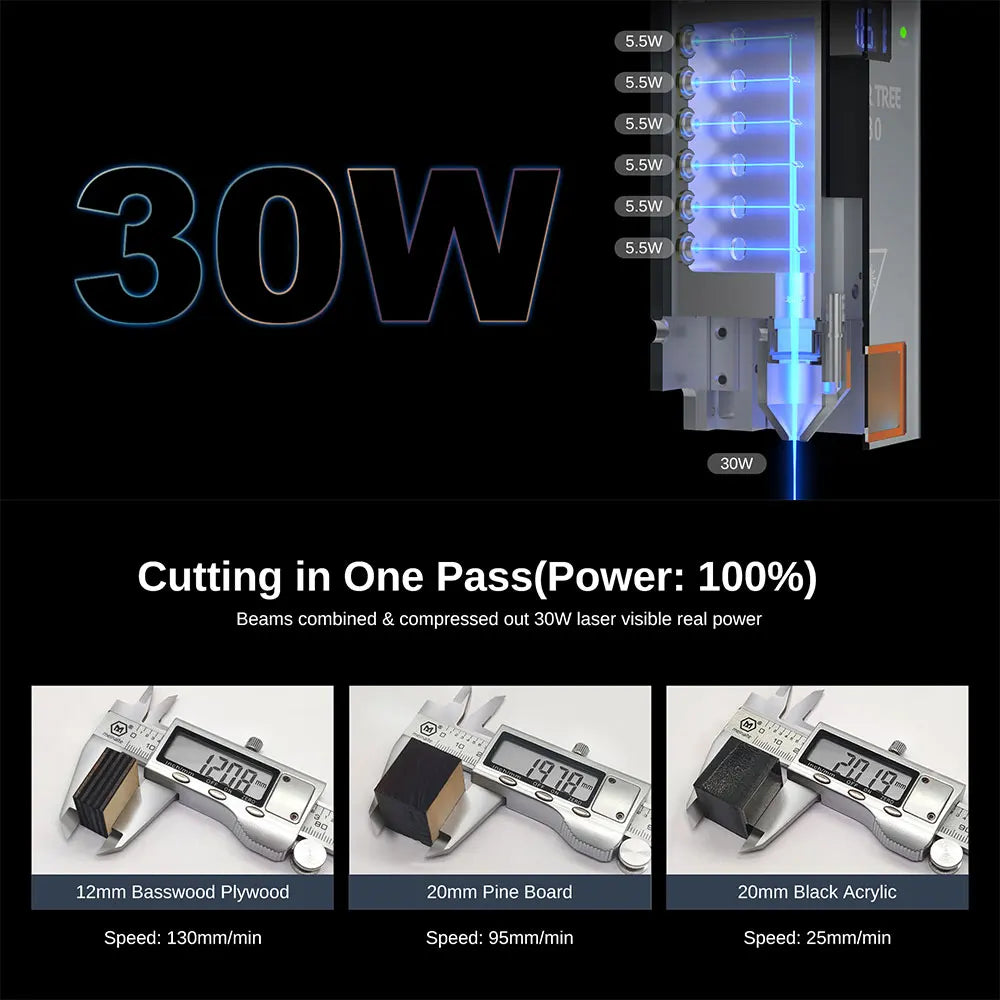

X-axis linear slide design for more stable motion trajectory and faster running speeds.High Power 30W+Diode Laser Module:

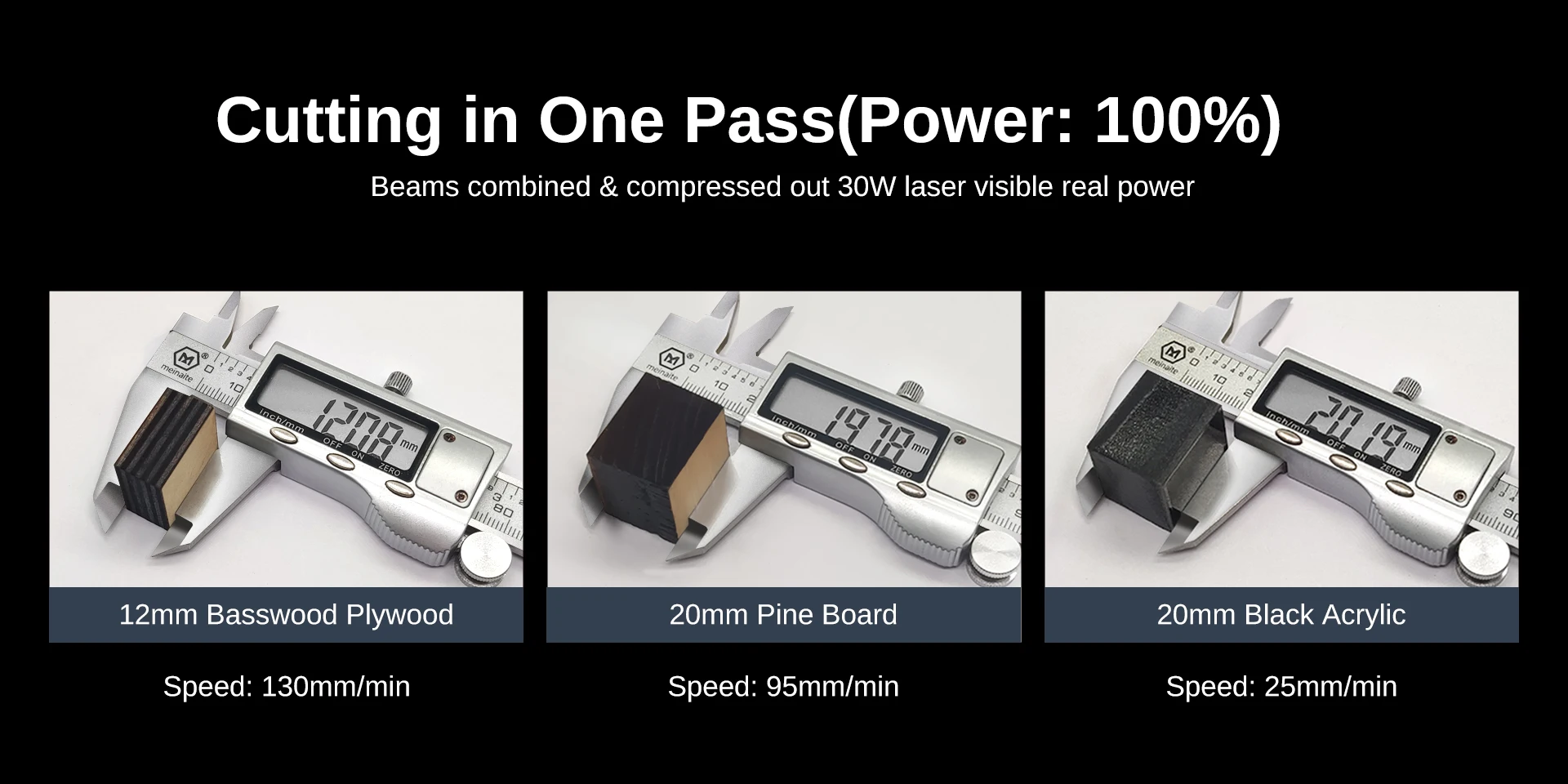

Built-in 6pcs 5.5W beam compressed laser diodes.Cutting in one Pass(Power:100%):

Beams combined & compressed out 30W laser visible real power.

12mm Basswood Plywood :130mm/min,1 pass cutting.

20mm Pine Board : 95mm/min,1 pass cutting.

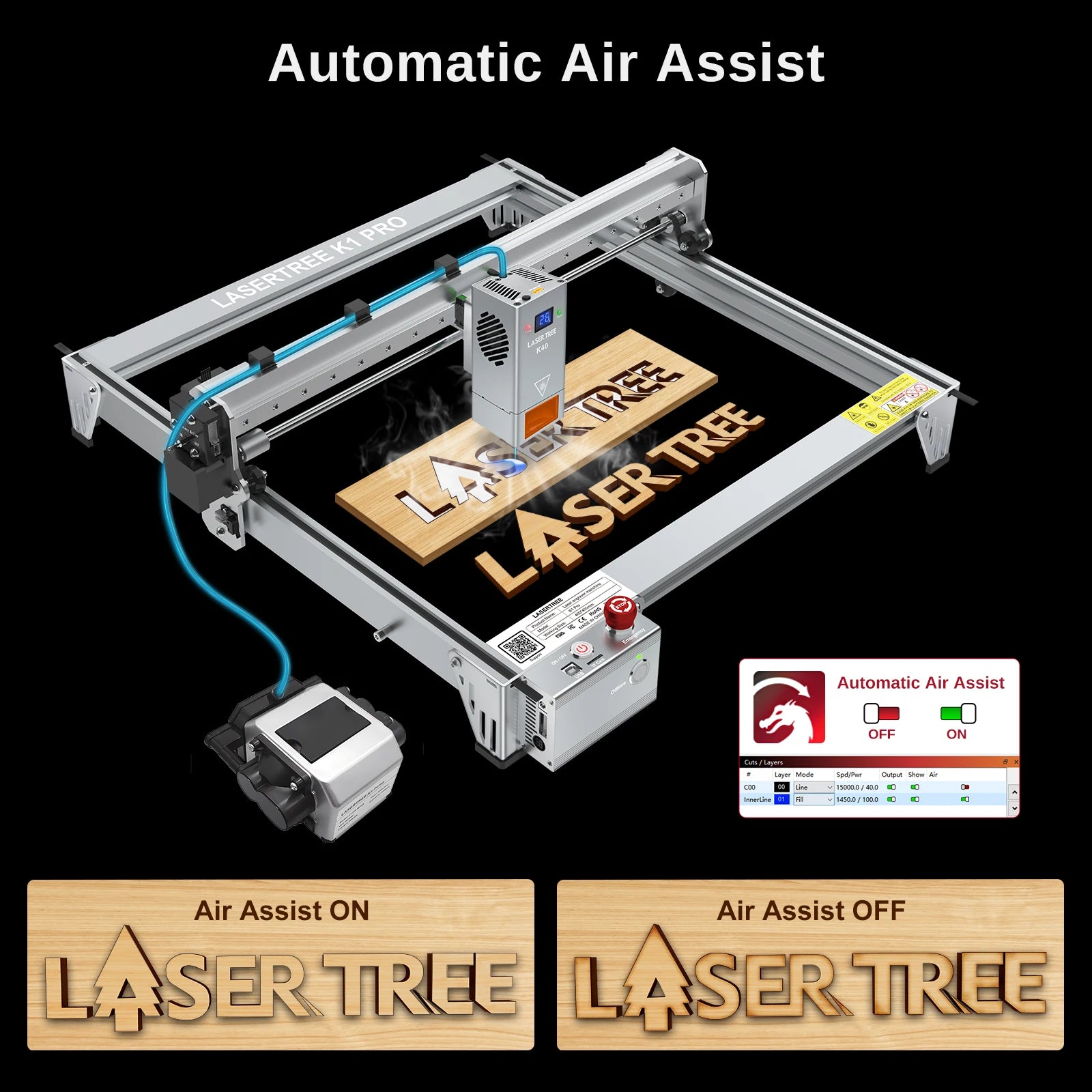

20mm Black Acrylic : 25mm/min,1 pass cutting.Automatic Air Assist

which can intelligently control the air-assist switch during engraving through the LightBurn software , this makes the engraving and cutting very clean.Detail display

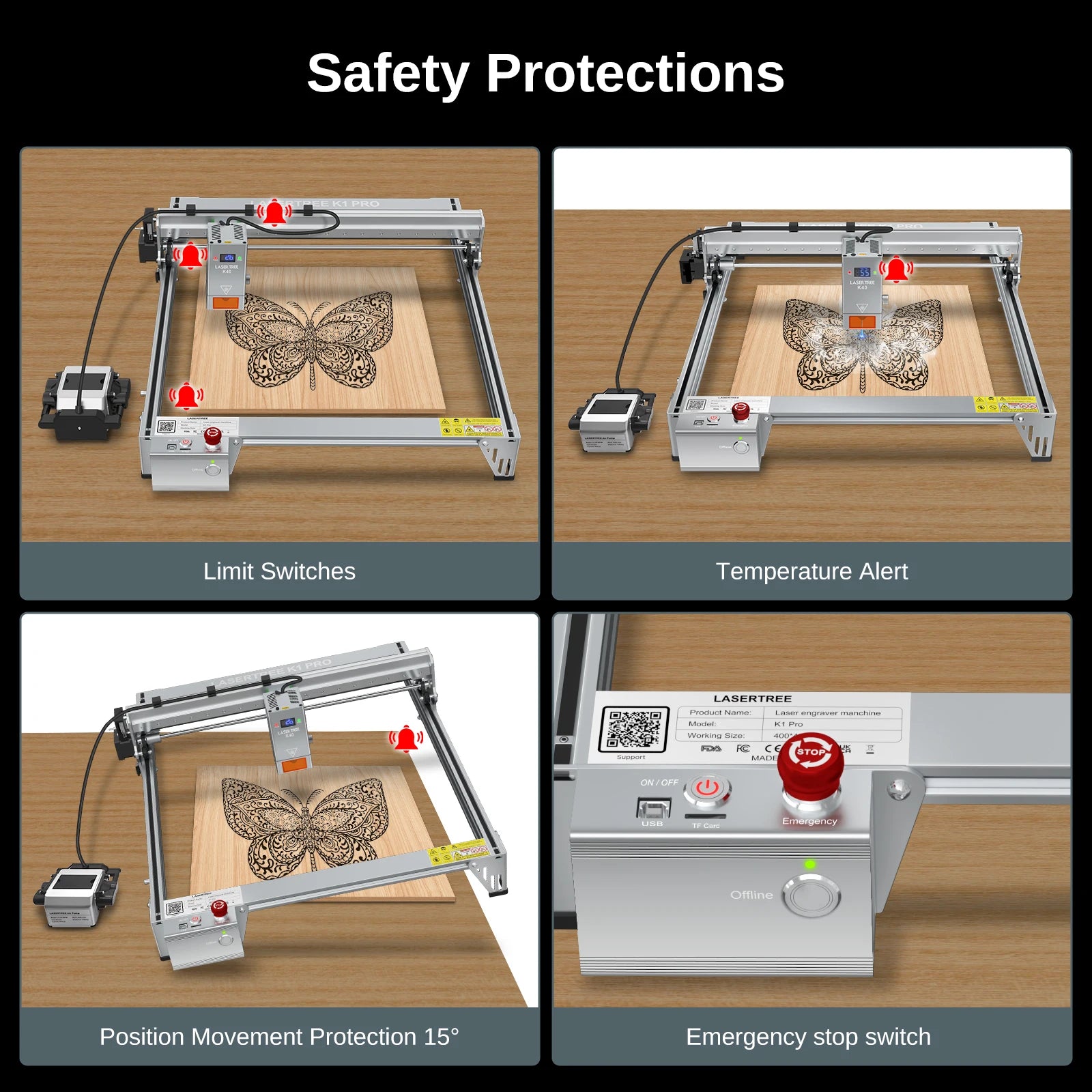

①Machine tilt detection and protection：When the engraving machine tilts during operation, the power will automatically cut off.

②"L" shaped non-slip footbed：It provides protection pad keepthe engraver stable while working.

③Emergency stop switch：In case of emergency, you can press the emergency stop button to stop the engraver.

④ Temperature detection alarm:When an over-temperature alarm occurs, press once can turn off the buzzer alarm sound. When the working temperature of the laser module is higher than 55'C, the buzzer will sound an alarm. To get good power stability and durability, it is suggested to keep the module working temperature below 55°c and environmental temperature below 35°C.

⑤Beam detection and protection

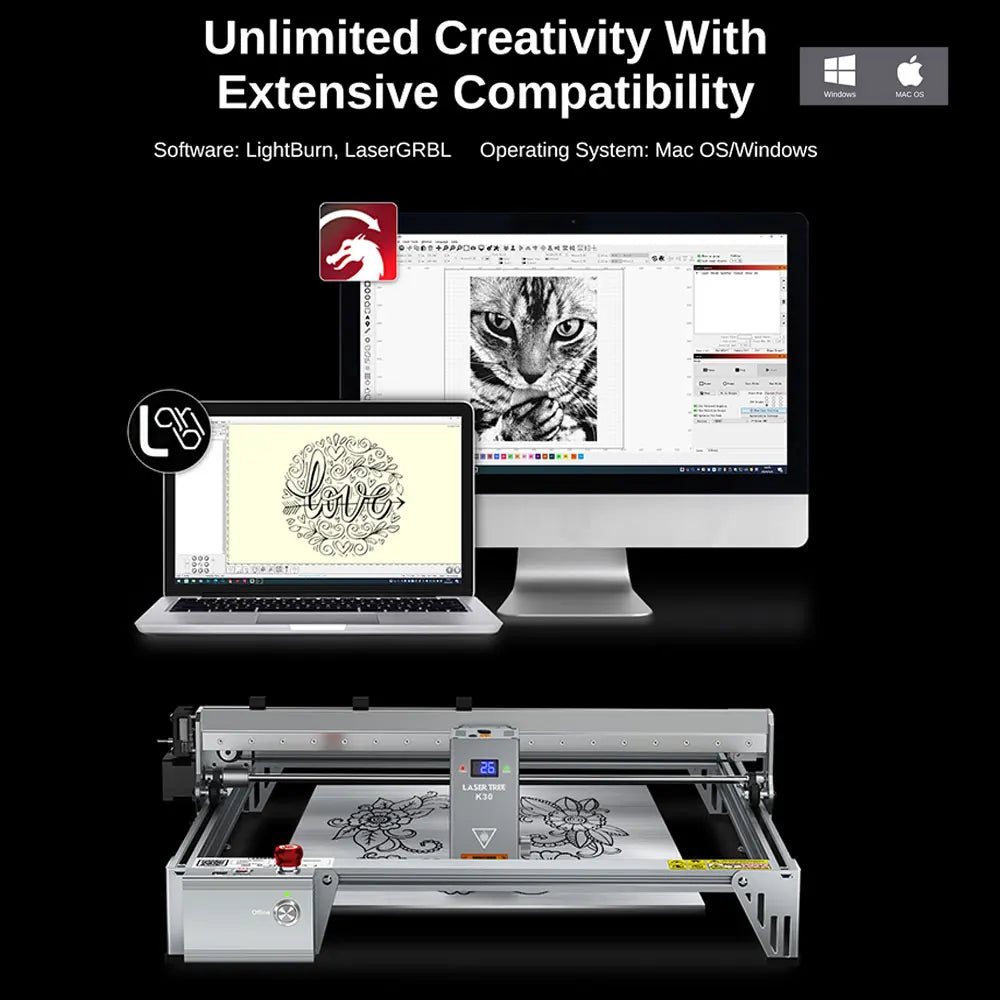

⑥Eye protection:Laser View Window---Anti-blue light view window with optical glass material, protective your eye from blue light, no fear of fiames.Unlimited Creativity With Extensive Compatibility

Software: LightBurn, LaserGRBL

Operating System: Mac OS/WindowsPacking List:

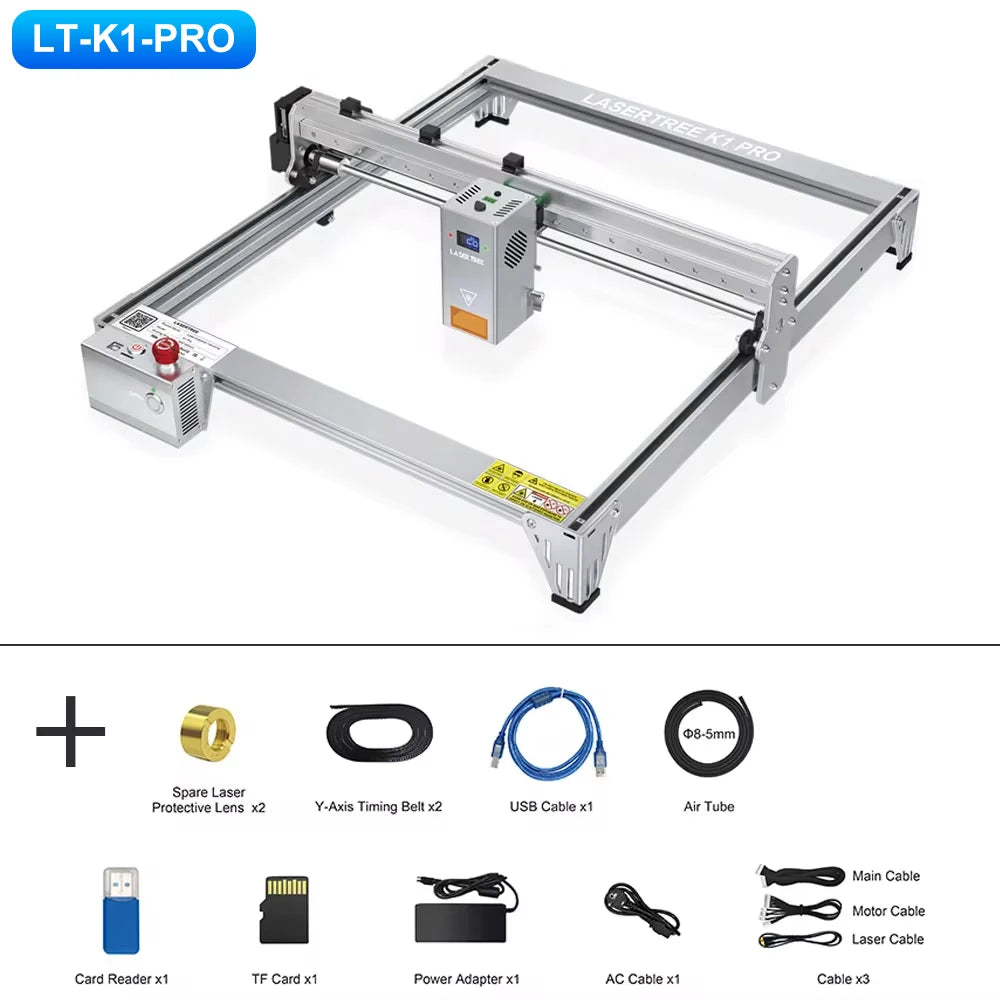

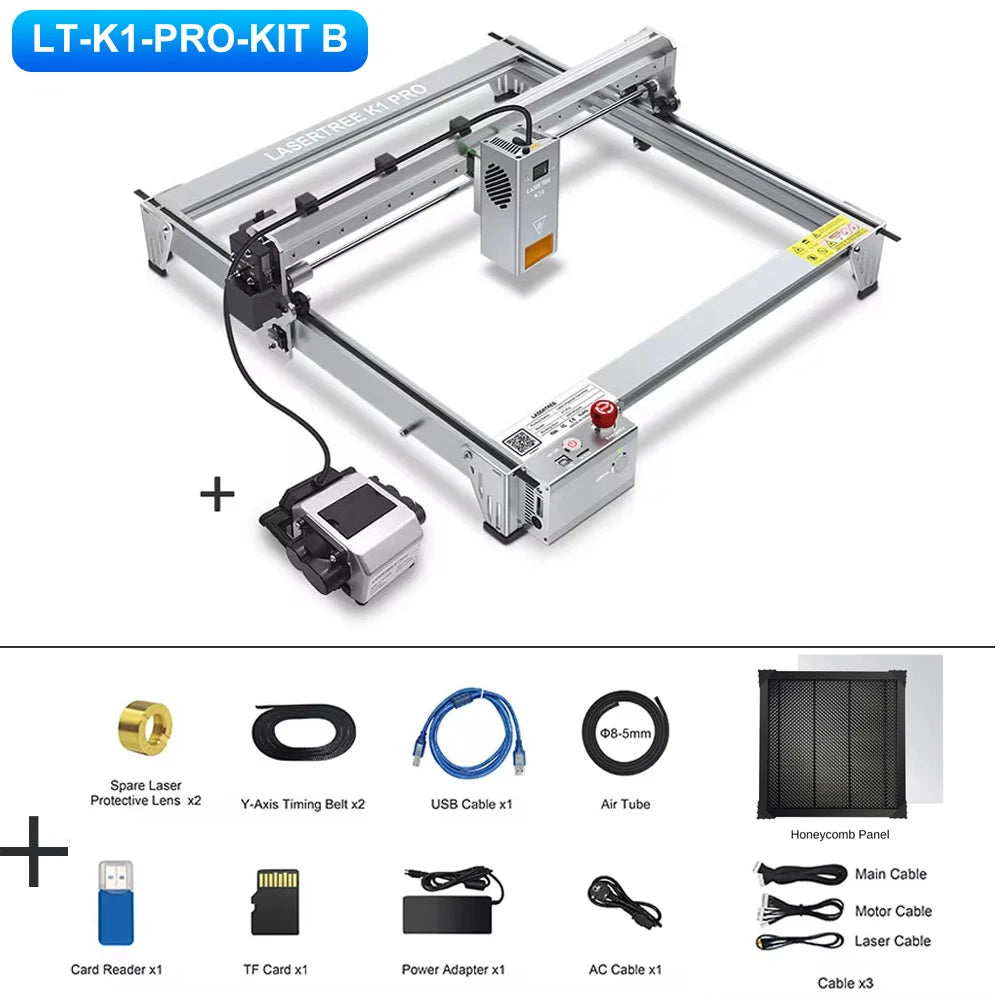

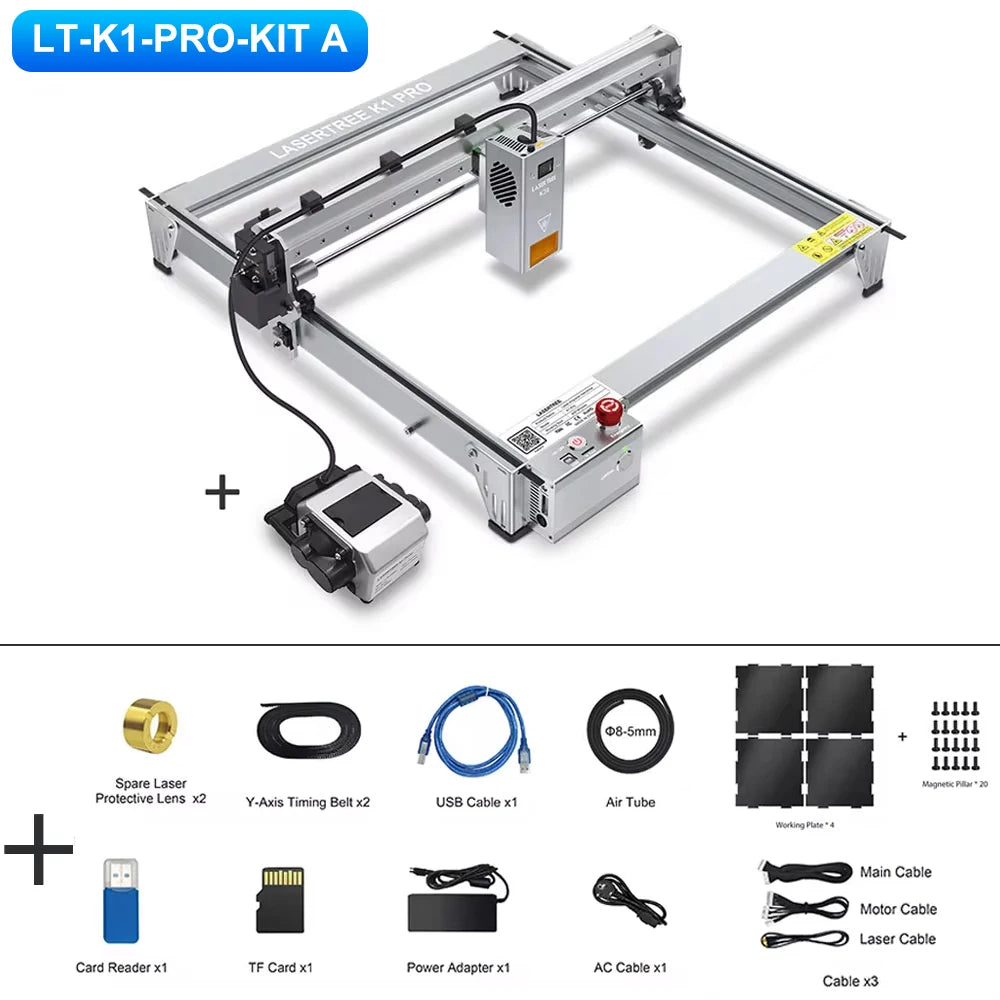

①LT-K1-PRO-30W : Engraving machine +30W Laser Head+ Assembly tools②LT-K1-PRO-KIT-30W :

Engraving machine + 30W Laser Head + air pump + working plate + Assembly tools
