LASER TREE 20W Optical Power Laser Module with Air Assist Nozzle Diode Laser Head for CNC Engraving Cutting Machine DIY Tools
LASER TREE 20W Optical Power Laser Module with Air Assist Nozzle Diode Laser Head for CNC Engraving Cutting Machine DIY Tools
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: Laser Tree
Certification: CE
Hign-concerned Chemical: None
Model Number: LT-K20-PRO
Origin: Mainland China
LT-K20-PRO (Optical Power 20W) Features:
LaserTree K20-pro is a true 18-22W output optical power laser engraving and cutting module. It uses beam compressed technology to combine 4pcs 5W laser diodes into a powerful laser beam with 20W laser power.
2.
3. Built-in Air Assist Airway & Dual Fan Cooling Design
1>Built-in air assist airway to get clean-cut edges, improve cutting performance.
2>Excellent heat dissipation makes the laser module maintain a stable cutting ability and prolong service life.
4. Working Status Indicator
The electrical connection status can be easily checked by the "Power" and "Signal" LED indicator.
5. Temperature Display & Alarm Function
Excessive working temperatures can reduce the life time of the laser head at an accelerated rate.
LaserTree K20 create a solution with working temperature display,so that you can check the internal temperature of the module easily. When the working temperature of laser module over 55 ℃, it will sound an alarm through the buzzer.
6.Red Cross Line Locating
The working frame can be positioned by red crosshair, it is helpful for improving the convenience of the secondary cutting and engraving as well.
7. Copper Core Protection Lens.
Easy to clean and replace when the lens is contaminated or dusty.
8. Laser View Window
Anti-blue light view window with optical glass material, protective your eye from blue light, no fear of fiames.
9. Widely Compatible Design
In order to improve the compatiblity to different laser engraver machine, K20 provide a solution by adapter board for electric compatibiliy, and sliding plate with multi holes for installation compatibility.
LT-K20 laser module can be installed on Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines.
(please contact us if you are not sure about compatibility)

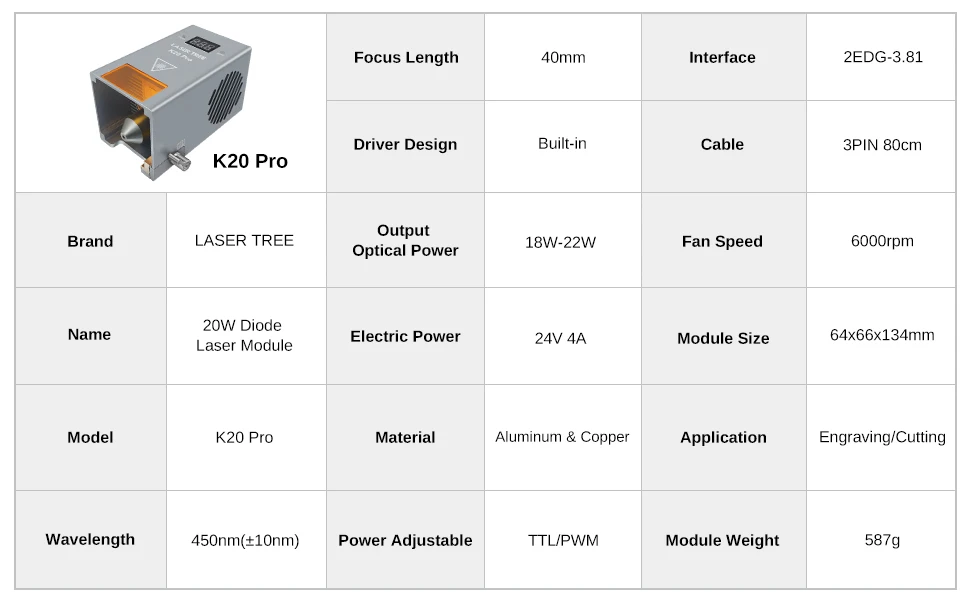

Specification:
Optical power: 18-22W
Material: aluminum alloy + plastic
Light color: blue
Wavelength: 450nm(±10nm)
Input voltage: 24V 4A
Interface parameters: support TTL signal control power
With air assist (clean-cut edges) VS no air assist (scorched edges)
When cutting with this laser head, the air assit system will blow air through the air nozzle. That will bring you excellent cutting experience and greatly reduce burned marks.
Note:Please ensure that the air pump is turned on before you start cutting. If not, the smoke will contaminate the lens.

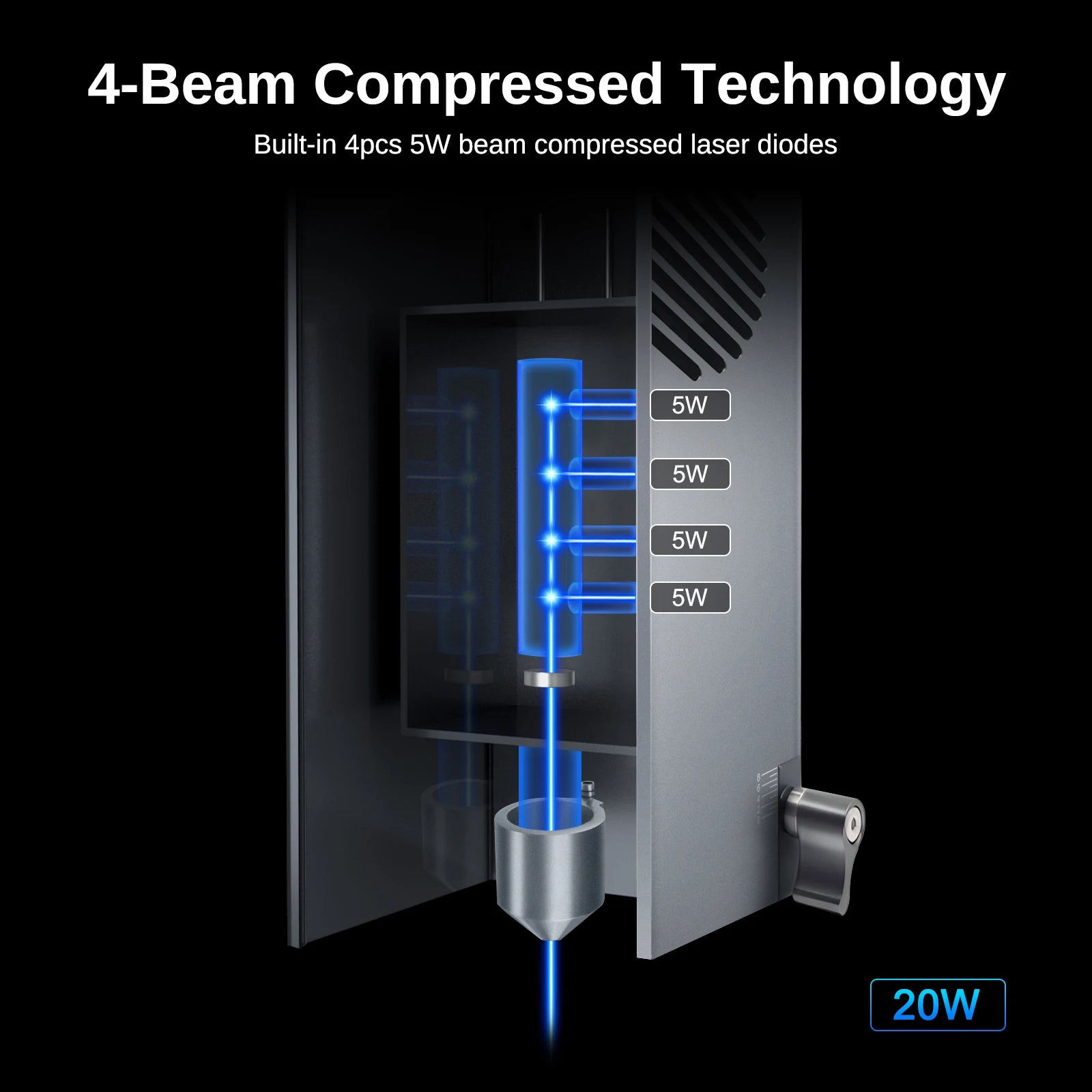

4-Beam compressed technology (built-in 4pcs 5W beam compressed laser diodes)

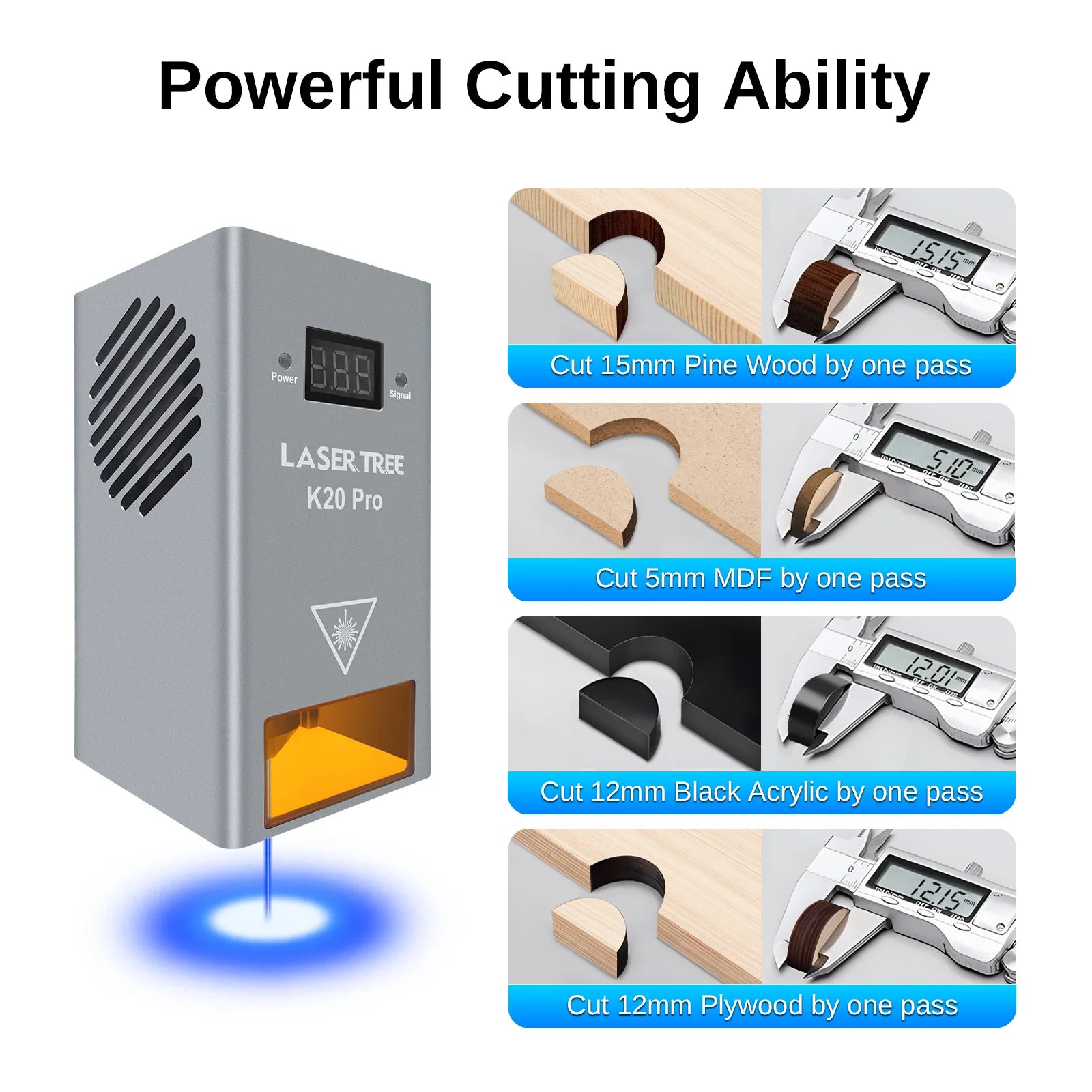

Powerful Cutting Ability
12mm basswood plywood: 120mm/min, 1 pass；
12mm black acrylic: 25mm/min, 1 pass；
15mm pine wood: 100mm/min, 1 pass；
5mm MDF: 100mm/min, 1 pass.

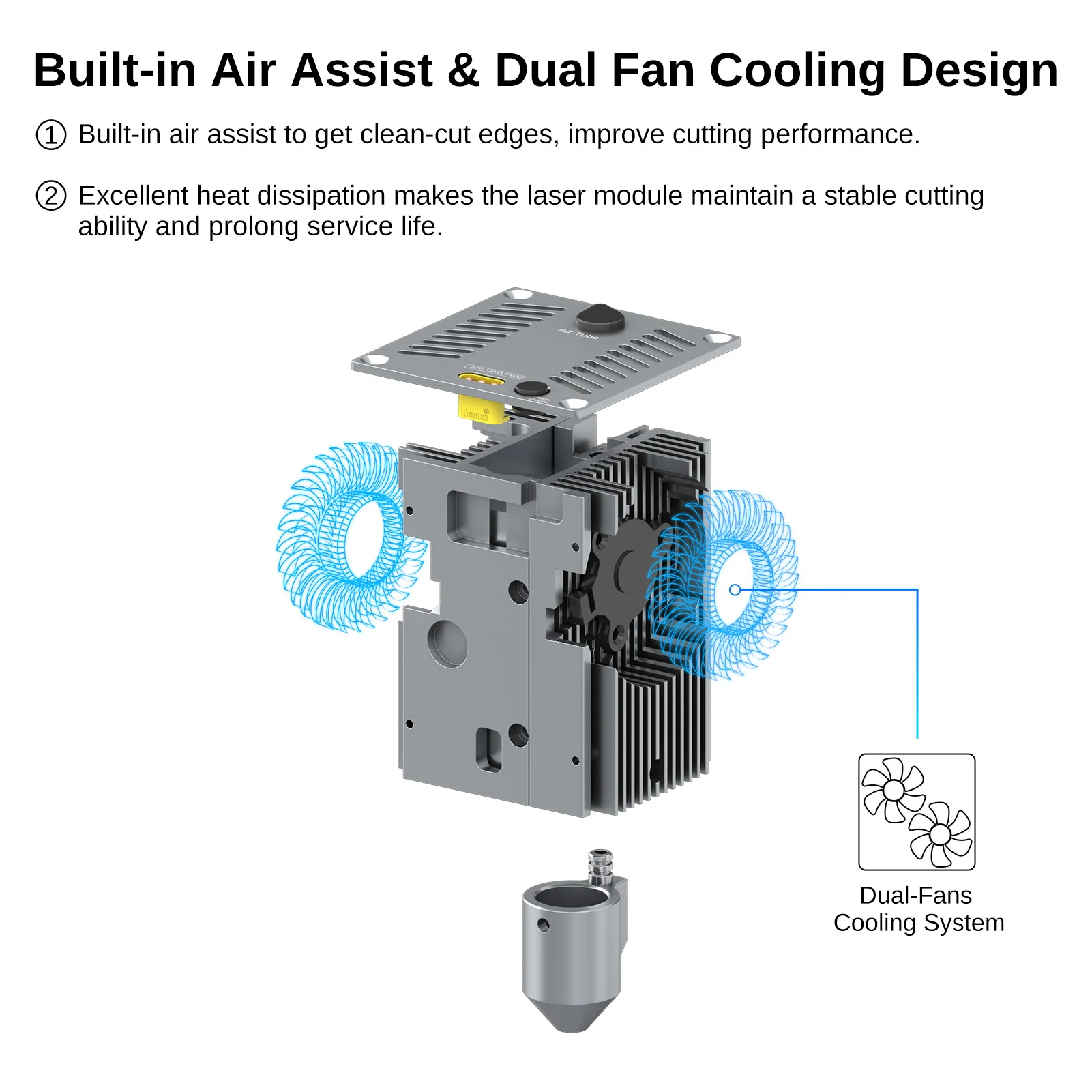

Built-in Air Assist Airway & Dual Fan Cooling Design
1>Built-in air assist airway to get clean-cut edges, improve cutting performance.
2>Excellent heat dissipation makes the laser module maintain a stable cutting ability and prolong service life.

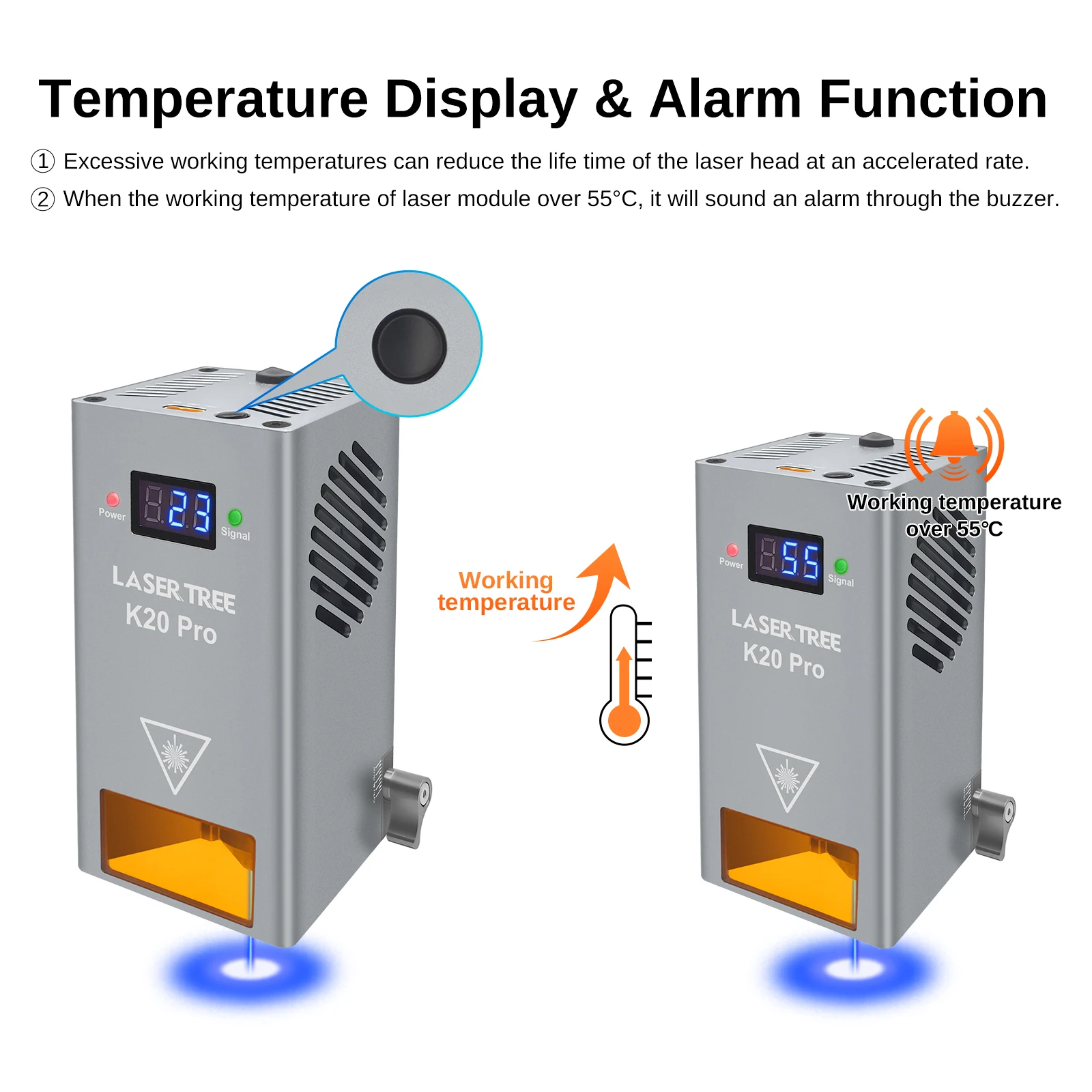

Temperature Display & Alarm Function
Excessive working temperatures can reduce the life time of the laser head at an accelerated rate.
LaserTree K20 create a solution with working temperature display,so that you can check the internal temperature of the module easily. When the working temperature of laser module over 55 ℃, it will sound an alarm through the buzzer.
Laser View Window
Anti-blue light view window with optical glass material, protective your eye from blue light, no fear of fiames.
Working Status Indicator
The electrical connection status can be easily checked by the "Power" and "Signal" LED indicator.

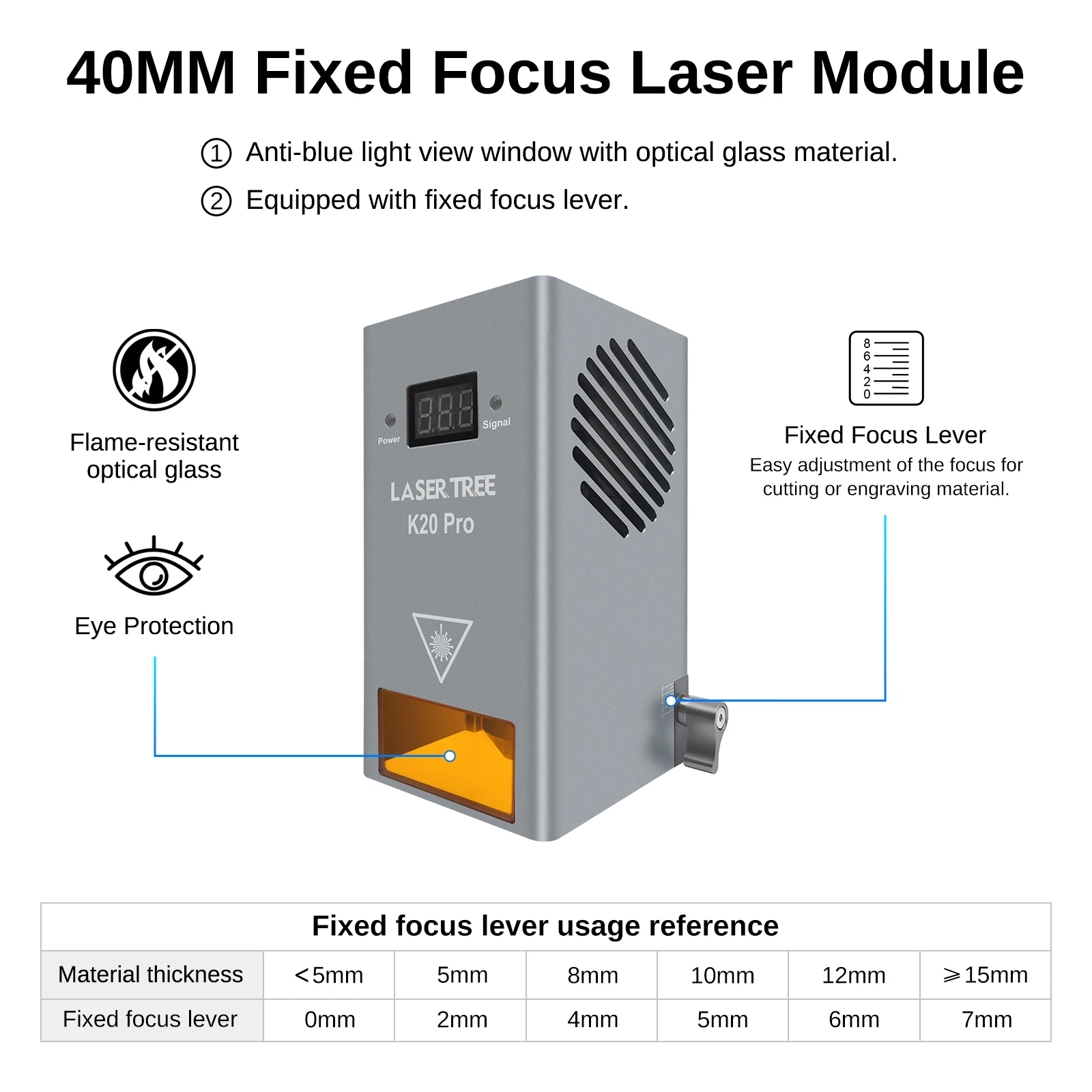

For Cutting

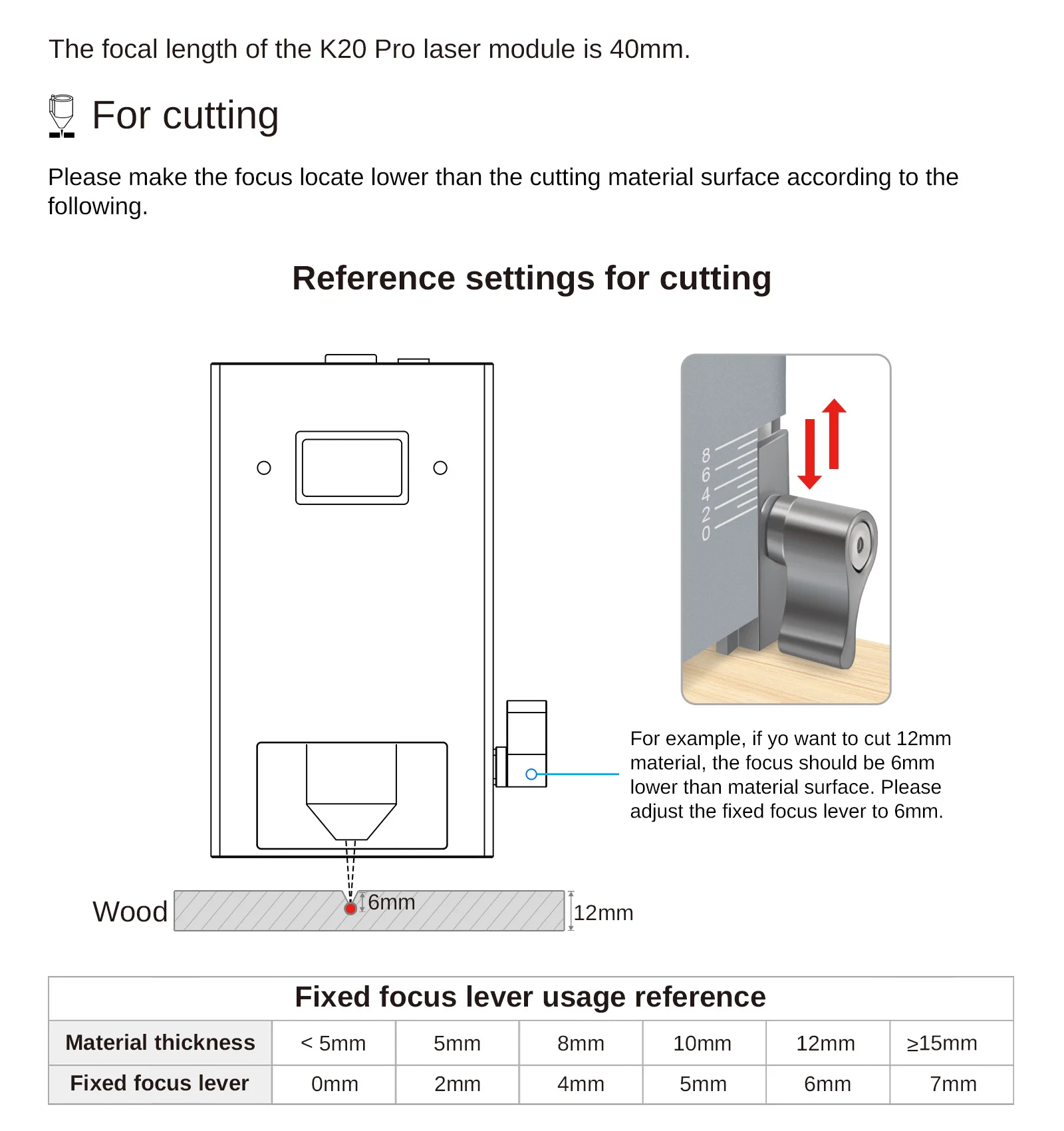

Please make the focus locate lower than the cutting material surface.
For example, if you want to cut 10mm material, the focus should be 5mm lower than material surface, please adjust the fixed focus lever to 5mm.
Lens Maintenance
When the laser module is not used for a long time, please ensure that the lens is not polluted by dust.
When you replace the air nozzle, please ensure that your operation will not pollut the lens. Finger prints or dust on the lens will weaken the output power of the laser module, or even damage the lens.
When you find the cutting ability decreases, the lens might be not clean. Please use a clean alcohol swab to clean it according to the following figure.
The purpose of the adapter board
--- Interface pin conversion and power conversion
