SPECIFICATIONS

Bluetooth version: 5.0

Brand Name: FREEBOSS

Built-in Battery: No

Certification: CE

High-concerned chemical: None

Model Number: AG-AT4

Origin: Mainland China

Type: Mixers

feature 1: 7 Band EQ

feature 2: independent 48V phantom power

feature 3: 99 DSP effect

feature 4: 4 channels (2 mono+1stereo)

feature 5: aux output

feature 6: USB play and Record

feature 7: PAN knob

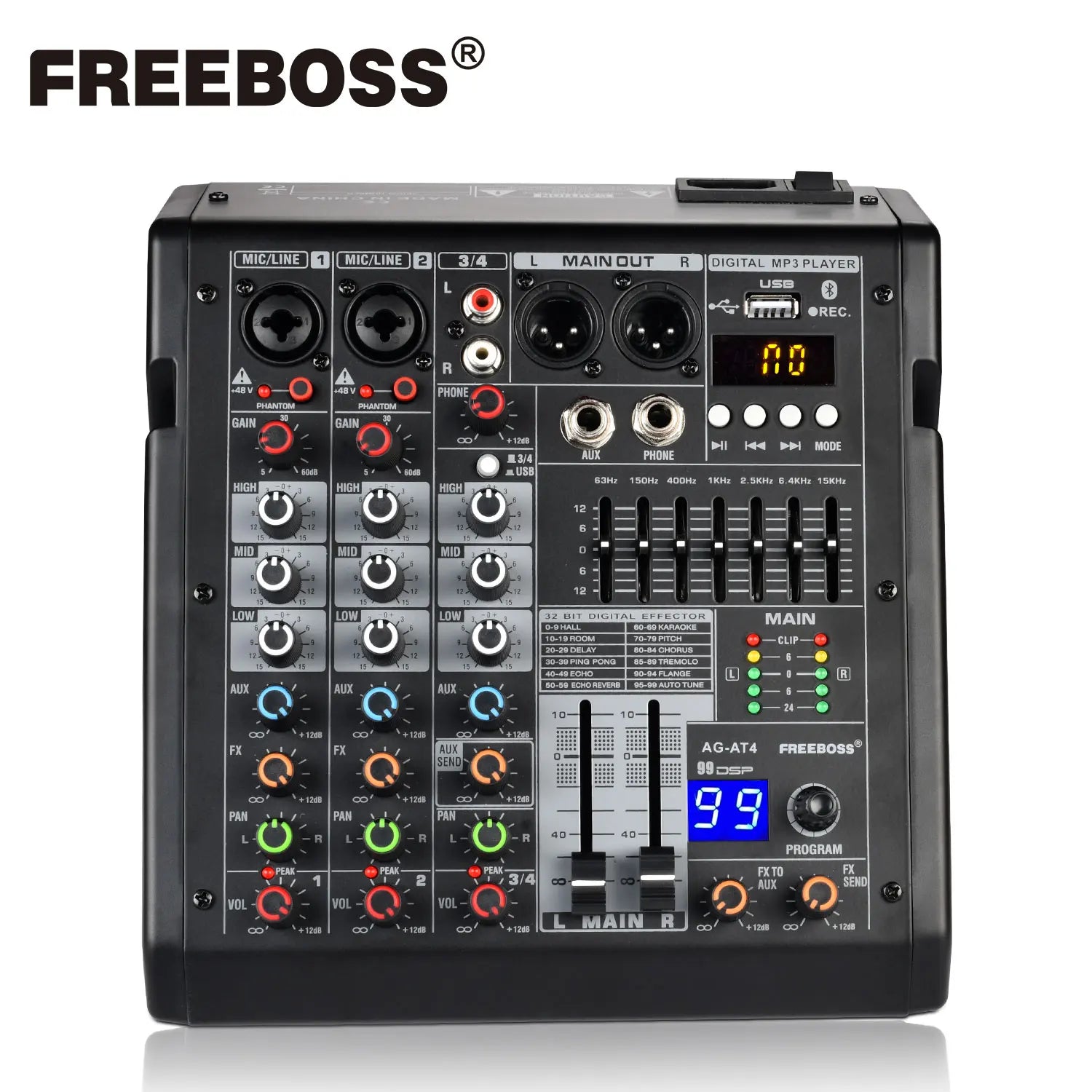

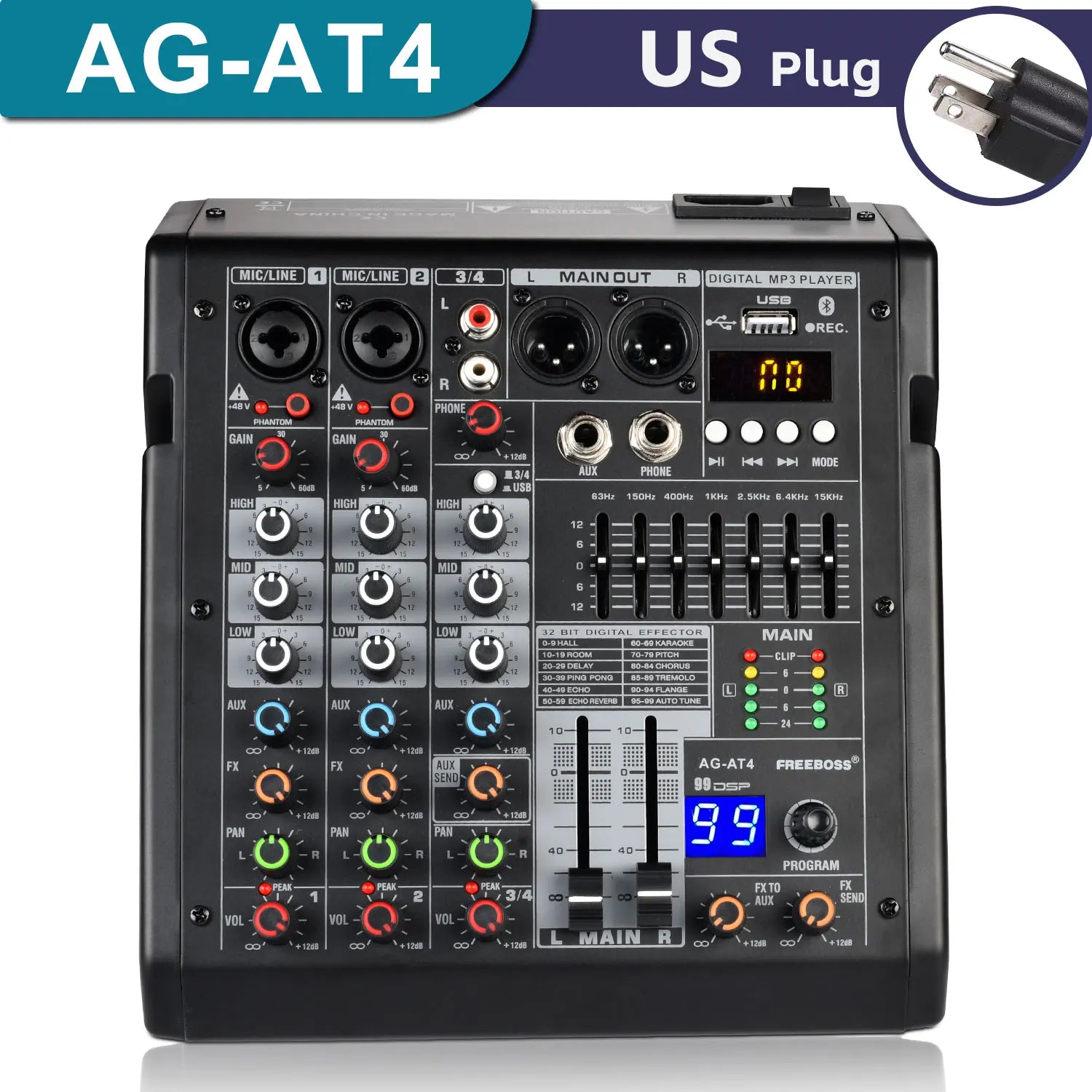

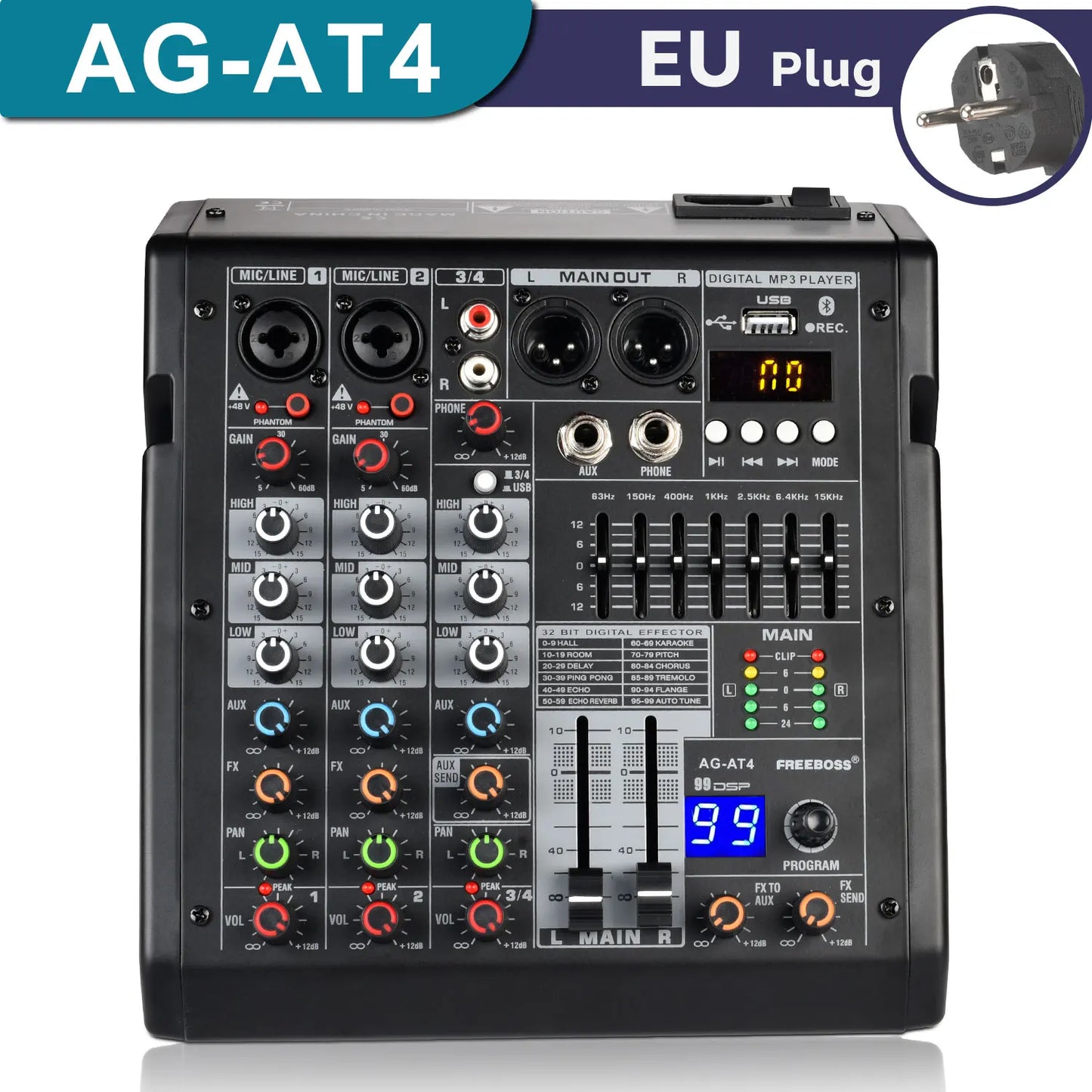

Freeboss AG-AT4

    4 channel audio mixer 7 band stereo EQ 99 dsp effects bluetooth sound mixer separetely 48V phantom power USB PC recording playback mixing console for karaoke meeting home party radio.

Selling Points:

    1. 4 channels (2 Mono + 1 Stereo) .

    2. Separetely 48V phantom power.

    3. 7 band stereo EQ.

    4. Bluetooth function.

    5. USB record & playback.

    6. 99 dsp effects.

    7. Power supply：100V-240V

Packing List:

    1. Audio mixer------1pc

    2. Power cable------1pc

    3. English Manual------1pc

Please Note:

    Feature details at the end.

4 Channel Input (2 Mono + 1 Stereo)

    1. 2 mono input

        The input socket is a combinatio socket, you can use xlr or 6.35mm plug to input.

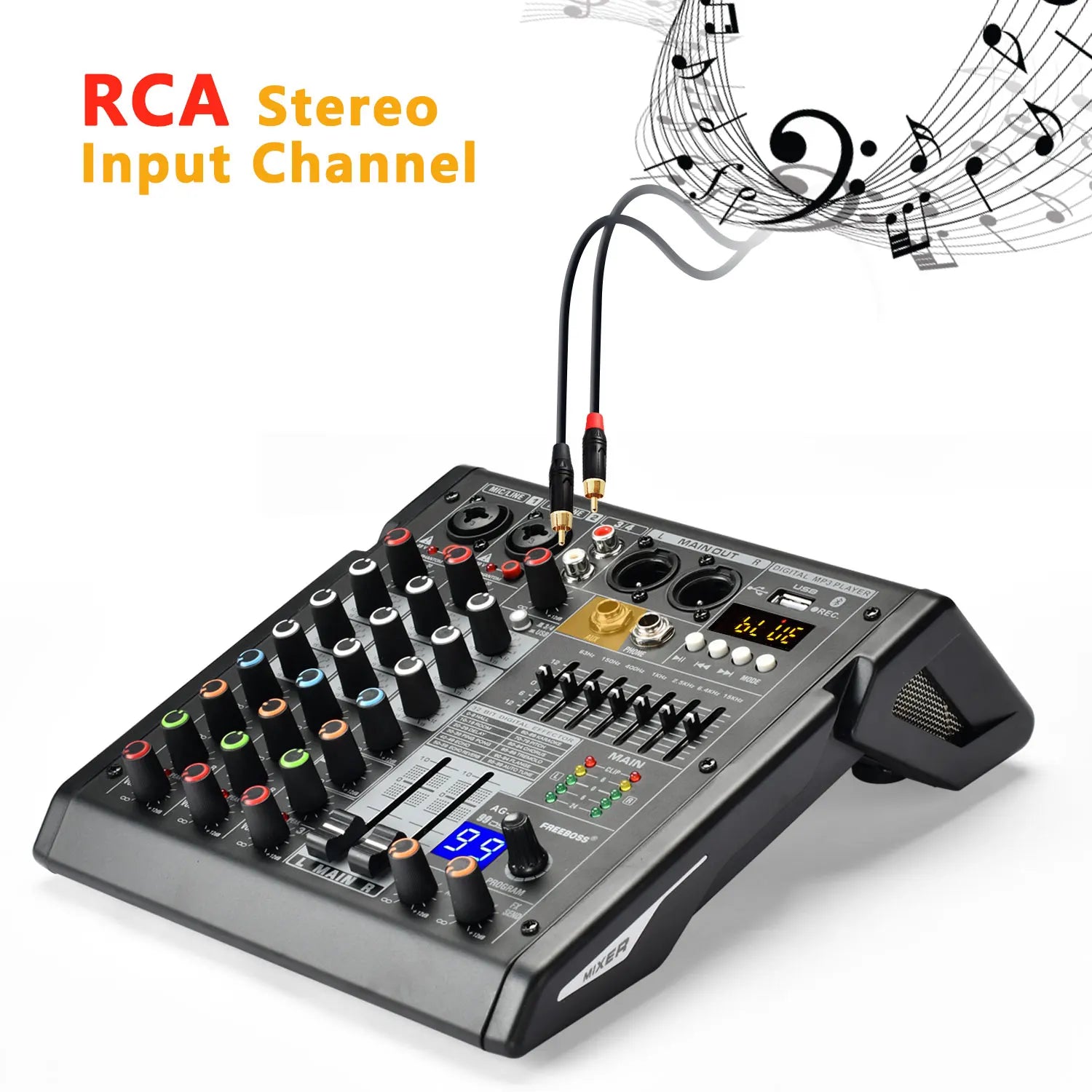

    2. 1 stereo input

        The stereo input is a RCA input.

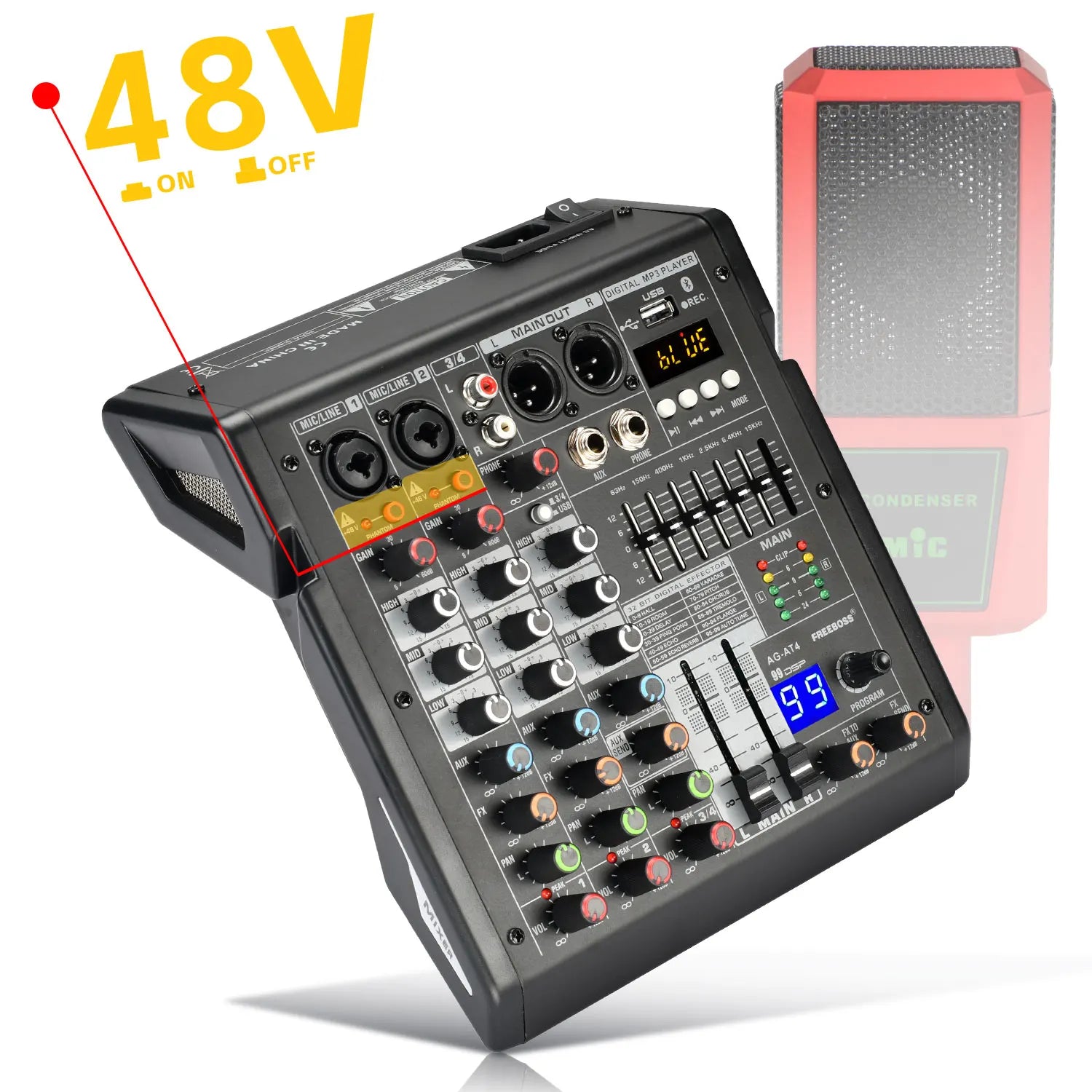

Separetely 48V Phantom Power

    1. 48V phantom power only for XLR input, not for 6.35mm input.

    2. Each channel has a 48V button, you can use the dynamic microphone and 48V condenser microphone at the same time.

（1）Dynamic mic + xlr plug input, please do not press the 48V button, otherwise, the mic may be burned.

               Please Note:Dynamic mic + 6.35 plug input, the sound will be small.

（2）48V mic + xlr plug input, please press the 48V button, otherwise, the mic can't work.

               Please Note:48V mic + 6.35 plug input, the mic can't work.

Bluetooth Function

    1. Bluetooth version: 5.0

    2. Working distance:  6 meter.  (Please note:Different phones, different distances)

    3. How to connect to bluetooth?

     （1）Choose bluetooth mode: Short press "MODE" button to choose "BLUE" mode.

       -----Waiting for connection: Bluetooth symbol flashes.

       -----Connected: Bluetooth symble not flashes.

    4. Volume adjust

        （1）Press "3/4 / USB" button.

        （2）Adjust "CH3/4" volume.

        （3）Adjust main volume.

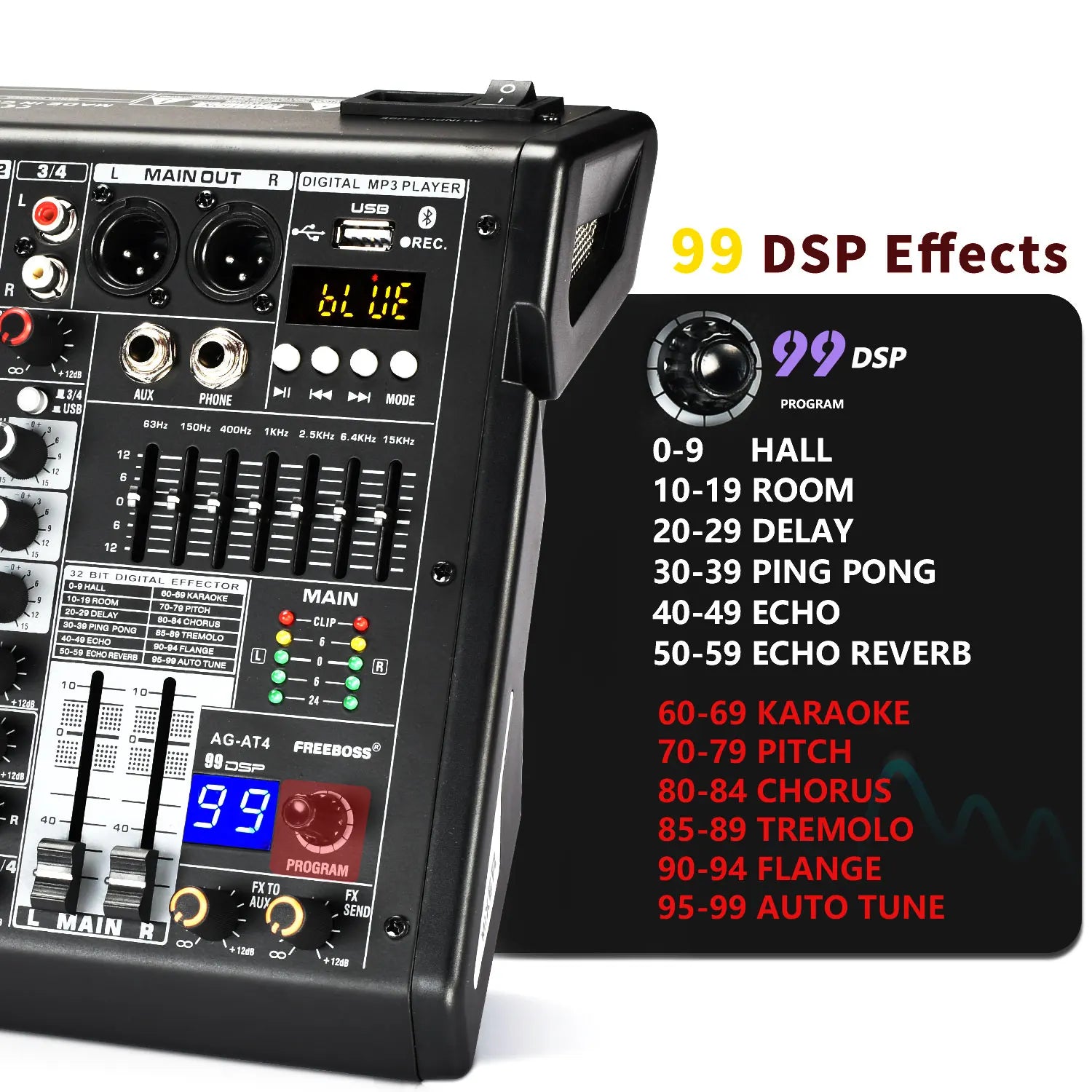

99 DSP Effects

    1. Choose effects: "PROGRAM" knob.

        Select the effect you want, then press the knob to confirm it.

    2. Output effect

      （1）Adjust channel FX knob.

      （2）Adjust FX SEND knob.

    3. FX TO AUX

        If you want to add the effect to AUX output, you need to adjust this knob.

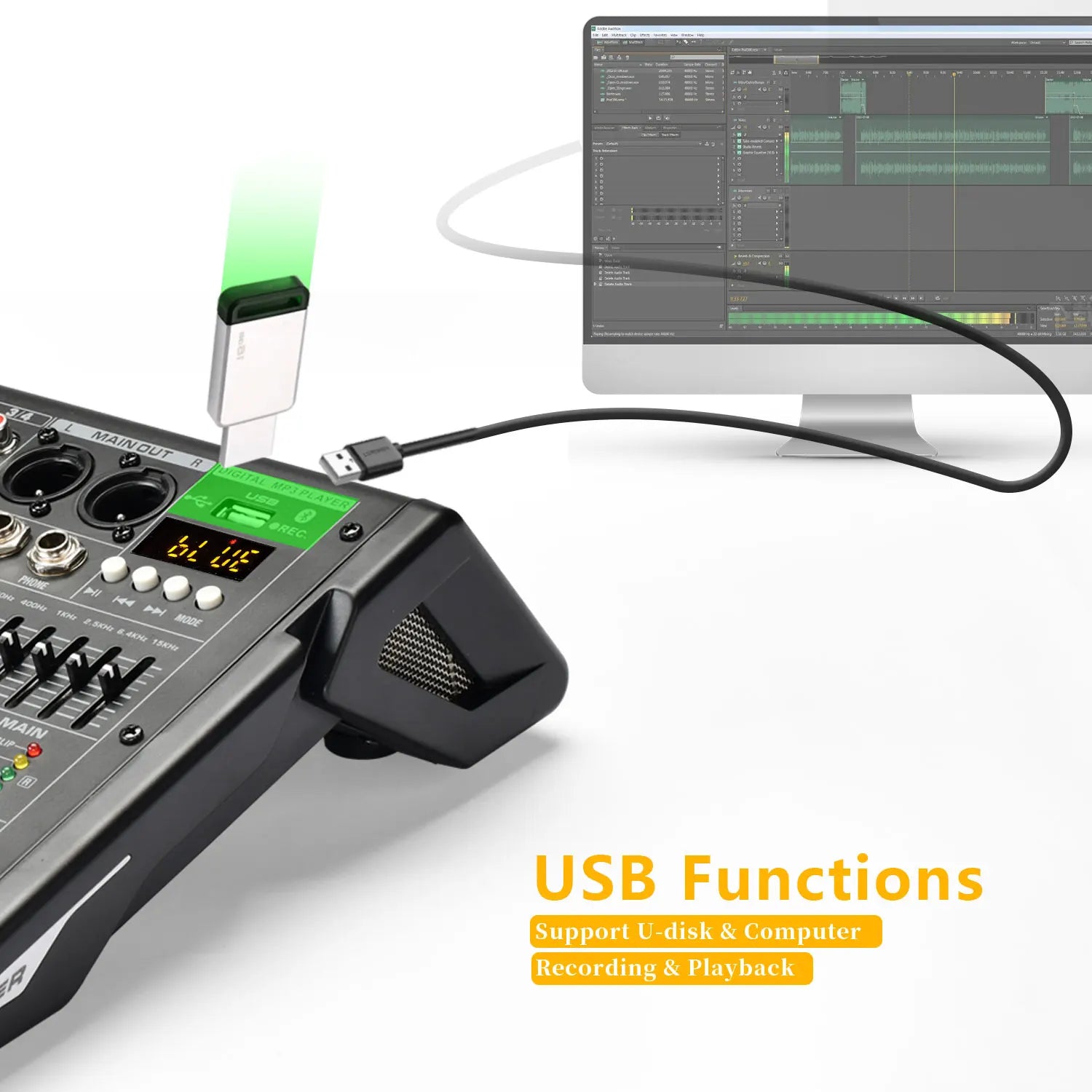

U-Disk Recording

     1. U-disk format: FAT32. (NTFS can't work)

     2. The u-disk must have a audio file before recording.

     3. Record format: MP3.

     4. Insert u-disk

      （1）Short press "MODE" , select "REC" mode.

      （2）Press "Play / Pause" , begin recording.

      （3）Short press"MODE", exit record.

U-Disk Playback

    1. U-disk format: FAT32.

    2. Play format: MP3, WAV, WMA,FLAC.

AUX Output

    TS socket, suitable for effector,equalizer.
