PowerScan PS100:

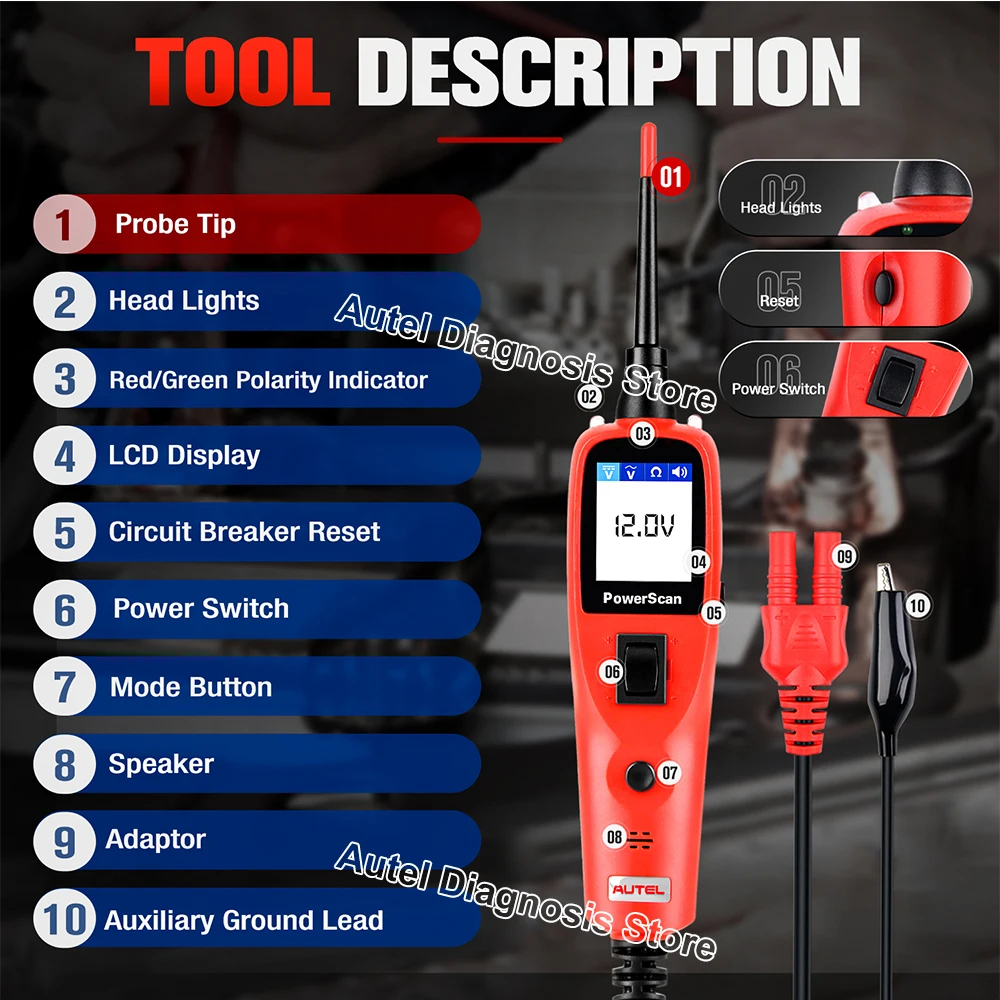

The PowerScan Tool is the most revolutionary circuit tester to date. Featuring AVOmeter, test light, built-in flashlight, short circuit indicator, relay/component tester, continuity tester and bad ground indicator, the PowerScan is truly the ultimate in power and affordability, allowing users to check circuitry in one single step. An absolute must for every technician looking for a fast and accurate solution to electrical system diagnostics.

Autel PowerScan PS100 Features:

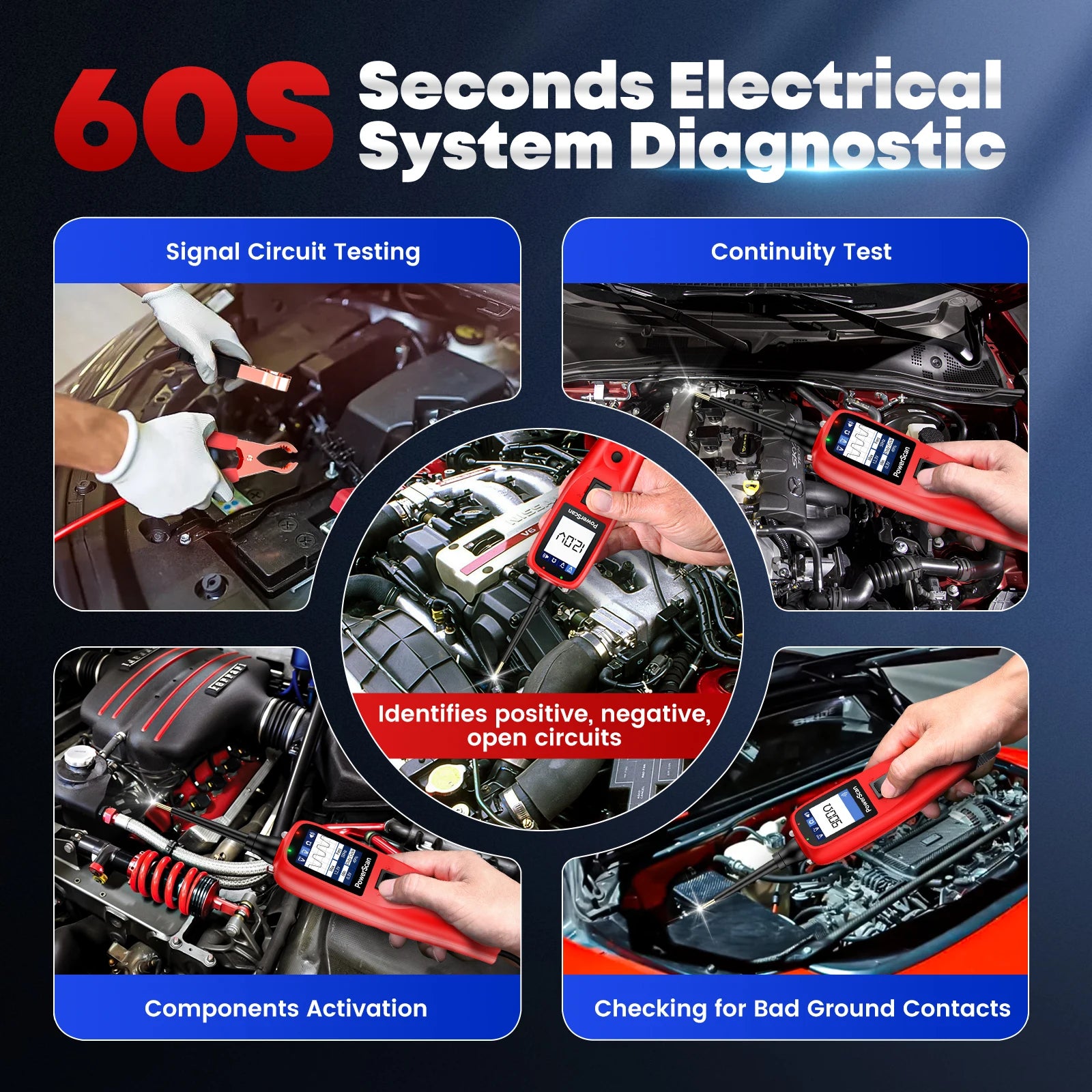

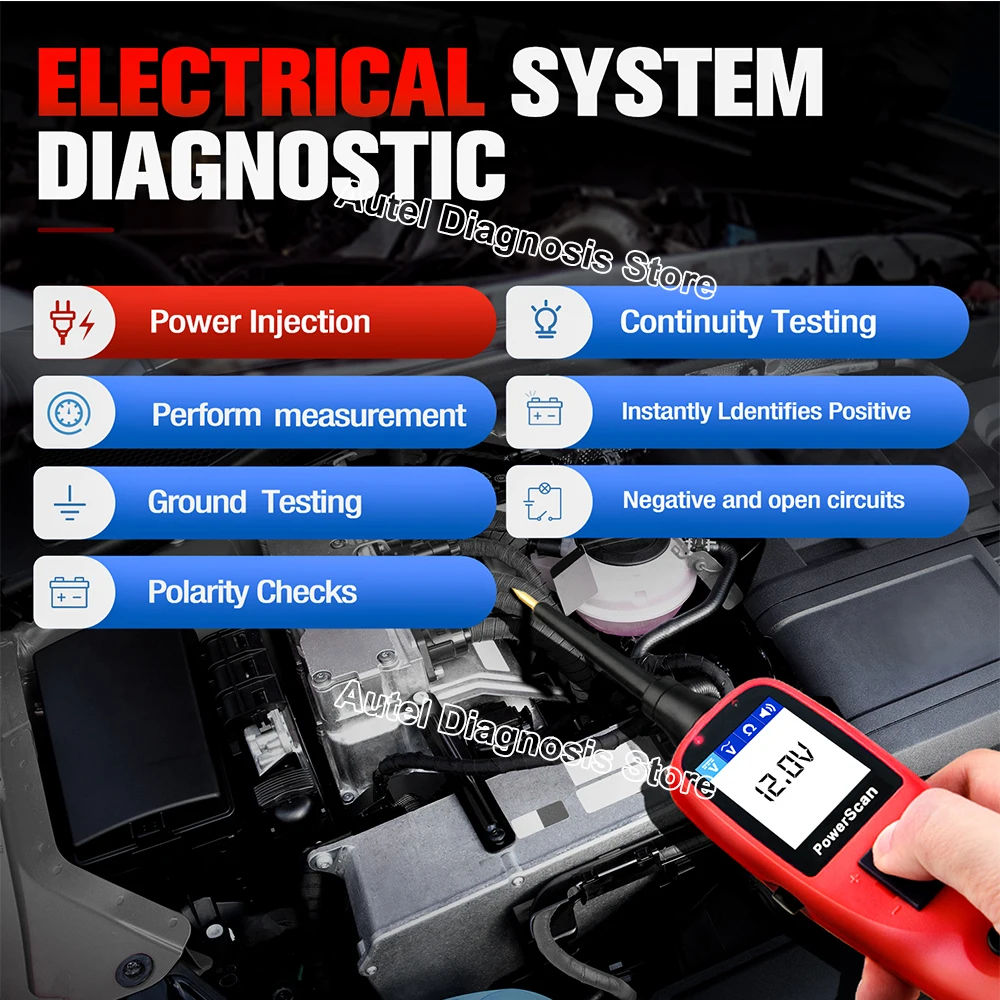

1. Performs every type of service including power injection, measurement, ground testing, polarity checks, continuity testing and components activation

2. Easy to read AVOmeter allows you to read voltage, current and resistance at the fingertip

3. With a flip of the power switch, you have an instant hot/ground lead for powering up electrical components like cooling fans, relays, etc.

4. Simultaneously uses the hot lead and the ground lead to activate components right in your hand

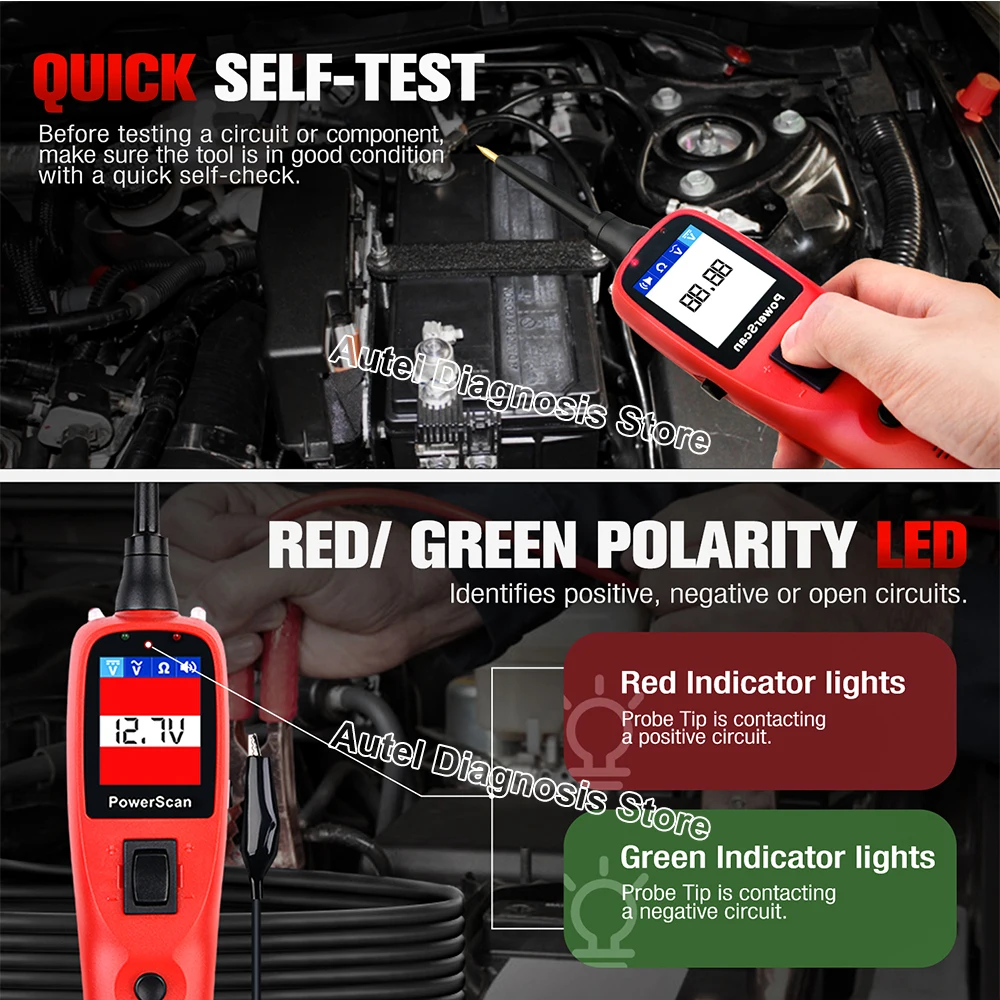

5. Instantly identifies positive, negative and open circuits

6. Tests for bad ground contacts instantly, allowing you to follow and locate shorts fast without wasting fuses

7. Instantly checks continuity of switches, relays and diodes

8. Circuit breaker protected

9. Built-in Flashlight enables you to work in the dark

10. Audio tone indicator allows for no-look menu scrolling once users are familiar with menu tone assignment

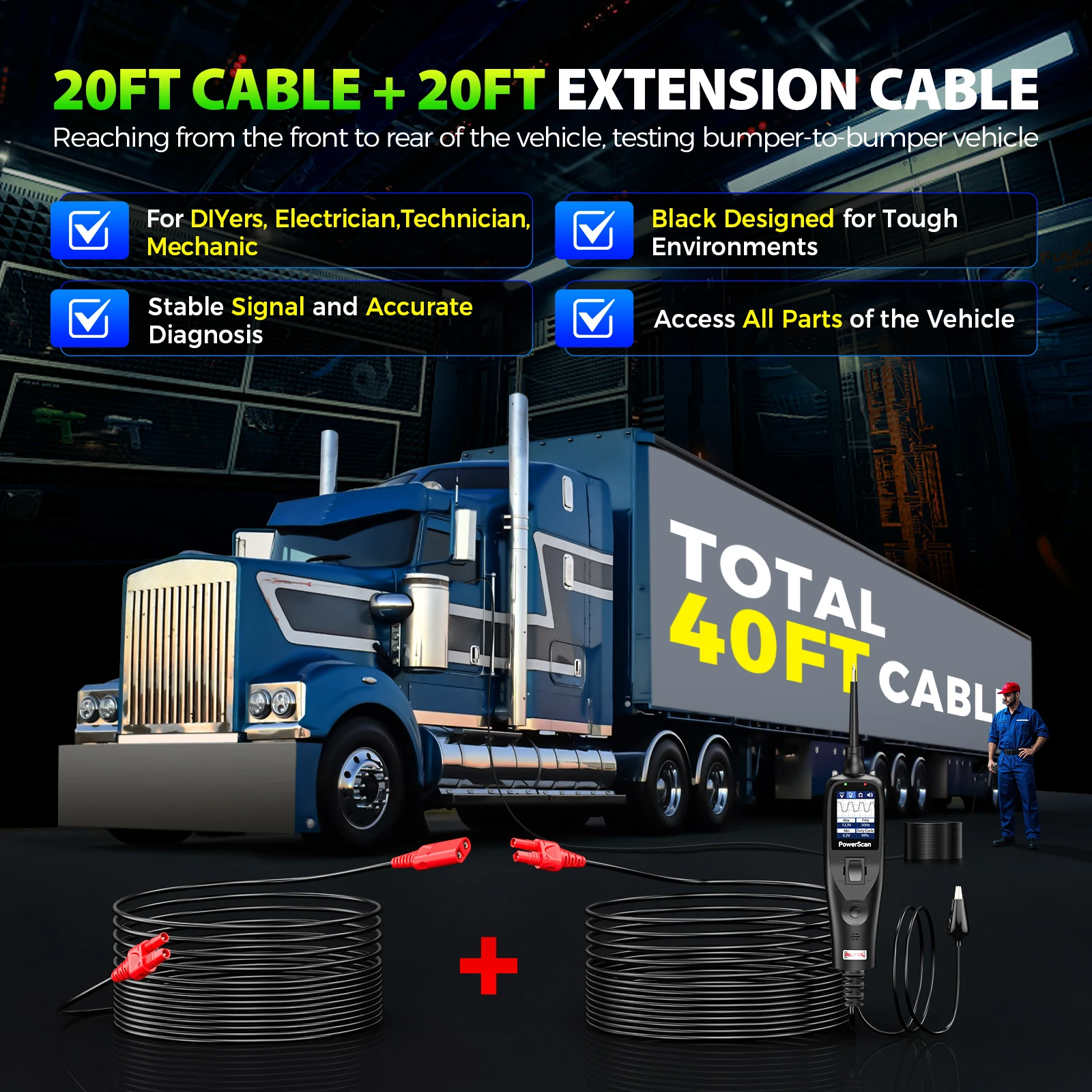

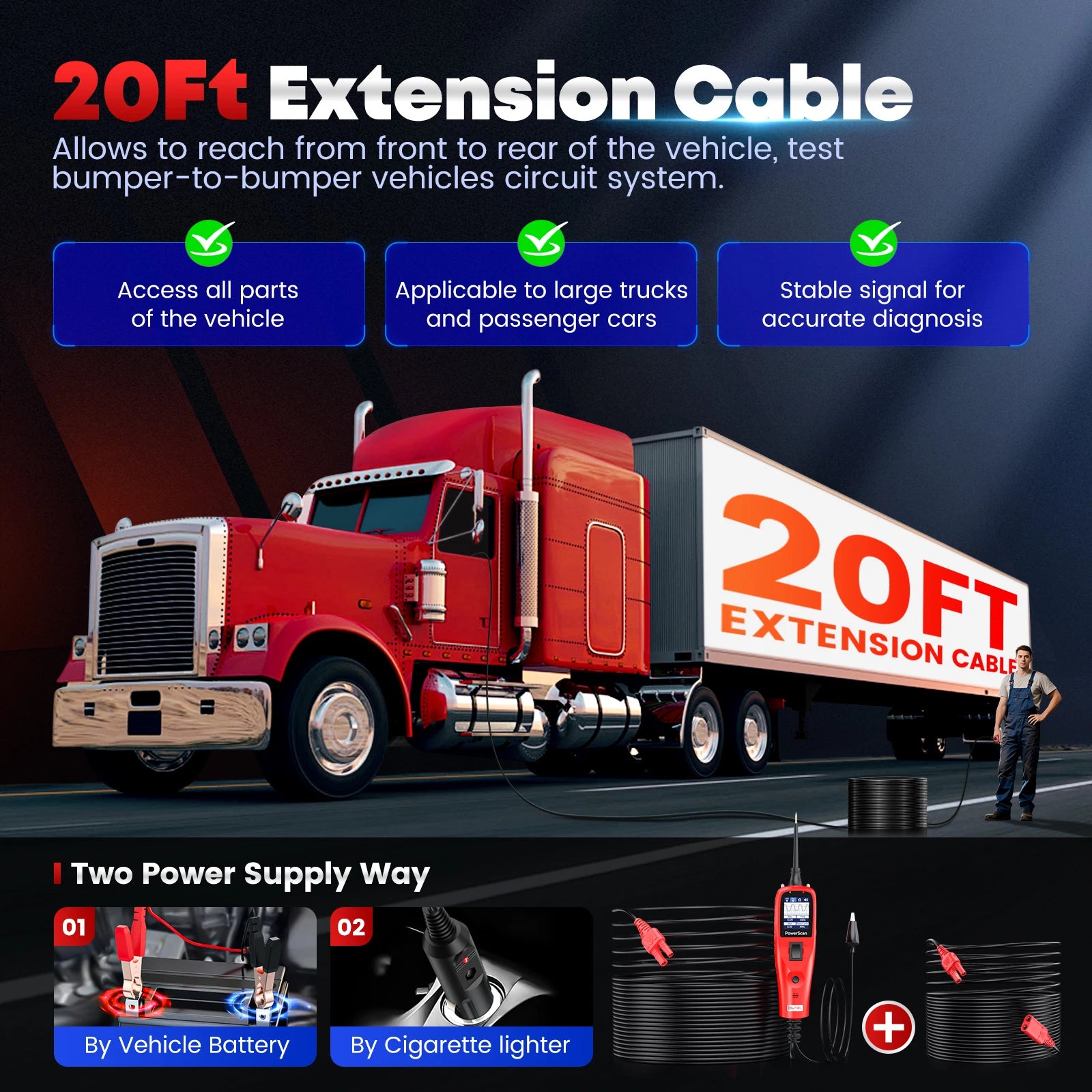

11. 20ft (extendable) cable provides excellent accessibility to test along the vehicle

12. Extremely easy to use and highly reliable

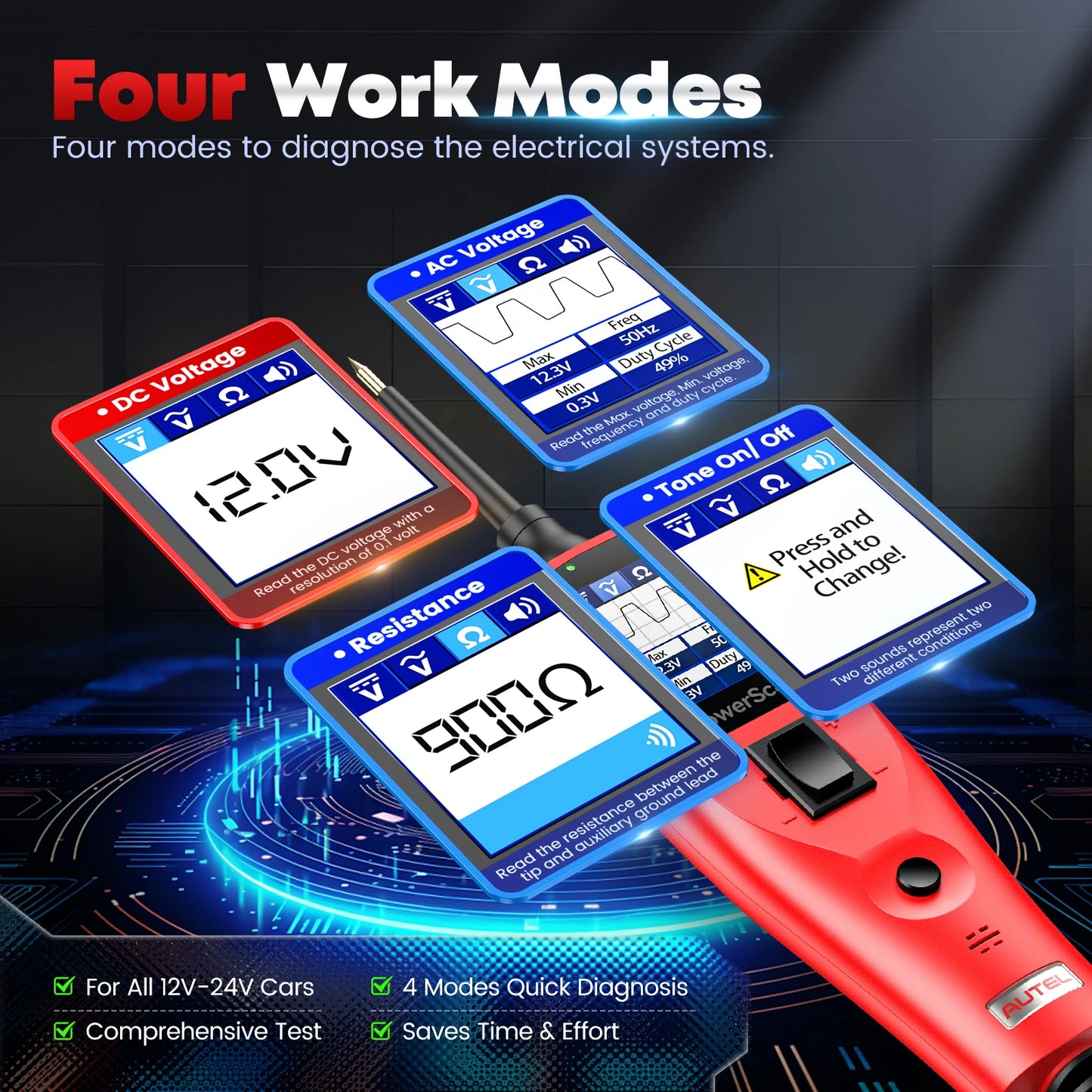

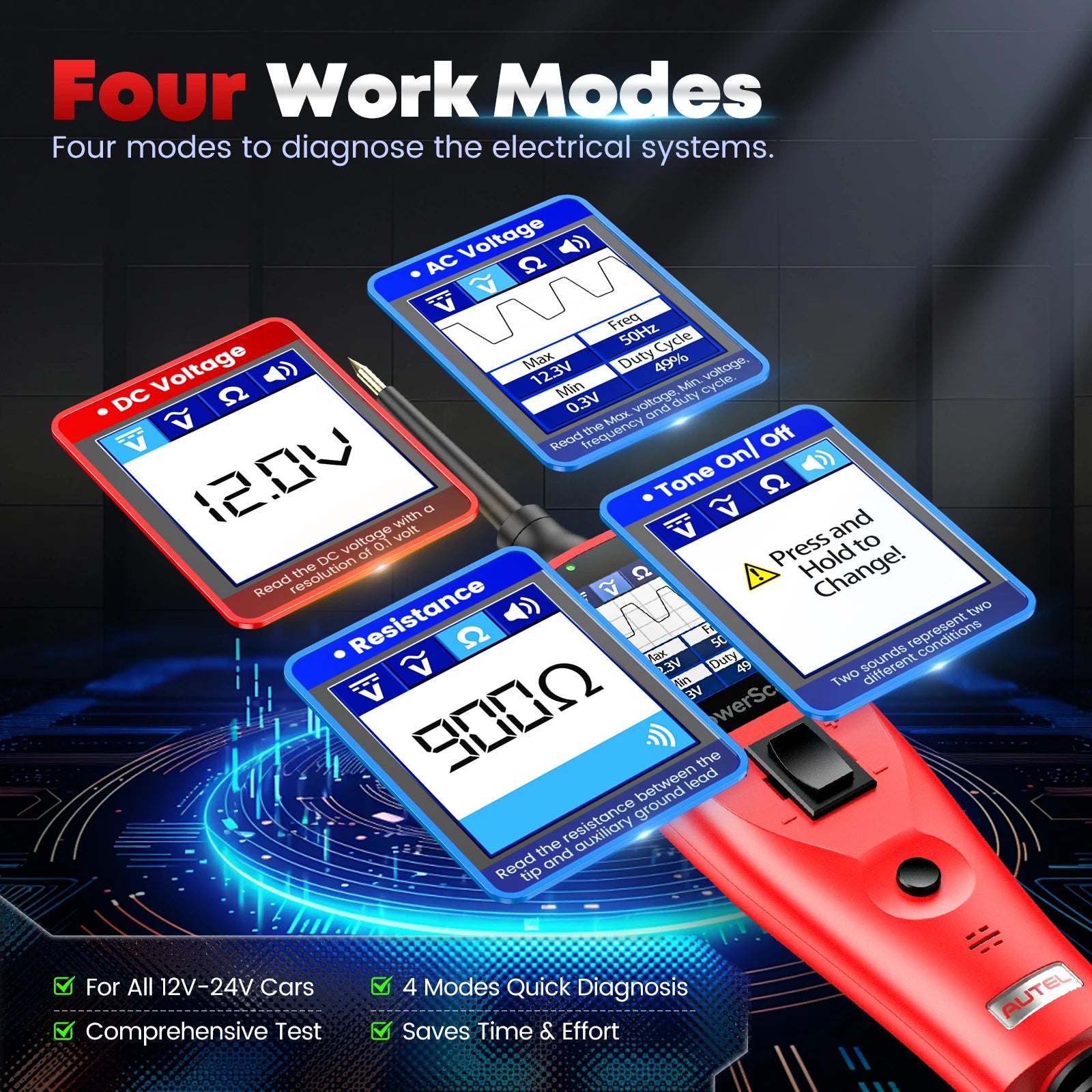

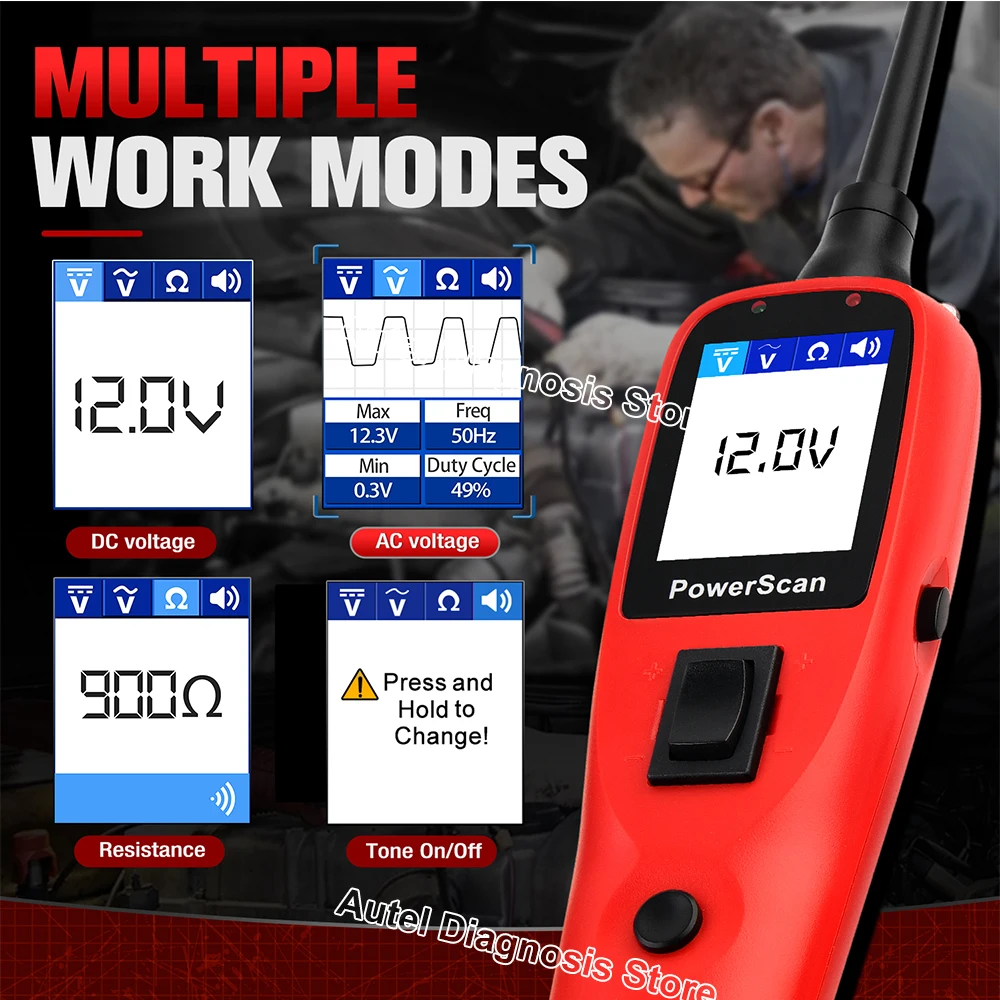

Autel PowerScan PS100 Four Work Mode:

There are four modes to diagnose the electrical systems, which can be accessed by depressing the Mode Button and cycling through each one.

DC Voltage

While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the DC voltage with a resolution of 0.1 volt.

AC Voltage

While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the Max. voltage, the Min. voltage, frequency and duty cycle.

Resistance

While the tool in this mode, contact the probe tip to a circuit, then the LCD display will read the resistance between the tip and auxiliary ground lead.

Tone On/Off

While the tool in this mode, just do a quick press of the mode button to toggle the tone on or off. While quickly pressing (a quick press and release) the mode button, if a short high beep is heard, this means the audio tone is turned on. If a short low beep is heard, the audio tone is turned off.

This function is invaluable when working in bright areas where LED illumination alone is not sufficient. The audio feature may be disengaged when desired, such as for applications where the tool will be connected to circuits for long periods of time and the audio could become annoying.

Autel PowerScan PS100 Specifications:

Display: TFT color display (160 x 128 dpi)
Operating Temperature: 0 to 60°C (32 to 140°F)
External Power: 12.0 or 24.0 V power provided via vehicle battery
Length/Width/Height: 126mm(4.96'')/46.5mm(1.83'')/35mm(1.38'') NW: 0.105kg (0.23lb),GW: 0.726 kg(1.6lb)

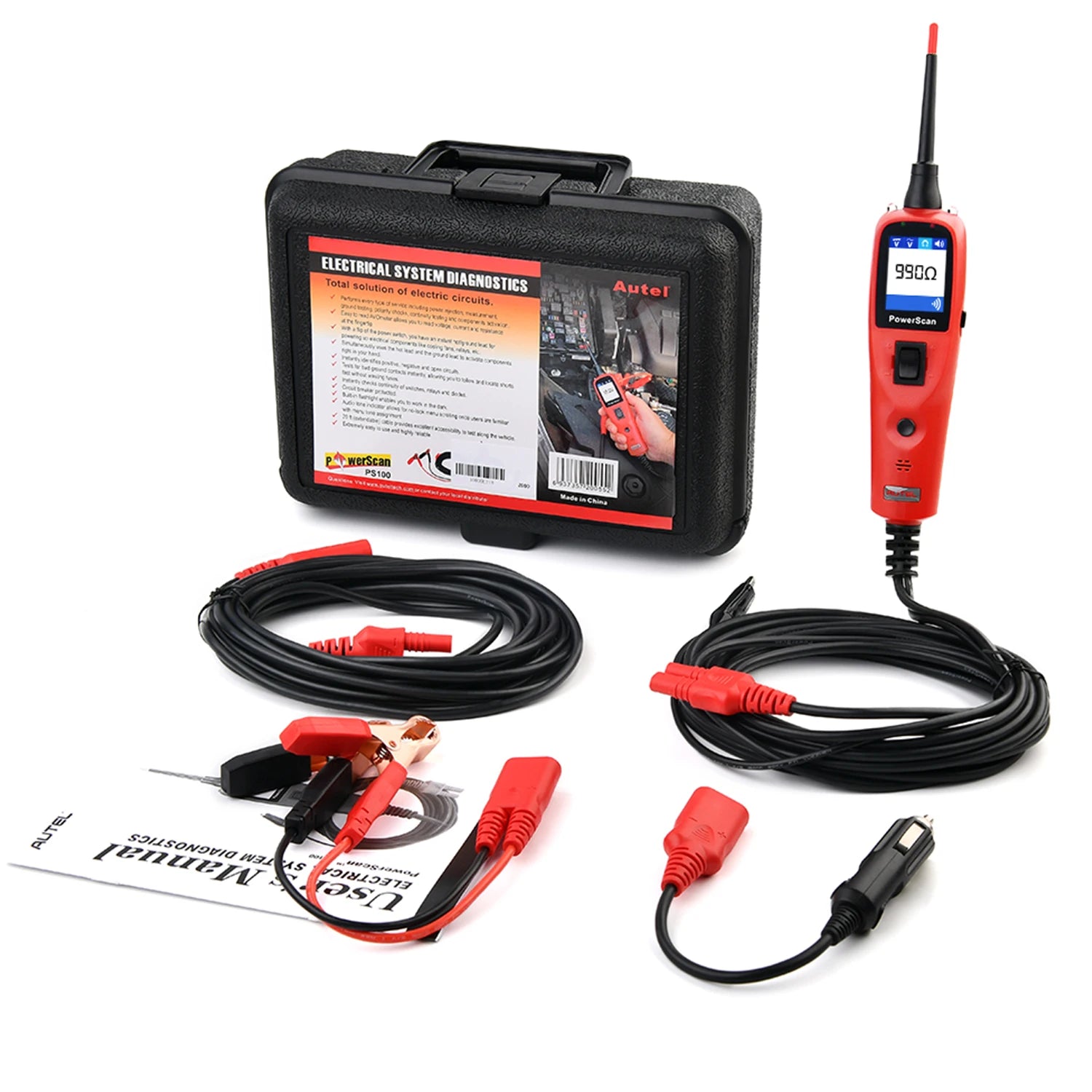

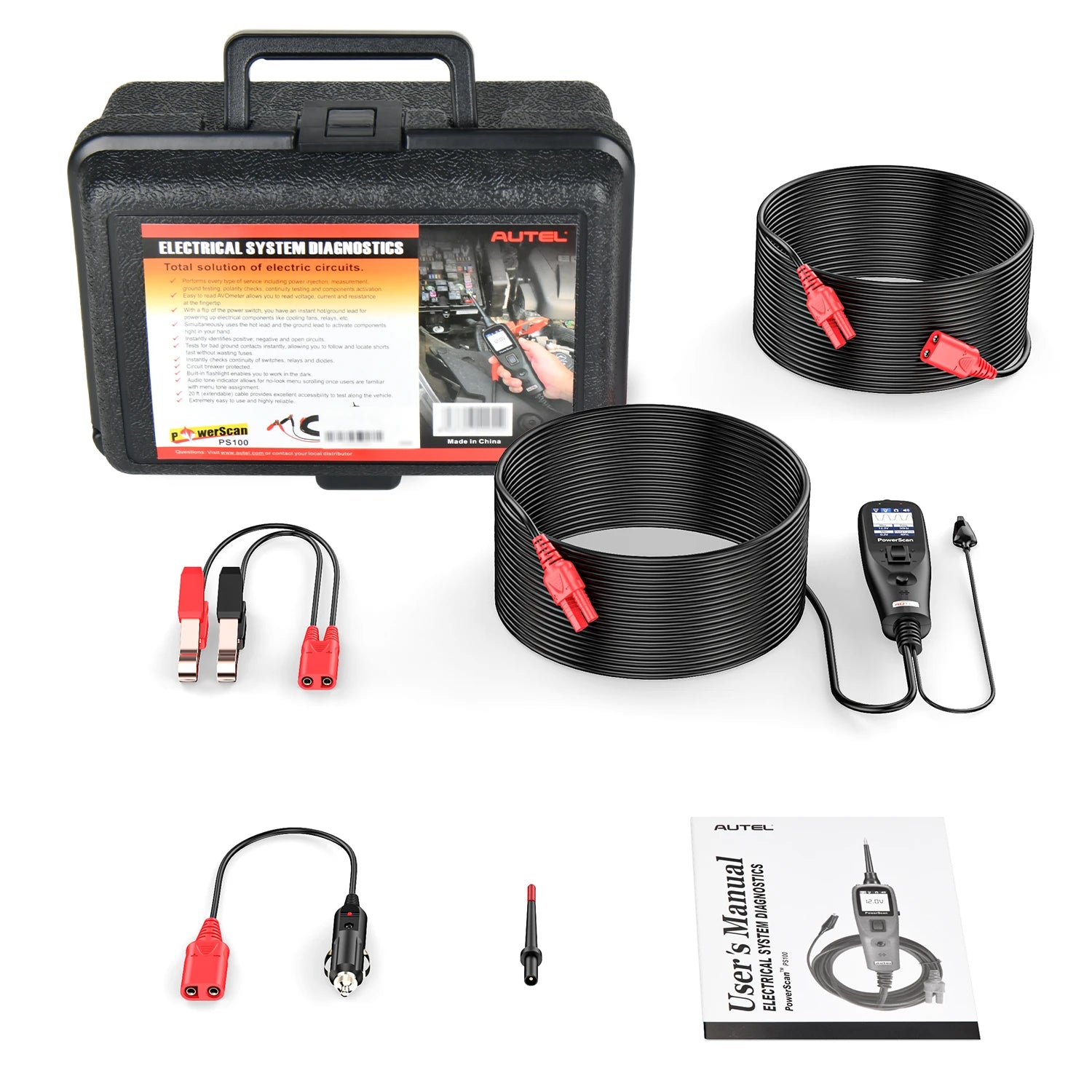

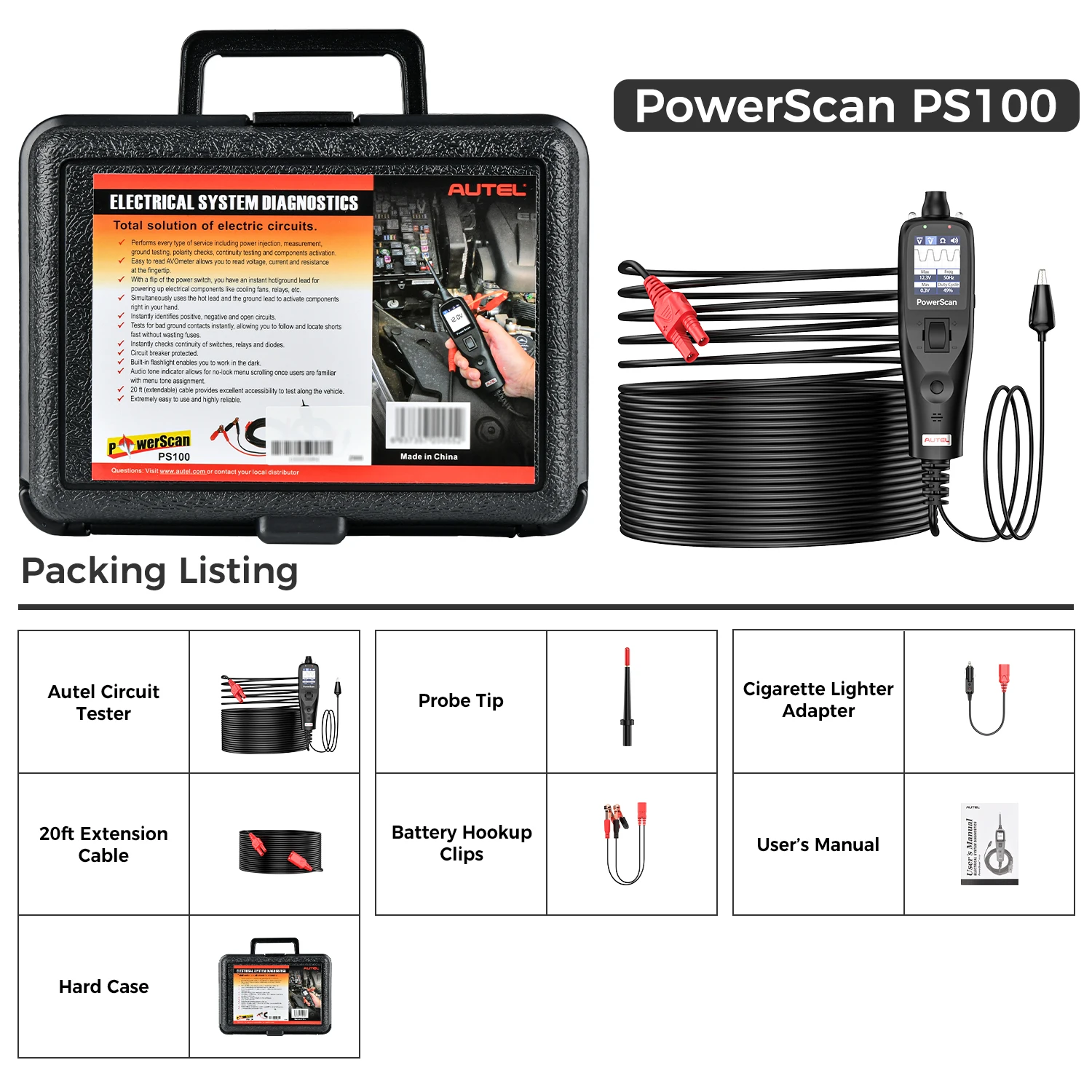

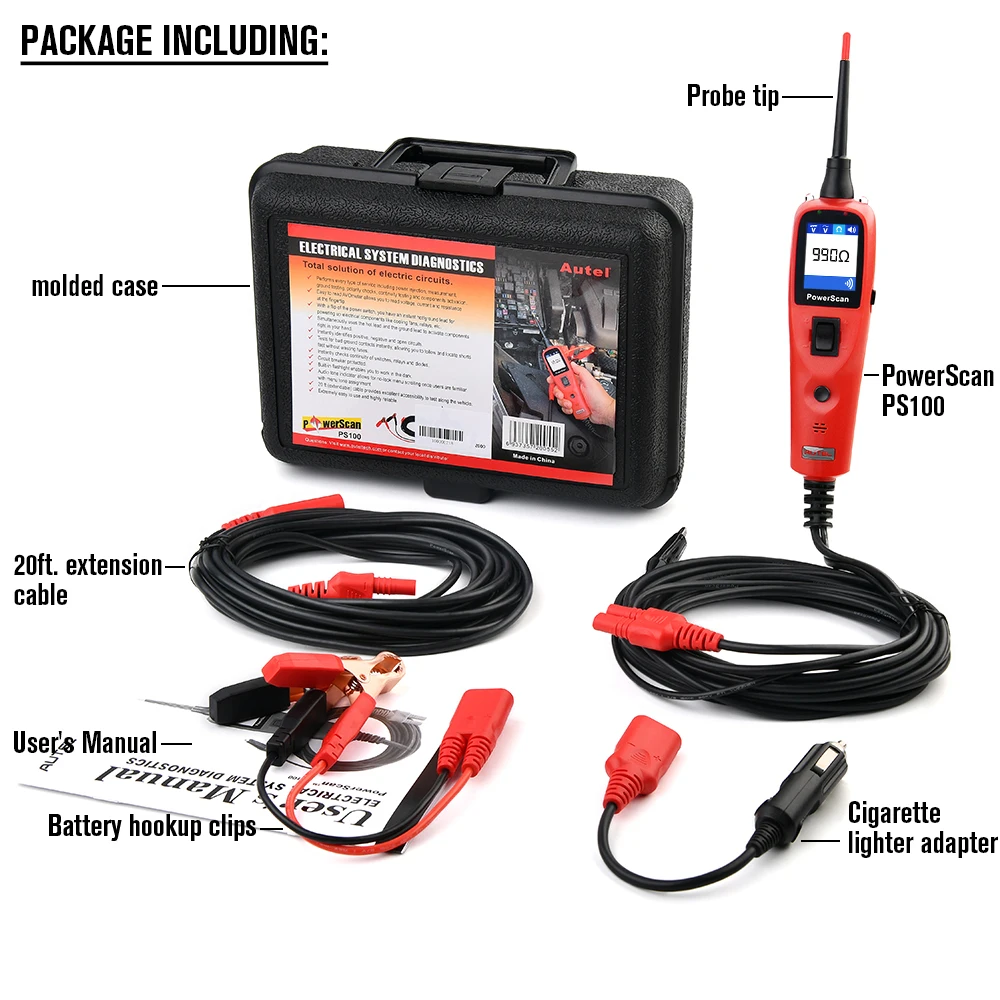

Autel PowerScan PS100 Package List:

1 × PowerScan PS100
1 × Rugged blow molded case
1 × 20ft. extension cable
1 × Probe tip
1 × Battery hookup clips
1 × Cigarette lighter adapter
1 × User's Manual
