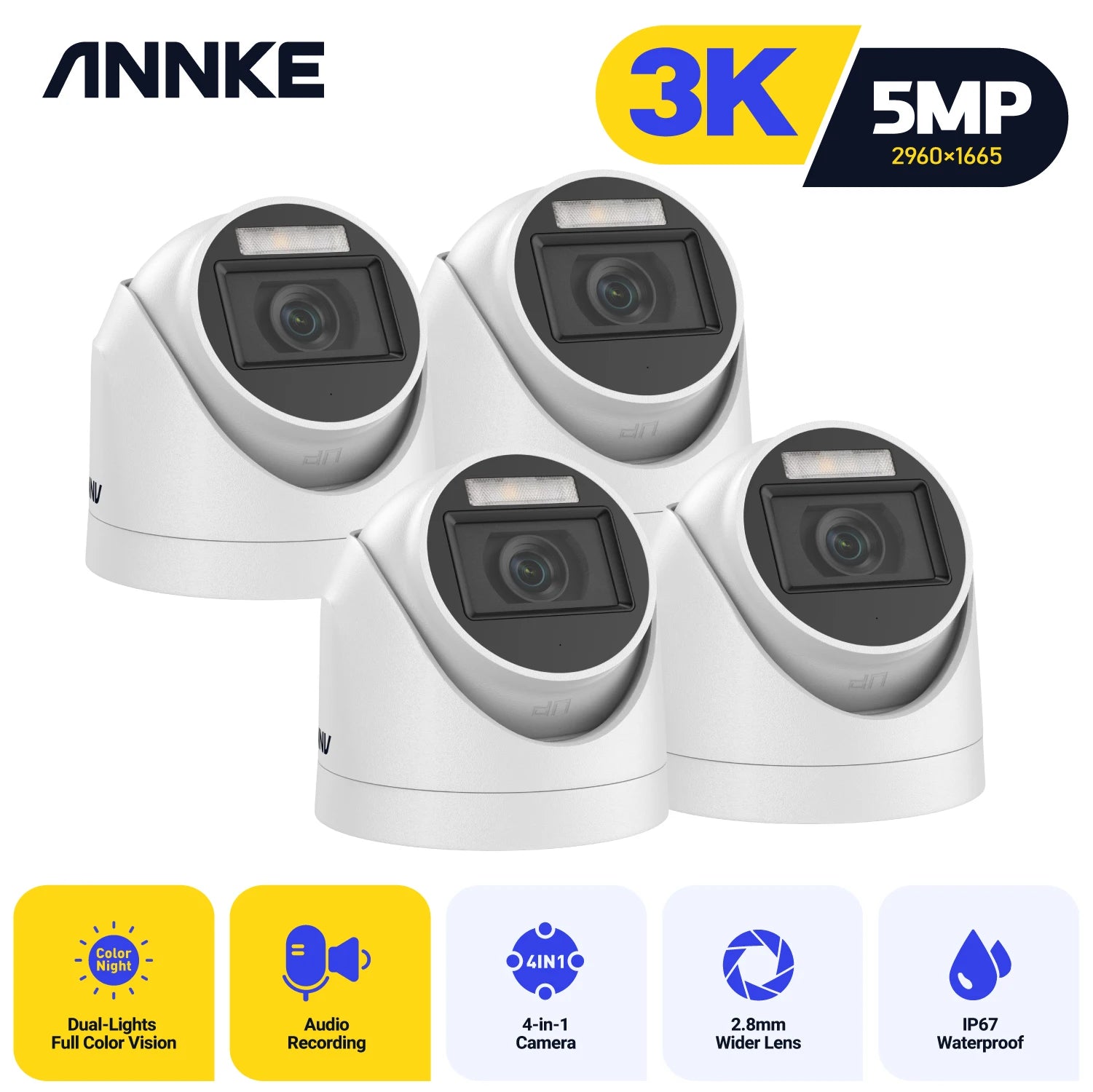

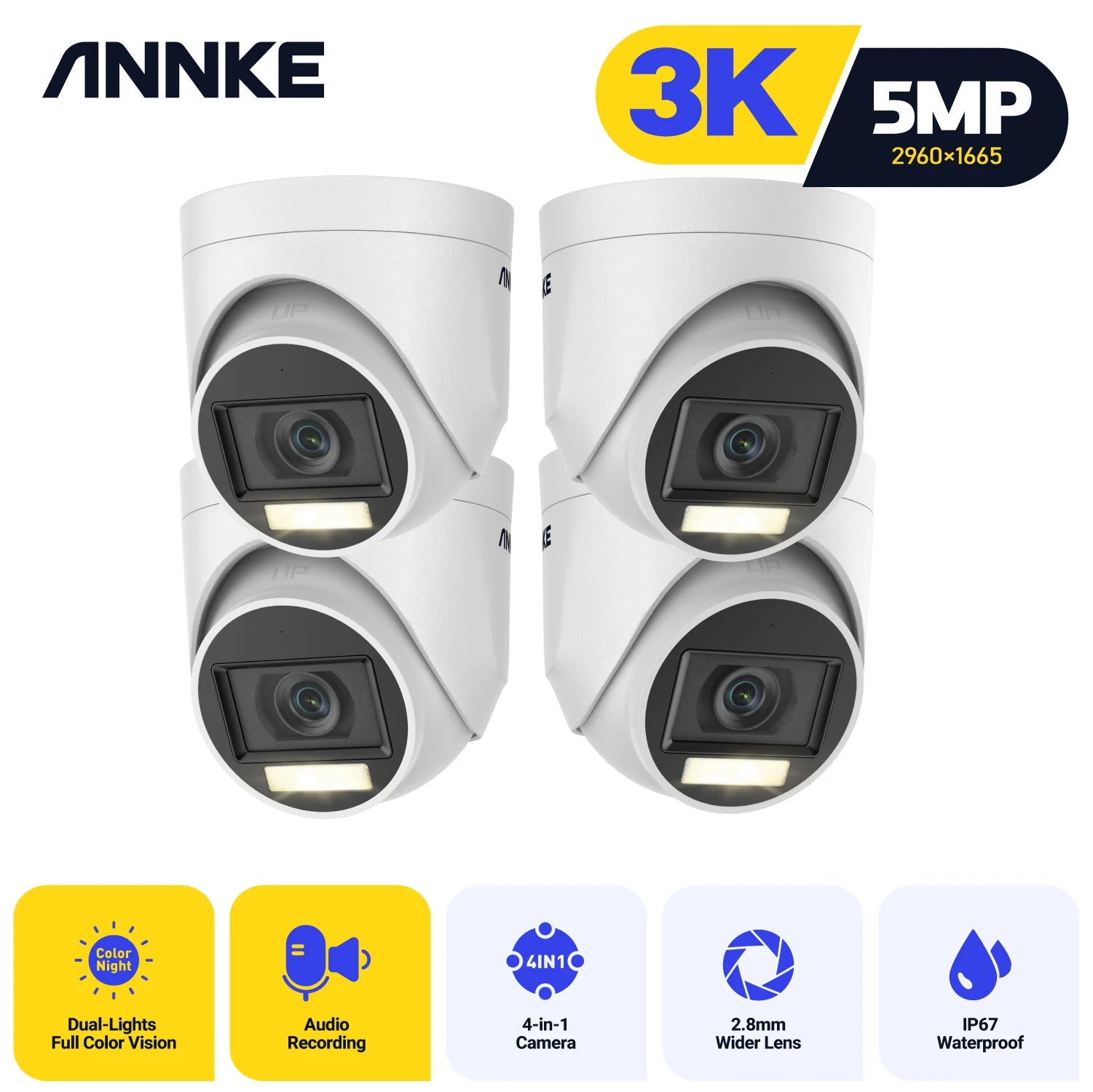

ANNKE 4Pcs 5MP CCTV Cameras IP67 Waterproof Video Surveillance Outdoor Dome Camera IR Cut Filter Camera Kit
ANNKE 4Pcs 5MP CCTV Cameras IP67 Waterproof Video Surveillance Outdoor Dome Camera IR Cut Filter Camera Kit
Couldn't load pickup availability
SPECIFICATIONS
Audio: Built-in mic
Audio Output: None
Brand Name: ANNKE
Certification: CE
Connectivity: Closed System/CCTV Wired
Focus: 2.8mm
Hign-concerned Chemical: None
Image sensor: 3K CMOS Image sensor
Indoor/Outdoor: Indoor/Outdoor
Installation: Side,Normal
Internal Storage: None
Lens: 2.8mm
Lens (mm): 2.8mm
Material: Matal & Plastic
Model Number: CR1CW*4
Origin: Mainland China
Plug Type: EU Plug,US Plug,AU Plug,UK Plug
Sensor: CMOS
Sensor Brand: Sony
Style: Dome Camera
Supplement Light Range: IR : Up to 30 m, white Light : Up to 20 m
Supplement Light type: 1 white Light & 1 EXIR
Supported Mobile Systems: iOS,Android
Supported Operating Systems: Windows 10,Mac OS,Windows 8,Windows 7,Windows 98,Windows XP,Windows Vista
Technology: INFRARed
Video Compression Format: H.265
Video Resolution: 2960 X 1665
Viewing Angle : 85°
Weatherproof Rating: IP67
Wide Dynamic Range: Digital WDR
3K BSI cmos IMAGE SENSOR, output 2960×1665@20fps high-definition image quality, 16:9 aspect ratio is better than the traditional 4:3 and more suitable for mainstream display ratios

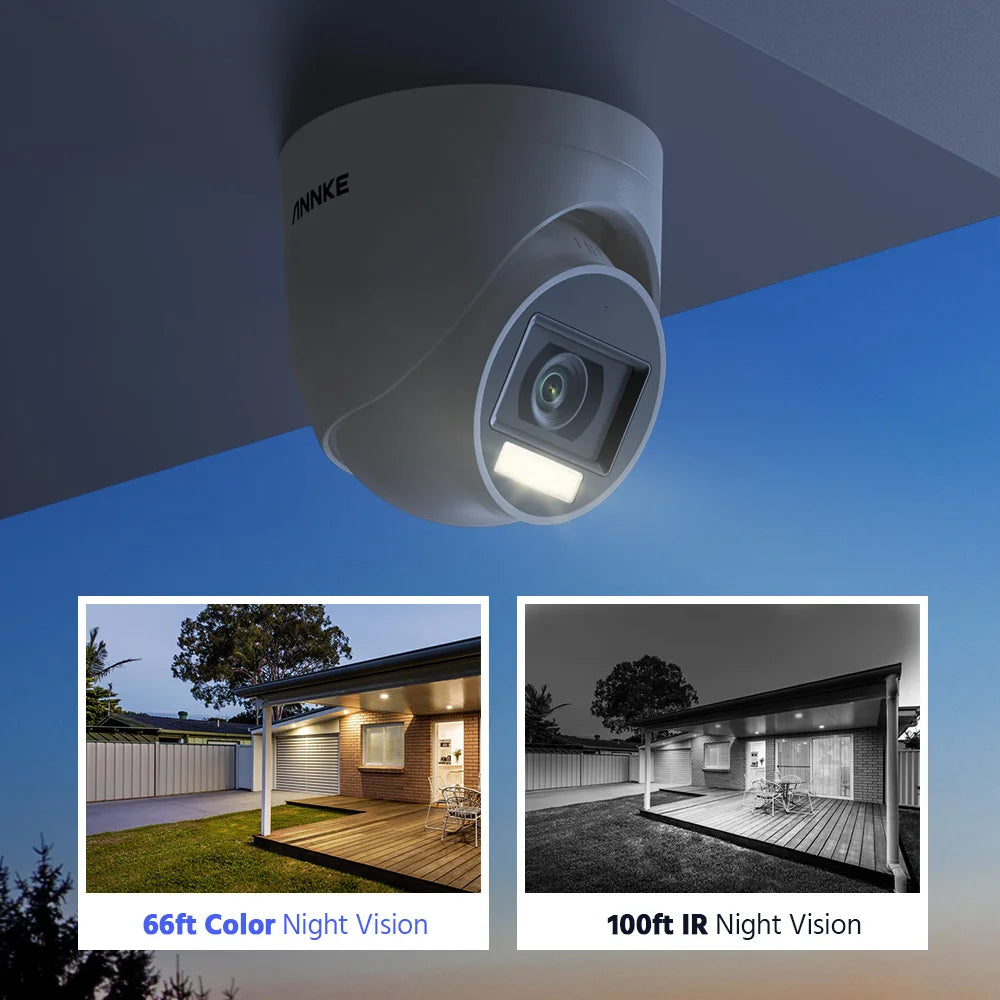

Three night visions to adapt to your needs: smart light night vision, white light night vision, and IR night vision. The smart mode is the default as it can automatically turn on the color night vision once a human/vehicle is detected.
Upgrade of human and vehicle detection technology
Adavanced algotithm analyzes human and vehicle at 99% accuracy which tells you real alerts via app pushes and emails. No more false alarms caused by bugs or leaves with specific zone setting.

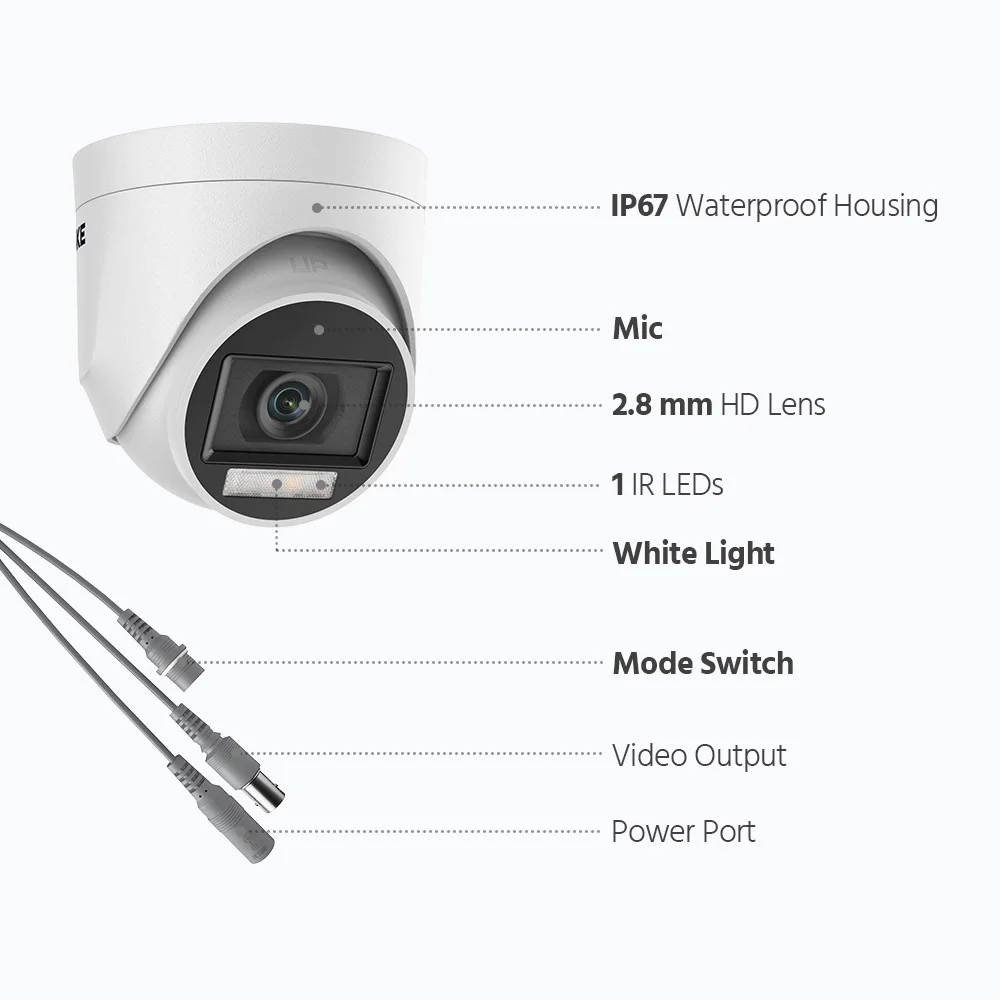

All-Around Upgraded Camera

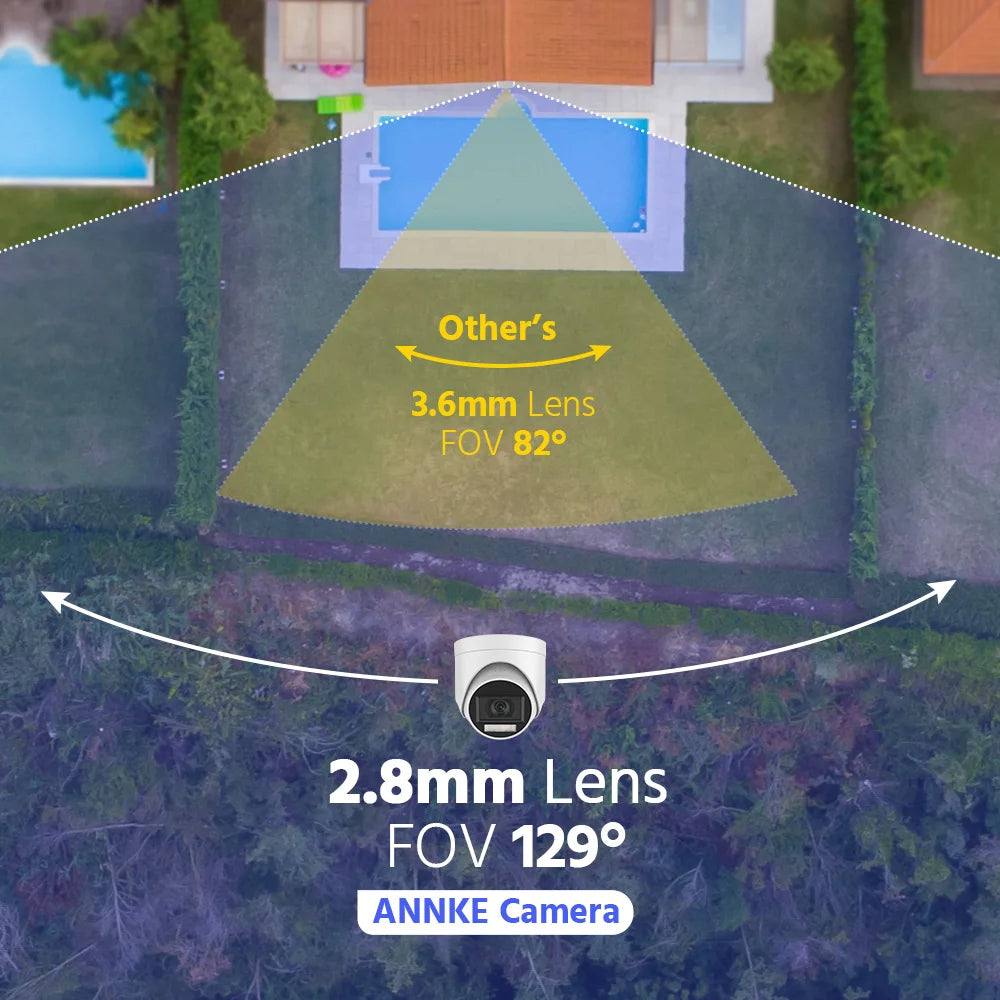

The 2.8 mm fixed focal lens brings a 107° horizontal FOV, 64° vertical FOV and 129° diagonal FOV. The IR night vision even reaches up to 100ft thanks to the F1.2 apertures. Plus a built-in mic makes it stands out from other analog cameras.
One port for four switchable signals (TVI/AHD/CVI/CVBS）
Waterproof and dustproof rating IP67 Super low and high temperature resistance, -40 °C to 60 °C (-40 °F to 140 °F) Suitable for use in most regions of the world
Analog HD Camera | ||
Camera |
Image sensor |
3K CMOS Image sensor |
Video Resolution |
2960 (H) × 1665 (V)(16:9) |
|
Signal System |
PAL/NTSC |
|
Frame Rate |
TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps |
|
Lens |
2.8mm |
|
Min.Illumination |
Color:0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
|
Angle of View |
Horizontal FOV: 107°, vertical FOV: 64°, diagonal FOV: 129° |
|
Supplement Light type |
1 white Light & 1 EXIR |
|
Supplement Light Range |
IR : Up to 30 m, white Light : Up to 20 m |
|
Supplement Light Mode |
IR light works normally, and it switches to white light when human or vehicle are detected at night. |
|
Wide Dynamic Range |
Digital WDR |
|
Audio |
Built-in mic |
|
IR Cut Filter |
Yes |
|
Video Output |
BNC, switchable TVI/AHD/CVI/CVBS |
|
General |
Housing |
Matal & Plastic |
Color |
White |
|
Operating Power |
12 VDC ± 25% |
|
Consumption |
Max. 2.9 W |
|
Operating Temperature |
-40 °F – 140 °F /-40 °C – 60 °C |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Weatherproof Rating |
IP67 |
|
Dimension (L x W x H) |
80 mm × Ø 85.1 mm (3.1" × Ø 3.4") |
|
Weight |
Approx. 300 g (0.66 lb.) |
|
