SPECIFICATIONS

Brand Name: NoEnName_Null

Certification: None

Hign-concerned Chemical: None

Origin: Mainland China

Power Source: Petrol / Gas

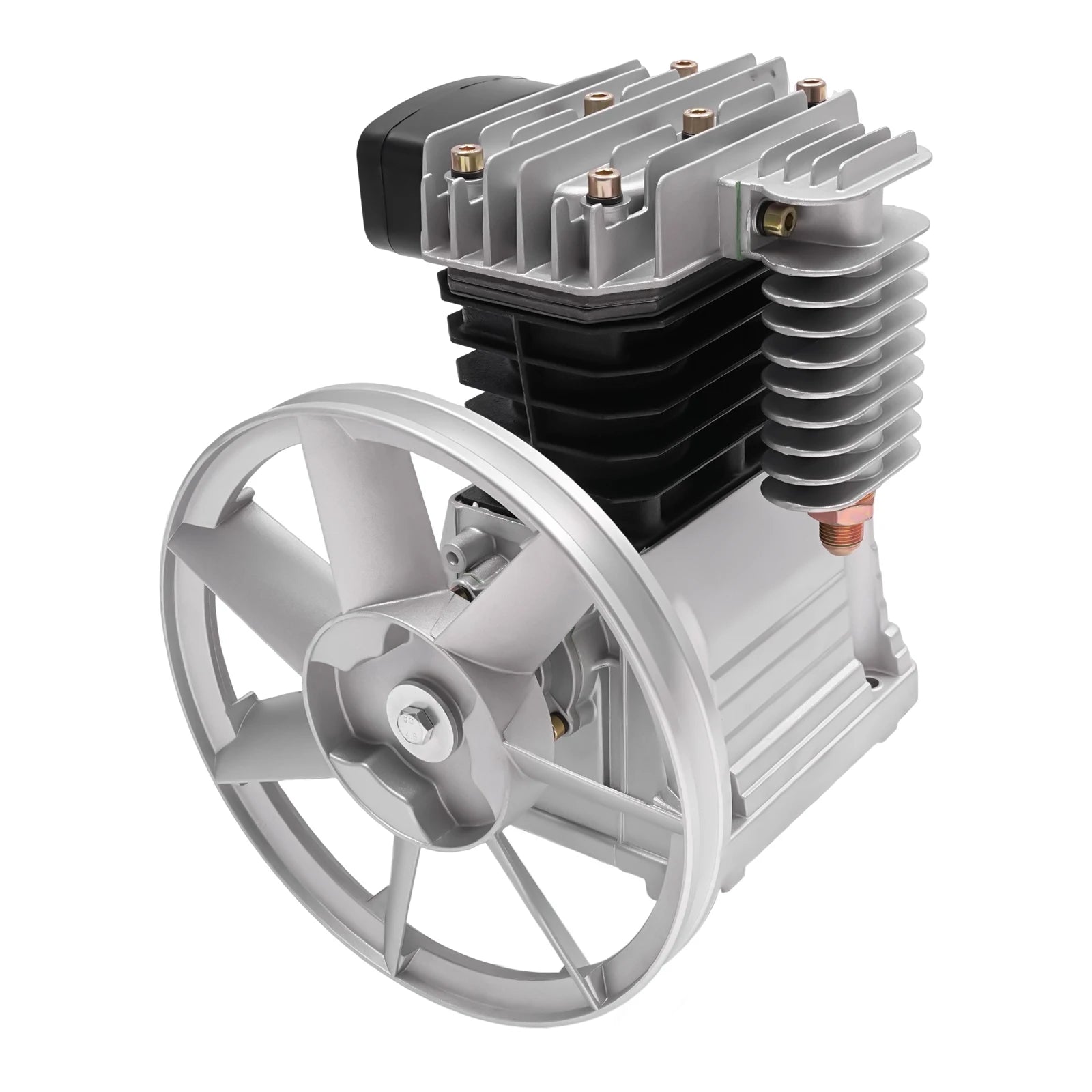

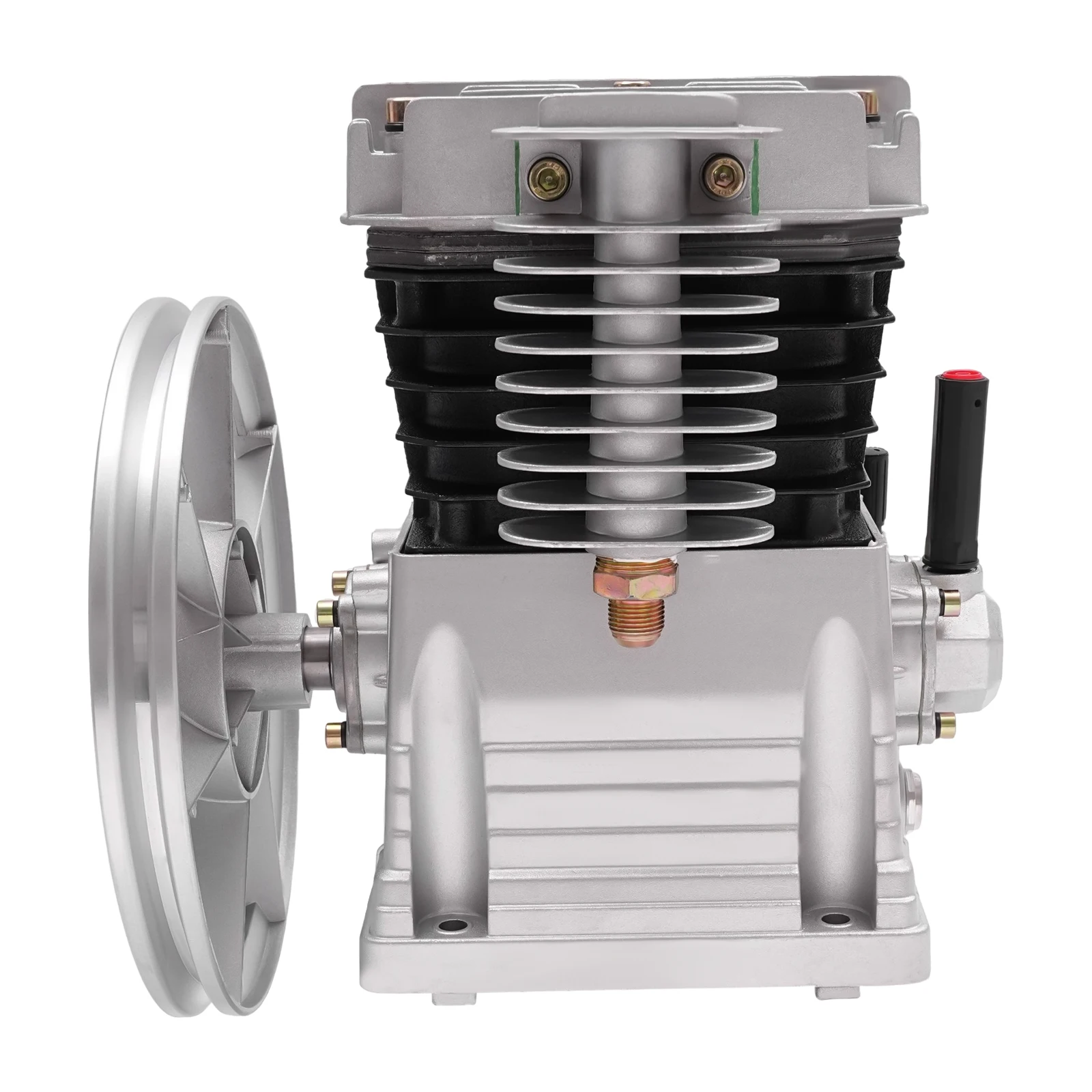

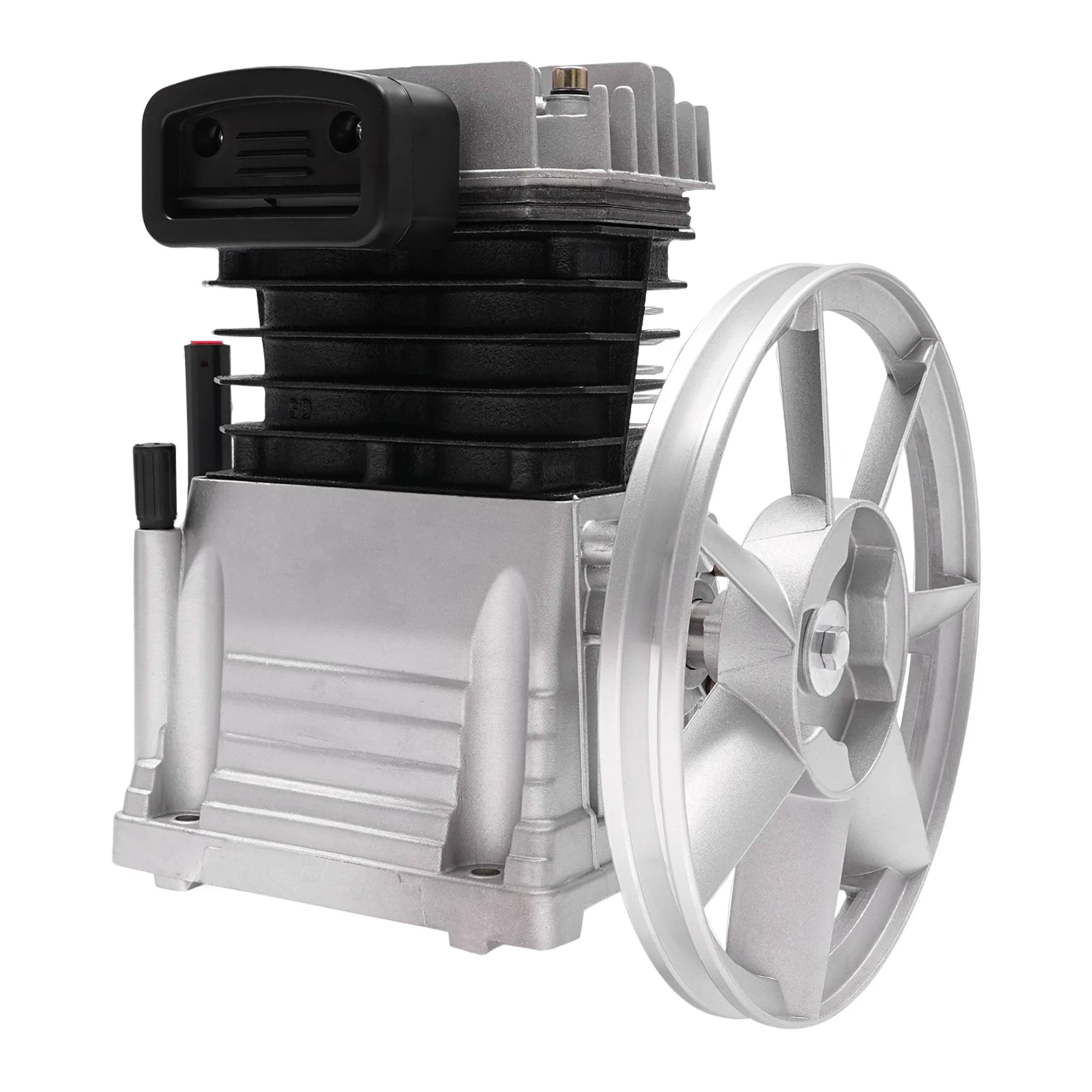

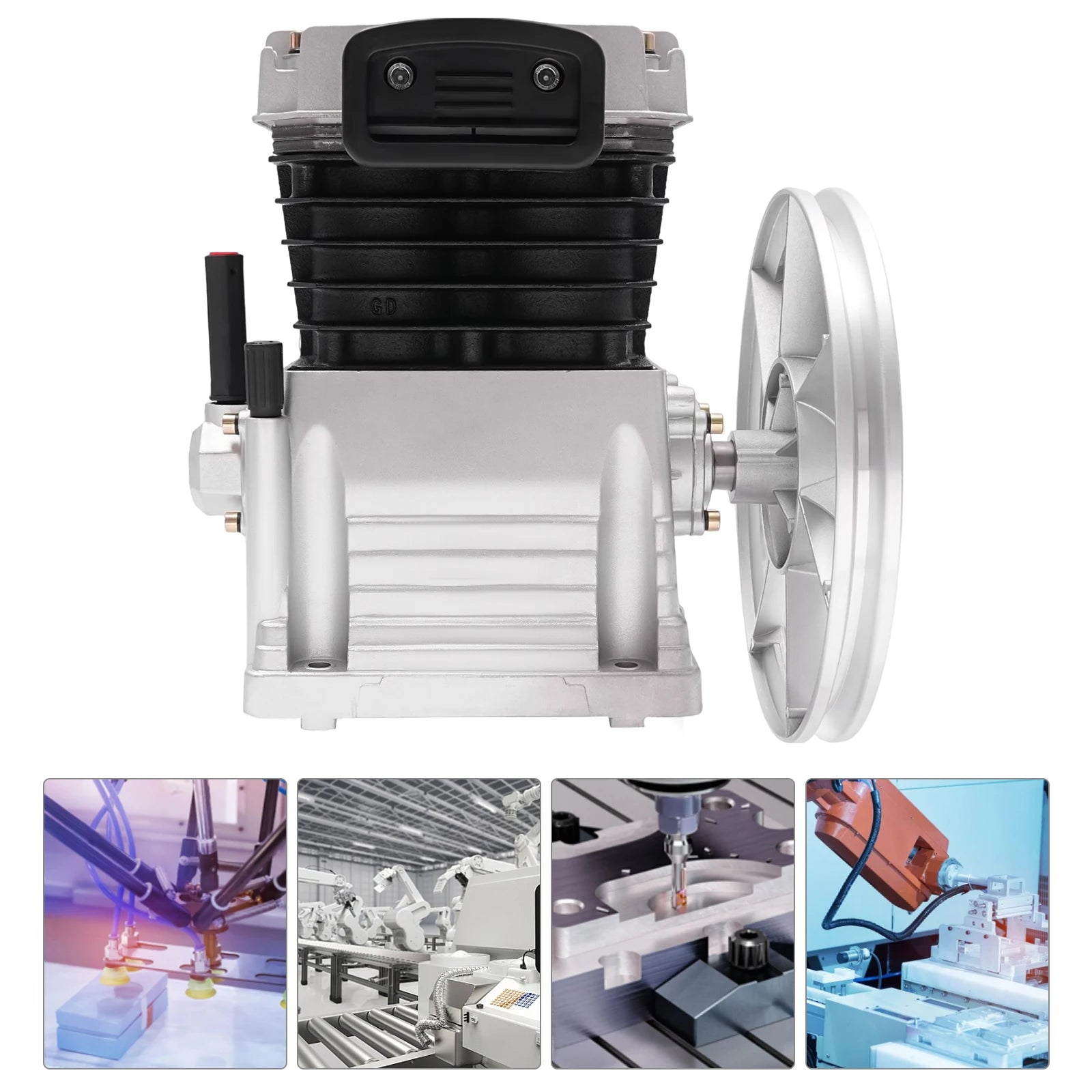

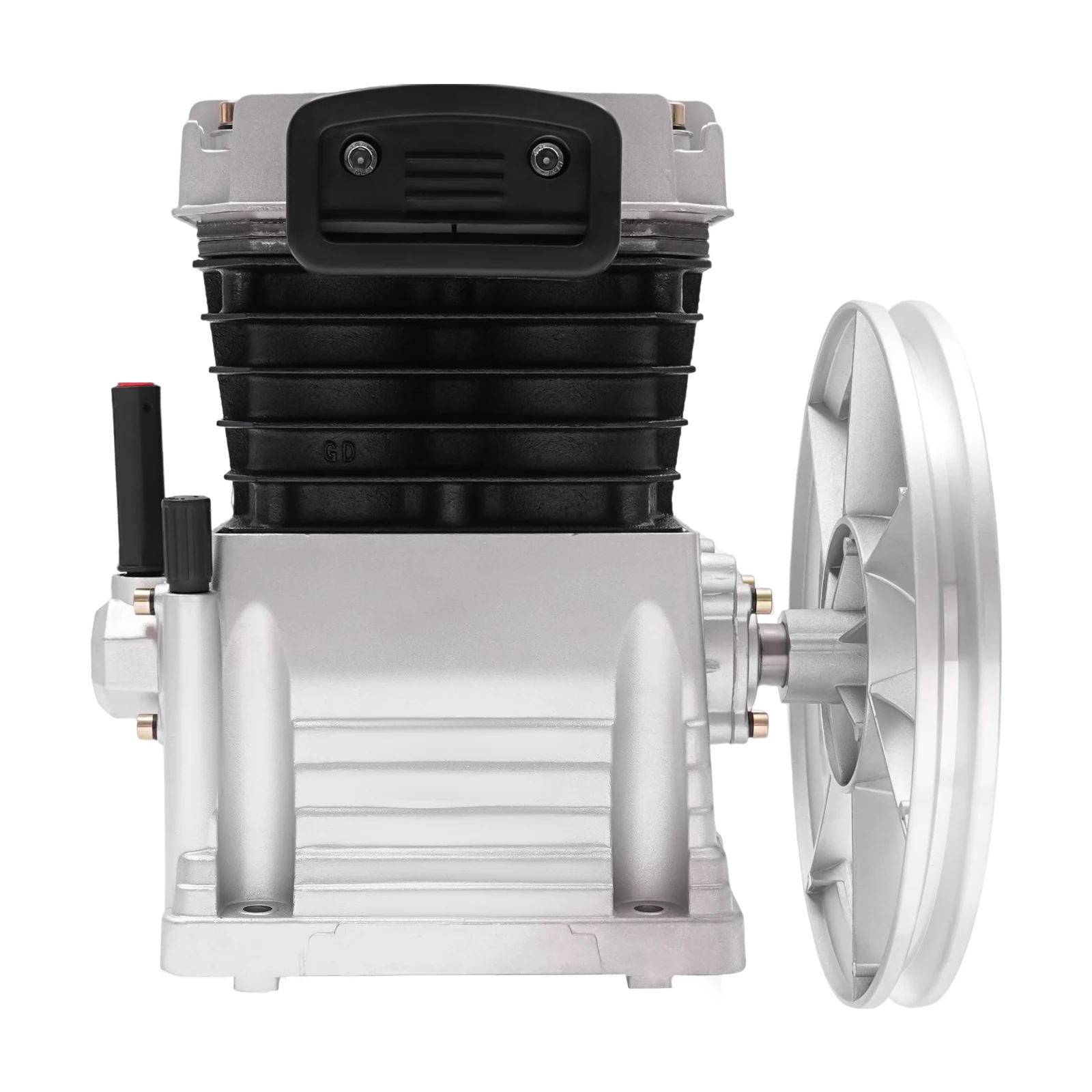

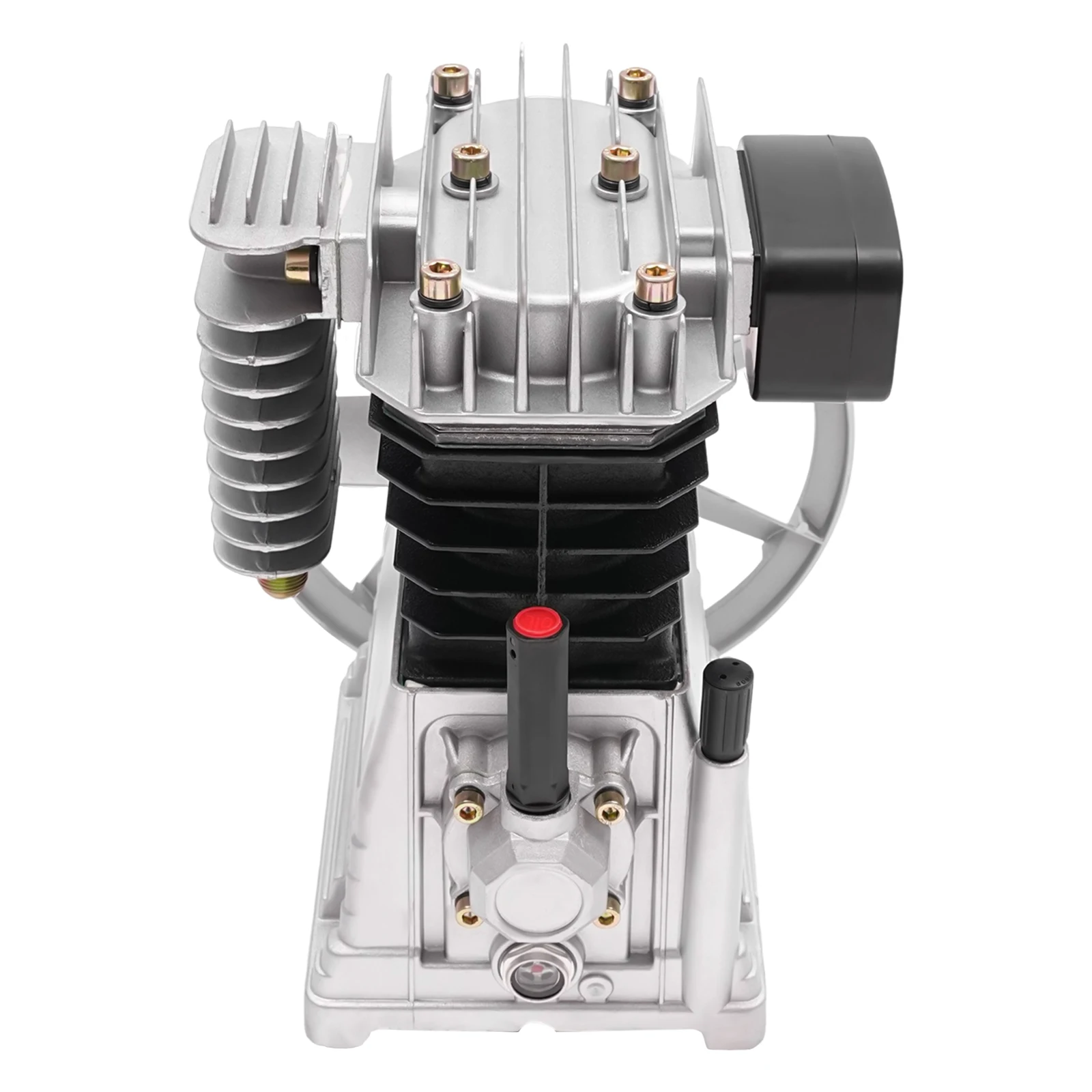

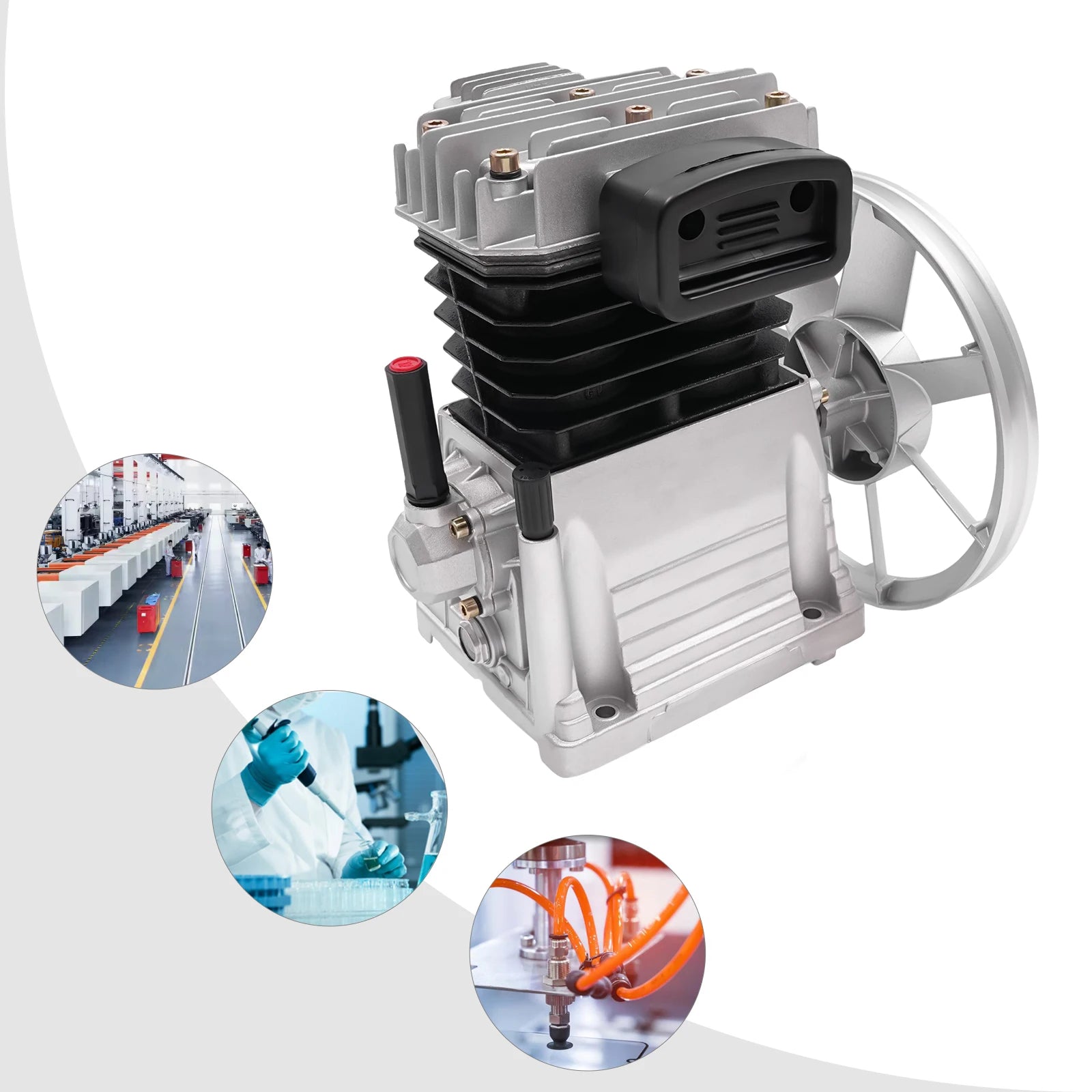

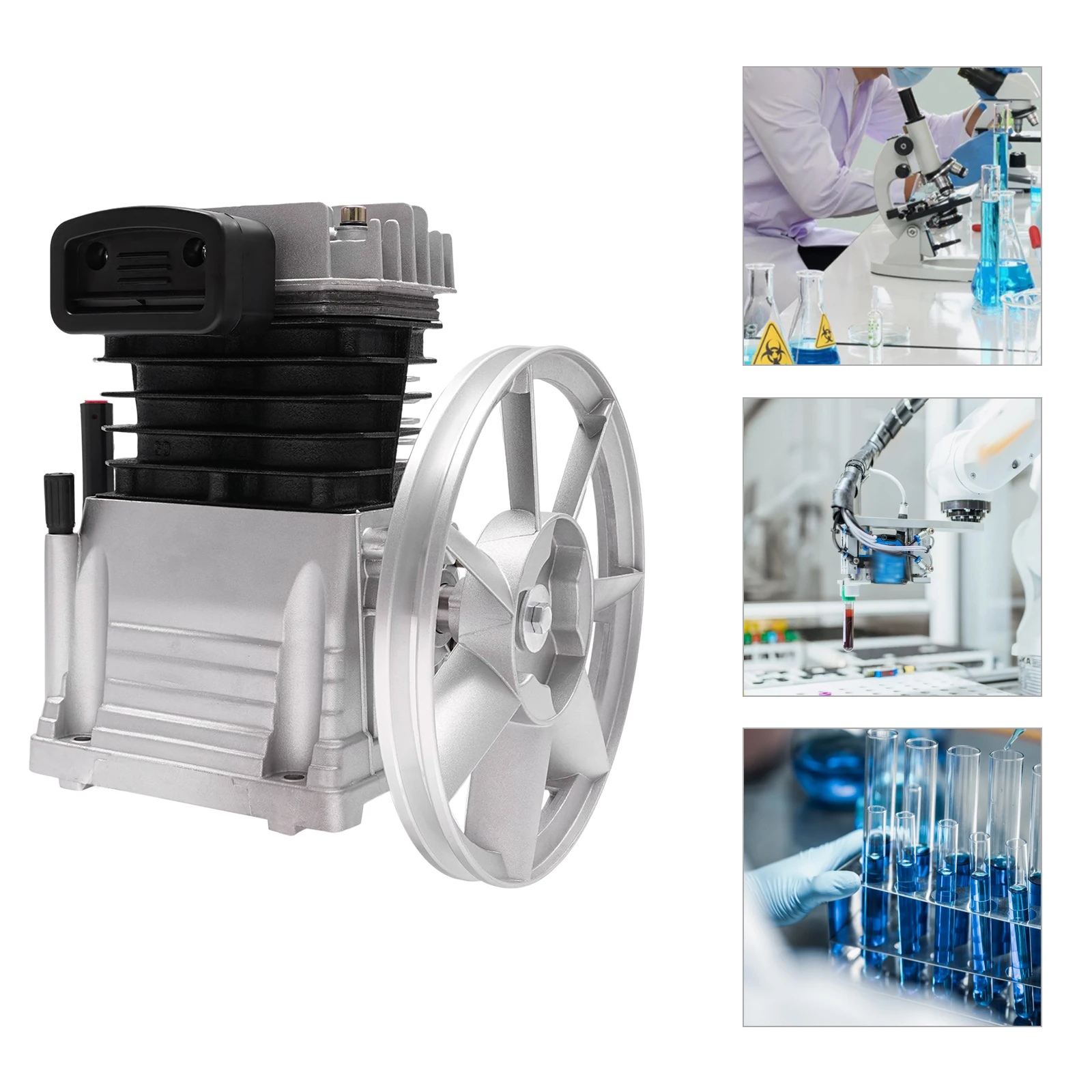

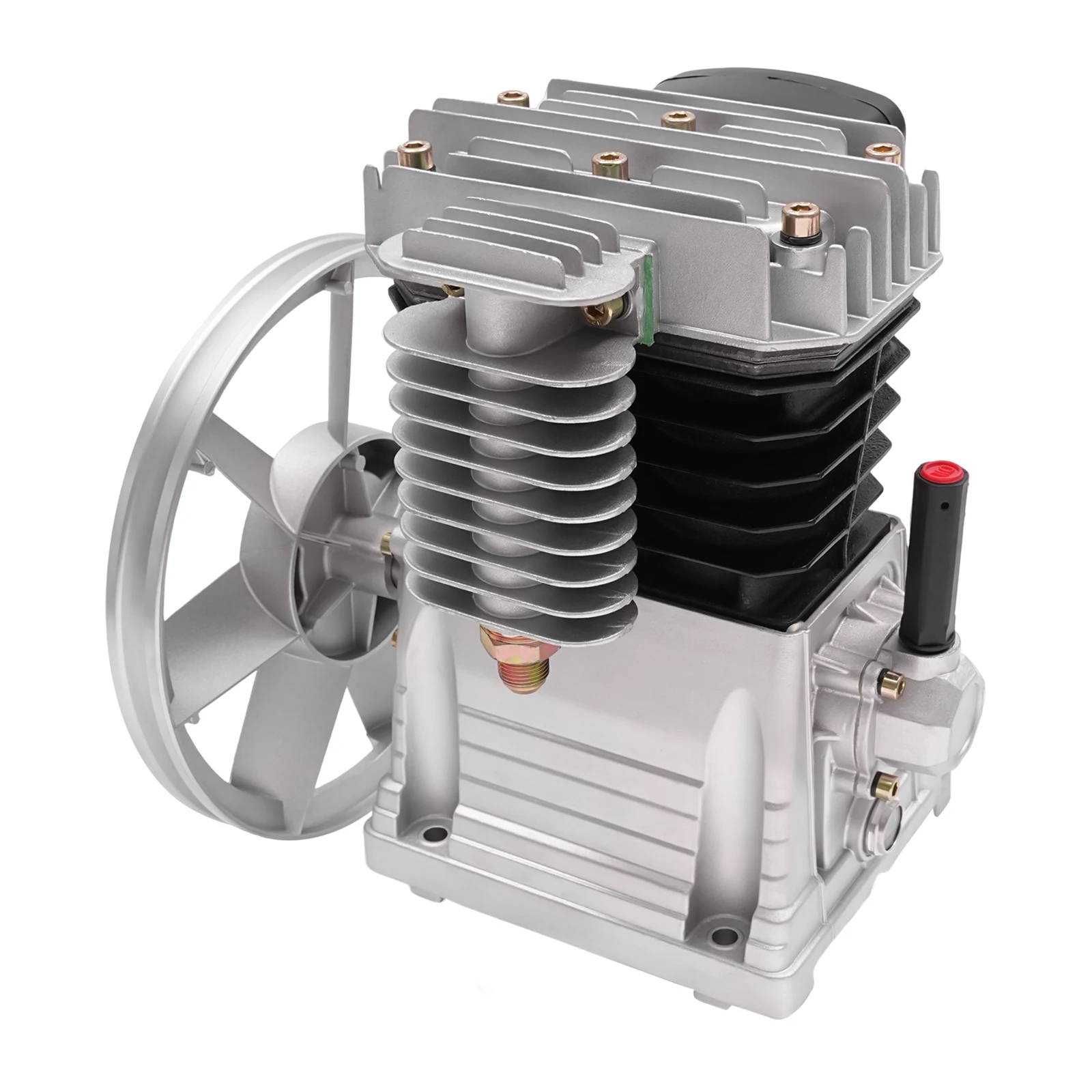

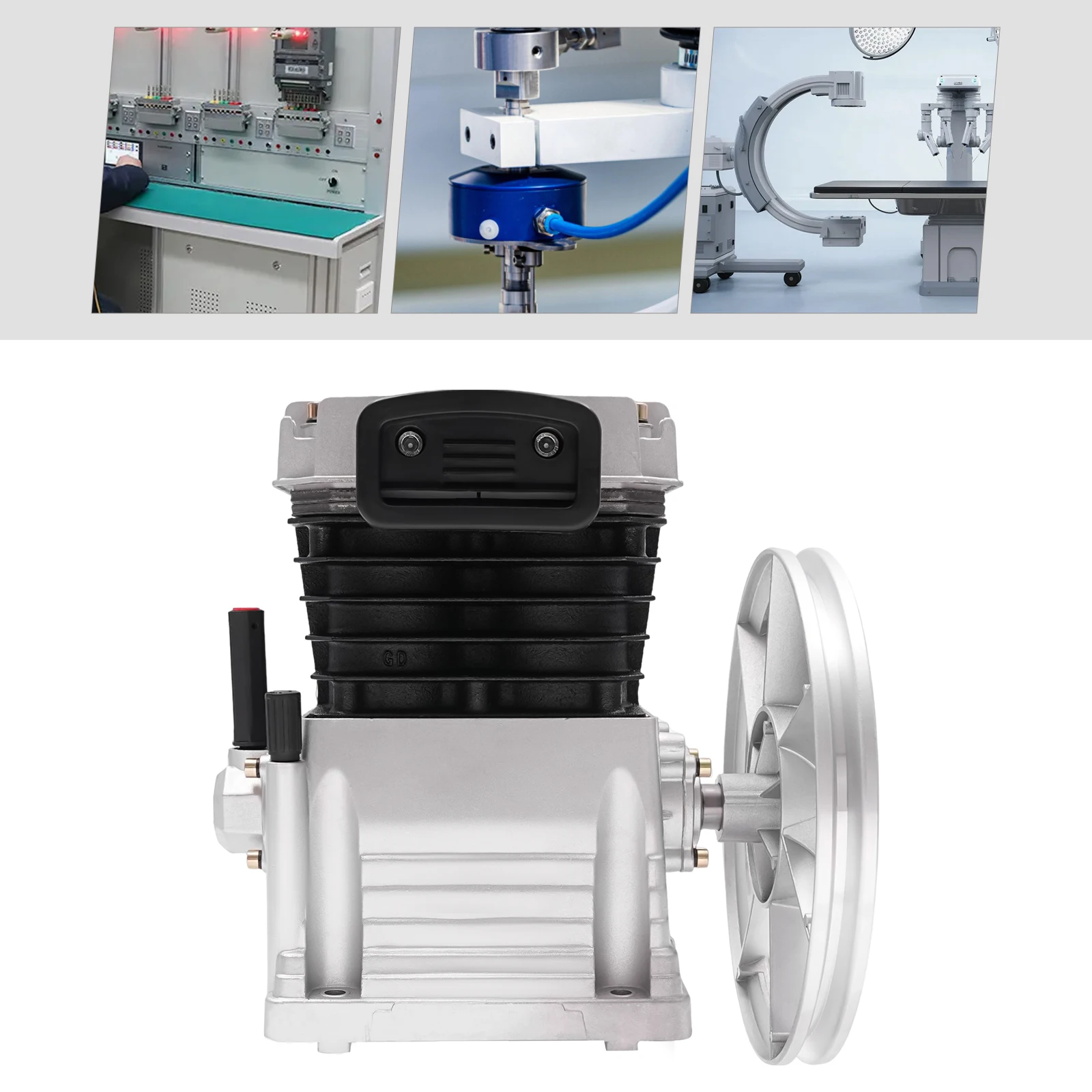

Air Compressor Head 3hp Compressor Pump Head 2 Cylinders Piston Compressor Gas Conveying Refrigeration

Specifications

Model: 2065-420L

Material: Aluminum, Iron

Surface Treatment: Spraying

Assembly Required: Yes

Style: Modern

Color: Silver, Black

Working Principle: Piston Compressor

Lubrication: Oil Lubricated Air Compressor

Compression Medium: Air

Thread: NPT 1/2

Number of Cylinders: 2

Applicable Engine Power: 3HP

Speed: 960RPM

Noise: 79dB(A)

Cylinder Diameter: 65mm/2.56in

Theoretical Air Intake: 420L/110.95Gal/Min

Effective Discharge Volume: 250L/66.04Gal/Min

Working Pressure: 8Bar

Maximum Pressure: 10Bar

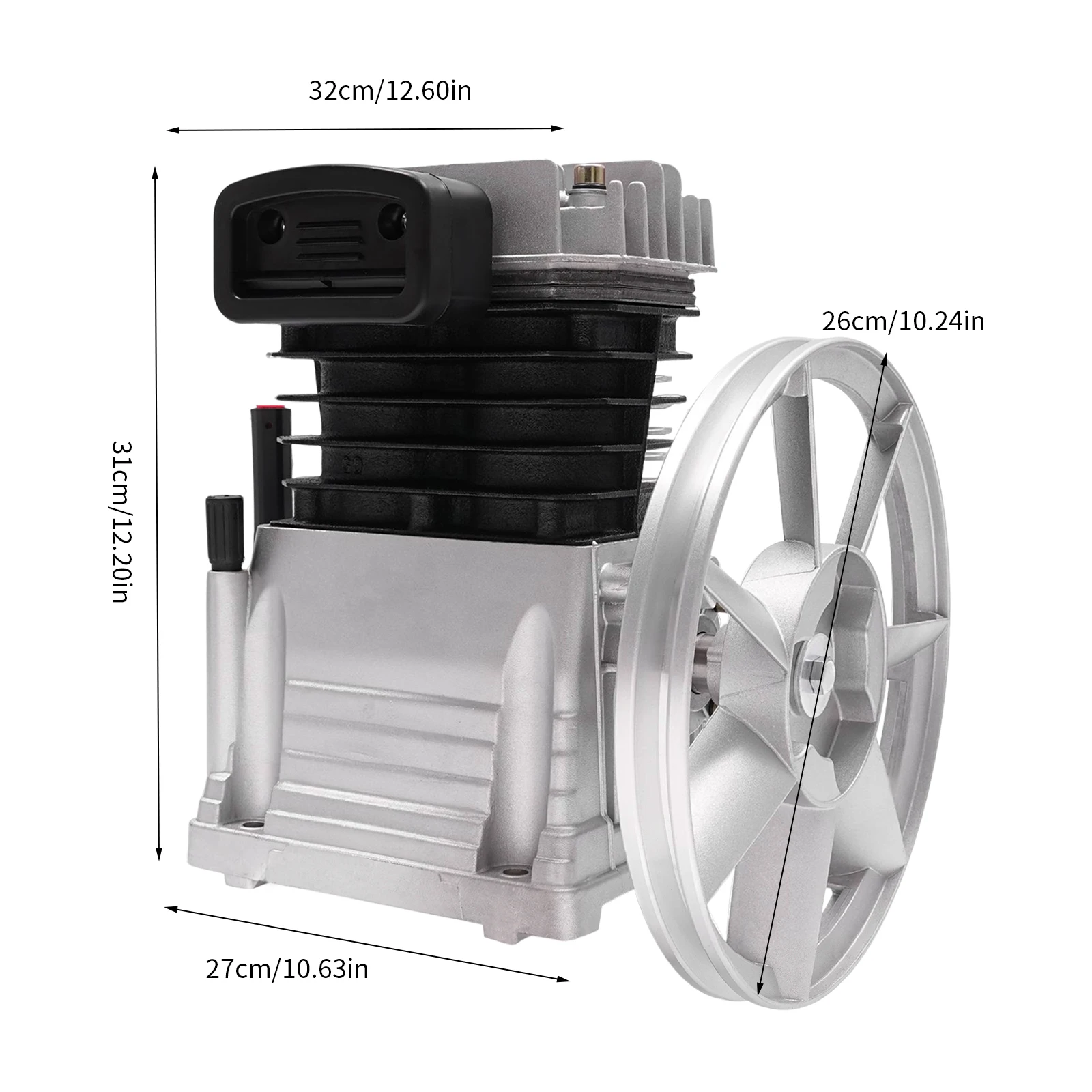

Flywheel Diameter: 26cm/10.2in

Mounting Hole Size: 13.6*14.2cm/5.35*5.59in

Product Size: 32*27*31cm/12.6*10.6*12.2inch

Gross Weight: 11kg/24.25lbs

Net Weight: 10kg/22.05lbs

Packing Size: 31*27*35cm/12.2*10.63*13.78in

Key Features

Quality and Sturdy: High-quality iron and aluminum with a paint-spraying surface treatment make this product resistant to rust, deformation, and wear, ensuring a long service life.

High Efficiency: Adopting the high-quality piston machine crankshaft connecting rod, dual cylinders, and pulley drive design, it has a maximum air intake of 110.95Gal/Min and a discharge volume of 66.04Gal/Min, which provides good compression performance and smooth running and greatly improvesthe working efficiency.

Outstanding Heat Dissipation: The built-in cooling fan and aluminum body can effectively dissipate heat and prevent the machine from being burned, thus prolonging its service life.

Suitable Size: A suitable mounting hole size (5.35*5.59in) can fit most working machines, making it adaptable. The compact size (12.6*10.6*12.2inch) will not take up too much space, making it convenient for you to store.

Low Noise: The silencer and thickened body ensure good noise reduction, providing you with a quieter working environment.

Application

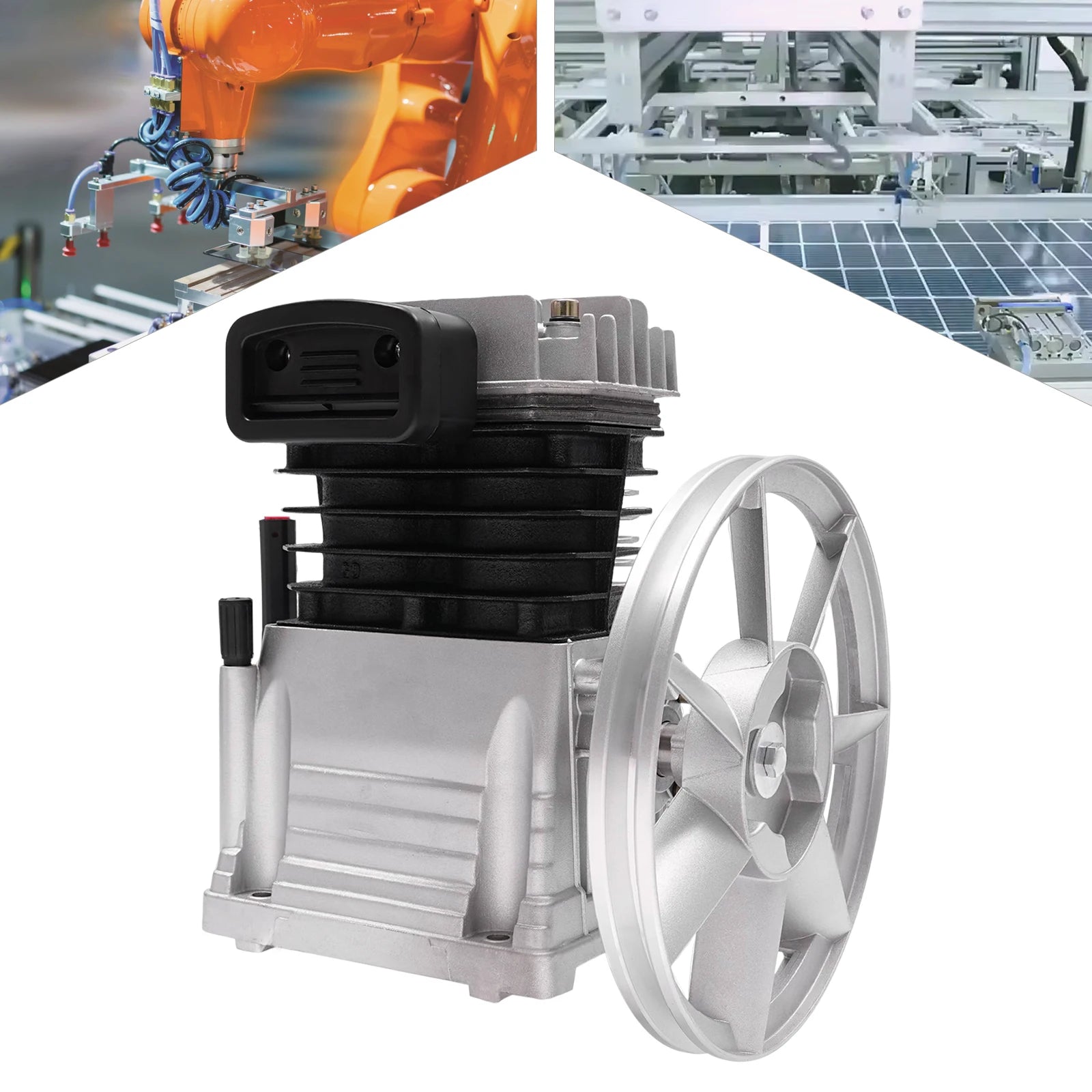

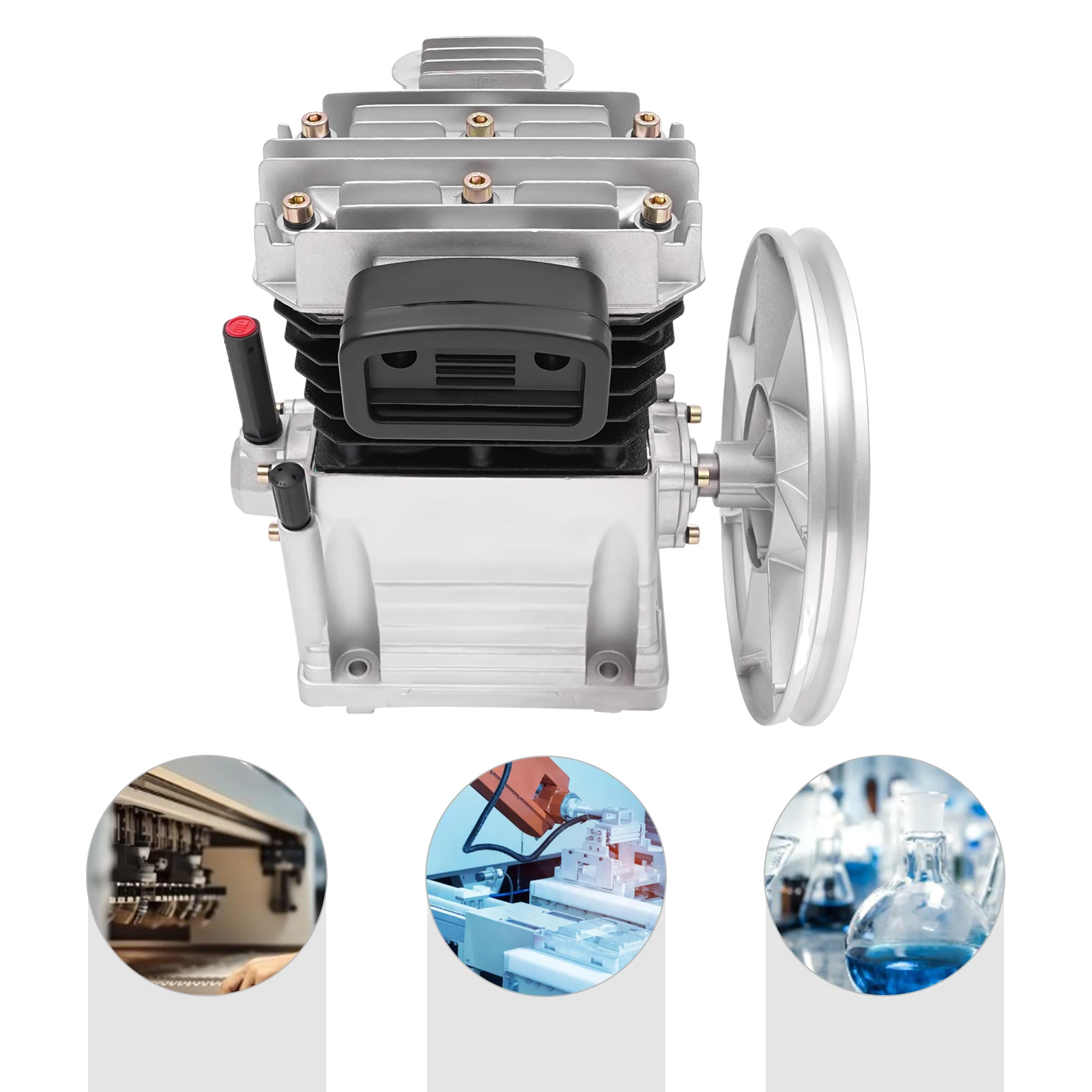

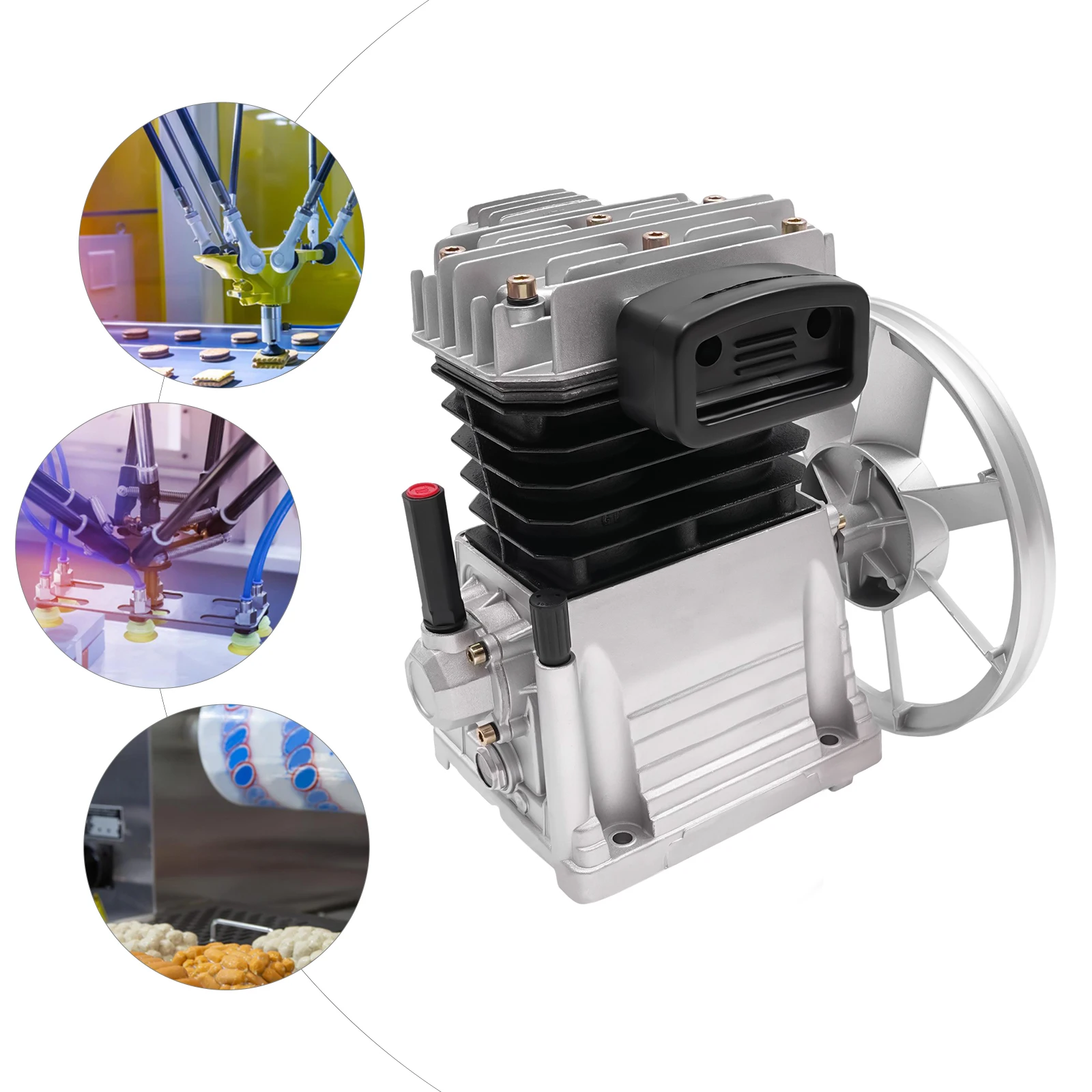

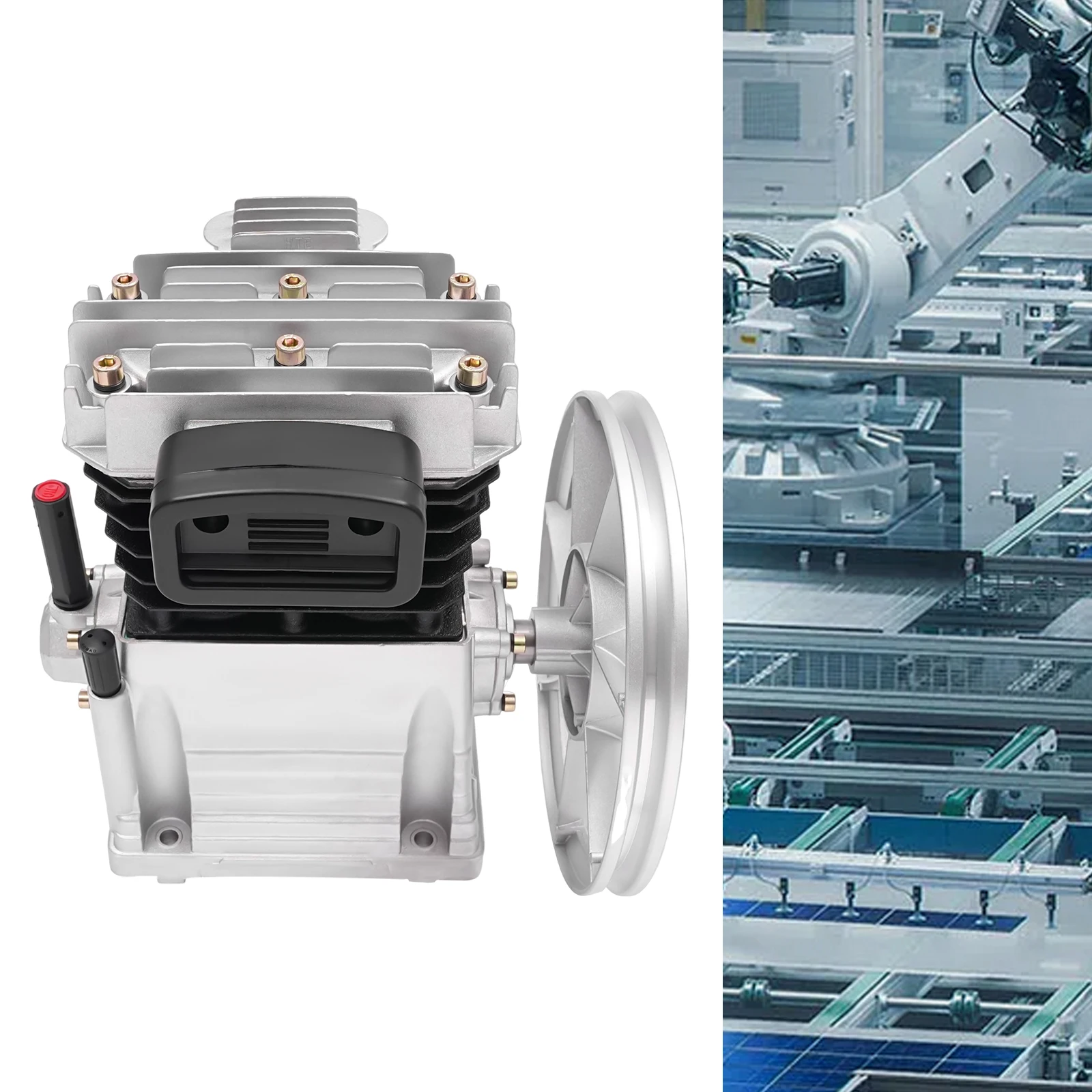

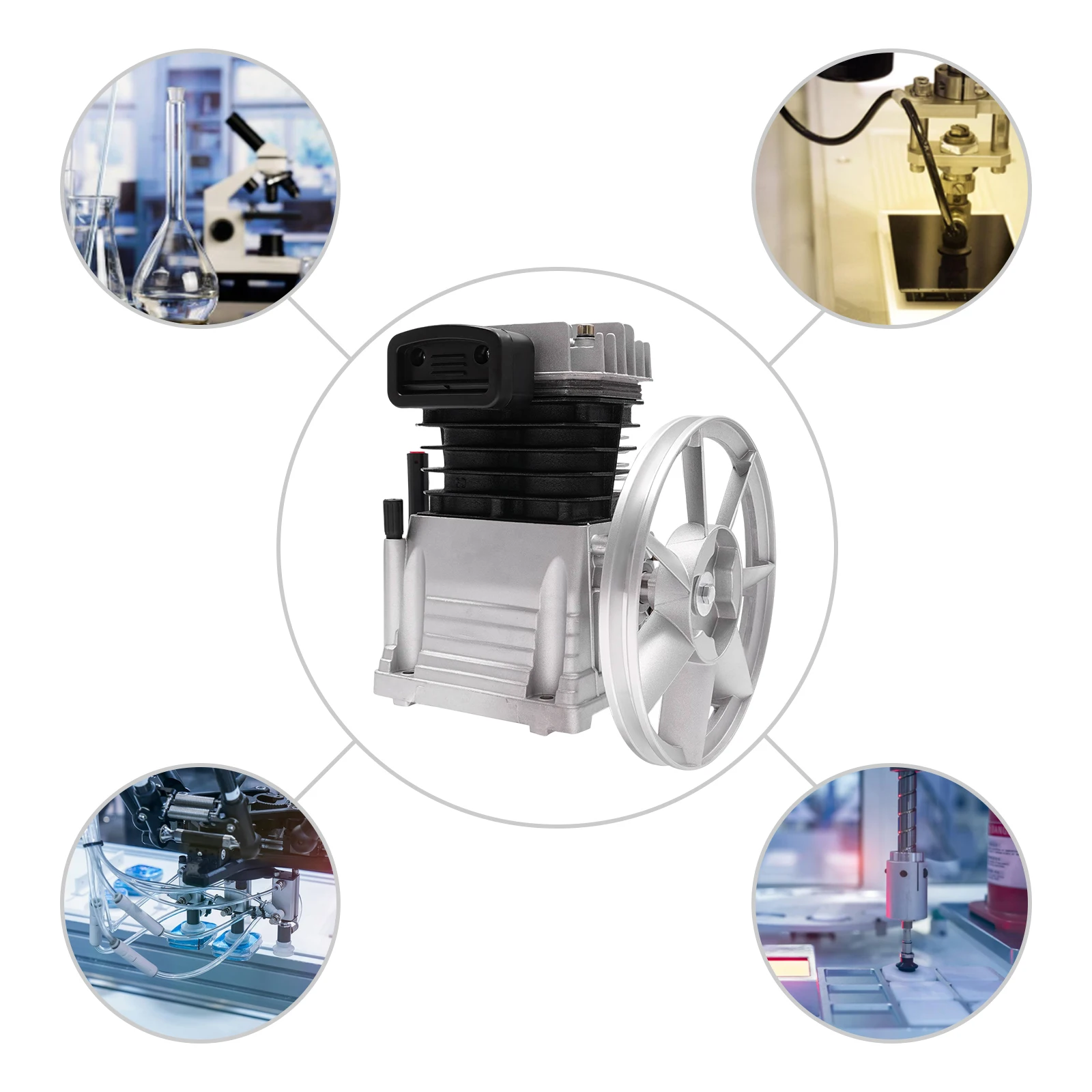

It is ideal for industries such as electronics, machinery, construction, automotive repair, interior decoration, power sources for pneumatic equipment, and repair and maintenance of equipment and factories. It is suitable for gas conveying, synthesis, refrigeration, and separation.

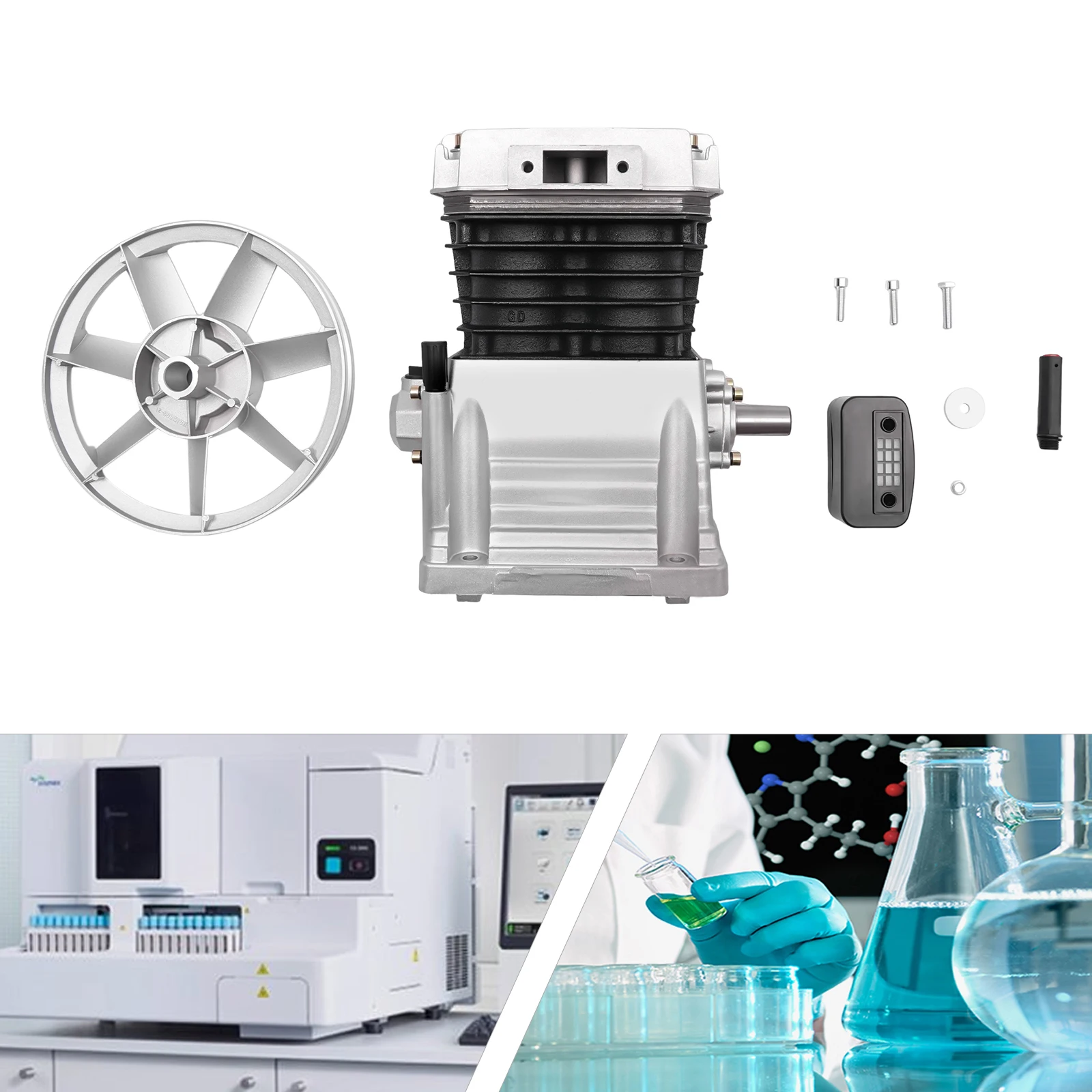

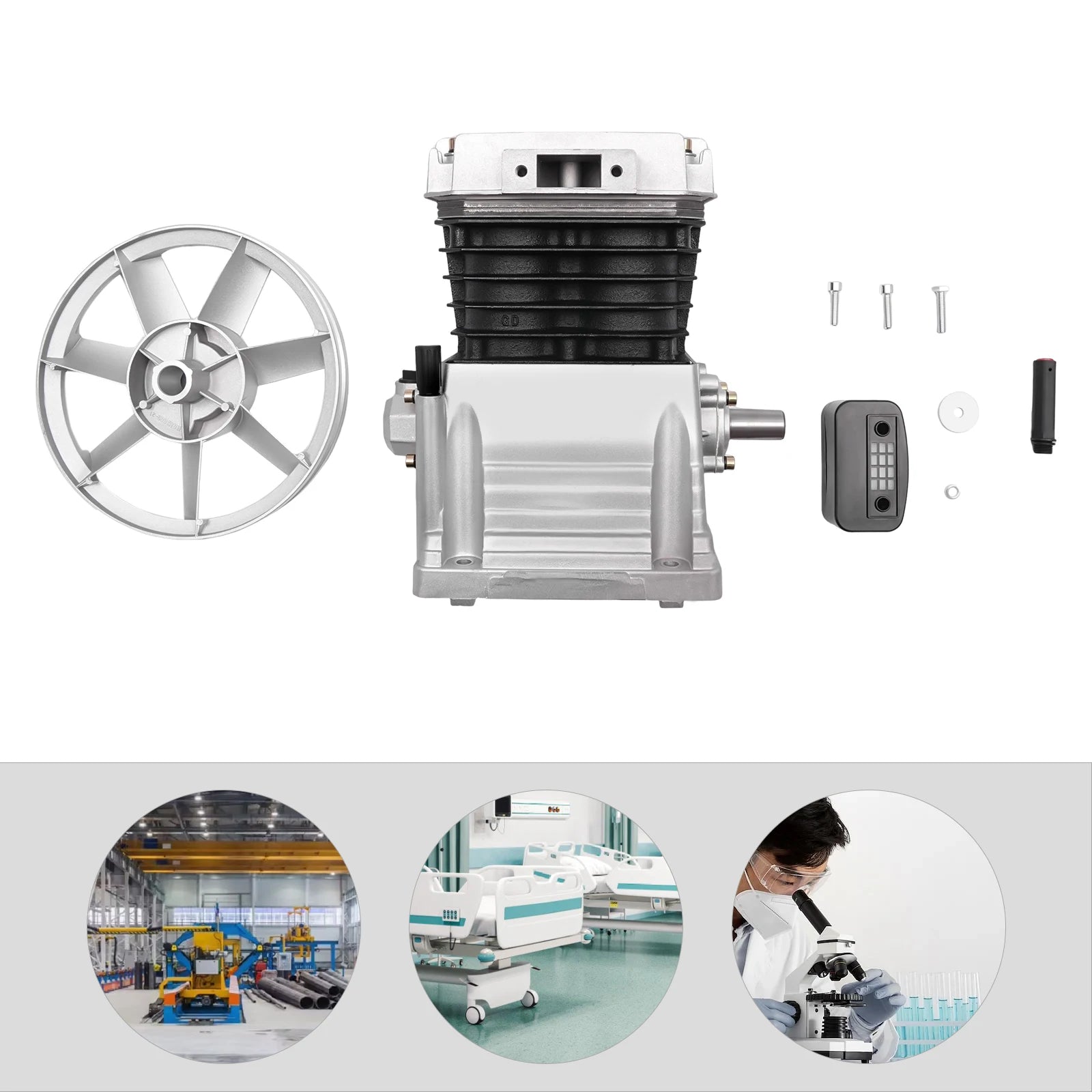

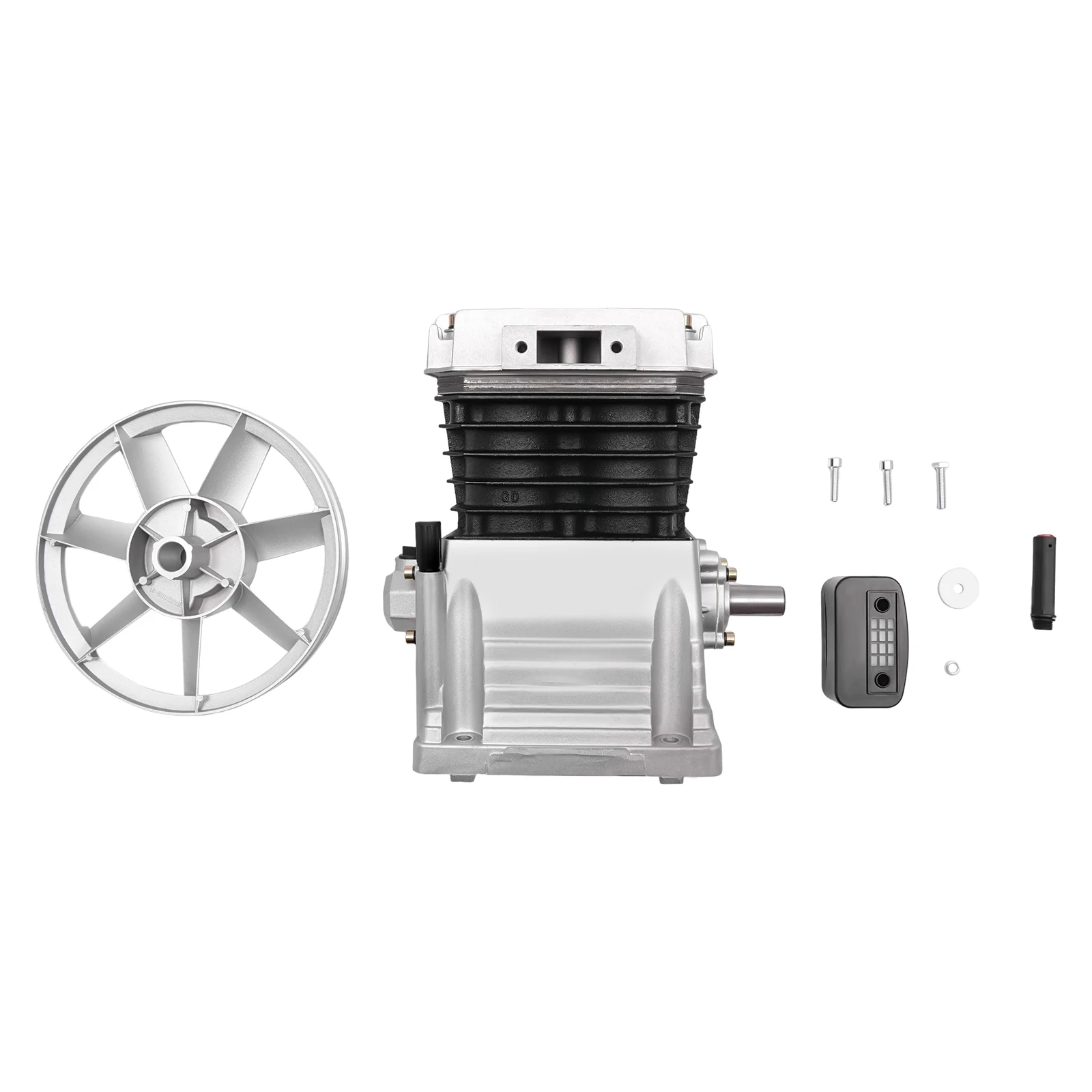

Package Included

1*Air Compressor Pump Head

1*Silencer

All Accessories for Installation

Notes

1. Please check the size carefully before ordering.

2. Please note that a belt is not included in the product.

3. Please do not use it to pump liquid, alcohol, or oil.

4. High temperatures are generated when the machine is in operation, so please do not touch it with your hands.

5. Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
