Application

It is applicable to the cabinet for placing microwave oven, disinfection bowl device, automatic bowl cleaning device, etc. It is suitable for doors weighing less than 11lbs and cabinets with a width of 600-900mm/23.62-35.43in, a height of more than 320mm/11.81in and a depth of more than 220mm/8.66in.



How to Install

1. Aim the left and right of the main body onto the left and right upper positions of the cabinet and tighten the screws.

2. Connect synchronous cudgel. Tighten the two sides with screws.

3. Assemble the fixing stand on the back of the door plank.

4. Fit the door plank onto the two holding arms

5. Adjust after assembling the three functions of the fitting stand, including namely level, vertical, and tilting.


Specifications

Material: Iron, Zinc Alloy, Plastic

Process: Painted and Electroplated

Color: Silver

Mounting Type: Door Mount

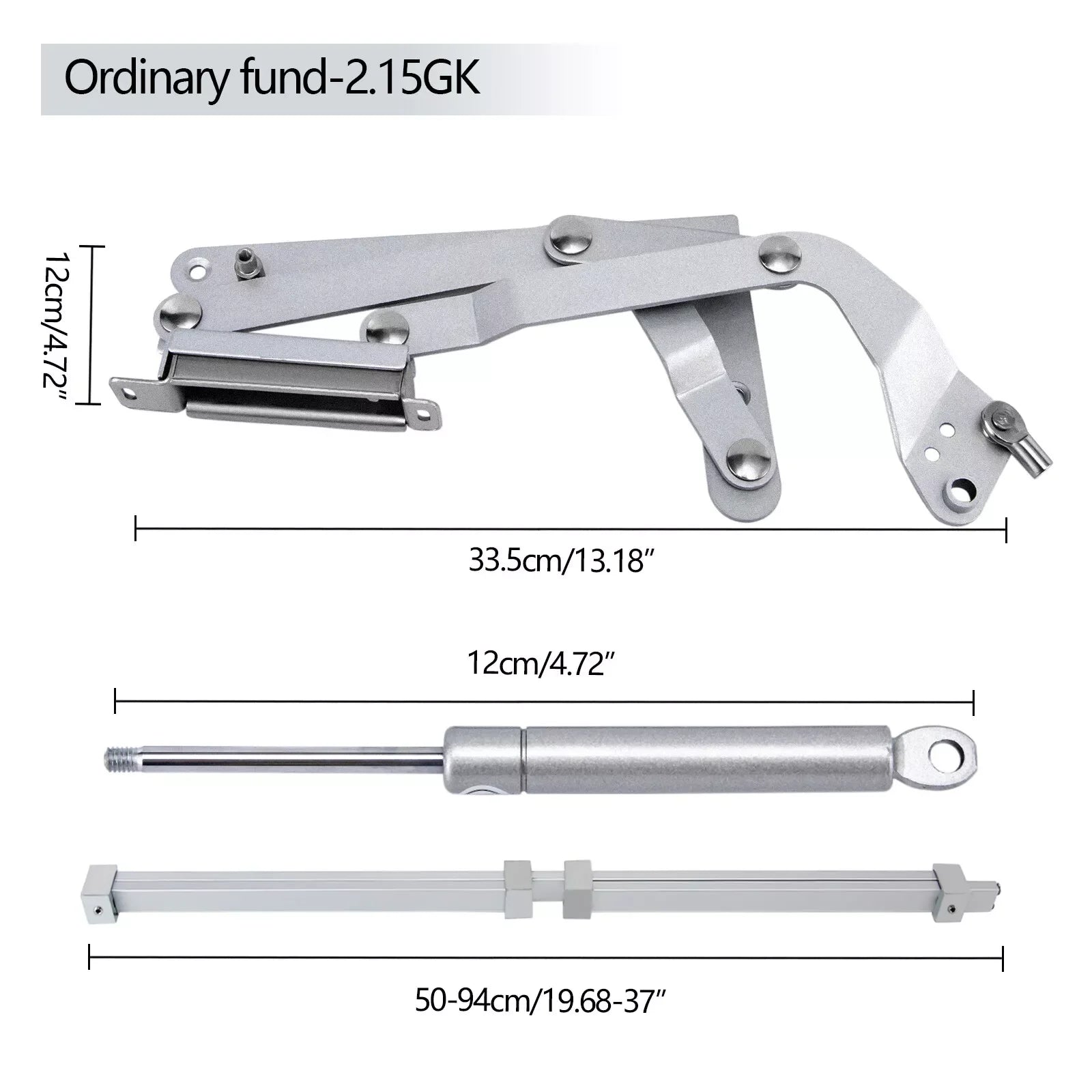

Adjustable Range: Vertical and Horizontal ±3mm/0.12in, Tilt +4mm/0.15in

Packing Size: 21.5*14.5*4.5cm/8.46*5.7*1.77in

Connection Bar Adjustable Range: 50-94cm/19.68-37in

Side Bracket Size: 33.5*12cm/13.18*4.72in

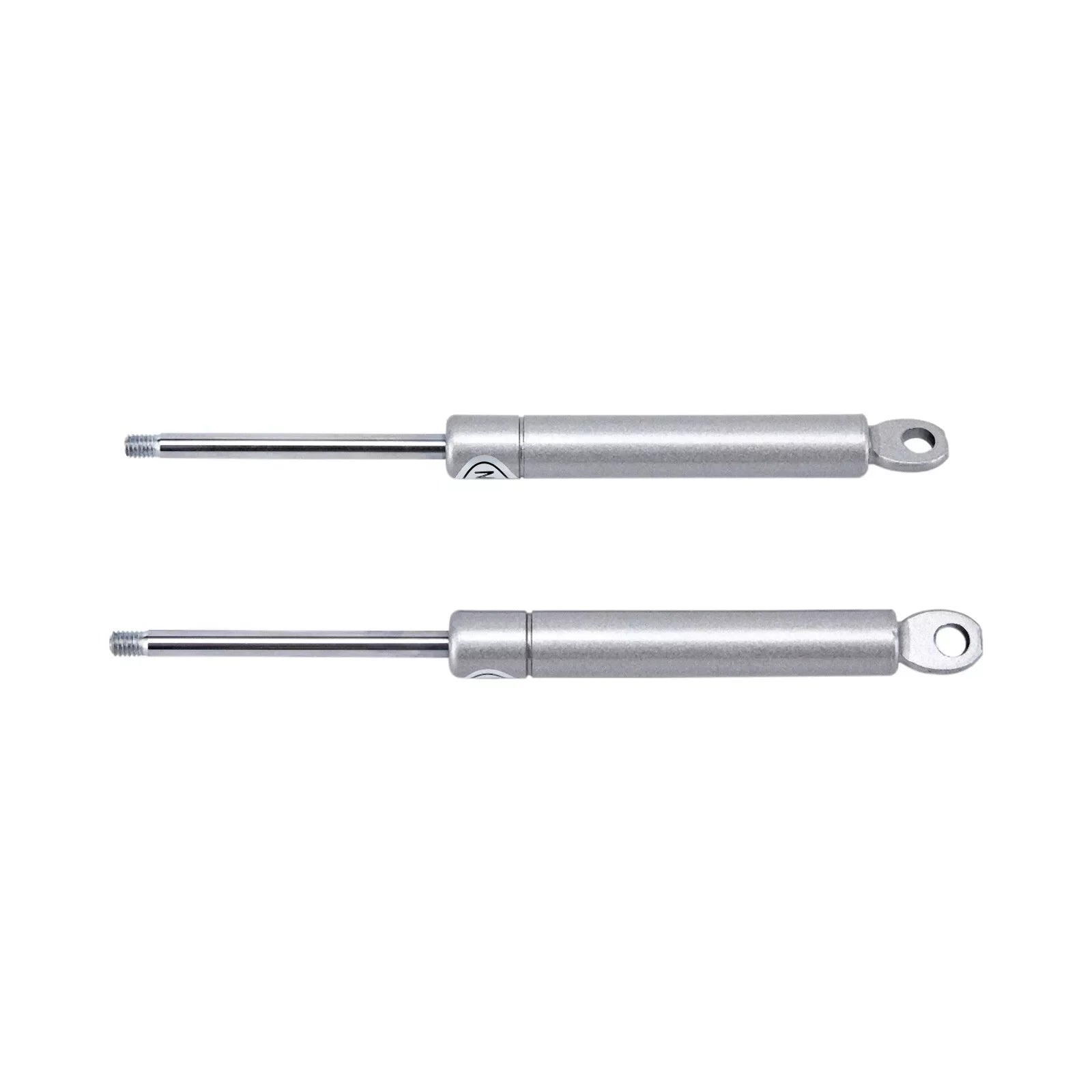

Pneumatic Arm Extendable Length: 6.5cm/2.55in

Pneumatic Arm Length: 12cm/4.72in

Gross Weight: 2.5kg/5.51lbs

Net Weight: 2.15kg/4.73lbs

Loading Capacity: 5kg/11lbs

Pneumatic Arm: 250N



Package Included

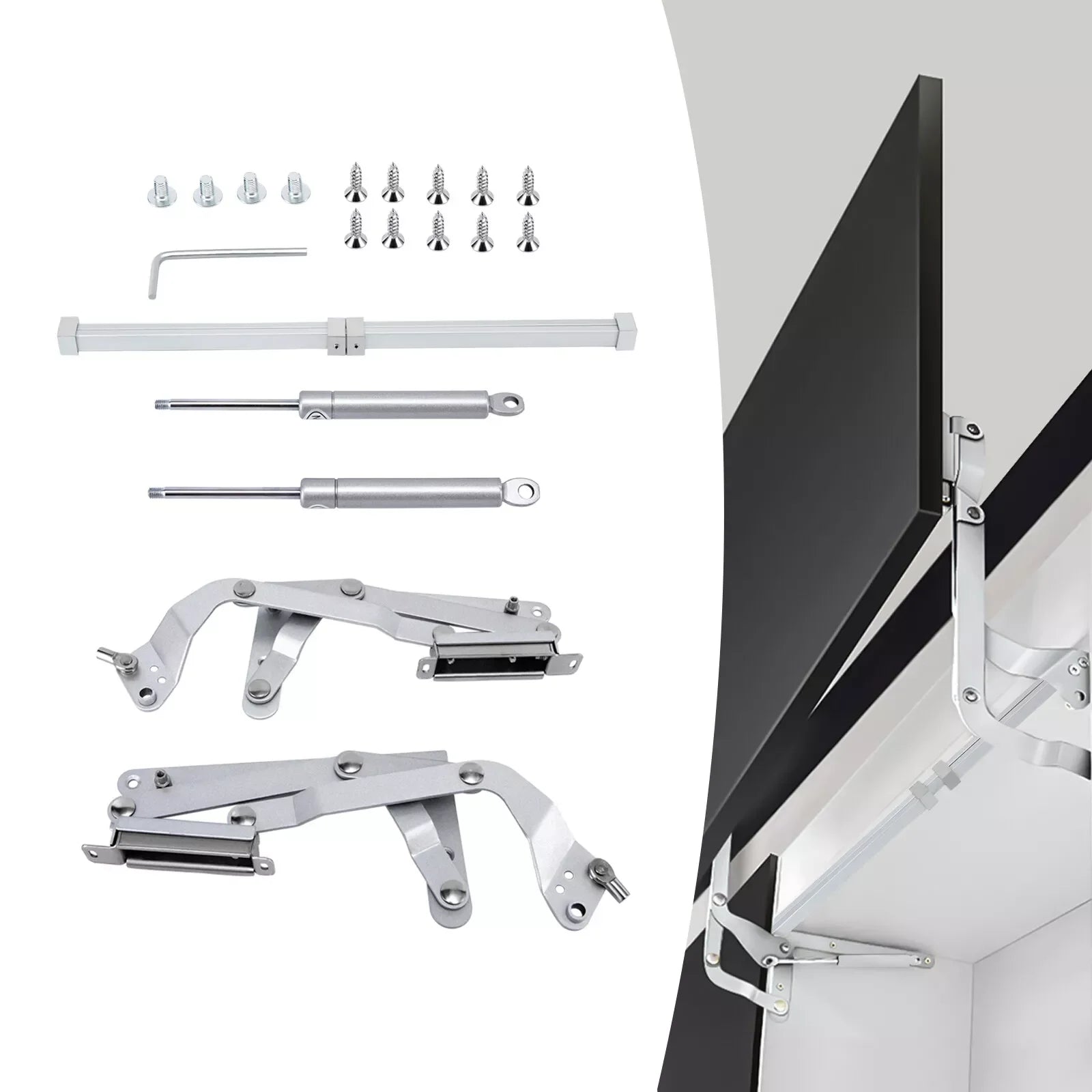

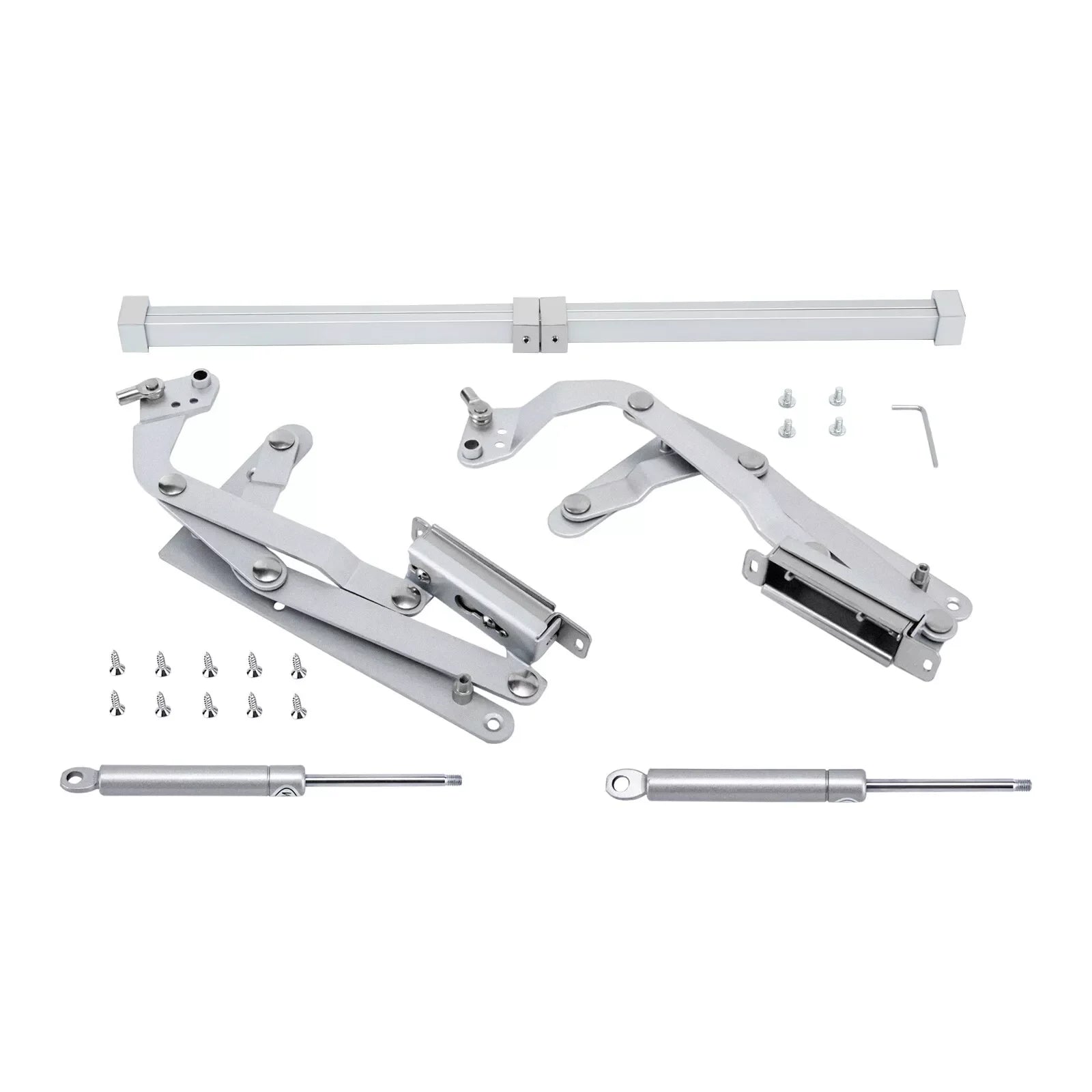

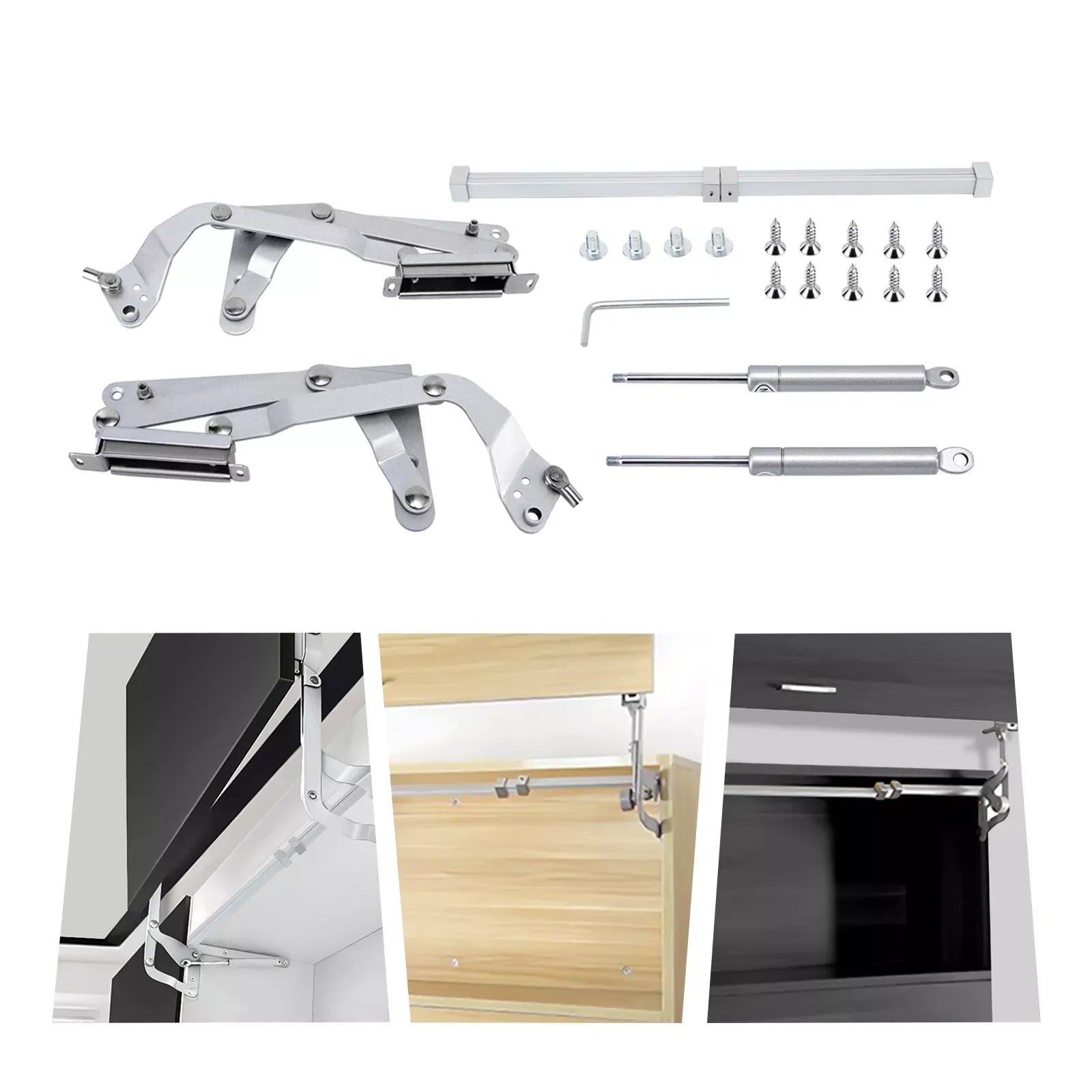

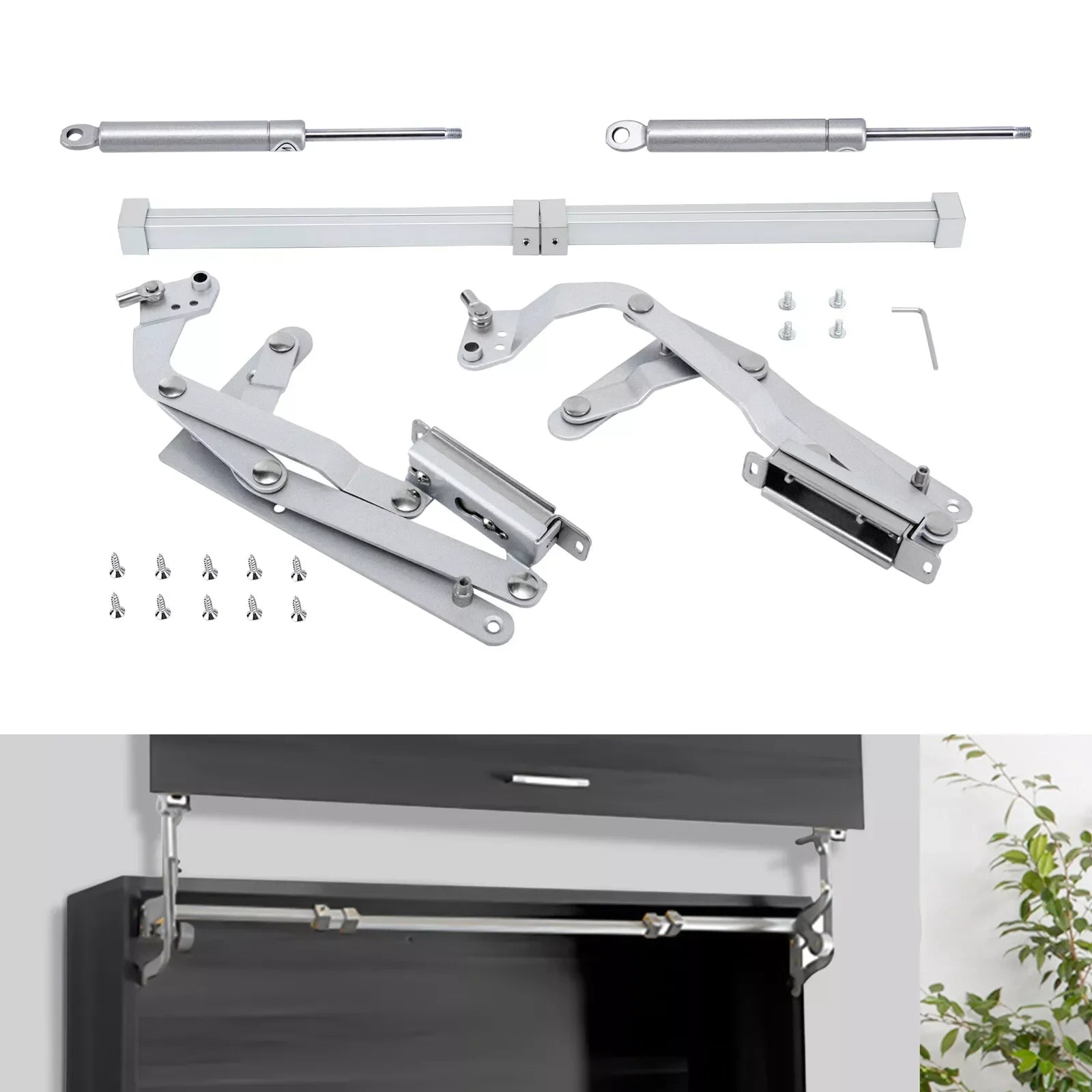

2* Side Bracket

2* Pneumatic Arm

2* Pneumatic Support Rods

1* Allen Key

All Accessories Required for Installation


Notes

Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
