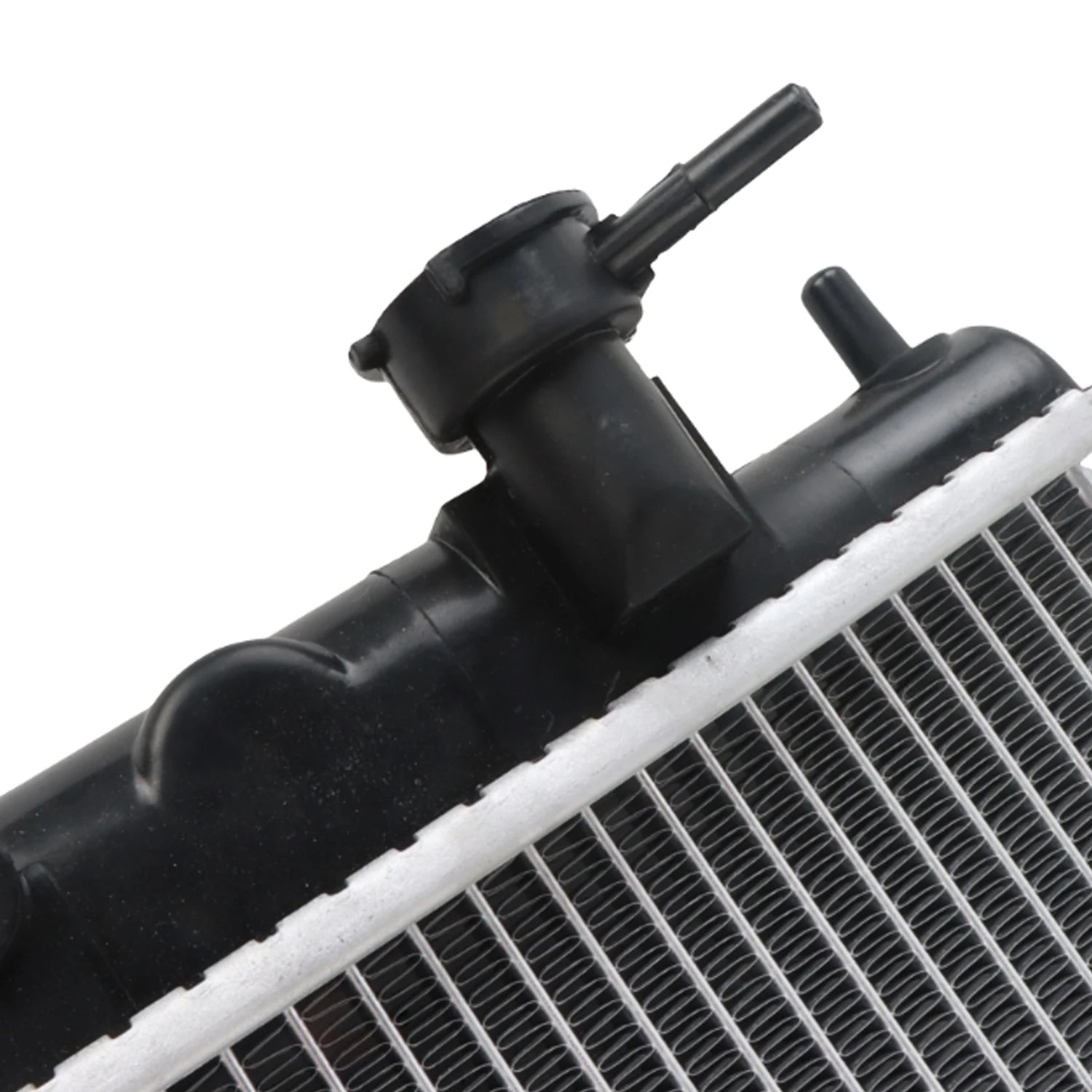

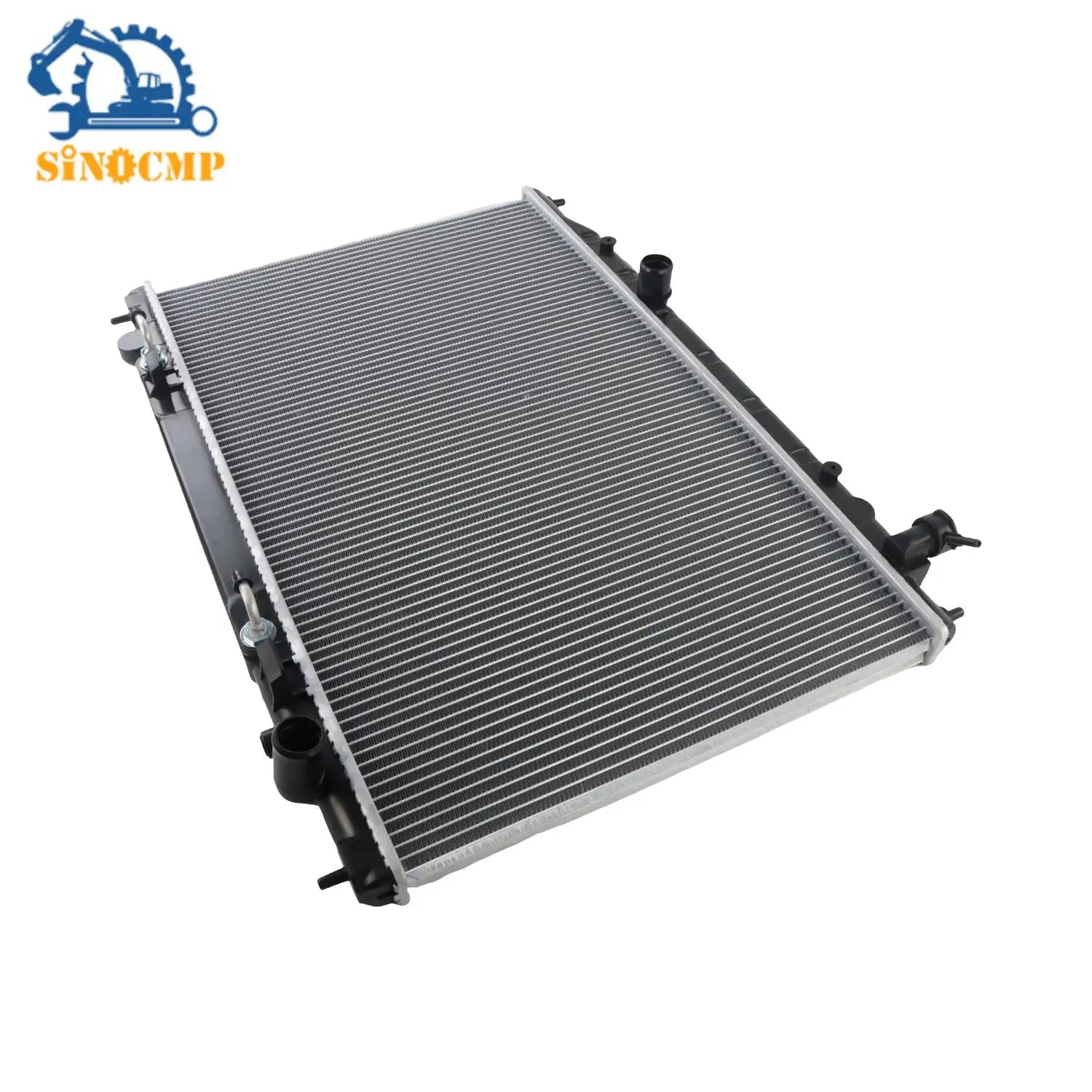

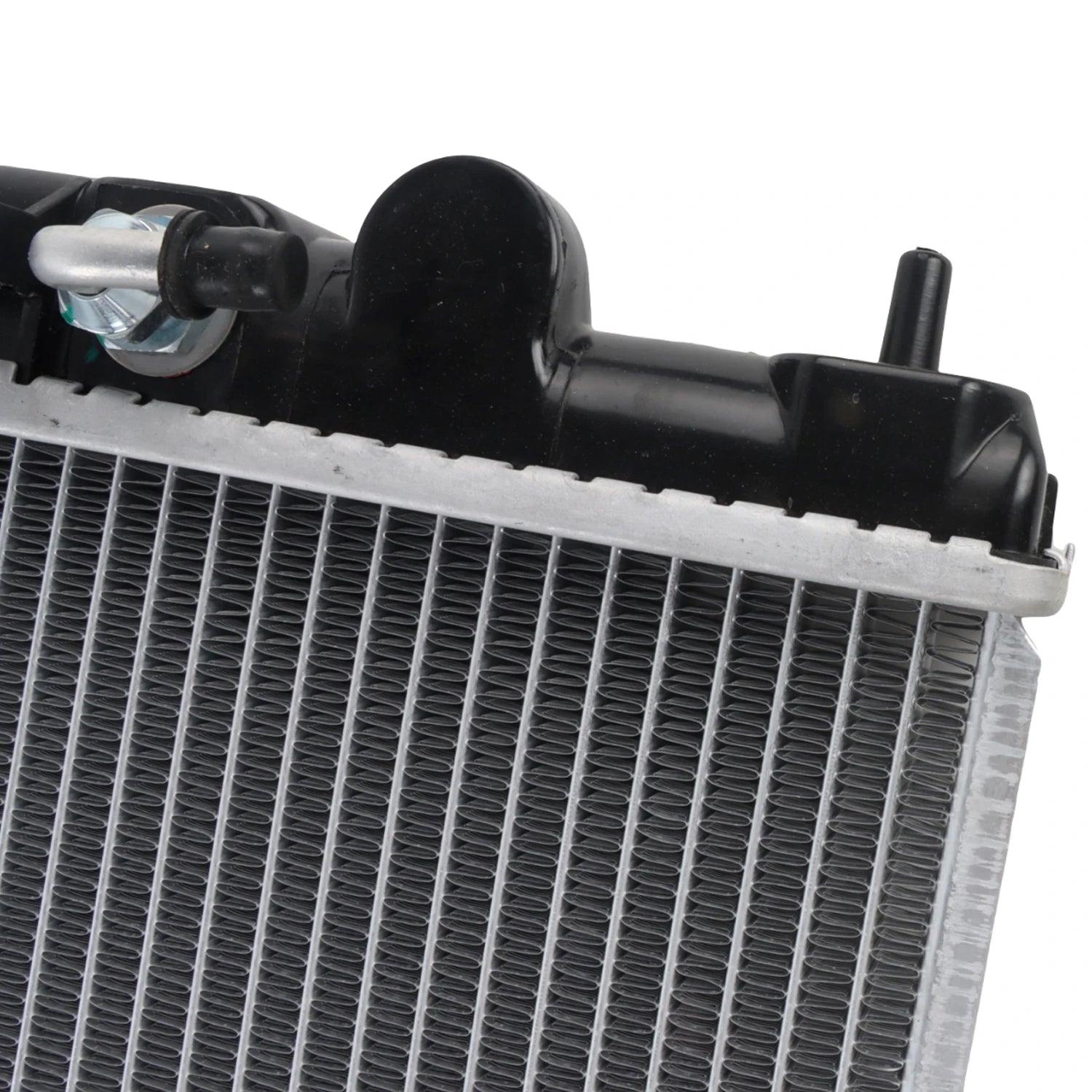

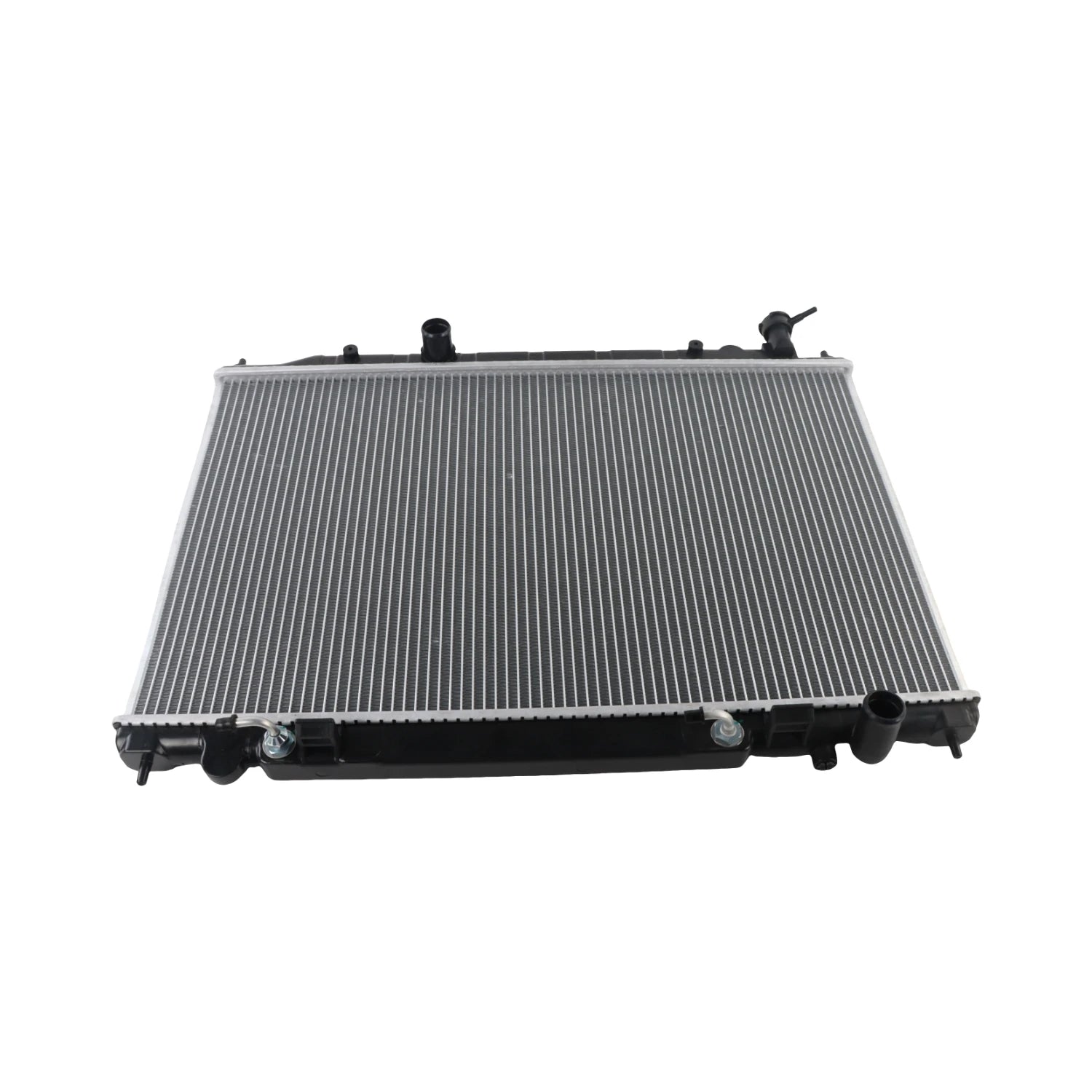

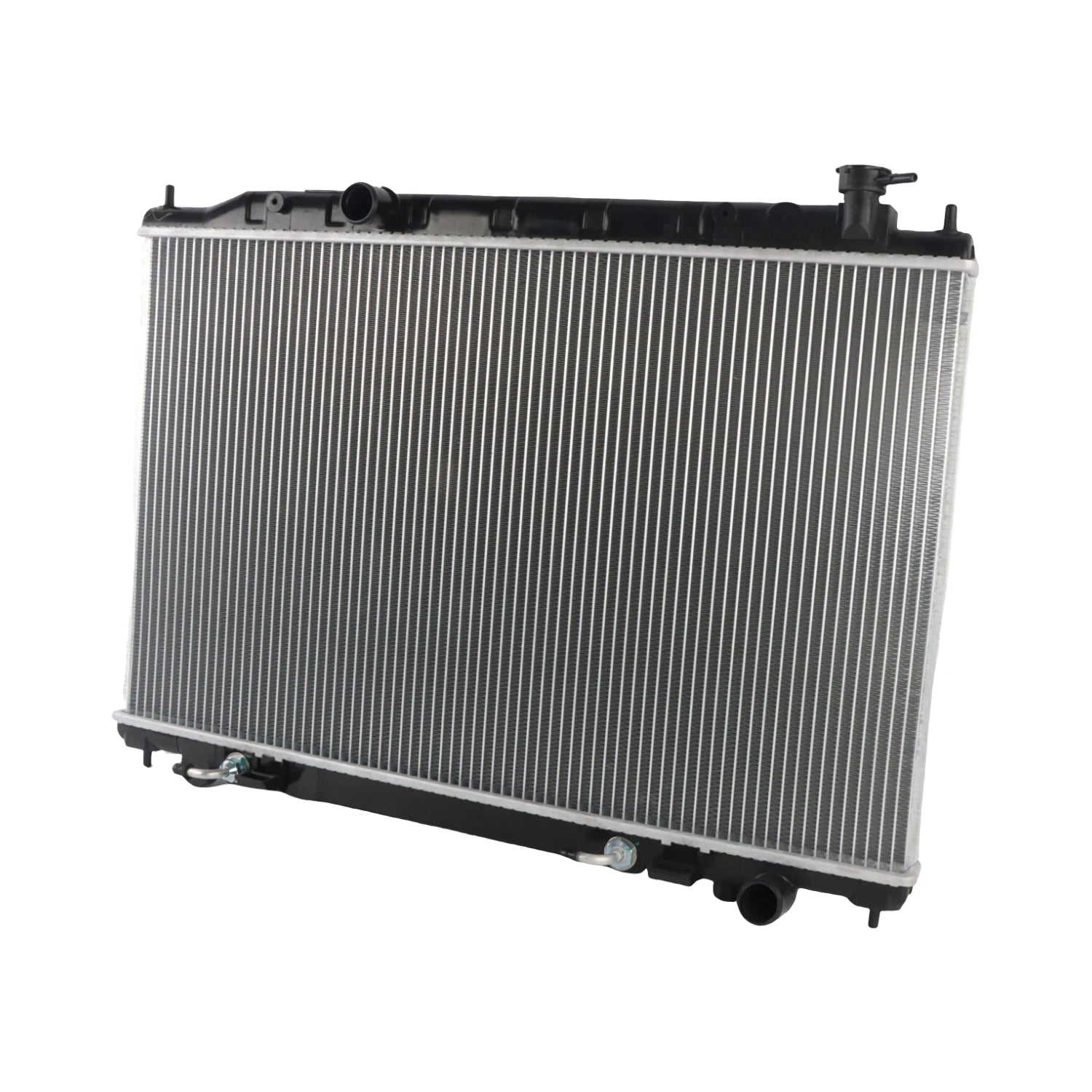

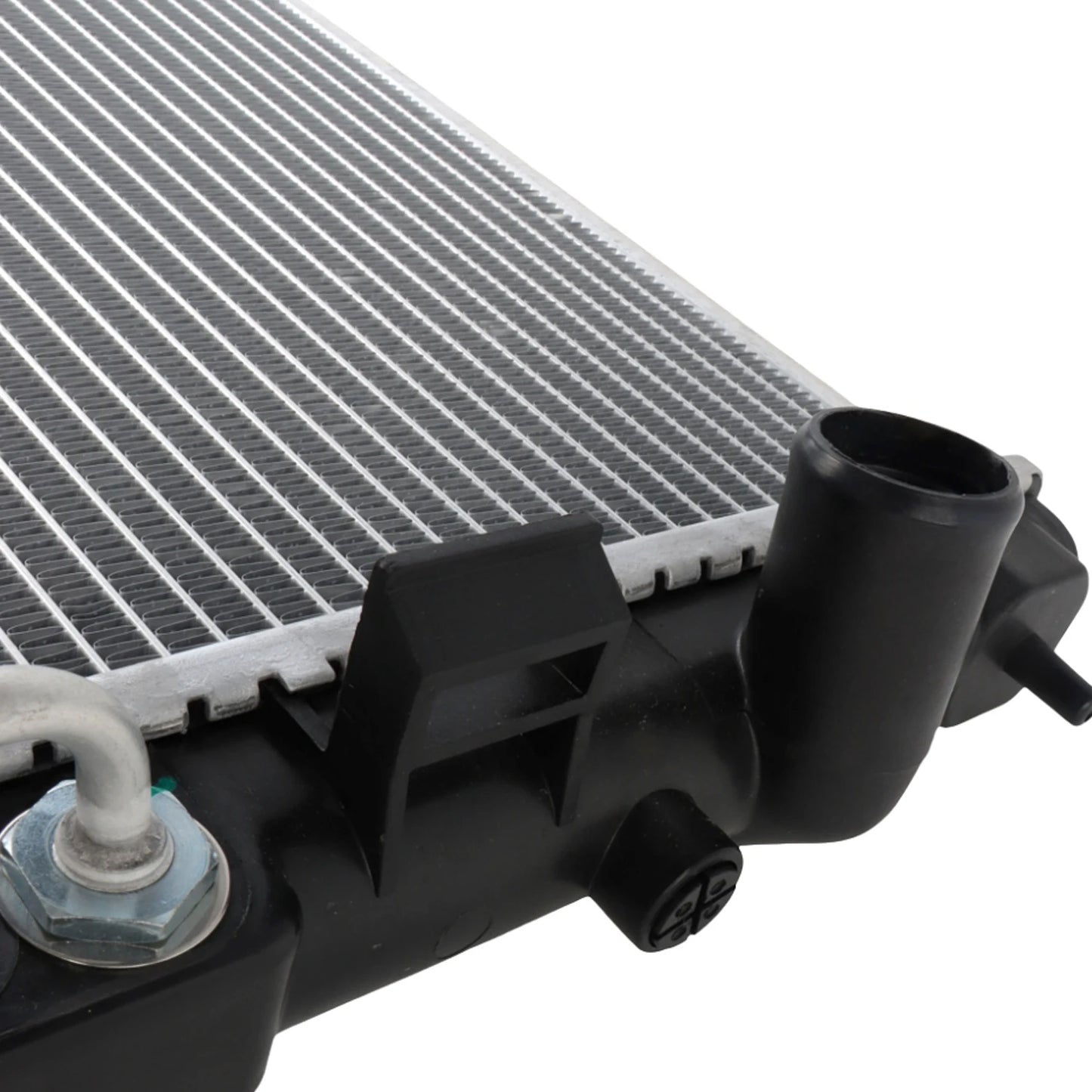

1pc Radiator For 2003-2007 Nissan Murano S SE SL 3.5L V6 CU2578

Specifications

Length(cm): 80.5, width(cm): 11.5, height(cm): 64.0

Weight(kg): 4.9

Material: Plastic Aluminium

Color: Silver

Placement on Vehicle: Front

Core Material: Aluminium

Tank Material: Plastic

Bottom Header: 1.99" x 29.94

Core Height (IN): 28.66

Core Length (IN): 17.72

Core Thickness (IN): 1.02

Inlet Diameter (IN): 1.38

Outlet Diameter (IN): 1.38

Top Header: 1.99" x 29.94

Interchange Part Numbers

CU2578.2578V

TYC2578

RAD2578

DPI2578

21460CC00A

NI3010193

Fitment

For 2005-2007  Nissan  Murano  S    3.5L    V6
For 2003-2007  Nissan  Murano  SE   3.5L    V6
For 2003-2007  Nissan  Murano  SL   3.5L    V6

Features

Built to strict quality control standards 100% factory tested

ISO9001
IATF 16949
EAC

Easy Installation，100% Compatible with OEM Parts, meets Original Equipment Manufacturer (OEM) Standards

Mechanically tested prior to leaving the factory ensures optimal performance and enhanced durability.

Perfect match for the original car.

The Core was made from high quality Aluminum.Effective heat dissipation.

Good sealing.

Direct Replacement, easy to be installed

Attention

1. The radiator cap that has not passed the test can’t release the pressure when it reaches the pressure value.
2. The damaged thermostat is unable to carry out a large cycle, resulting in a continuous increase in the radiator pressure.
3. The radiator fan does not turn, resulting in high temperature in the water tank.
4. Drain the air from the cooling system. Refer to the user manual or repair manual.
5. Please refer to owner's manual to add coolant.
6. Do not open the hood until the steam has subsided. The engine compartment may be very hot, causing serious injuries such as burns.
7. Please stop the vehicle immediately, when “ENGINE OVERHEAT/High Temperature” shows on the dashboard or steam comes out from under the hood.
8. Keep hands and clothing (especially a tie, a scarf) away from the fans and belts. Failure to do so may cause the hands or clothing to be caught, resulting in serious injuries.
9. Do not loosen the radiator cap while the engine and radiator are hot. Serious injuries, such as burns, may result from hot coolant and steam released under pressure.

Note

1.It will be better if you can check with that above chart to make sure if this radiator will fit your vehicle.
2. The radiator cap that has not passed the test can't release the pressure when it reach the pressure value.
3. The damaged thermostat is unable to carry out a large cycle, resulting in a continuous increase in the radiator pressure.
4. The radiator fan does nont turm, resulting in highh temperature in the water tank.
5. After loading the product on your vehicle  and adding the coolant, tighten the rotary cover and leave your vehicle idling for 10-20 minutes. After completely cooling the coolant, open the cover and fill the product with coolant. Please make sure there is no gas in the product.
6. Before you start up your vehicle, please make sure there is coolant in the radiator.
