SPECIFICATIONS

Brand Name: NoEnName_Null

Hign-concerned Chemical: None

Origin: Mainland China

Type: Other

Description

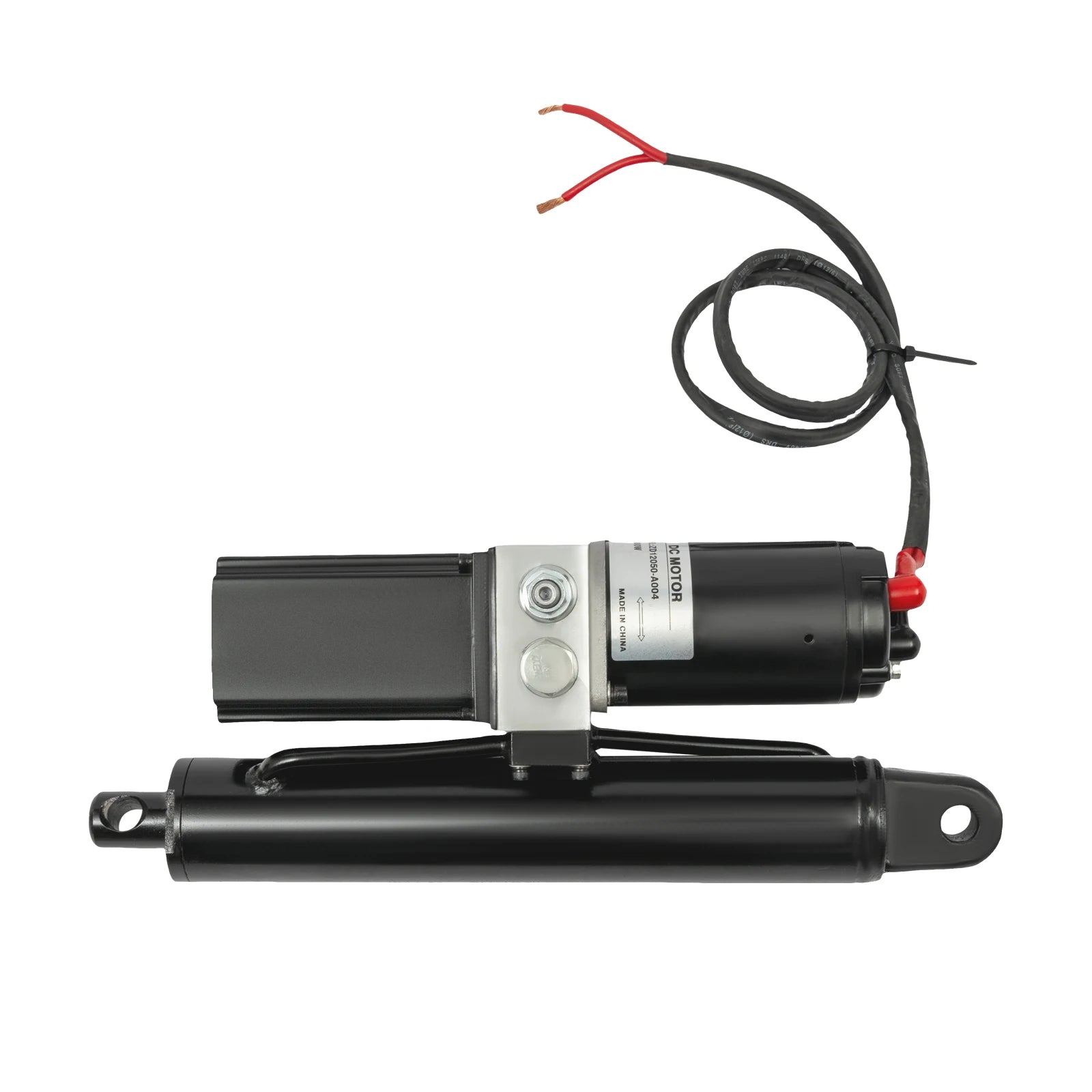

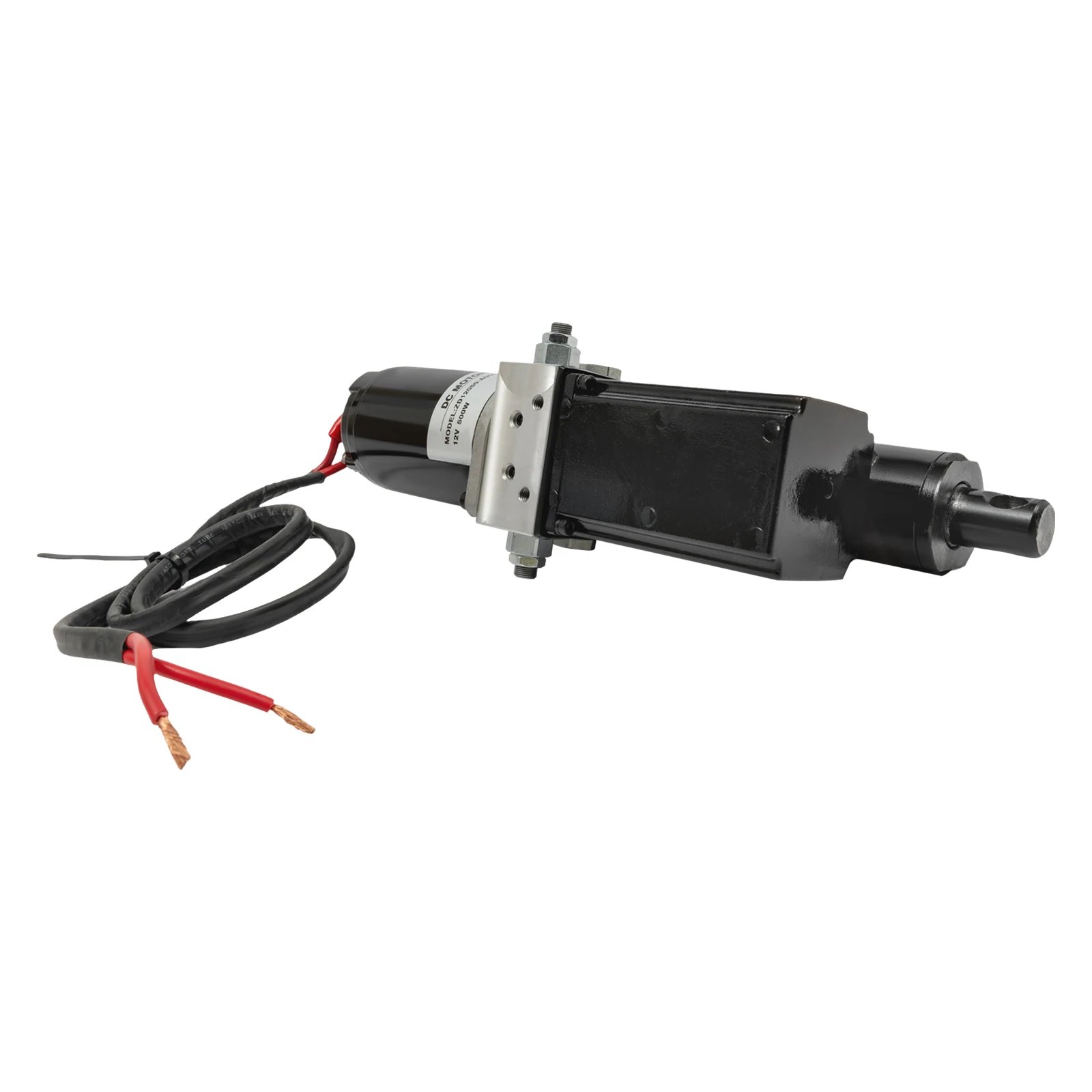

The electro-hydraulic actuator stands as an effective tool of engineering, harmoniously fusing electrical promptness with hydraulic accuracy. It serves as the conductive force behind intricate automation and heavy machinery, where nuanced force application and meticulous control are vital. This actuator operates akin to a conductor's wand, orchestrating complex mechanical maneuvers with exceptional finesse.

Key Features

Stable and Durable: The high-quality finishing steel and copper make this product have excellent performance, along with an IP55 waterproof level, it does not easily absorb dust and water and does not easily rust even under a harsh working environment.

Efficient Working:It has a powerful motor with 2850rpm speed, a loading speed of 0.98 in/s, and a maximum load capacity of up to 2T, which can meet your different needs and help you save a lot of effort.

Strong Power: It takes the electric motor as the power source, outputs the pressure oil through the bidirectional gear pump, and controls it to the oil cylinder through the oil circuit integration block to realize the reciprocating motion of the piston rod.

Overload Protection: It has overload protection ability, and can be started with load without damaging the motor and machine parts.

Convenient Speed Regulation: It supports push and pull wireless speed regulation, with a wide range of driving forces to the speed requirements of different applications.

Smooth Running: This product adopts full hydraulic transmission, which has sensitive action and smooth running, and can effectively buffer the external impact force.

Two-way Self-locking Function: In the oil circuit integration block of the electro-hydraulic actuator, a pressure self-locking mechanism is designed so that when the motor stops, the piston rod can self-lock at a certain position in a pressure-retaining state.

Easy Maintenance: Compared with purely mechanical or large hydraulic systems, this product has a relatively simple structure, compact size, and good sealing, and routine maintenance and troubleshooting are relatively easy.

Customer Service:We stand behind all our guests and look forward to assisting you with your purchase. It is our pleasure to answer your confusion and questions. The end of the story between us is not "we sell and you buy".

Details

Reinforcement Screws: It is designed with multiple screws for reinforcement to ensure the stability and long life of this product.

Smooth Edges: The smooth and round edges can better care for your hands when installing and cleaning it.

Application

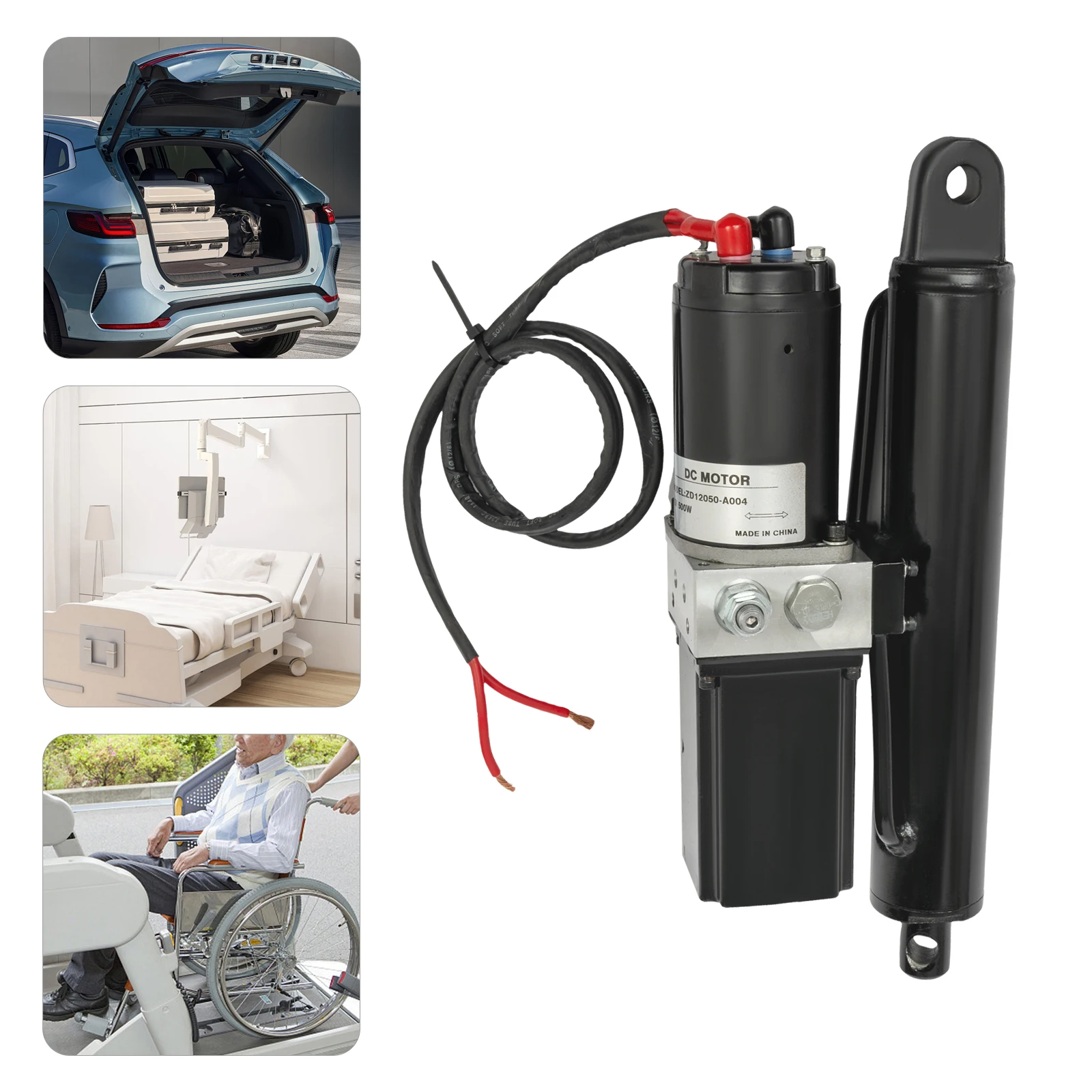

It is used in electric power, machinery, metallurgy, mining, petroleum, chemical industry, transportation, lifting, construction, food and feed processing, dump trailers, lifting platforms, solar tracking systems, wheelchair lifts, and other fields.

Specification

Color: Black

Material: Steel, Copper

Process: Finishing

Voltage: DC12V

Power: 500W

Speed: 2850rpm

Displacement: 0.65cc

Loading Speed: 25mm/0.98in/s

Max. Thrust in Straight Direction: 2T/4409 lbs

Support Force: 2T/4409 lbs

Max. Load Capacity: 2T/4409 lbs

Cylinder Stroke: 200mm/7.87in

Cylinder Diameter: 50mm/1.97in

Center Distance between Two Holes: 38.5cm/15.16in

Rod Diameter: 28mm/1.1in

Bore Diameter: 16mm/0.63in

Use Frequency: 3Min Work, 3Min Intermittent

Waterproof Rating: IP55

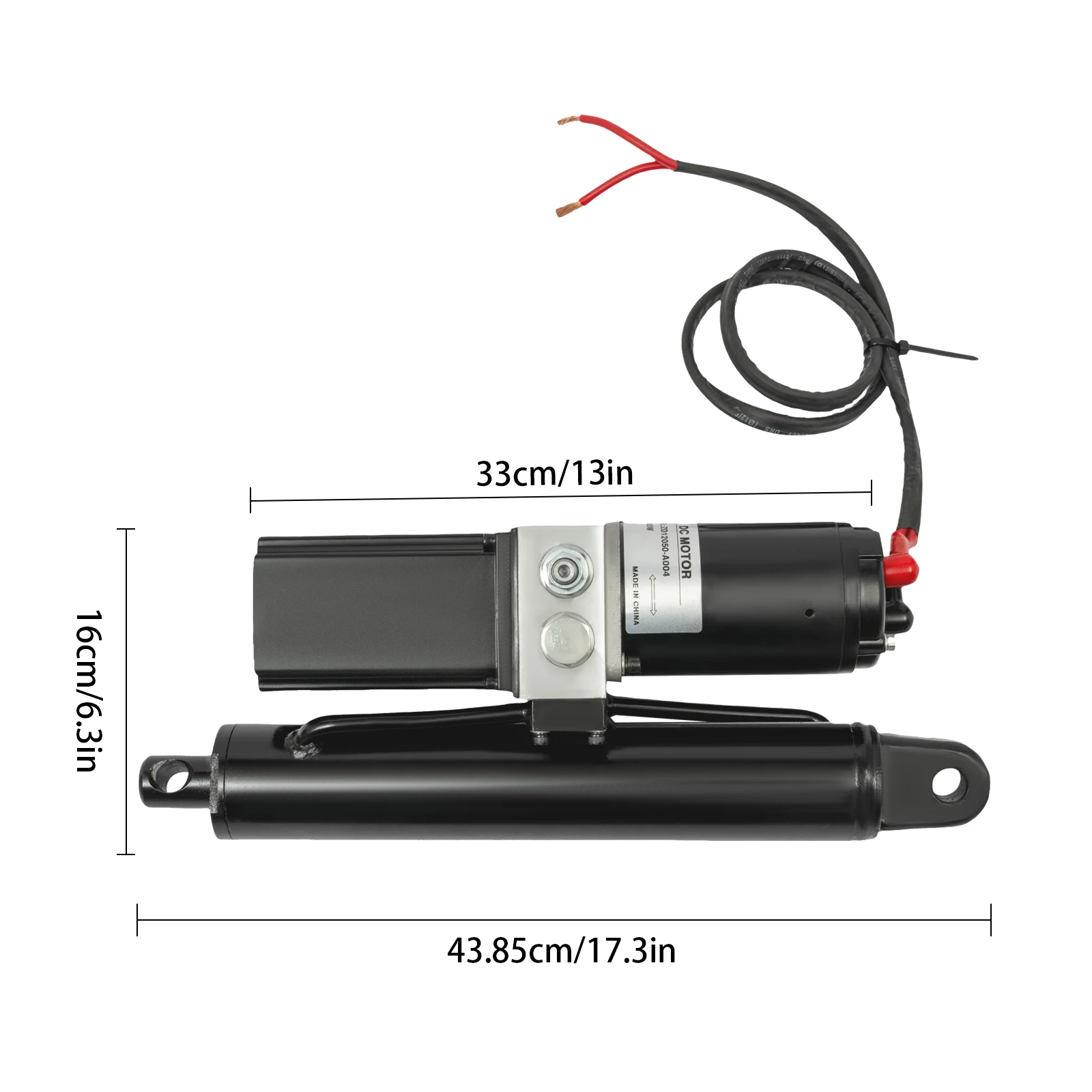

Product Width: 16cm/6.3in

Retracted Length: 43.85cm/17.26in

Extended Length: 63.85cm/25.14in

Package Size: 60*20*13cm/23.62*7.87*5.12in

Gross Weight: 15kg/33.07lbs

Net Weight: 12kg/26.46lbs

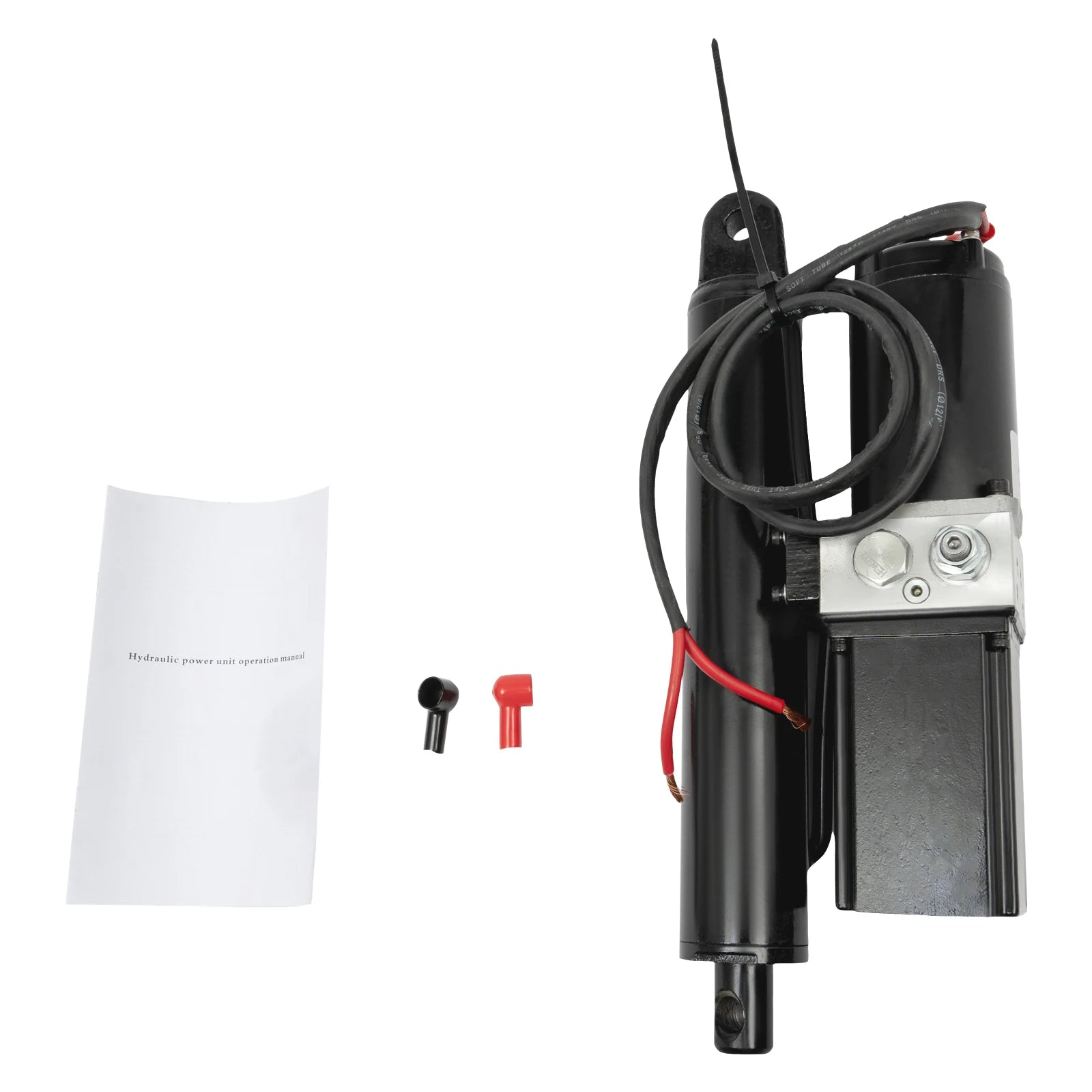

Package Included

1* Electro-hydraulic Actuator

1* English Manual

All Accessories for Use

Notes

1. Please check the specifications before purchasing.

2. Please read the instruction manual completely before installation and use, and pay particular attention to the safety instructions included.

       3. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
