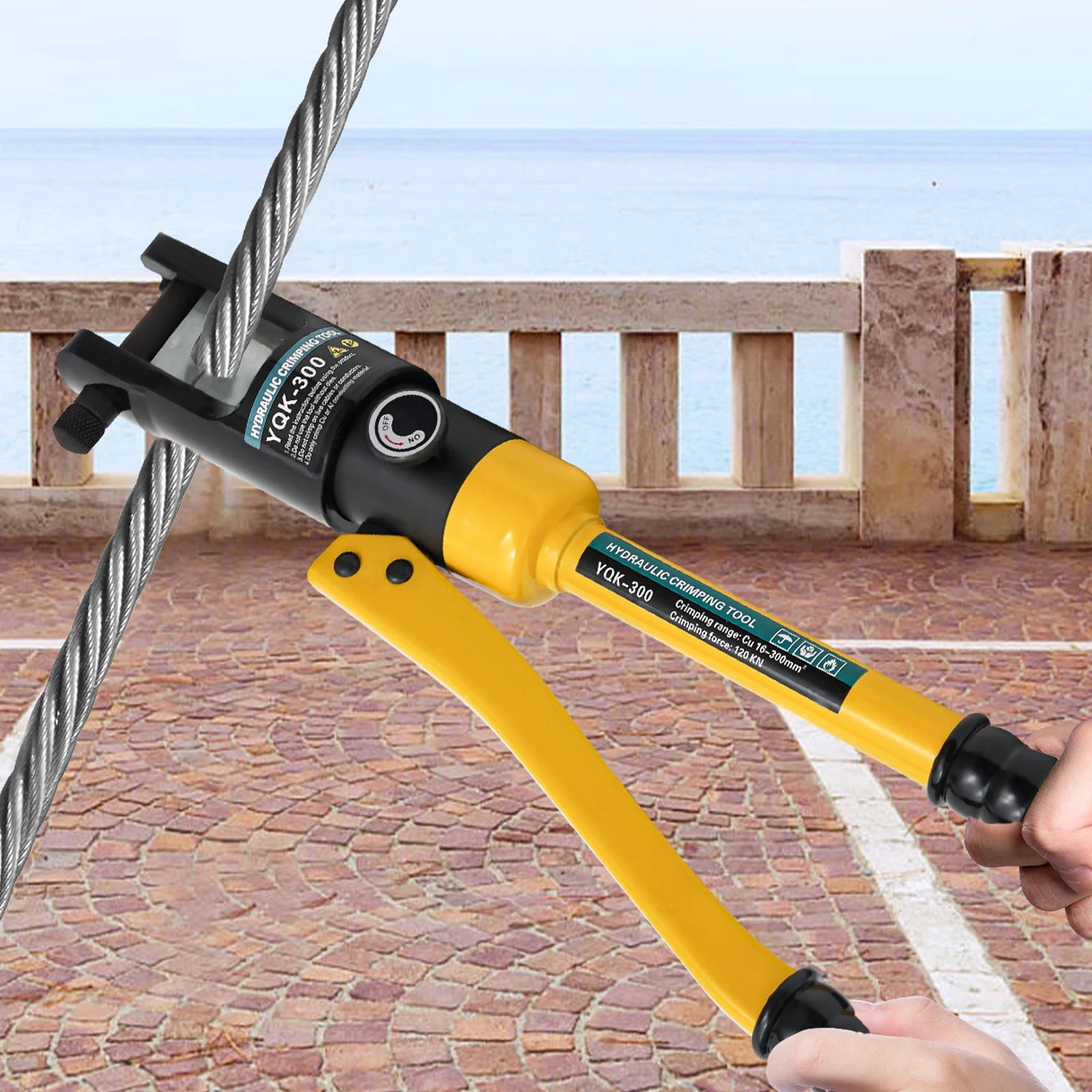

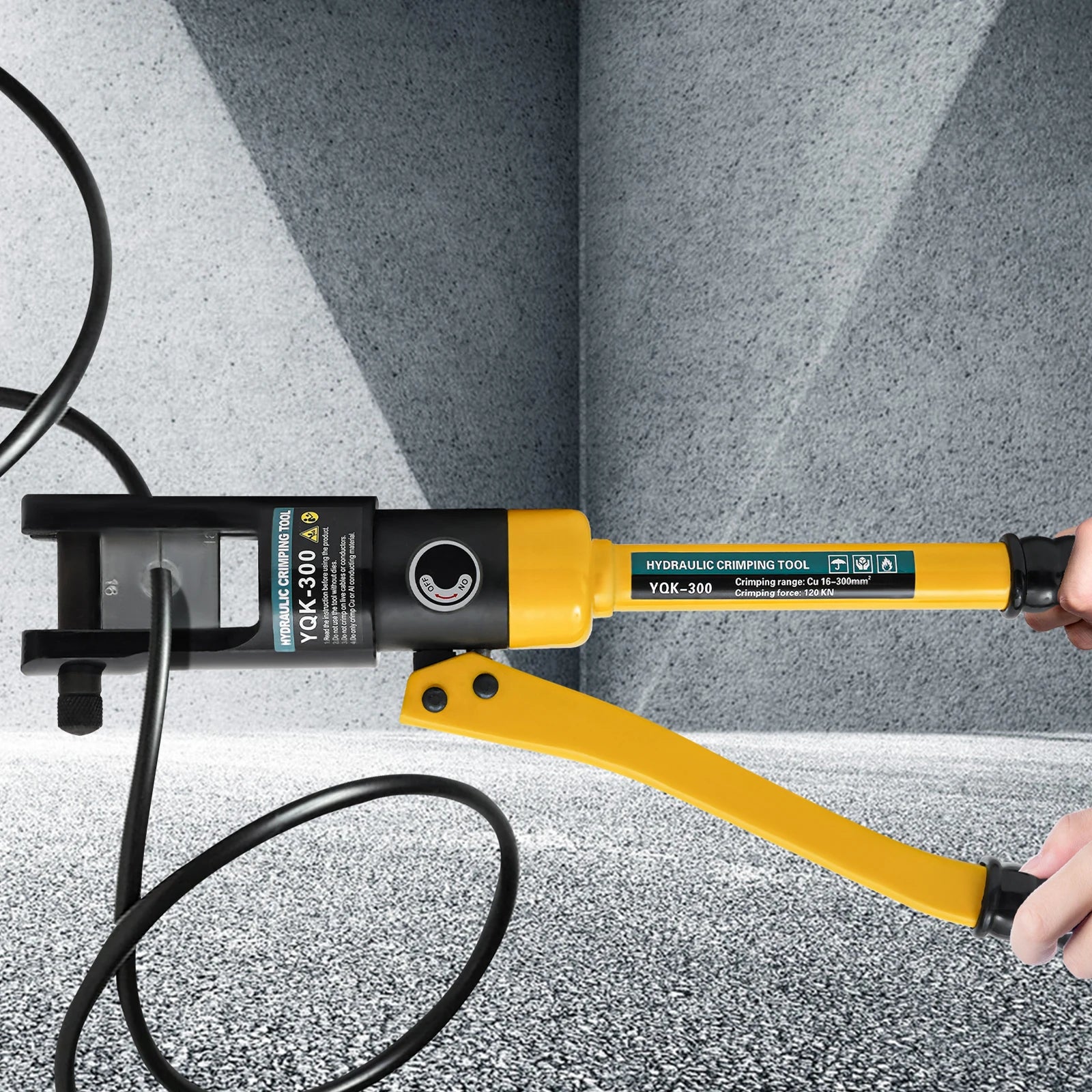

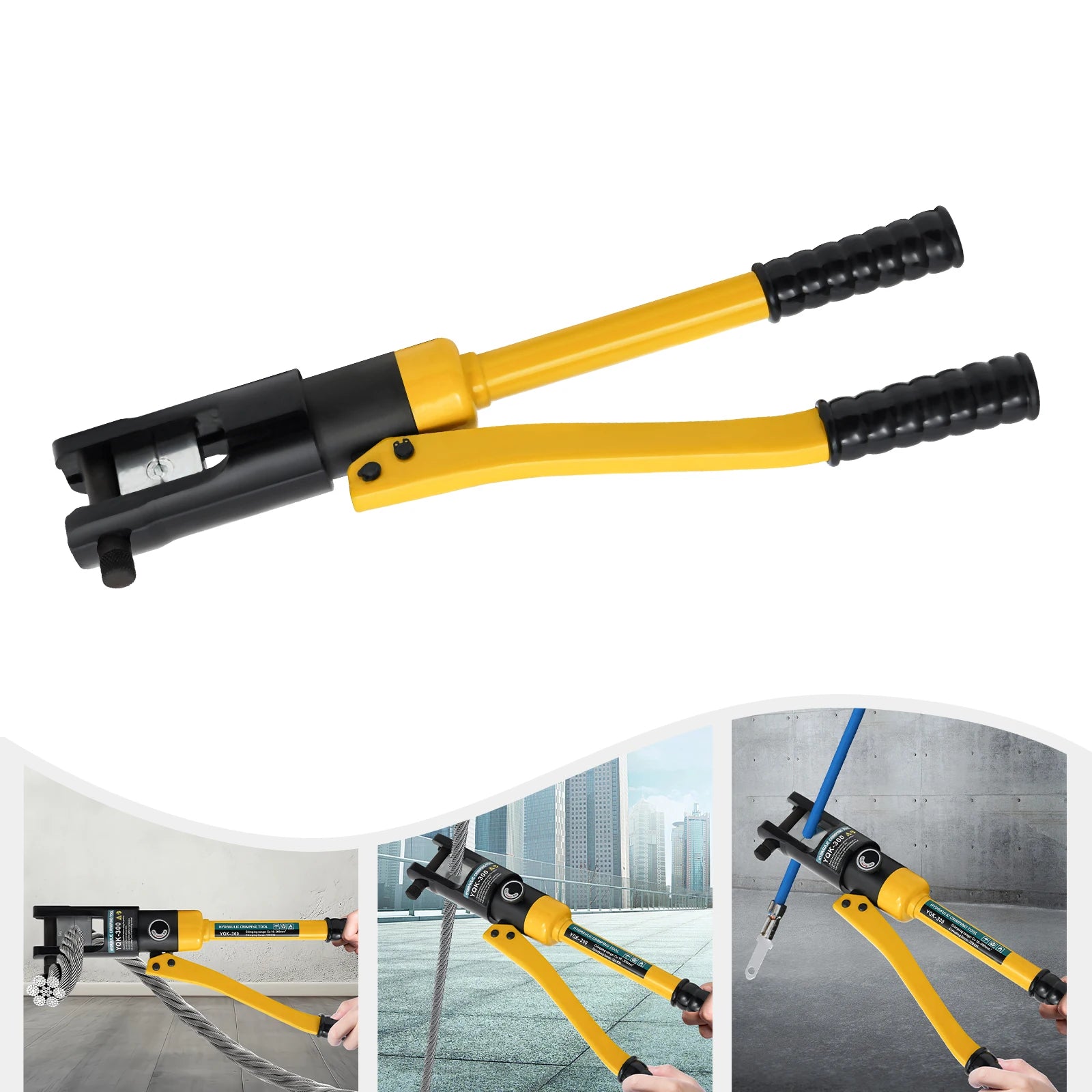

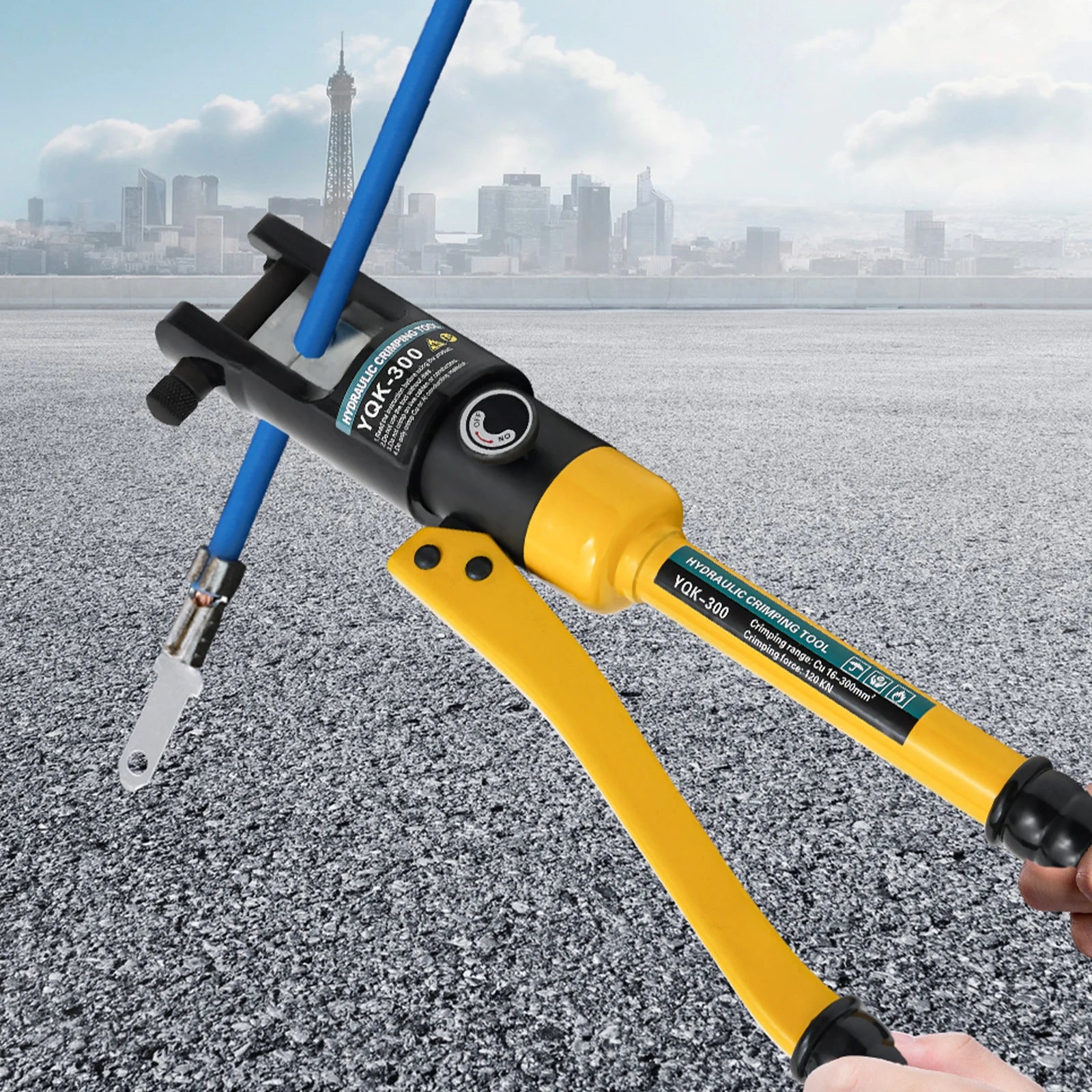

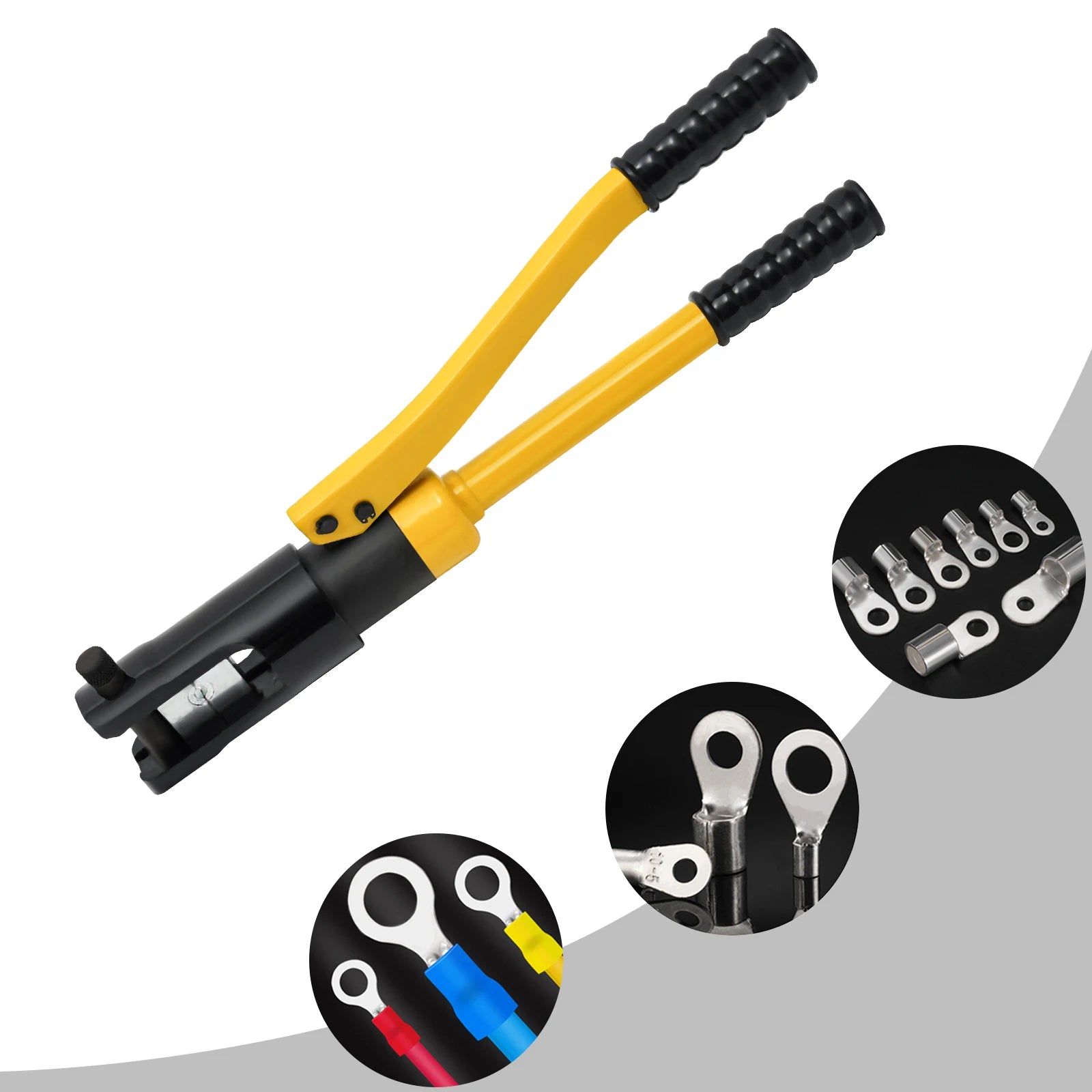

It is widely used for do-it-yourself projects, electrical emergency repairs, electrical cabinet boxes, copper and aluminum terminal crimping, railings, flooring, fencing, motor and aircraft cables, bicycle brakes, and motorcycle cables. It is suitable for battery and soldering cables

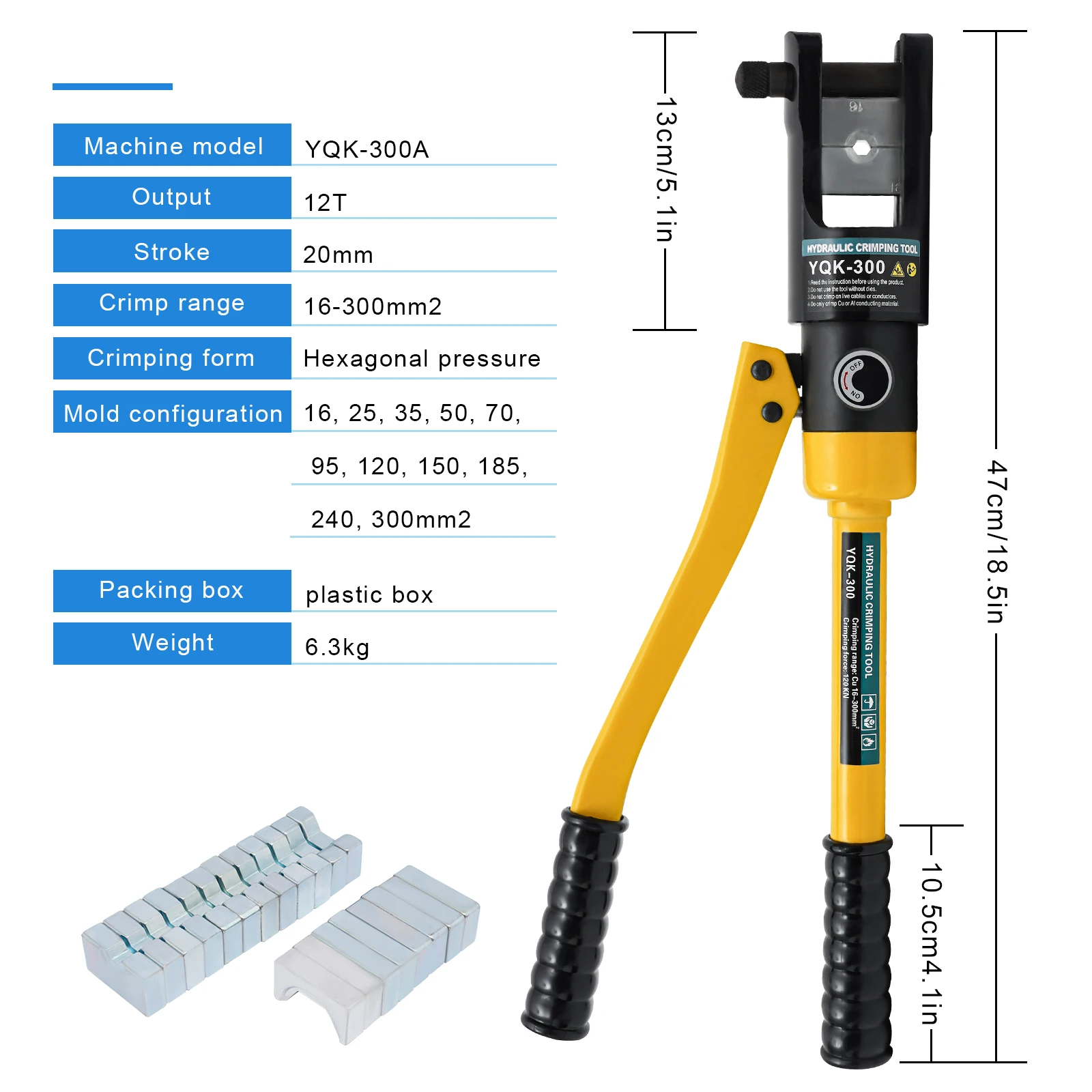

Specification

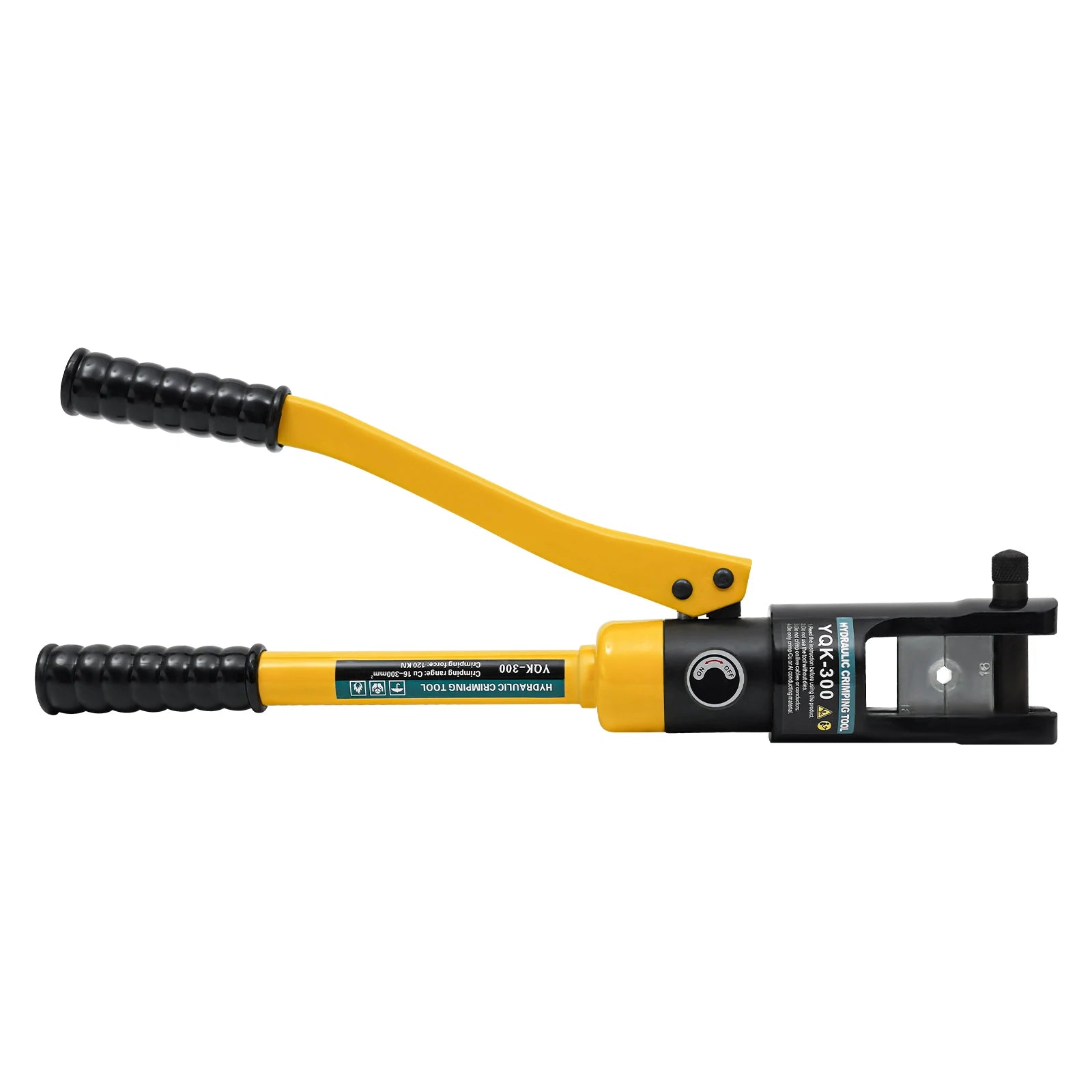

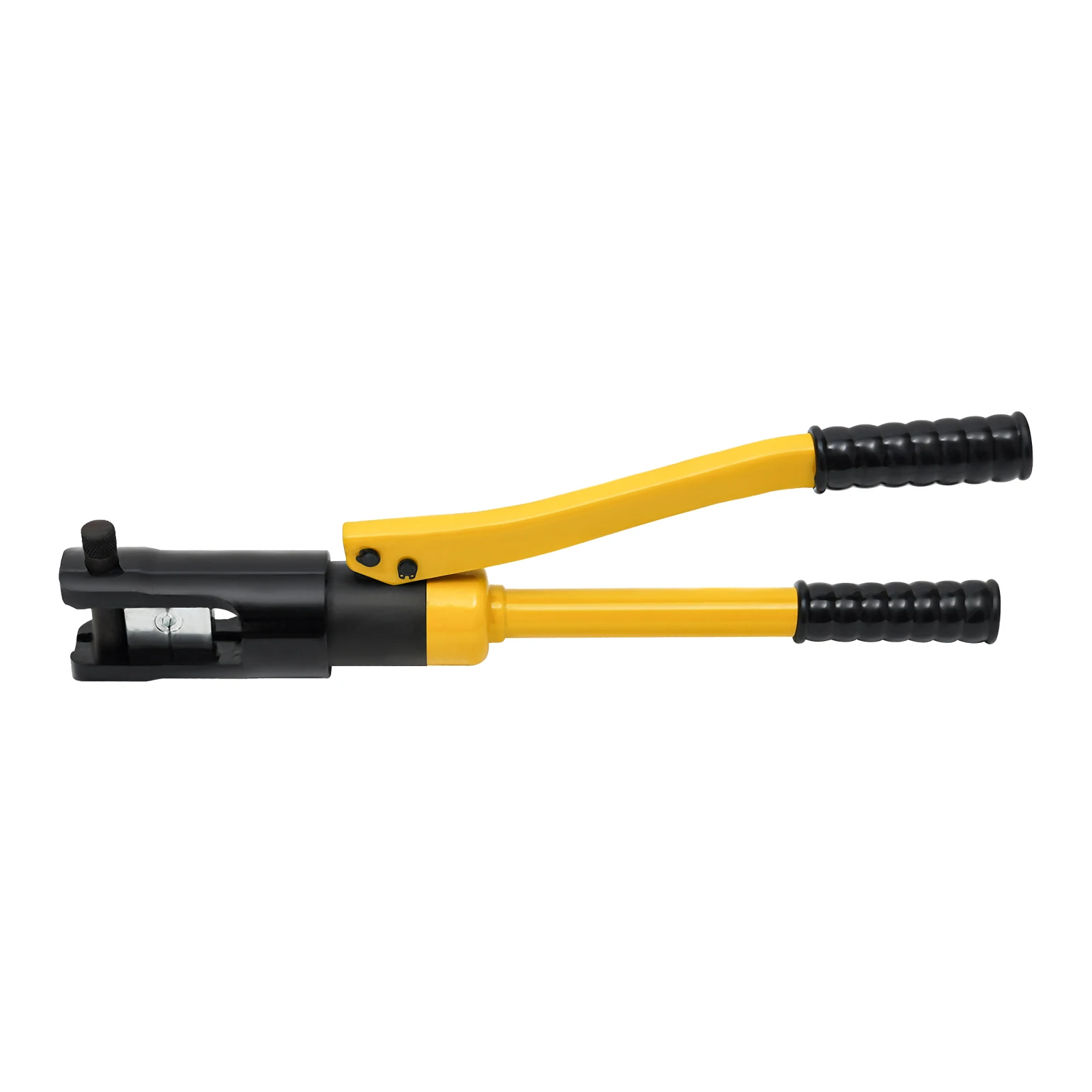

Model: YQK-300
Color: Yellow
Product Type: Hydraulic Crimper

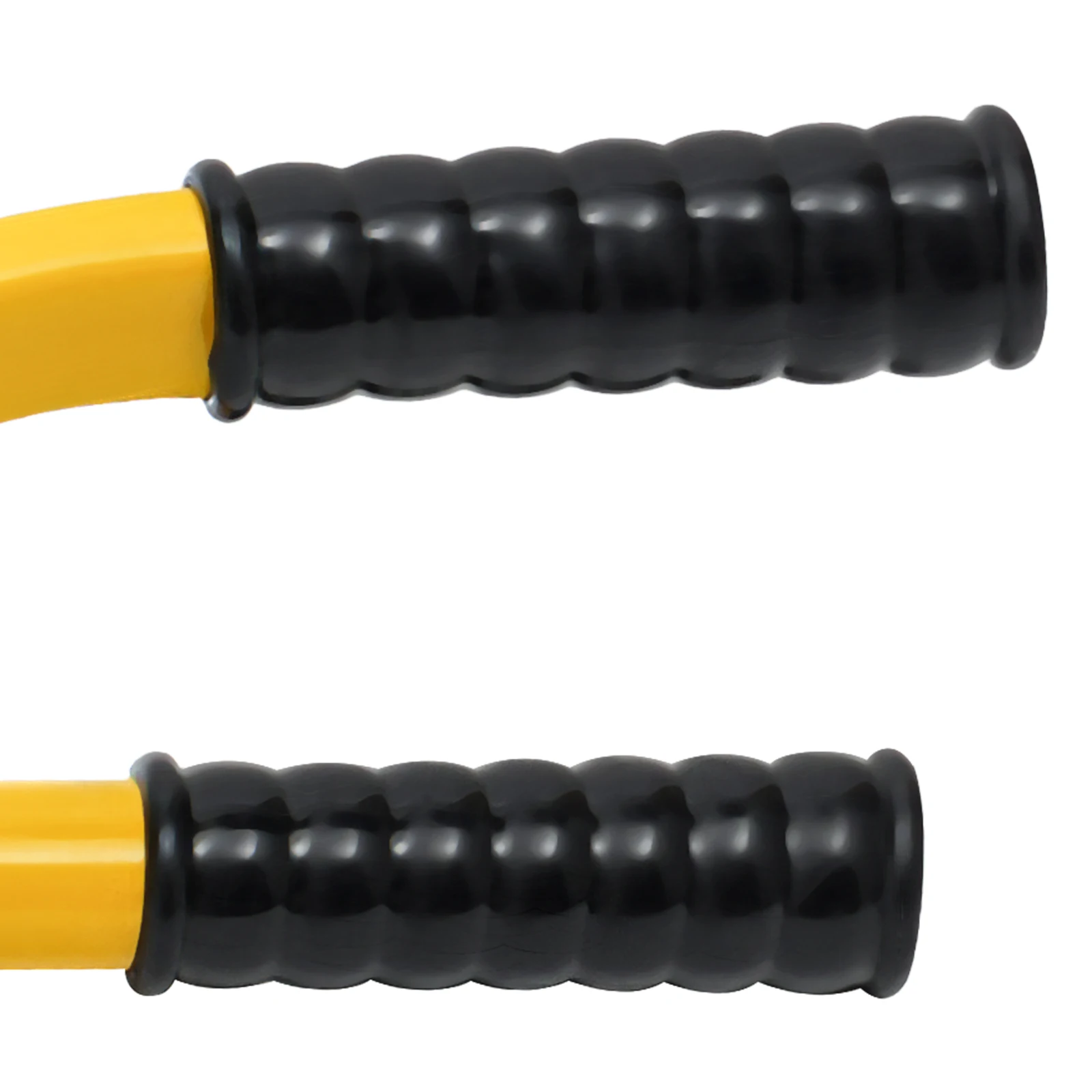

Material: CR45 Steel, Rubber
Process: Heat Treatment, Blackening Treatment, Plastic Spraying

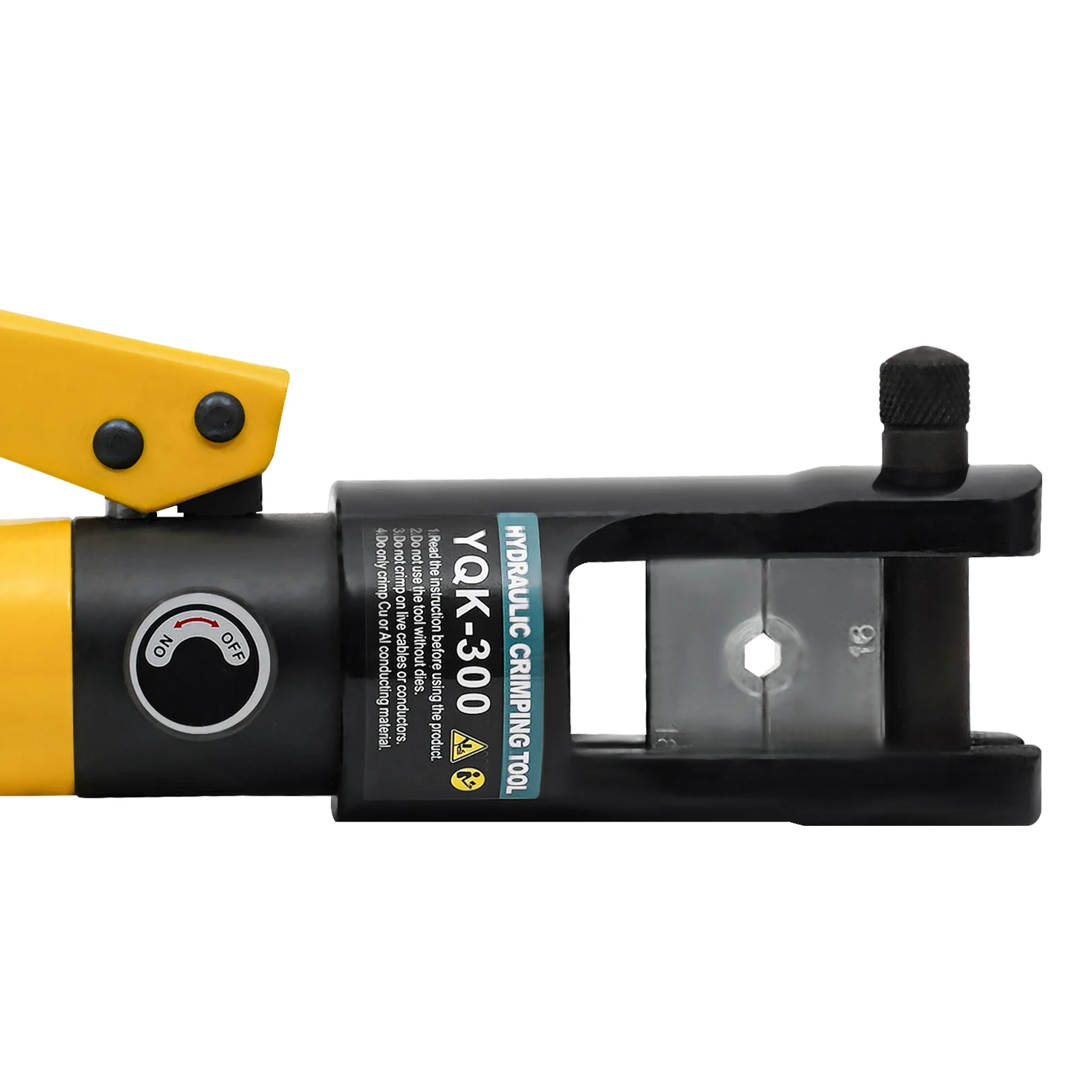

Crimp Form: Hexagonal Surrounding Crimp
Operation Type: Manual
Number of Pieces: 1
Mounting Type: Freestanding
Pressure: 60MPA
Crimping Range: Cu 16-300m㎡/0.014-0.27sq.in
Crimping Force: 120KN/26455lbs

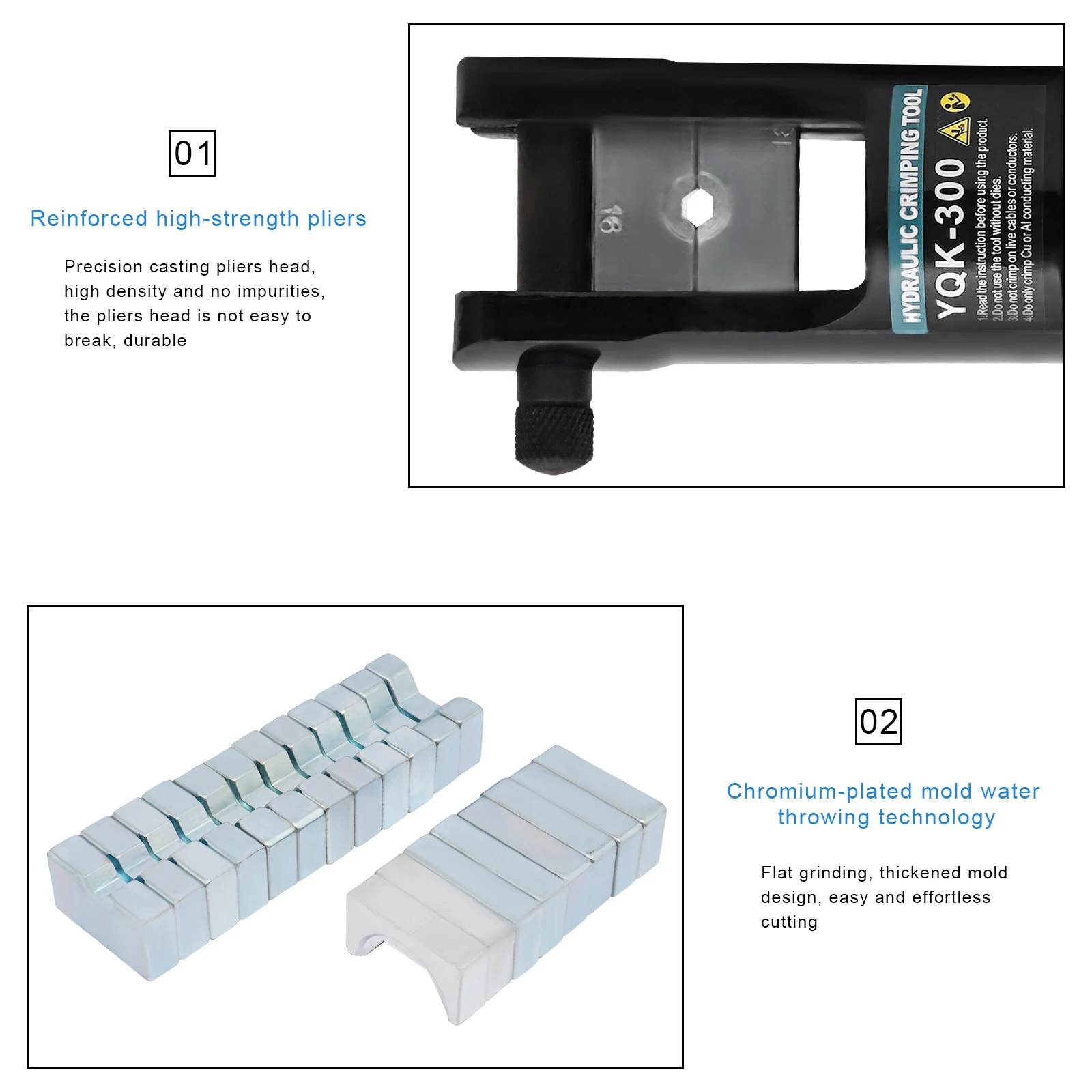

Mold Configuration: 16/25/35/50/70/95/120/150/185/240/300m㎡/0.0144/0.0225/0.0315/0.045/0.063/0.0855/0.108/0.135/0.1665/0.216/0.267sq. in
Stroke: 20mm/0.787inch
Package Size: 50*17*9.5cm/19.6*6.6*3.7inch
Gross Weight: 5.9kg/13lb

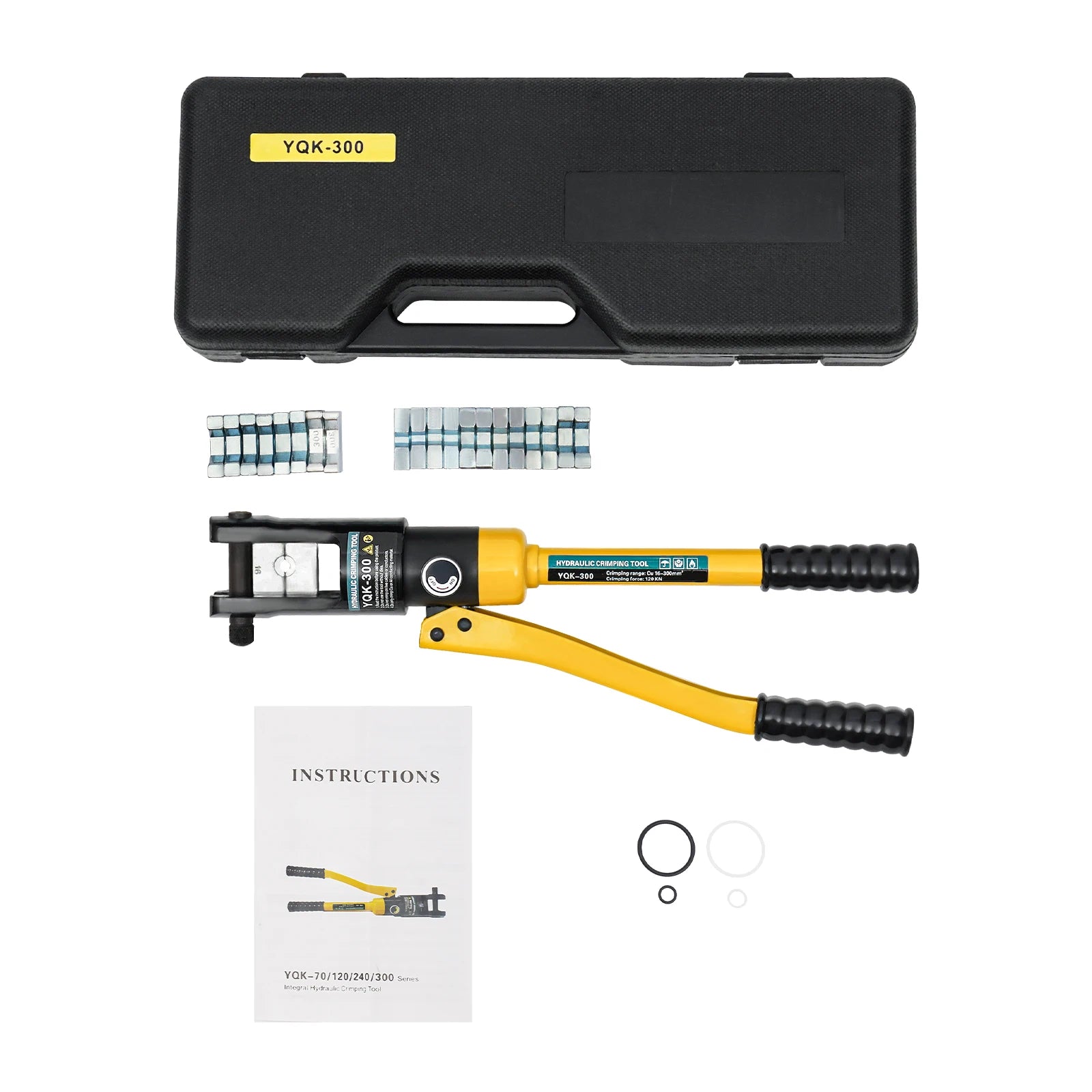

Package Included
1* Hydraulic Crimper
11 Sets* Dies(One is Installed)
1* Storage Case
4* Seal Rings
1* English Instruction

Notes

1.Please read the instruction carefully before using the product and pay special attention to the safety matters therein.
2.Please note that this product does not have a safety valve, so constant pressure will result in overpressure.
3.Please do not use the tool without dies.
4.Please do not crimp on live cables or conductors.
5.Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
