SPECIFICATIONS

Brand Name: Bymaocar

Hign-concerned Chemical: None

Magnification Ratio: /

Origin: Mainland China

Application

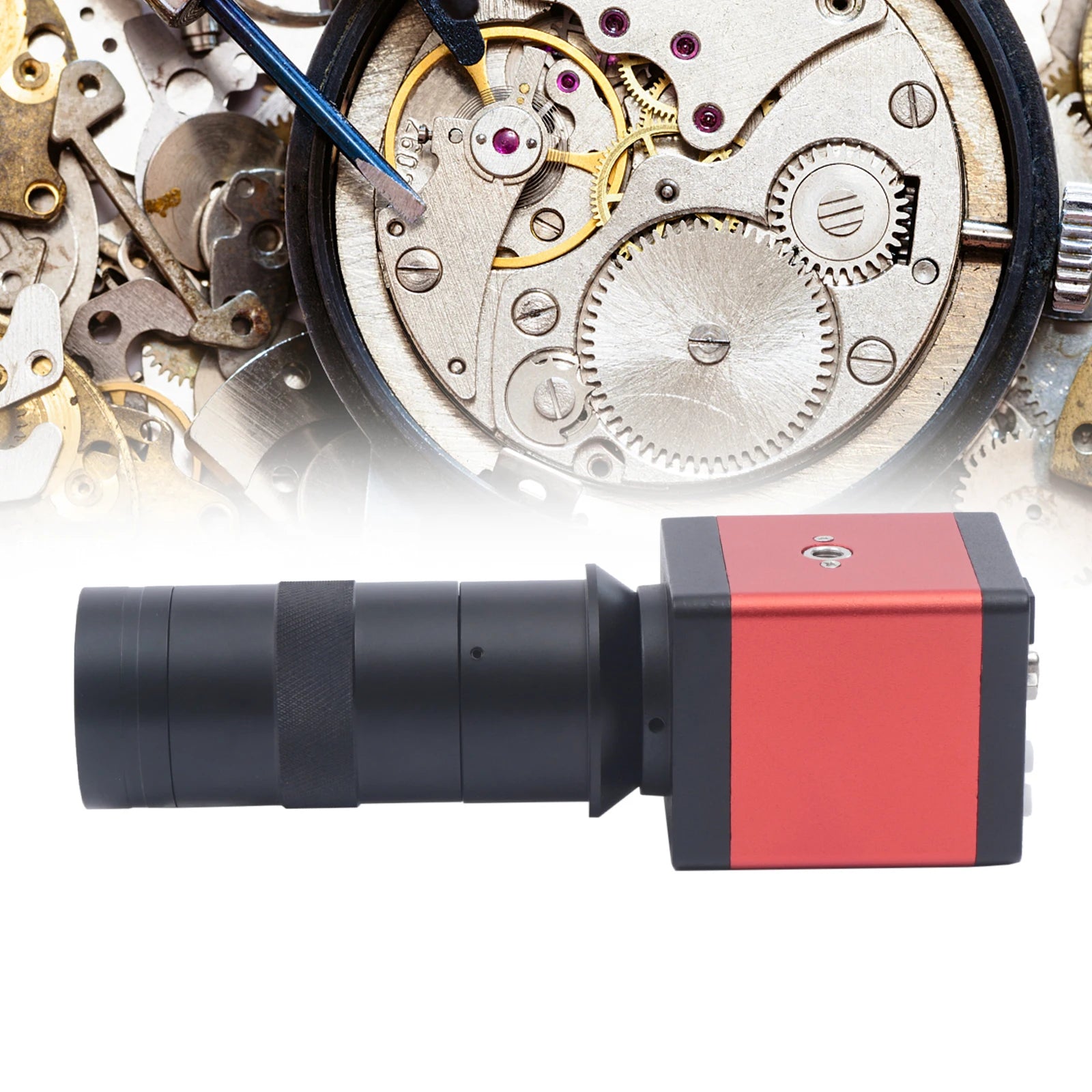

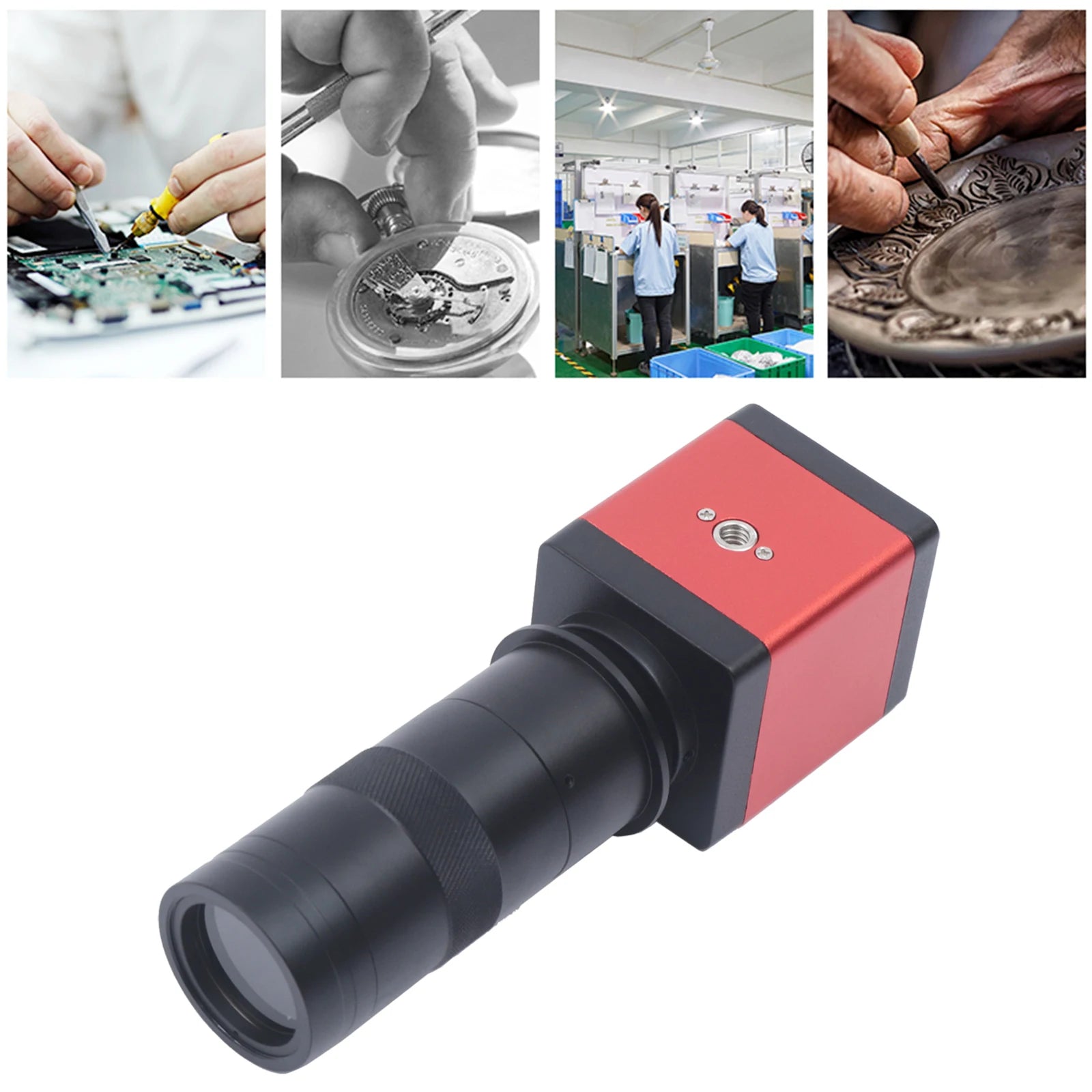

It is suitable for industrial, such as PCB board, hardware, connector, FPC, textile, and other visual industrial inspections, identification use, such as jewelry, jewelry, fingerprint identification, ticket recognition, antiques, and maintenance use, such as cell phones, clocks, watches, and a series of mechanical maintenance.

Crosshairs: This microscope industrial camera has many crosshairs in horizontal and vertical directions with adjustable color and thickness, allowing you to measure and position more accurately.

Remote Control: The various functions of the menu can be controlled remotely within 1m/39inch via this remote control, which is so labor-saving and convenient.

Specification

Shell Materials: Metal

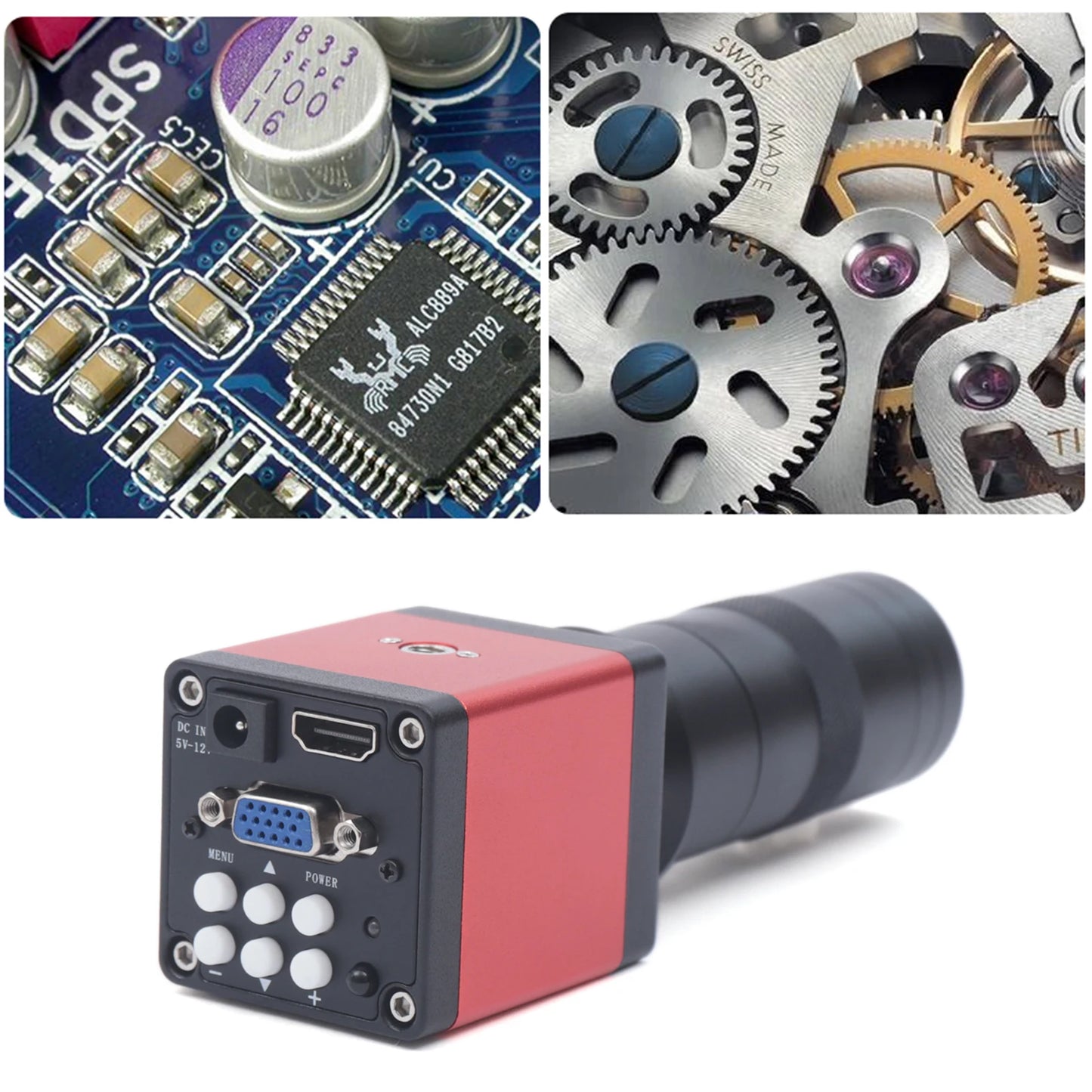

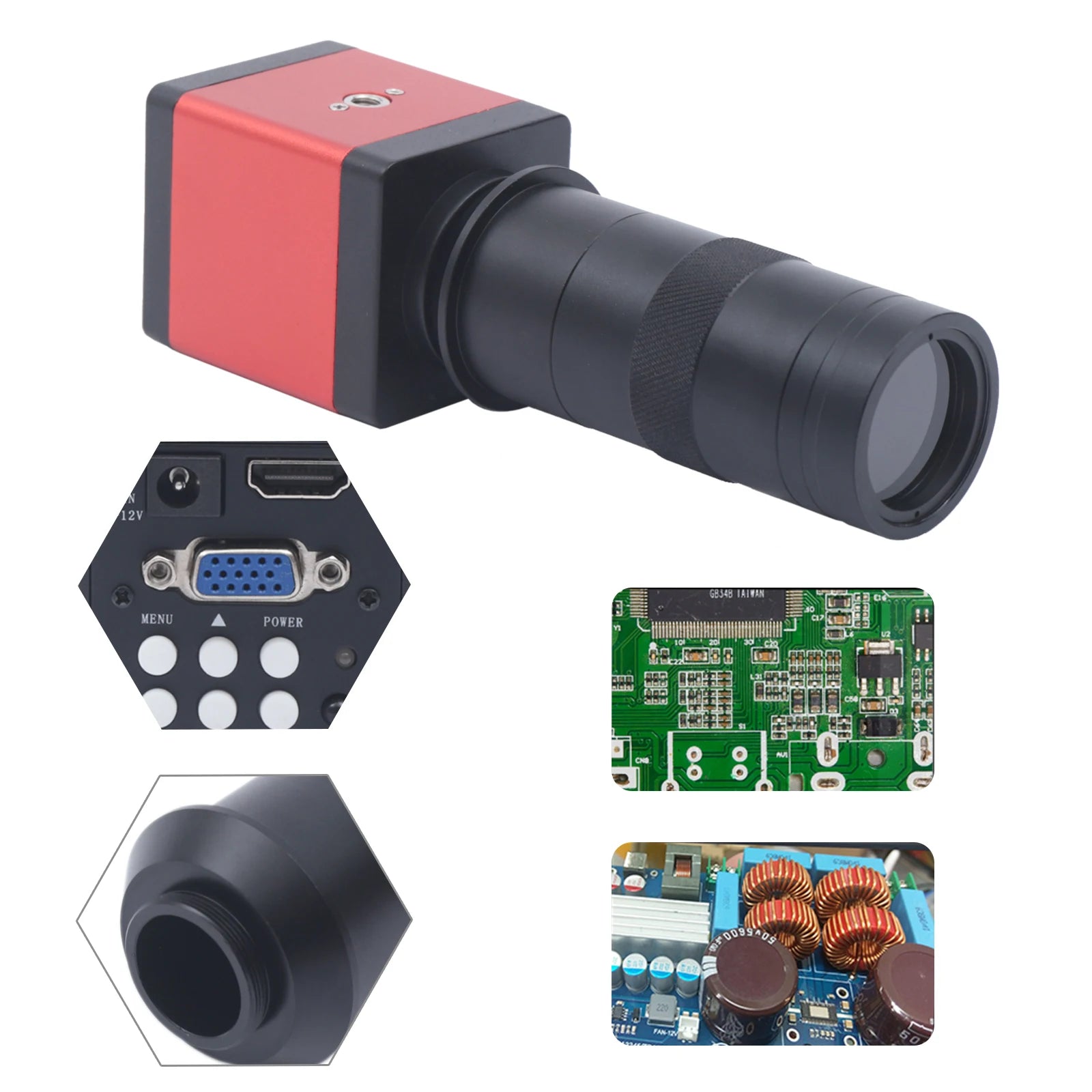

Interface: HDMI/VGA

Clarity: 2 Million Pixels

Image Sensor: CMOS

Frame Rate: 60fps

Brightness Control: Auto/Manual

Lens Magnification of Optics: 0.12 Time-2 Times

Lens Digital Magnification: About 8 Times-130 Times on a 70cm/27.6inch Monitor

Lens Working Distance: 55mm-180mm/2.2-7inch

Lens Field of View: 2.4mm-18mm/0.09-0.7inch

Power: 5W

Voltage: 110V

Remote Manipulation Range: Within 1m/39inch

Gross Weight: 0.63kg/1.4lbs

Net Weight: 0.55kg/1.2lbs

Package Size: 16*10*8cm/6.3*3.9*3.1inch

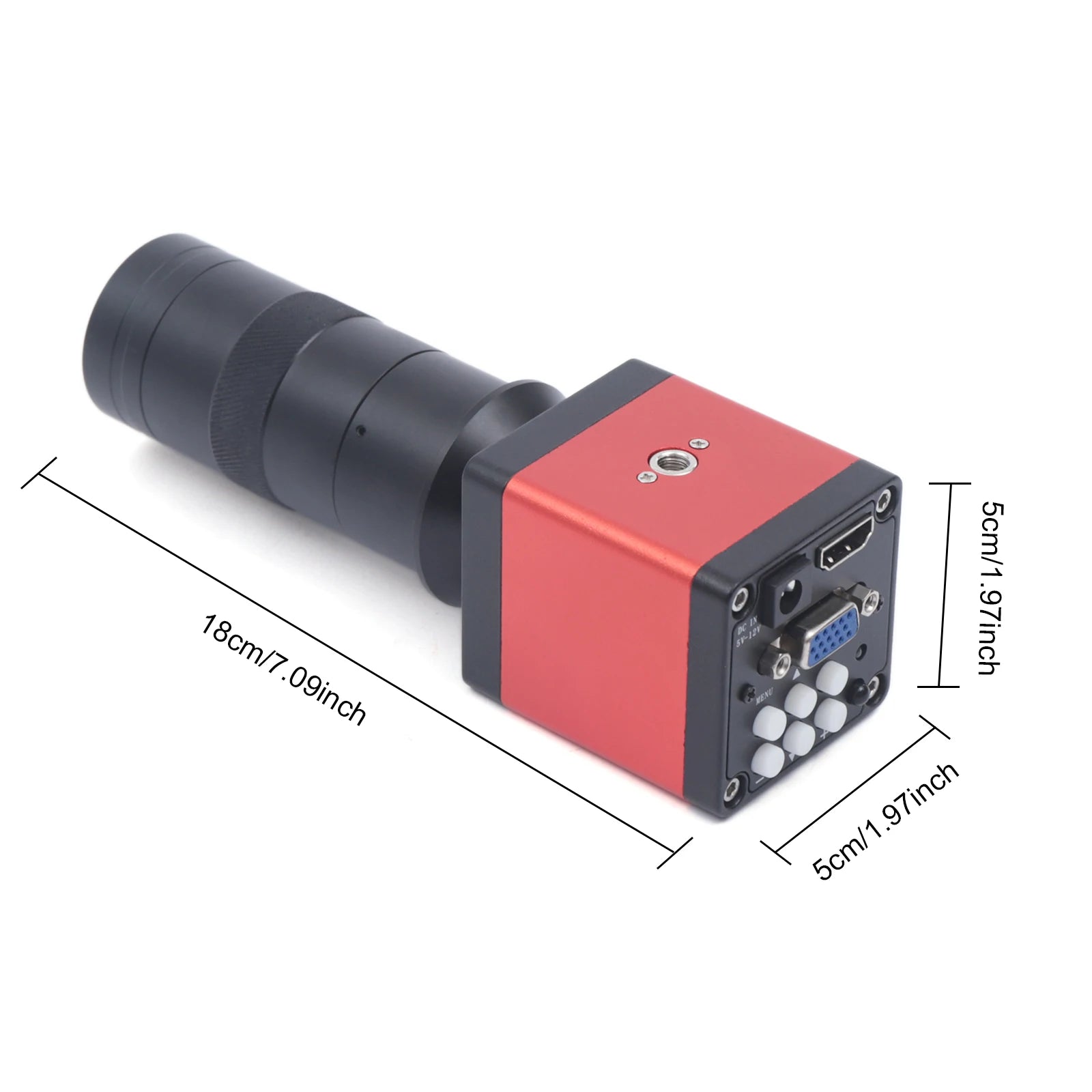

Product Size: 18*5*5cm/7.09*1.97*1.97inch

Lens Length: 11.5cm/4.5inch

Lens Diameter: 4cm/1.6inch

Installation

1. The product is easy to install and needs to be installed by yourself.

2. If you have any questions, please feel free to contact us, we are willing to answer your questions.

Package Included

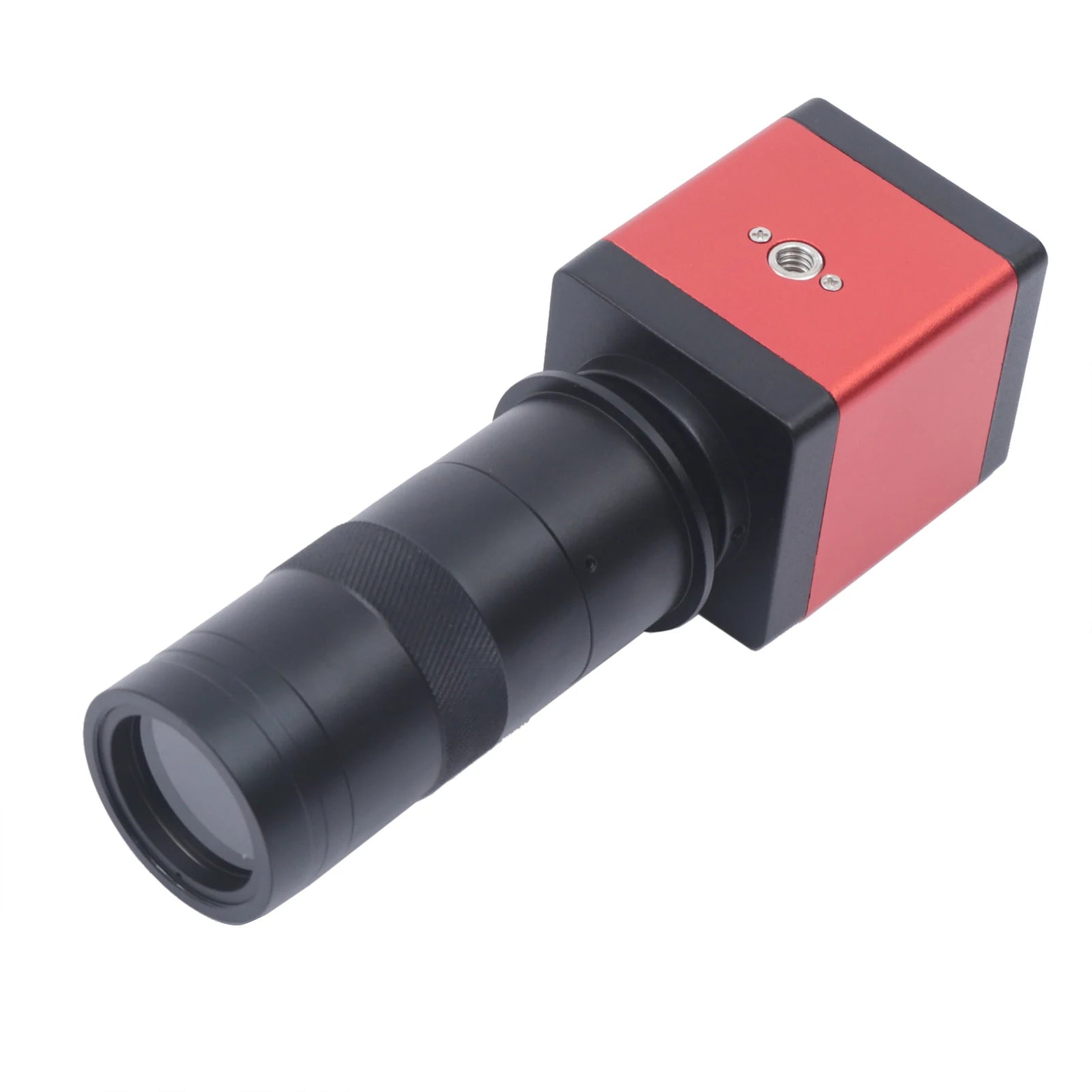

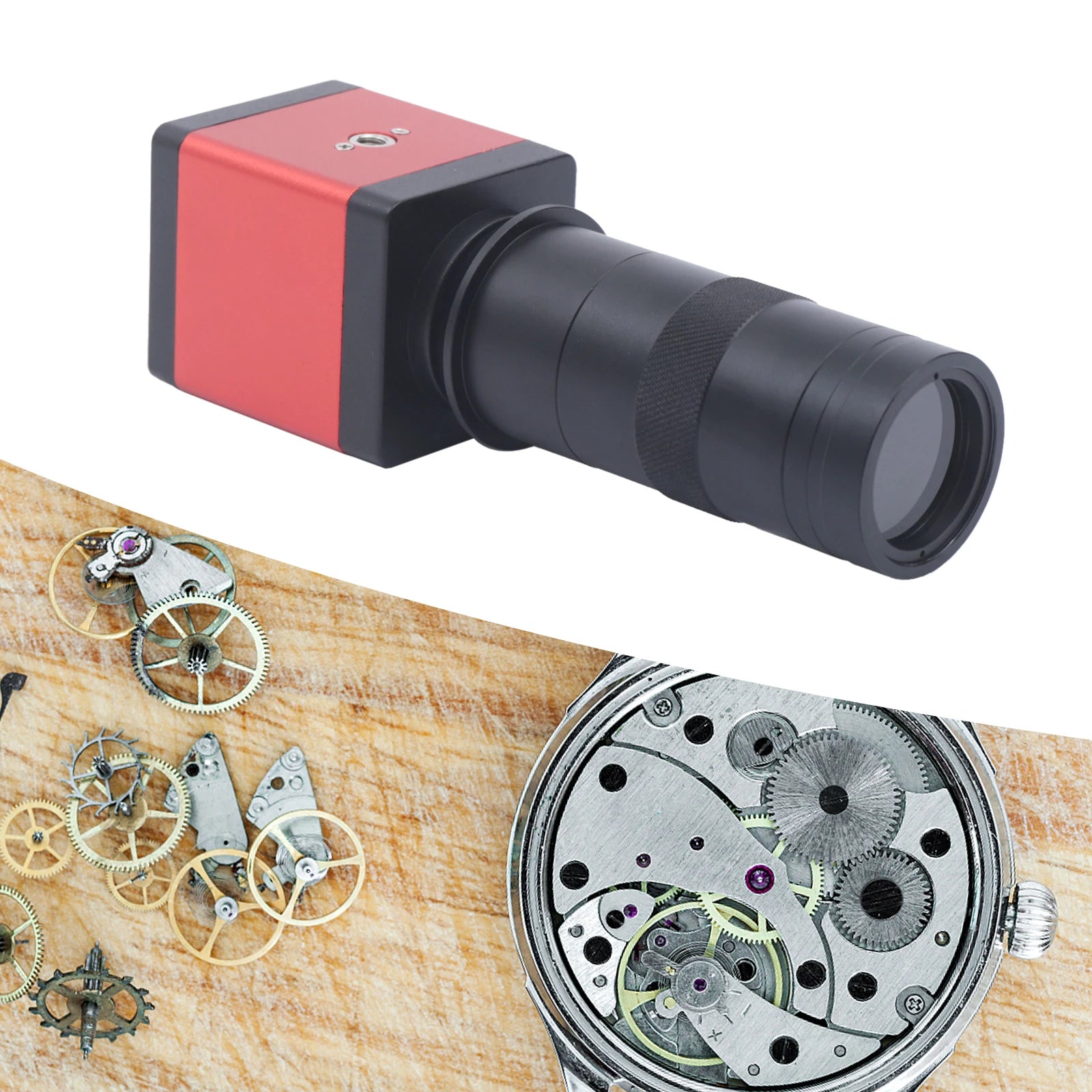

1 * HDMI Microscope Camera

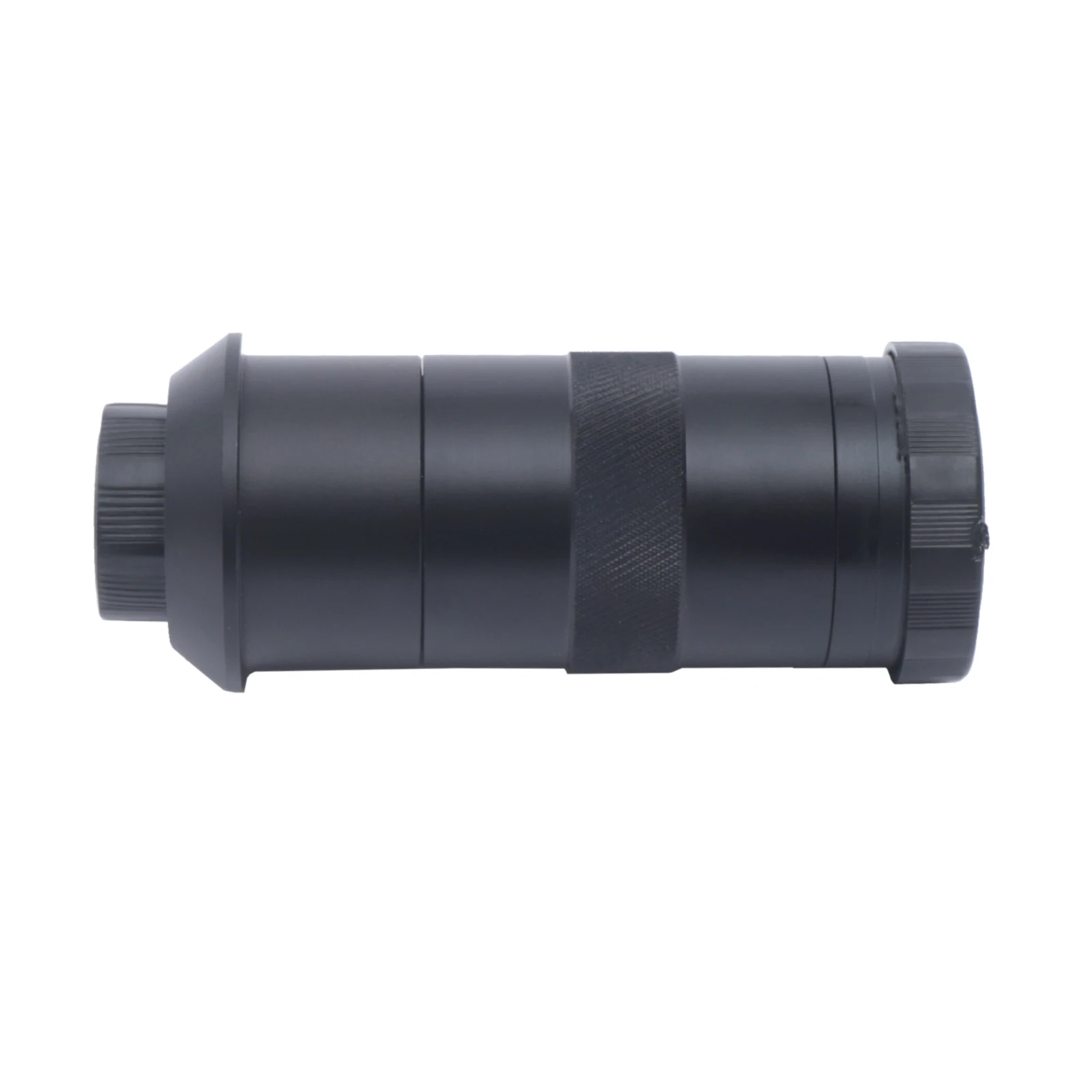

1 * Microscope Lens

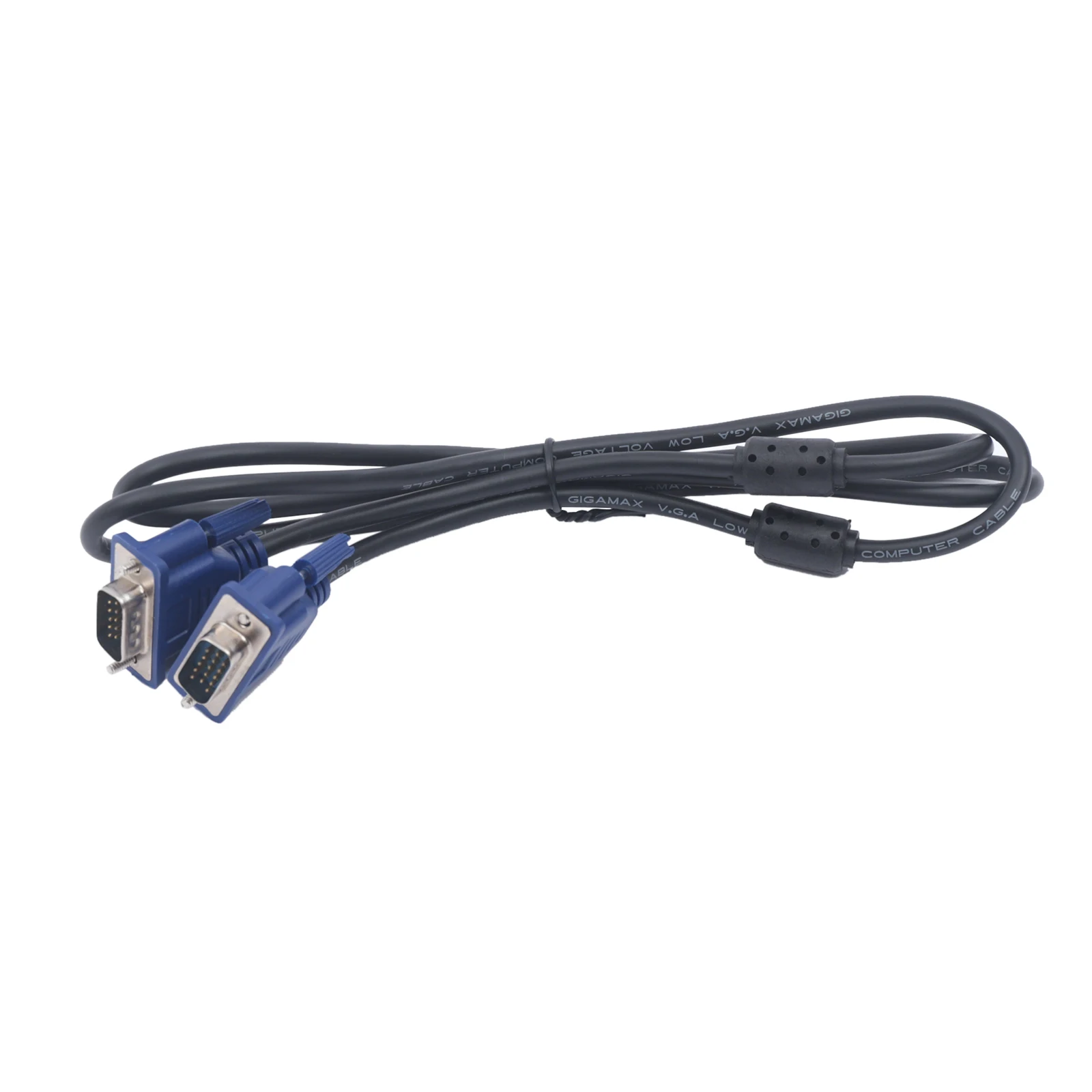

1 * VGA Signal Cable

1 * Remote Control

1 * Power Cord

1 * English&Chinese Manual

Notes

1. Please read the manual completely before use, and pay particular attention to the safety instructions included.

2. The working distance varies with the multiplier.

3. The size of the monitor will affect the magnification.

4. Please do not put the camera in a humid environment, if water accidentally enters, use a hot air blower to dry it.

5. Please do not place the camera lens facing upward to reduce the contamination of the lens by dust, if the lens or imaging components have dust, please use anhydrous alcohol (anhydrous ethanol) to clean or wipe it off with a glasses cloth.

6. Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
