Description

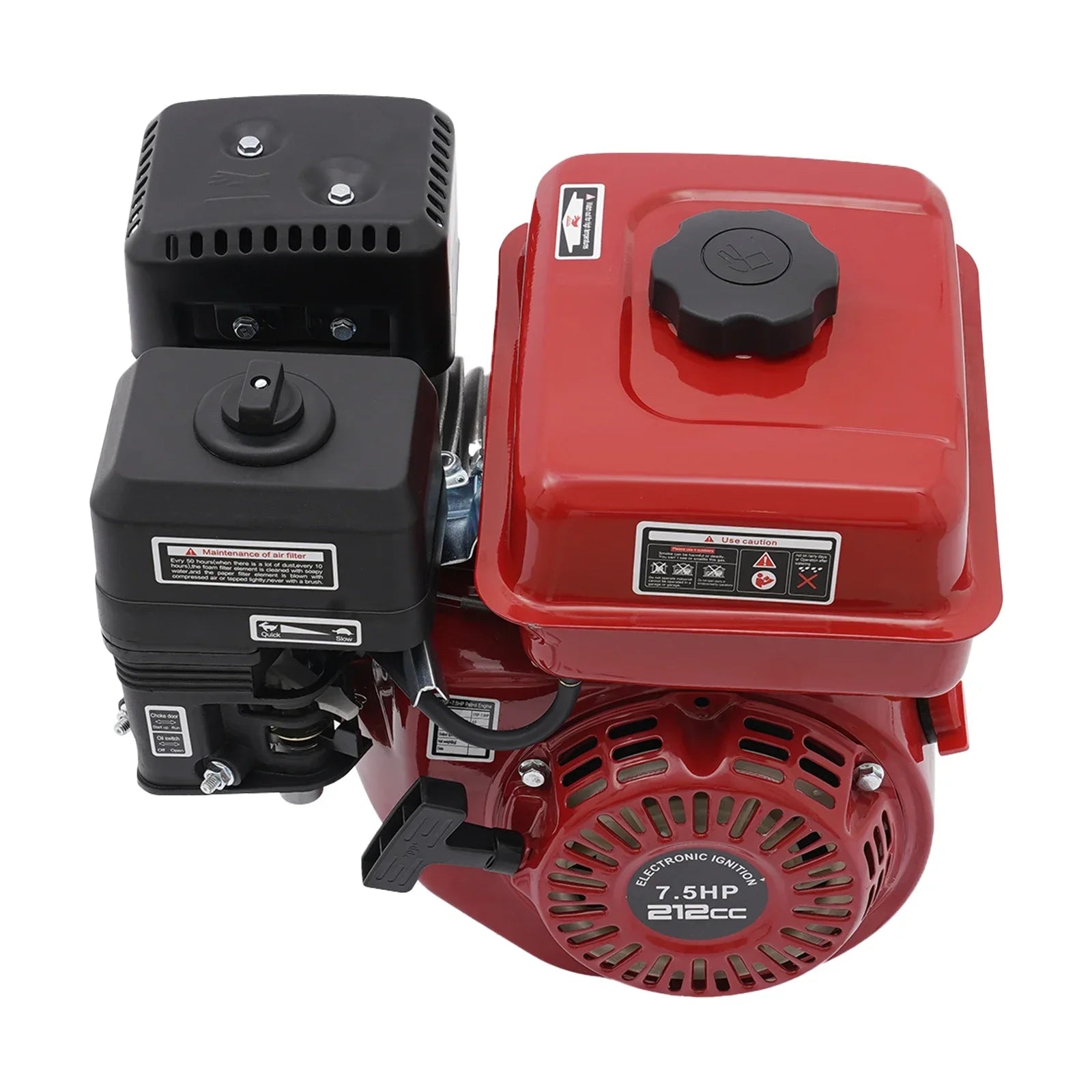

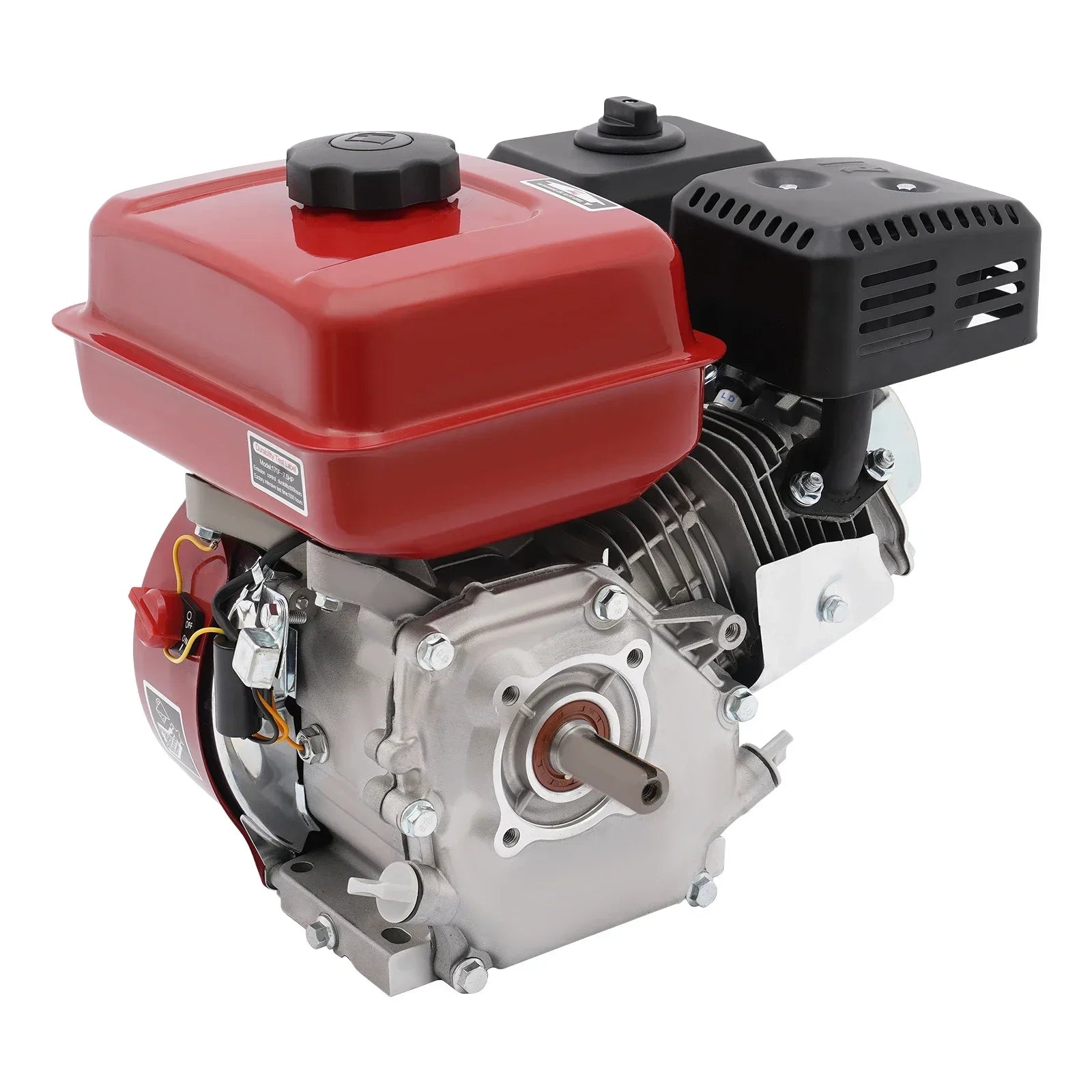

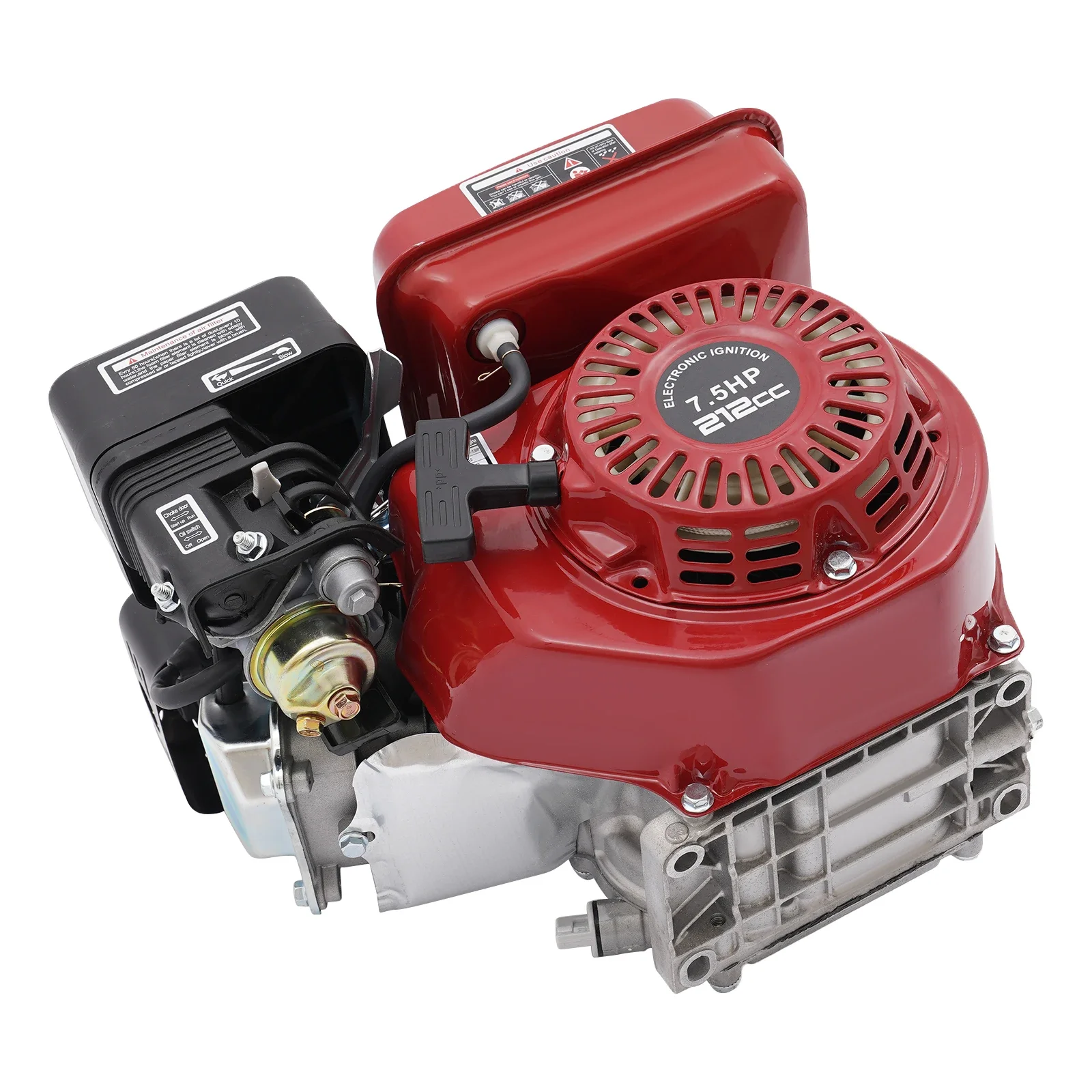

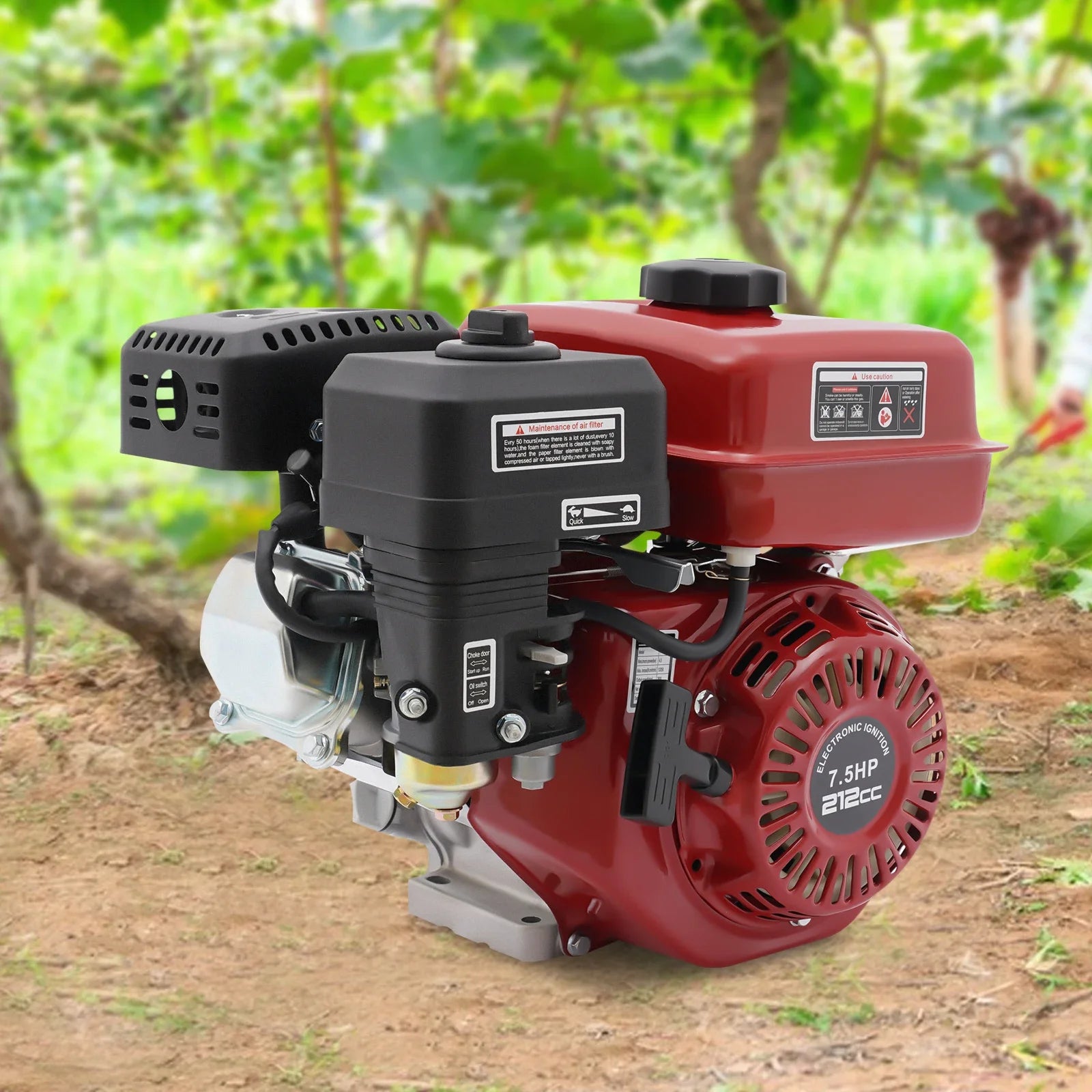

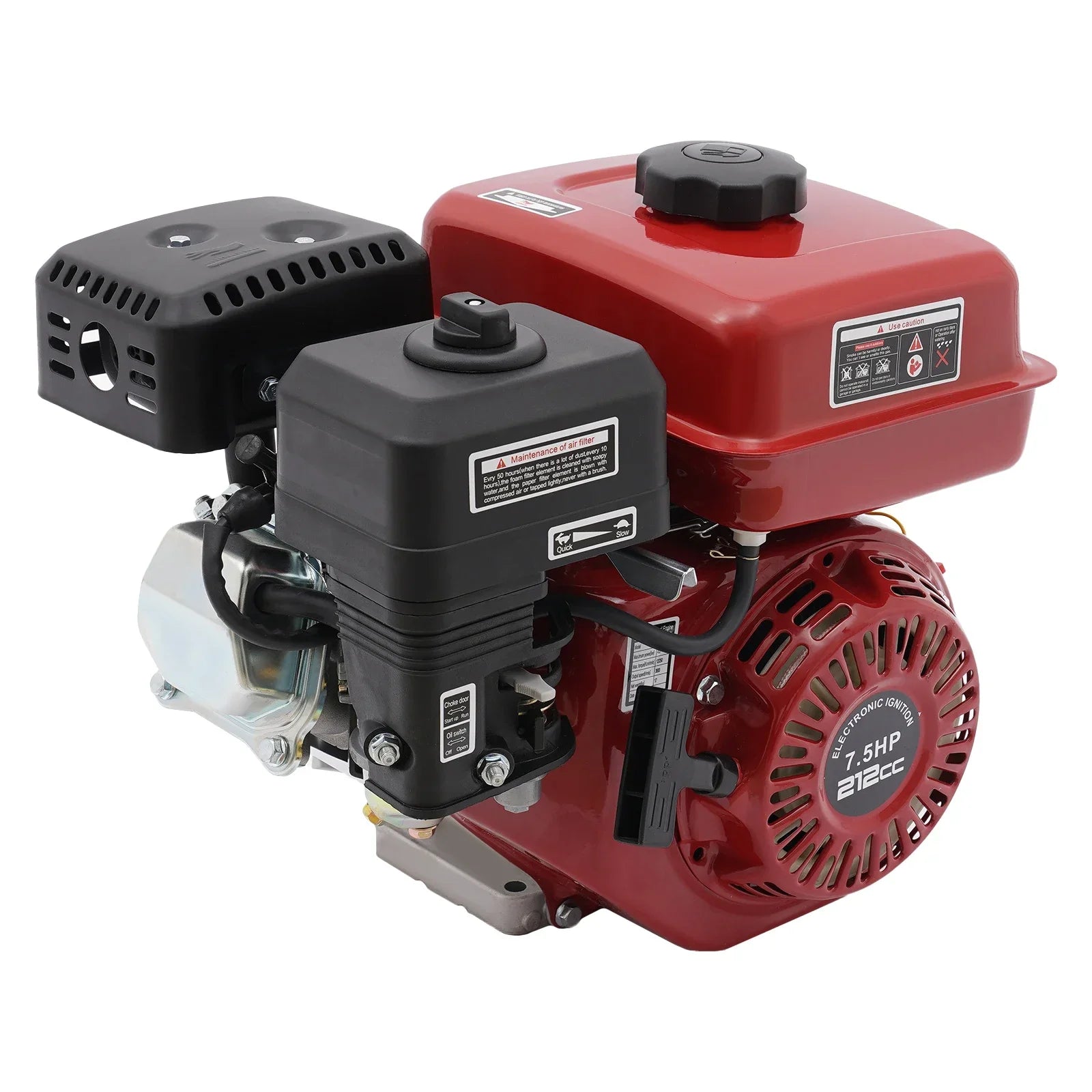

Efficient work starts with replacing your traditional diesel engine! Our gas-powered engine, with its powerful 3000W and 0.95gal fuel tank, can generate huge power to help you complete tasks quickly without frequent refueling. A good cooling system can extend its life. This will be a good assistant for you.



Key Features

Long Service Life: This product is made of iron and aluminum, with high hardness, anti-corrosion, and anti-rust properties, so it can be used for a long time.



Sufficient Power: It has a strong power of 3000W and a rated speed of 3600 rpm, so it can handle heavy loads from water pumps, vibrators, engine, and high-current electric tools.



Large Fuel Tank: The fuel tank of the product has a large capacity of 0.95gal, enabling it to work for a long time. You don't need to fill the fuel tank frequently to save time and energy.



Stable Operation: It has a high-quality starter and cast iron cylinder liner, which makes the engine work stably and effectively to avoid jamming.



Low Fuel Consumption: It is equipped with a high-precision carburetor, which improves the combustion efficiency, thus reducing fuel consumption, which is energy-saving and environmentally friendly.



Good Heat Dissipation Effect: A forced air cooling system and heat dissipation holes can reduce the temperature of the motor in time, prolong the service life of the motor, and reduce potential safety hazards.



Humanized Design: It is equipped with a low oil alarm light that can alert you to add oil in time and a low oil automatic shutdown, helping your engine run year after year. The spark plug placement is easy to reach with a ratchet-socket combo or a simple T handle socket extension tool.



Low Noise: The engine  adopts a high-quality muffler, which can effectively reduce noise and give you a comfortable working environment.



Simple Operation: With a manual starter, it can be easily started by pulling back. It is easy to operate and saves time. Moreover, the package is provided with detailed instructions for your reference.



Guaranteed Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.



Details

Nylon Camshaft: Made of premium nylon, it makes the engine work stably and has excellent intake and exhaust effects, so the engine has higher efficiency.



Air Filter: The air filter with a sponge core inside is easy to maintain and disassemble and can purify the air and filter more thoroughly.



Air Vent:It can cool down the gas after combustion and prevent sparks from spraying out.



Sealed Oil Port: The sealed design of the oil port is easy to access and remove, making it easy to refuel.



Overhead Valve: It adopts the overhead valve design, which can discharge gas quickly without transferring too much heat to the machine body, thus extending the experimental life of the machine.



Application

It is suitable for water pumps, vibrators, engine

, dosing machines, puffers, threshers,recreational vehicles, construction, farm/ranch, pressure washers, air compressors, trenchers, concrete/mortar mixers/saws, go-karts, minibikes, lawnmowers, log-splitter, vacuums, etc.



Specification

Model: 170F

Material: Aluminium, Iron, Cast Iron, Nylon

Emission Control Durability: 600 hours

Factory Intensive Test Time: 1000 hours

Engine Type: 4 Stroke

Power Source: Gas-powered

Starting System: Pull Start

Heat Dissipation System: Air Cooling

Power: 3000W 7.5HP

Color: Red＋Black

Style: Modern

Assembly Required: No

Number of Items: 1

Fuel Type: Gasoline

Engine Displacement: 212cc

Max. Torque: 12.2mm/0.48in

Stroke: 70*55mm/2.76*2.17in

Rotational Speed: 3600rpm

Fuel Capacity: 3.6L/0.95gal

Engine Oil Capacity: 0.6L/0.16gal

Package Size: 39.5*33.5*35.5cm/15.55*13.19*13.98in

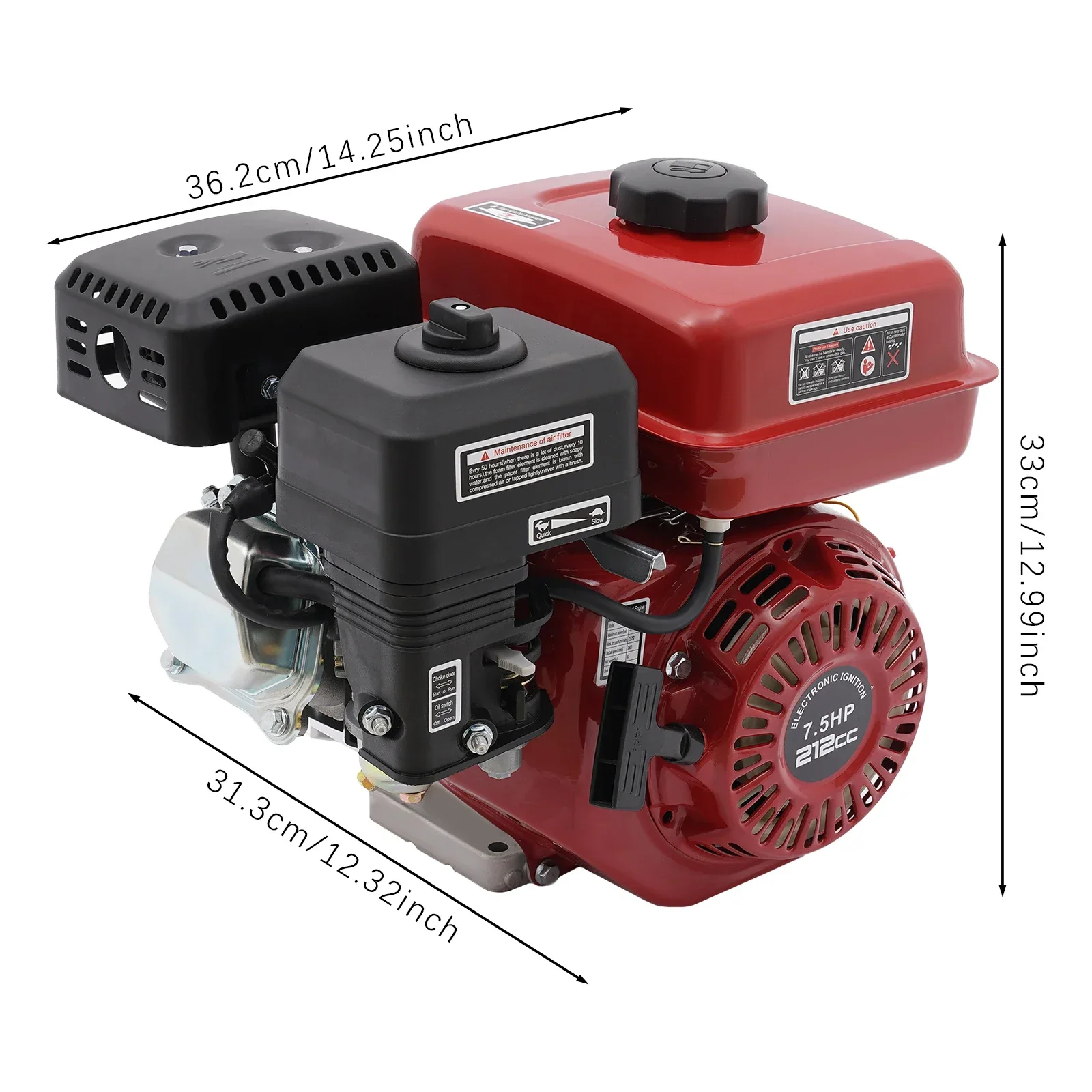

Product Size: 36.2*31.3*33cm/14.25*12.32*12.99in

Gross Weight: 15.5kg/34.17 1bs

Net Weight: 14.5kg/31.97 lbs



Package Included

1*Gas Powered Engine

1* English Manual

Other Accessories for Use



Notes

• Please read the operating manual and label on the machine completely before use. And pay particular attention to the safety instructions included.

• Please always wear appropriate hand and eye protection devices (not included), please note that the product does not include engine oil.

• It is functionally tested in the factory and may contain minimum residual oil or fuel odor.

• Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
